Save Power 30% Industrial Rotary Screw Air Compressor (ISO&CE)

PRIMARY PARAMETERS

Model NO.

DA Series

Type

Twin-Screw Compressor

Advantage

Energy Saving

Mute

Bearing

SKF

Feature

Explosion-Proof

Air Delivery

1.89-54.55 M3/Min

Working Pressure

7.5-13 Bar

Air End

Germany Air End

Eei

Eei1

Working Power

15-250 Kw

Driving Mode

Direct Driven

Trademark

Denair

Transport Package

Export Standard Packing

Specification

CE, SGS, BV, ISO9001 certification

Origin

Shanghai, China

HS Code

8414809090

DETAIL DESCRIPTION

Save Power 30% Industrial Rotary Screw Type Air Compressor (ISO&CE)

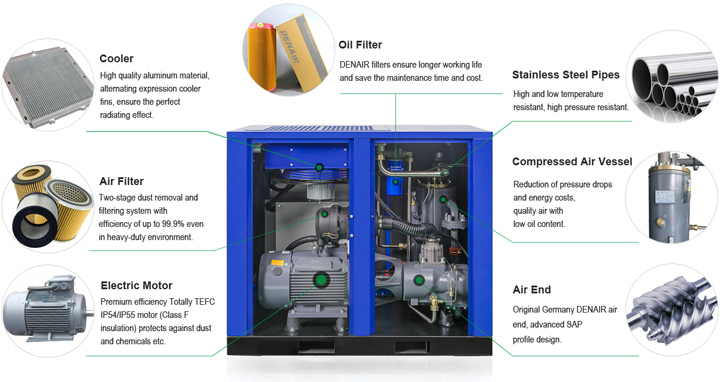

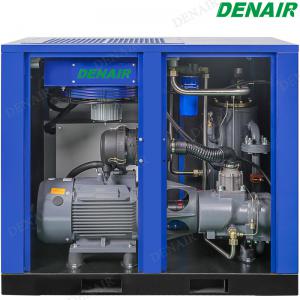

Oil Filter: Germany filters ensure longer working life and save the maintenance time and cost.

Stainless Steel Pipes: High and low temperature resistant, high pressure resistant.

Compressed Air Vessel: Reduction of pressure drops and energy costs, quality air with low oil content.

Air End: Original Germany DENAIR air end, advanced profile design.

Electric Motor: Premium efficiency Totally TEFC IP54/IP55 motor (Class F insulation) protects against dust and chemicals etc.

Air Filter: Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environment.

Cooler: High quality aluminum material, alternating expression cooler fins, ensure the perfect radiating effect.

Energy Saving Direct Drive Screw Air Compressor Advantages

1. State-of-the-art screw element, original Germany DENAIR air end, advanced SAP profile design, superior Sweden SKF element bearings

2. Adopts world-renowned components, such as Schneider electronics from
France, Danfoss pressure sensor from
Denmark, etc. Contribute to guarantee the compressor longer service life.

3. High-precision flexible coupling for direct driven air compressor, 1: 1 transmission ratio, lower energy consumption, higher efficiency.

4. Intelligent controller and multi-language LCD keep the outstanding safety
Performance.

5. Stainless steel oil pipe and air pipe, high temperature resistant (400ºC=752ºF) and low temperature resistant(-270ºC=518ºF), high pressure resistant. LUltra-long life(80 years), completely leak free and maintenance free

6. Conform to CE, ISO9001 and energy saving certification, etc.

Technical Parameters Of Energy Saving Direct Rotary Screw Air Compressor

Model	Maxinmum working pressure	Capacity(FAD)*	Installed motor power	driving mode& Cooling method	Dimensions (mm)	Weight	Noise level**	Air outlet pipe diameter
50 HZ	60 HZ
bar(e)	psig	m3/min	cfm	m3/min	cfm	kw	hp	L	W	H	kg	dB(A)
DA-55+	7.5	109	11.33	400	11.54	407	55	75	Direct Driven Air Cooling	2200	1400	1600	1600	69	G2"
8.5	123	11.12	393	11.23	396	55	75
10.5	152	9.79	346	9.7	343	55	75
13	189	9.7	343	9.66	341	55	75
DA-75+	7.5	109	14.63	516	14.73	520	75	100	2200	1400	1600	1700	69	G2"
8.5	123	14.52	513	14.57	515	75	100
10.5	152	11.23	396	11.43	404	75	100
13	189	9.7	343	9.73	344	75	100

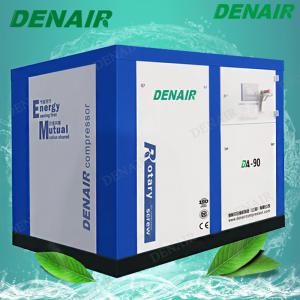

DA-90+	7.5	109	19.8	699	19.79	699	90	120	2950	1800	2300	2500	72	DN80
8.5	123	19.78	698	19.78	698	90	120
10.5	152	16.48	582	18.54	655	90	120
13	189	13.6	480	16.32	576	90	120
DA-110+	7.5	109	22.66	800	22.87	807	110	150	2950	1800	2300	3500	75	DN80
8.5	123	22.56	796	22.56	796	110	150
10.5	152	18.85	666	19.78	698	110	150
13	189	18.54	655	16.32	576	110	150
DA-132+	7.5	109	27.6	975	27.19	960	132	175	2950	1800	2300	3950	75	DN80
8.5	123	26.99	953	27.04	955	132	175
10.5	152	22.45	793	22.62	799	132	175
13	189	18.85	666	22.25	786	132	175
DA-160+	7.5	109	32.53	1149	32.36	1143	160	215	3700	2300	2450	5000	75	DN80
8.5	123	32.49	1147	32.34	1142	160	215
10.5	152	27.58	974	27.19	960	160	215
13	189	22.4	791	22.22	784	160	215
DA-185(W)+	7.5	109	42.55	1502	40.27	1422	185	250	Direct Driven Air Cooling W-Water Cooling	3700	2300	2450	5500	75	DN100
8.5	123	42.53	1502	40.18	1419	185	250
10.5	152	33.14	1170	33.1	1169	185	250
13	189	27.31	964	27.19	960	185	250
DA-200(W)+	7.5	109	44.61	1575	42.44	1498	200	270	3700	2300	2450	6500	78	DN100
8.5	123	44.59	1574	42.33	1495	200	270
10.5	152	33.14	1170	33.1	1169	200	270
13	189	27.31	964	27.19	960	200	270
DA-220(W)+	7.5	109	46.89	1656	51.06	1803	220	300	3700	2300	2450	6700	78	DN100
8.5	123	46.83	1654	50.96	1799	220	300
10.5	152	38.24	1350	39.76	1404	220	300
13	189	32.81	1158	32.77	1157	220	300
DA-250(W)+	7.5	109	56.24	1986	56.26	1986	250	350	3700	2300	2450	6800	78	DN100
8.5	123	56.22	1985	56.01	1978	250	350
10.5	152	41.6	1469	45.89	1620	250	350
13	189	37.85	1337	39.37	1390	250	350
DA-280(W)+	7.5	109	58.4	2062	60.39	2133	280	375	4300	2400	2350	7500	78	DN125
8.5	123	58.09	2051	60.36	2131	280	375
10.5	152	46.75	1651	49.92	1763	280	375
13	189	41.19	1454	45.42	1604	280	375
DA-315(W)+	7.5	109	62.7	2214	66.57	2351	315	425	4300	2400	2350	7800	80	DN125
8.5	123	62.62	2211	66.57	2351	315	425
10.5	152	54.92	1939	56.1	1981	315	425
13	189	41.6	1469	49.43	1745	315	425
DA-355(W)+	7.5	109	72.7	2567	74.2	2620	355	475	4300	2400	2350	8500	80	DN125
8.5	123	72.62	2564	74.05	2615	355	475
10.5	152	62.08	2192	65.9	2327	355	475
13	189	46.75	1651	49.92	1763	355	475

*) FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C
**) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A)
***) EEI 1- Energy Effiency Index 1, which refers to enhanced energy saving series

DENAIR Factory

DENAIR Certificates

DENAIR Hannover Messe

We carefully selected for you the classic case

Project Name: Sandblasting and rubber factory in Muscat & Sohar, Oman

Product Name: 45KW 60HP 90KW 120HP direct driven screw air compressor, 45KW 60HP 90KW
120HP variable frequency screw air compressor, with air dryers, air receiver tank and air filters

Model No. & Qty: DA-45AG X 1, DVA-45AG X 1, DA-90AG X 1, DVA-90AG X 1

Working Time: From June, 2015 till now

Save Power 30% Industrial Rotary Screw Air Compressor (ISO&CE)

Event: In June, 2015, DENAIR sales engineer Bella and service engineer Wayne successfuly fininised the installation guide, commissioning and technical training for 4 units of screw air compressor in Oman. The compressors are used for sandblasting in the famous rubber factories of Oman. Considering the local temperature is more than 50ºC, DENAIR factory specifically tailored the air compressors and air driers with high temperature resistance system. It will ensure the air compressors system in continuous work, long service life and high performance in Middle-east area. The customer was very satisfied with the DENAIR customized air compressor system and customized service, they placed the second order in August, 2016.

FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2: What the exactly address of your factory?
A2: No. 10, Xinghao Rd., Jinshan District, Shanghai, China.

Q3: Warranty terms of your machine?
A3: Two years warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: How long will you take to arrange production?
A5: 380V 50Hz we can delivery the goods within 10 days. Other electricity or other color we will delivery within 22 days

Q6: Can you accept OEM orders?
A6: Yes, with professional design team, OEM orders are highly welcome.
