High Efficiency Wet Hydro Cyclone Separator
Metal Mine Hydrocyclone widely applied in mine-chosen technique in various metal mines. It mainly shows in the following works:
1. Classification for section I closed circuit grinding
2. Classification for section II closed circuit grinding
3. Regrinding for fine mine classification
4. Mud-removing before selection and after selection
5. Dam and backfill for gangue

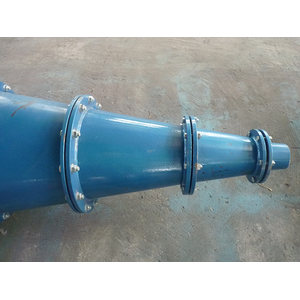

Structure of Hydro Cyclone Separator
1. Cylinder 2. Cone 3. Feeding pipe 4. Underflow port 5.Overflow pipe 6. Overflow pipe port
Working principle of Hydro Cyclone Separator
| Feed the material from feeding pipe , under certifugal and gravity force the material will be rotating in high speed , the heavy product will through the underflow port to discharge , the light product will through the overflow port to discharge |  |

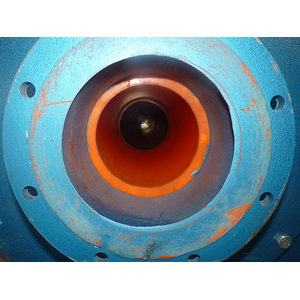

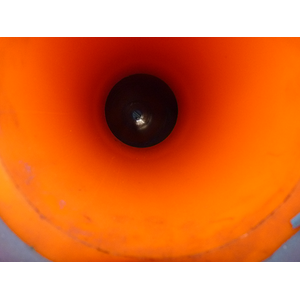

Material available of Hydro Cyclone Separator
<< Polyurethane
<< Low carbon steel shell, polyurethane inner liner
<< Low carbon steel shell, ceramics inner liner
<< Low carbon steel shell, TG-NM compound materials inner liner
Types available of Hydro Cyclone Separator
Single type hydrocyclone Group type hydrocyclone
Technical specifications of Hydro Cyclone Separator
Model | Canister Interior Diameter | Cone Angle | Overfall Pipe Dia. | Bottom Exit Dia. | Max. | Feeding Pressure | Processing Capacity | Classification |
|
FX500 | 500 | 20 | 130~200 | 35~100 | 10 | 0.03~0.3 | 140~220 | 74~200 | 495 |
15 | 74~150 | 540 | |||||||
FX350 | 350 | 20 | 80~120 | 30~70 | 6 | 0.04~0.3 | 60~100 | 50~150 | 182 |
15 | 50~120 | 230 | |||||||
FX300 | 300 | 20 | 65~115 | 20~50 | 5 | 0.04~0.3 | 45~85 | 50~150 | 108 |
15 | 40~100 | 169 | |||||||
FX250 | 250 | 20 | 60~100 | 16~45 | 3 | 0.06~0.35 | 40~60 | 40~100 | 72 |
15 | 40~100 | 77 | |||||||
10 | 30~100 | 83 | |||||||
FX200 | 200 | 20 | 40~65 | 16~32 | 2 | 0.06~0.35 | 25~40 | 40~100 | 60 |
15 | 30~100 | 64 | |||||||
10 | 30~100 | 69 | |||||||
FX150 | 150 | 20 | 30~45 | 8~22 | 1.5 | 0.06~0.35 | 11~20 | 30~74 | 20 |
15 | 30~74 | 22 | |||||||
8 | 30~74 | 60 | |||||||
FX125 | 125 | 17 | 25~40 | 8~18 | 1 | 0.06~0.35 | 8~15 | 20~100 | 10 |
8 | 20~74 | 12 |
Hydro Cyclone Separator Hydro Cyclone Separator Hydro Cyclone Separator
Hydro Cyclone Separator Hydro Cyclone Separator Hydro Cyclone Separator
