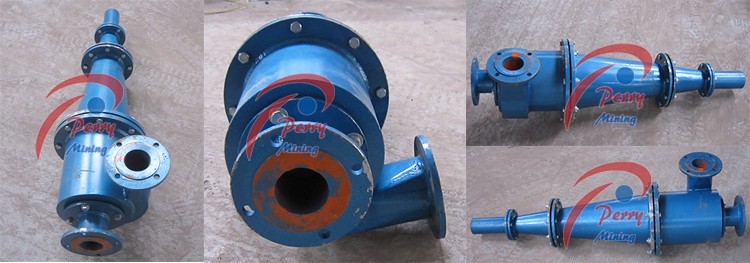

High Efficiency Hydrocyclone Separator, Low Hydrocyclone Price

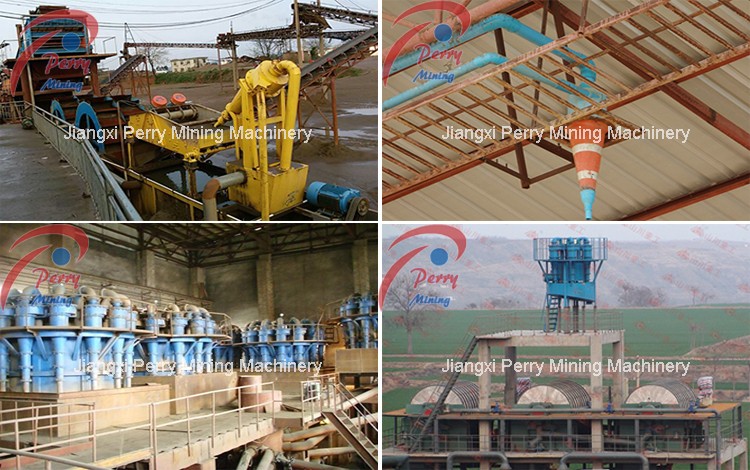

Metal Mine Hydrocyclone widely applied in mine-chosen technique in various metal mines. It mainly shows in the following works:

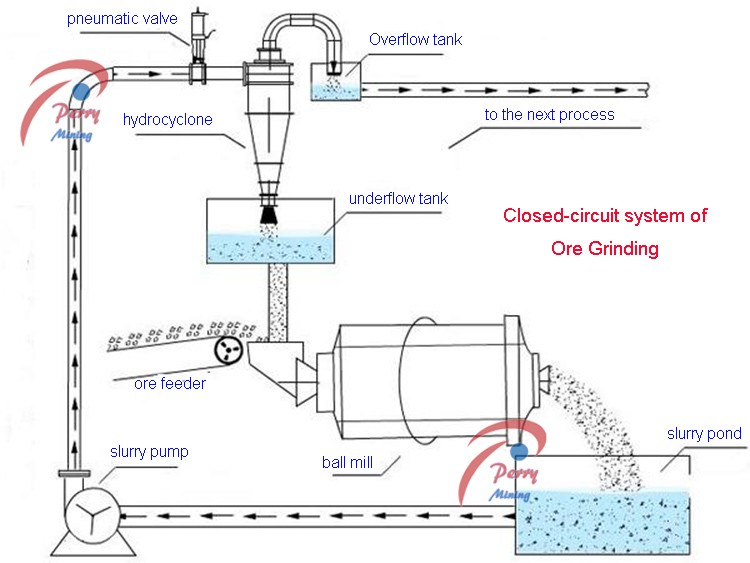

1. Classification for section I closed circuit grinding
2. Classification for section II closed circuit grinding
3. Regrinding for fine mine classification
4. Mud-removing before selection and after selection
5. Dam and backfill for gangue
Structure of Hydrocyclone Separator
1. Cylinder 2. Cone 3. Feeding pipe 4. Underflow port 5.Overflow pipe 6. Overflow pipe port
Working principle of Hydrocyclone Separator
| Feed the material from feeding pipe , under certifugal and gravity force the material will be rotating in high speed , the heavy product will through the underflow port to discharge , the light product will through the overflow port to discharge |  |
Material available of Hydrocyclone Separator
<< Polyurethane
<< Low carbon steel shell, polyurethane inner liner
<< Low carbon steel shell, ceramics inner liner
<< Low carbon steel shell, TG-NM compound materials inner liner
Types available of Hydrocyclone Separator

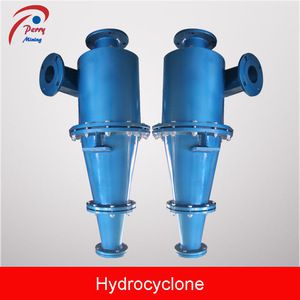

Single type hydrocyclone Group type hydrocyclone
Technical specifications of Hydrocyclone Separator
Model | Canister Interior Diameter | Cone Angle | Overfall Pipe Dia. | Bottom Exit Dia. | Max. | Feeding Pressure | Processing Capacity | Classification |
|
FX500 | 500 | 20 | 130~200 | 35~100 | 10 | 0.03~0.3 | 140~220 | 74~200 | 495 |
15 | 74~150 | 540 | |||||||
FX350 | 350 | 20 | 80~120 | 30~70 | 6 | 0.04~0.3 | 60~100 | 50~150 | 182 |
15 | 50~120 | 230 | |||||||
FX300 | 300 | 20 | 65~115 | 20~50 | 5 | 0.04~0.3 | 45~85 | 50~150 | 108 |
15 | 40~100 | 169 | |||||||
FX250 | 250 | 20 | 60~100 | 16~45 | 3 | 0.06~0.35 | 40~60 | 40~100 | 72 |
15 | 40~100 | 77 | |||||||
10 | 30~100 | 83 | |||||||
FX200 | 200 | 20 | 40~65 | 16~32 | 2 | 0.06~0.35 | 25~40 | 40~100 | 60 |
15 | 30~100 | 64 | |||||||
10 | 30~100 | 69 | |||||||
FX150 | 150 | 20 | 30~45 | 8~22 | 1.5 | 0.06~0.35 | 11~20 | 30~74 | 20 |
15 | 30~74 | 22 | |||||||
8 | 30~74 | 60 | |||||||
FX125 | 125 | 17 | 25~40 | 8~18 | 1 | 0.06~0.35 | 8~15 | 20~100 | 10 |
8 | 20~74 | 12 |
Hydrocyclone Separator Hydrocyclone Separator Hydrocyclone Separator
Hydrocyclone Separator Hydrocyclone Separator Hydrocyclone Separator
Jiangxi Perry Mining Machinery Manufacturing Co., Ltd, professional in mining equipment manufacturing, has more than 25 years' manufacturing experiences. Our equipment had been exported to more than 50 foreign countries.
 | Jiangxi Perry Mining Machinery Manufacturing Co., Ltd is a company who specially supplies mining equipment for export, layout design, plant installation & debugging, and technical support. With more than 25 years' manufacturing experiences, our customers and services have covered more than 50 countries all over the world.
Main product: complete gold washing plant, shaking table, gold concentrator, jig, spiral chute, trommel screen, ore washing machine, crushers, grinding mills, screening equipment, and so on. |
Hydrocyclone Separator Hydrocyclone Separator Hydrocyclone Separator

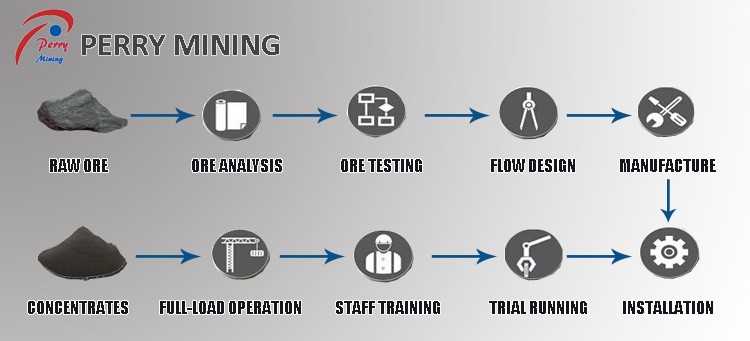

Perry Mining will offer you the turnkey solution for your ore mining professionally. Just trust us and let us do it for you!
Hydrocyclone Separator Hydrocyclone Separator Hydrocyclone Separator
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1. Are you a trade company or a manufacturer?
A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.
2. What is your delivery time?
A: The delivery time is about 7-20 days after receipt of payment.
3. What is the payment terms?
A: The payment term is 45% payment in advance, 55% balance before shipment.
4. Why choose you as supplier?
A: 1). High quality & most competitive price
We are a factory who could provide the lowest price to you.
We are top 3 and with more than 20 years experiences in mining equipment.
2). Fast delivery--Goods will be shipped within 7 - 30 days based on order quantity.
3). Best service--Overseas customers can enjoy 24/7 after-sale service and dispatching service
4). 3D & CAD flow chart design
