hydrocyclone sand separator,beneficiation hydrocyclone design for mineral separating process

PRIMARY PARAMETERS

Condition

New

Type

hydrocyclone machine

Production Capacity

40-60mu00b3/h for hydrocyclone machine

Place of Origin

Jiangxi, China (Mainland)

Brand Name

Gaoxuan Mining Machine Hydrocyclone

Model Number

FX 125 Mining machine Hydrocyclone

Voltage

no power

Power(W)

no power

Dimension(L*W*H)

320*260 *648mm

Weight

80kgs

Certification

CE,TUV,SGS,ISO9001

Warranty

1 year excluding spare parts for our Mining machine hydrocyclone

After-sales Service Provided

Engineers available to service machinery overseas

Function

Hydrocyclone types

Supply single type and group type hydrocyclone machine

Liner material

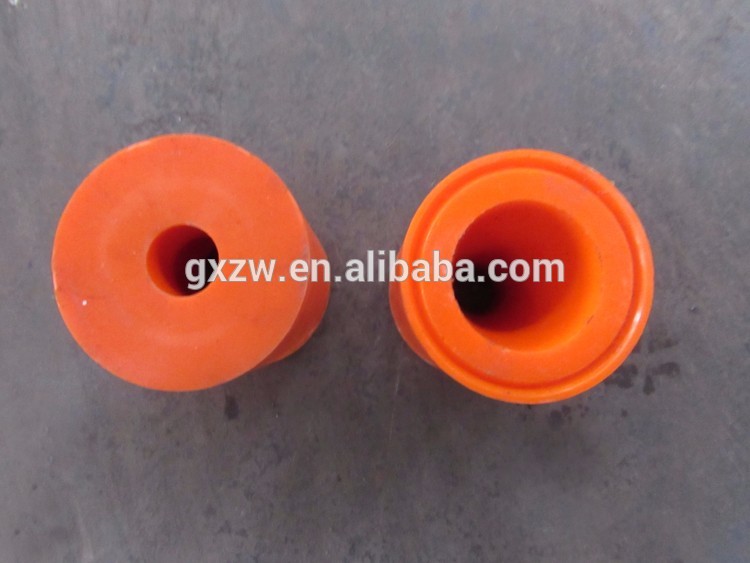

Rubber,Polyurethane, high polymer, silicon carbide, and so on

Mining flow sheet design

Supply

spare parts

supply for hydrocyclone machine

color

any color as you like

Application

Ore

Installation

Engineer Guide

Capacity

0.2-120t/h

Material

Polyurethane

DETAIL DESCRIPTION

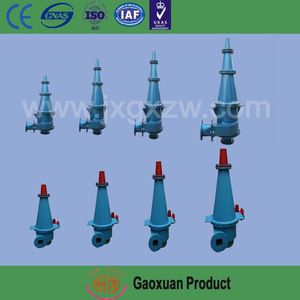

Hydrocyclone sand separator,beneficiation hydrocyclone design for mineral separating process

Product Description

Metal Mine Hydrocyclone, also called hydrocyclone design, is widely applied in mine-chosen technique in various metal mines. In closed circuit grinding system, the hydrocyclone design features high classification efficiency and fine overfall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader. It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode concentration. This is precondition of getting the most optimized work condition.

Features of hydrocyclone

hydrocyclone design mainly shows in the following works:

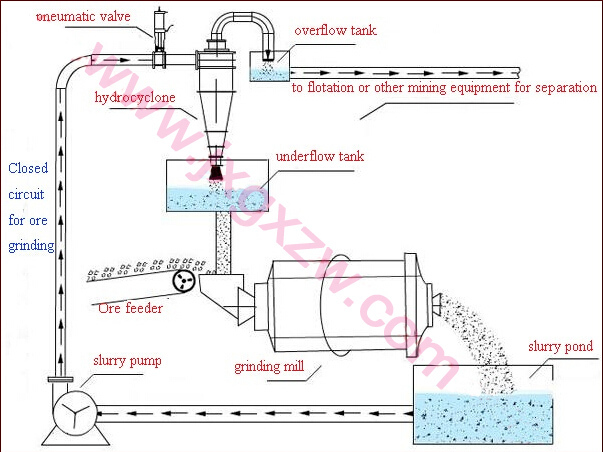

1. Classification for section I closed circuit grinding

2. Classification for section II closed circuit grinding

3. Regrinding for fine mine classification

4. Mud-removing before selection and after selection

5. Dam and backfill for gangue

3.structure of hydrocyclone

Working principle of hydrocyclone

A typical hydrocyclone design consists of a conically shaped vessel, open at its apex, or underflow, joined to a cylindrical section, which has a tangential feed inlet. The top of the cylindrical section is closed with a plate through which passes an axially mounted overflow pipe. The feedis introduced under the pressure through the tangential entry which imparts swirling motion to the pulp. This generates a vortex in the cyclone. The light granules will be pulled out by a pump through the overflow pipe, while the heavy particles will be discharged with the pulp through the underflow discharge.

Technical Parameter

Model	FX125	FX150	FX250	FX300	FX350
Overflow size (mm)	15-250	25-250	25-250	25-250	25-250
Processing capacity (m2/h)	2.4-1.5	4.8-54	6.5-61.2	24-60	24-90
Permitting overflow pressure (kg/cm 2 )	0.3-3	0.3-3	0.3-3	0.3-3	0.3-3
Cyclone structural parameters	Diameter (mm)	125	150	250	300	350
Cone angle(degree)	20	20	20	20	20
Cylinder height (mm)	110	200	170	235	180
Overflow tube length (mm)	107	130	163	210	215
Feed port area (mm2)	25*10	40*10	50*20	75*20	80*35
De-silting pipeline diameter (mm)	15-30	15	35	50	25
Outline size (lengthwidthheight)	320260 648	594380 899	540475 1172	575550 1444	575690 1510
weight (kg)	80	85	210	240	280

Application of hydrocyclone

The hydrocyclone design is mainly applied to the process of second paragraph grinding, coarse or concentrate re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. The device has features of simple structure, long service life, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading and de-sliming equipment of fine -particle material. It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.
