Working Principle:

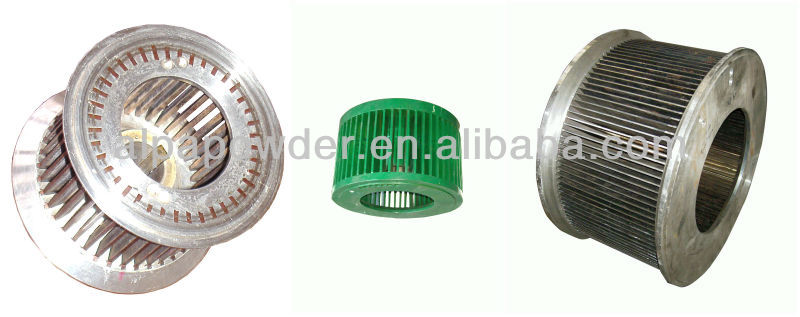

Air classifier works with cyclone separator,dust collector and suction fan to form a complete classifying system.Material would go from the bottom of air classifier up to the classifying chamber by the air flow from suction fan.The classifying wheel with high-speed rotation would creat a strong centrifugal force to separate coarse powder and fine powder.Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector,while mixture of coarse and fine powder would lose its speed and fall down along the wall of chamber to the secondary air inlet The secondary air flow would disperse it further and separate coarse and fine powder.Fine powder would go up to the classifying chamber for further classifying,while coarse powder would fall down and go out from the bottom outlet.
Performance Features:
- Suitable for dry fine powder classifying,powders of ball shape ,flake shape and needle shape,also powders with different densities.
- Product size from classifier can vary from D97:2 micron to 150 micron.The product size is adjustable,which makes the change of product size easy and simple.
- Classifying efficiency(extraction rate) can be between 60% and 90%.Material with good flow-ability would have high classifying efficiency,otherwise,the classifying efficiency would be low.
- Vertical classifier wheel would have low ratation speed,low wear and low motor power.
- Several units of classifiers can be connected in series to produce several different sizes.
- It can be connected with ball mill,vibration mill or Raymond mill to form a close-loop recycling system.
- Control system has program controlling,can indicate real-time status,which make operation very convenient.
- Negative-pressure system.Dust emission would be less than 40mg/m³.Our machines have noise isolation device,which make the noise not higher than 75dB(A).
Technical Parameters:
| Parameter/Type | FL300 | FL360 | FL450 | FL550 | FL600 | ITC-4 | ITC-5 | ITC-6 |
Throughput kg/h | 200~ 1000 | 300~ 2000 | 1000~ 3000 | 3000~ 5000 | 5000~ 8000 | 8000~ 15000 | 15000~ 20000 | 20000~ 30000 |
Product size D97:um | 6~150 | 5~150 | 5~150 | 8~150 | 8~150 | 10~150 | 15~150 | 20~150 |
Classifying efficiency % | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 |
Installation power kw | 11.5~42.5 | 18~60 | 63.5~105 | 77~120 | 77~140 | 120~160 | 90~200 | 170~310 |
Note:throughput depends on raw material size,density,moisture and flow-ability.The data above is just for your reference.
Applications:
Widely used in chemical industry,mineral industry(especially good for calcium carbonate,kaolin,quartz,talc,mica and other non-metallic product classifying),metallurgy industry,abrasive material industry,ceramics industry,
fire-resistance industry,pharmacy industry,pesticide industry,food industry,health care industry and new material industries.

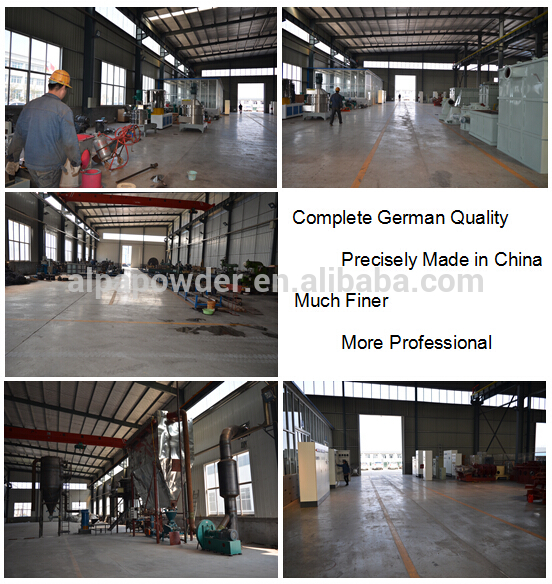

Workshop:
