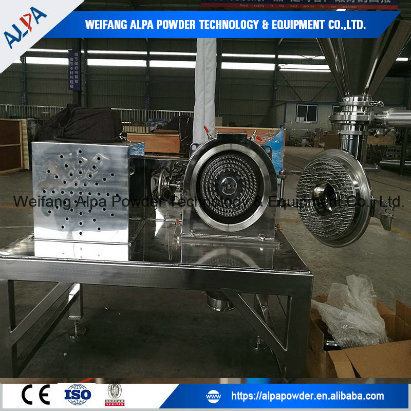

Working Principle
Material would be conveyed by the feeding device into milling chamber evenly, and be impacted strongly by high-speed rotating beater, and at the same time would be rubbed and sheared and impacted between screen and beater. The milled powder would be separated by screen. Qualified fine powder would go into product collector, while coarse powder would go back to milling chamber for further milling.
Performance Features
1. Pin mill machine has compact structure, small space occupation, wide application, and high performance cost.;
2. We can use different milling device to optimize the milling power and improve milling efficiency;
3. Simple operation, easy dismantle, and easy cleaning.
Applications
Impact mill widely used in chemical industry, inorganic salt industry, pharmacy industry, food industry, pigment industry, dye industry, pesticide industry, battery material industry, mineral industry, fire-resistant material industry, etc.
Patents and Certification

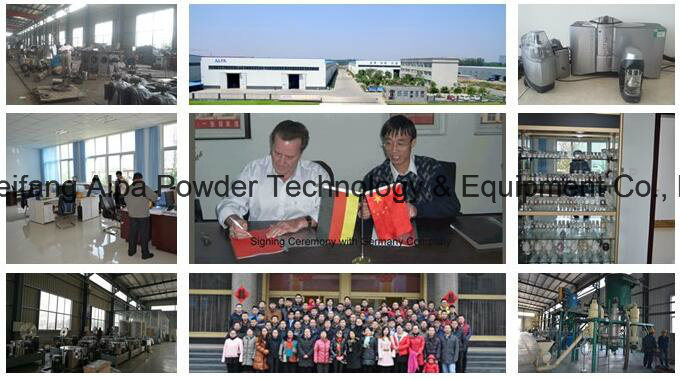

Factory and workshop
Complete Germany Technology,Precisely Made in China
England Malvern3000 Mastersizer
China Leader of the machine of Particle size reduction
Material would be conveyed by the feeding device into milling chamber evenly, and be impacted strongly by high-speed rotating beater, and at the same time would be rubbed and sheared and impacted between screen and beater. The milled powder would be separated by screen. Qualified fine powder would go into product collector, while coarse powder would go back to milling chamber for further milling.
Performance Features
1. Pin mill machine has compact structure, small space occupation, wide application, and high performance cost.;
2. We can use different milling device to optimize the milling power and improve milling efficiency;
3. Simple operation, easy dismantle, and easy cleaning.
Applications
Impact mill widely used in chemical industry, inorganic salt industry, pharmacy industry, food industry, pigment industry, dye industry, pesticide industry, battery material industry, mineral industry, fire-resistant material industry, etc.
| Model/Specifications/Item | 160 | 250 | 360 | 500 | 630 | 800 | |
| Turbo Type B | Diameter of Beater(mm) | 150 | 250 | 350 | 500 | 600 | 720 |
| Max. Rotation Speed(r/min) | 12000 | 7500 | 5550 | 3850 | 3200 | 2800 | |
| Power(kw) | 3~ 4 | 5.5~ 7.5 | 11~ 15 | 18.5~ 30 | 30~ 45 | 37~ 75 | |
| Product Size (mesh) | 20~325 | ||||||
| Production Capacity | 5~ 50 | 15~ 200 | 25~ 500 | 30~ 1200 | 50~ 1800 | 60~ 2000 | |
| Pin Type P | Diameter of Beater(mm) | 160 | 260 | 360 | 520 | 630 | 730 |
| Max. Rotation Speed(r/min) | 12000 | 7500 | 5550 | 3850 | 3200 | 2800 | |
| Power(kw) | 4 | 7.5 | 15~22 | 37 | 45~55 | 55~75 | |
| Product Size (mesh) | 20~325 | ||||||
| Production Capacity | 20~ 200 | 35~ 1000 | 50~ 2000 | 75~ 3000 | 100~ 5000 | 200~ 10000 | |
| Millstone Type M | Diameter of Beater(mm) | 350 | 550 | 750 | |||
| Max. Rotation Speed(r/min) | 5500 | 3500 | 2500 | ||||
| Power(kw) | 22 | 37~45 | 55~75 | ||||
| Product Size (mesh) | 20~120 | ||||||
| Production Capacity | 10~100 | 30~200 | 50~500 |
Patents and Certification
Factory and workshop
Complete Germany Technology,Precisely Made in China
England Malvern3000 Mastersizer
China Leader of the machine of Particle size reduction
