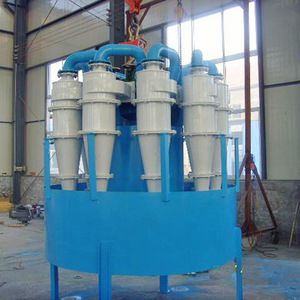

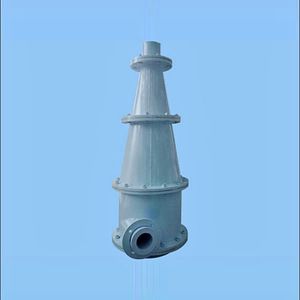

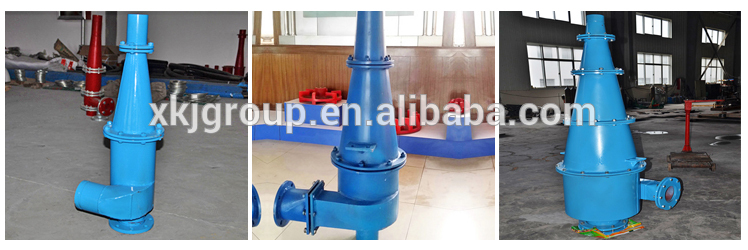

Hydroclone adopt the certrifugal force to grade pulp, its equipped with appropriate slurry pulp, the reason is that there arent drive components. In dressing production, it applies to grading, offline and desliming.
parameter
| Mode | Diameter (mm) | To the mine mouth (mm) | Overflow mouth diameter (mm) | Desilting mouth diameter (mm) | Inclina tion (°) | The maximum feed size (mm) | Feed pressure (Mpa) | Processing capacity (m3/h) | Separation size (µm) | Dimensions (L*W*H) |
| FX-660 | 660 | 187 167 | 180,200, 220,240 | 80,110, 150 | 20 | 16 | 0.03-0.4 | 250-360 | 74-220 | 1215*850*2720 |
| FX-500 | 500 | 130 120 | 130,140, 160,80, 220 | 35,45,50, 65,70,80, 90,100 | 25 | 10 | 0.03-0.4 | 140-220 | 74-200 | 951*718*1825 |
| 20 | 74-200 | 850*623*1825 | ||||||||
| 10 | 74-150 | 951*718*2280 | ||||||||
| FX-350 | 350 | 80 | 80,90,105, 115,120
| 30,35,40, 45,50,60, 70 | 25 | 6 | 0.03-0.4 | 60-105 | 50-150 | 530*413*1411 |
| 20 | 50-150 | 530*413*1411 | ||||||||
| 15 | 50-120 | 530*413*1674 | ||||||||
| FX-300 | 300 | 64 75 | 65,80, 100,120 | 20,25, 30,35,40 | 20 | 5 | 0.03-0.4 | 45-90 | 50-150 | 530*410*1305 |
| 15 | 40-100 | 563*410*1490 | ||||||||
| FX-250 | 250 | 55 74 80 | 60,75, 80,100, 120 | 16,18,20, 25,30,35, 40 | 20 | 3 | 0.03-0.4 | 40-65 | 40-100 | 563*534*1178 |
| 15 | 40-100 | 548*307*1057 | ||||||||
| 10 | 30-100 | 548*415*1380 | ||||||||
| FX-200 | 200 | 48 | 40,45, 55,65 | 16,20,24, 28,32 | 20 | 2 | 0.03-0.4 | 25-40 | 40-100 | 548*307*1025 |
| 15 | 30-100 | 320*307*1114 | ||||||||
| FX-150 | 150 | 36 | 30,35, 40,45 | 8,10,12, 14,16,18, 20,22
| 20 | 1.5 | 0.03-0.4 | 11-20 | 30-74 | 320*270*682 |
| 15 | 30-74 | 252*349*899 | ||||||||
| 8 | 20-74 | 290*295*1267 | ||||||||
| FX-125 | 125 | 26 | 25,30, 35,40 | 8,10,12, 14,16,18 | 17 | 1 | 0.03-0.4 | 8-15 | 20-100 | 280*185*617 |
| 8 | 20-74 | 210*240*973 | ||||||||
| FX-100 | 100 | 23 | 20,25, 30,40 | 8,10,12, 14,16,18 | 20 | 1 | 0.03-0.4 | 5-12 | 20-100 | 250*210*525 |
| 15 | 10-100 | 257*210*575 | ||||||||
| 8 | 10-74 | 257*210*829 |

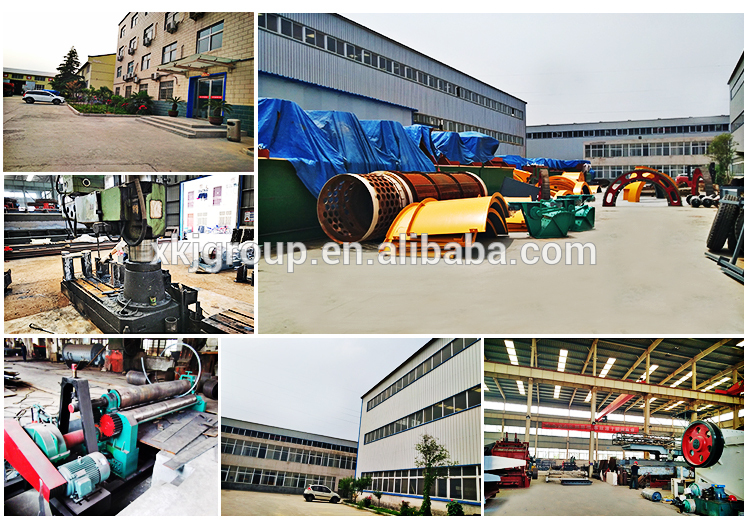

Henan XingKuang Machinery Co.,Ltd was founded in 1956, which was the designated manufacturer of the former Ministry of Metallurgical Industry. After decades of development and growth, the company has become one large-scale enterprise group specialized in machinery manufacturing, with ability to design, research &develop, produce, sell and install, serving mining, building materials, metallurgy, chemical industry and environmental protection. Our company is headquartered in Xingyang City, Henan Province, near to China National Highway 310 and 234, Zhengzhou West High-speed Railway Station, the Longhai Railway and the Kaifeng-Luoyang Expressway. It is just 25 kilometers away from Zhengzhou, the capital of Henan. Besides, there are two branch companies in Zhengzhou HIDZ and Tibet.
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit XKJ working machines or complete plant in the site.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
Sale Services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XKJ, they are now strategically located home and abroad, working for our customers.
Packaging Details:
1. small parts are packed by wooden case.
2. main engine by nude packing, container, or upon customer‘s requirement.
Shipping details:
Delivery: 15-20 working days
Ports: Qingdao, Shanghai, Tianjin and other ports in China.
1. How long is the delivery time?
Usually 15-20 working days. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be extened.
2.What are the payment terms?
L/C, T/T, D/A, D/P and others you like are all accepted.
3.What is the minimum order quantity ?
1 set.
4.How long is the warranty period?
1 year. Wearing parts are excluded.
5.What is the after-sale service of your company?
We can provide the customers foundation drawing, installation service, worker training as well as other service according to the customers' requirements.
