China Heavy Duty Used Roller Drum Rotary Drying Dryer

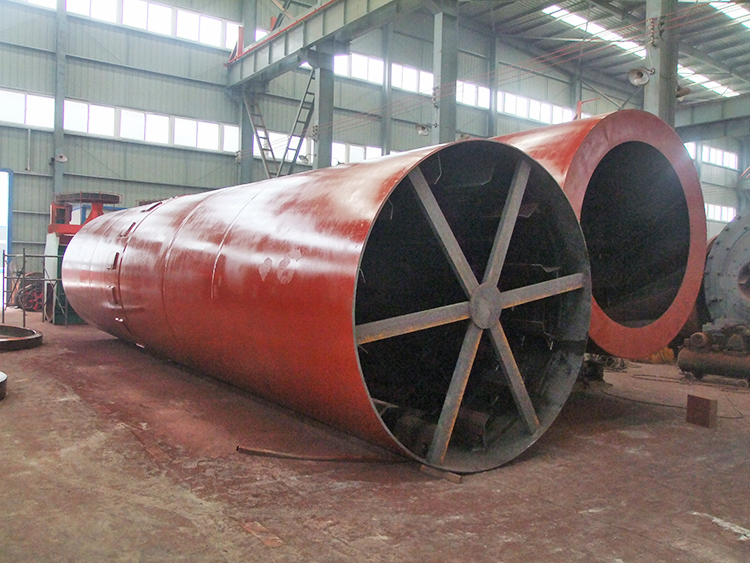

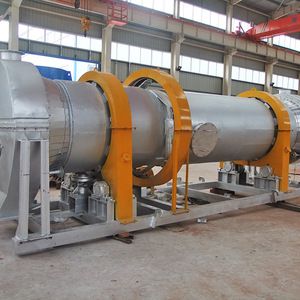

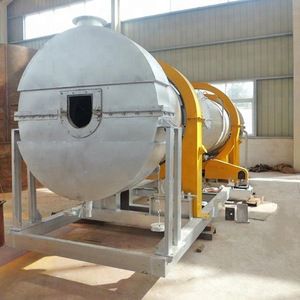

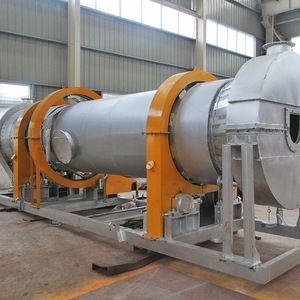

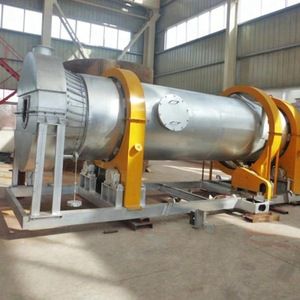

Rotary Dryer Introduction
Drum dryer applies into making building-material ,metallurgy,chemical and cement industries,drying slag and clay etc,composed by rotation part ,scatter plates device transmission part ,supporting devise and sealing part etc,with the advantages of reasonable structure,high output ,low energy consumption ,stable running ,and convenient operation.
Rotary Dryer Features
1.Widely range of adaptability to raw and fuel materials;
2. Sturdy structure, smooth running, large capacity and good quality;
3. Energy conservation, waste gas as the second useful source, recycling economy;
4. come up to the discharging standard with low NO emissions;
5. PLC auto-control system, centralized control in productive process.
Rotary Dryer Working Principle
The auto-combustion device provides heat resource for our rotary dryer which adopts down-flow heating method. When the mineral materials are fed into the cylinder, it flows down as a result of gravity. Meanwhile, they are repetitively scattered in the air so that they are in full contact with the hot air. The material is thus dried gradually.
Rotary Dryer Technical Data
| Model | Cylinder | Motor | Reducer | Dimension (L*W*H)(mm) | Weight(t) | |||
| Volume | RPM | obliquity | Model | Power | Model | |||
| (m3) | (r/min) | (%) | (kw) | |||||
| ZTφ1.0*10 | 7.85 | 6.73 | 3-5 | Y132M2-6 | 5.5 | ZL350-Ⅱ-25 | 10000*1875*2069 | 7.6 |
| ZTφ1.2*6 | 6.8 | 5.8 | 3-6 | Y132M2-6 | 5.5 | ZL350-Ⅱ-25 | 6000*2159*2475 | 8.5 |
| ZTφ1.2*8 | 9.1 | 5.8 | 3-7 | Y132M2-6 | 5.5 | ZL350-Ⅱ-25 | 8000*2159*2475 | 9.9 |
| ZTφ1.2*10 | 11.31 | 5.8 | 3-8 | Y160M-6 | 7.5 | ZQ500-Ⅱ-31.5 | 10000*2159*2475 | 11.9 |
| ZTφ1.2*12 | 13.57 | 5.8 | 3-9 | Y160L-6 | 11 | ZQ500-Ⅱ-31.5 | 12000*2159*2475 | 13.5 |
| ZTφ1.5*8 | 14.14 | 4.8 | 3-10 | Y160L-6 | 11 | ZQ650-Ⅱ-2F/1F | 8000*2655*2895 | 14.7 |
| ZTφ1.5*10 | 17.67 | 4.8 | 3-11 | Y160L-6 | 11 | ZQ650-Ⅱ-2F/1F | 10000*2655*2895 | 15.9 |
| ZTφ1.5*12 | 21.2 | 4.8 | 3-12 | Y180L-6 | 15 | ZQ650-Ⅱ-31.5 | 12000*2655*2895 | 17.4 |
| ZTφ1.5*14 | 24.9 | 4.8 | 3-13 | Y180L-6 | 15 | ZQ650-Ⅱ-31.5 | 14000*2655*2895 | 18.3 |
| ZTφ1.8*10 | 25.45 | 4.59 | 3-14 | Y180L-6 | 15 | ZQ650-Ⅱ-2F/1F | 10000*3060*2980 | 17.9 |
| ZTφ1.8*12 | 30.5 | 4.59 | 3-15 | Y200L1-6 | 18.5 | ZQ650-Ⅱ-2F/1F | 12000*3060*2980 | 19.9 |
| ZTφ1.8*14 | 35.1 | 4.59 | 3-16 | Y200L1-6 | 18.5 | ZQ650-Ⅱ-2F/1F | 14000*3060*2980 | 21.8 |
| ZTφ1.8*18 | 45.8 | 4.59 | 3-17 | Y200L2-6 | 22 | ZQ650-Ⅱ-2F/1F | 18000*3060*2980 | 25.3 |
| ZTφ2.2*12 | 45.6 | 4.43 | 3-18 | Y200L2-6 | 22 | ZQ750-Ⅱ-2F/1F | 12000*3620*3570 | 30.3 |
| ZTφ2.2*14 | 52.1 | 4.9 | 3-19 | Y200L2-6 | 22 | ZQ750-Ⅱ-1F | 14000*3620*3570 | 32.2 |
| ZTφ2.2*18 | 68.4 | 4.9 | 3-20 | Y225M-6 | 30 | ZQ750-Ⅱ-1F | 18000*3620*3570 | 35.2 |
| ZTφ2.2*20 | 70 | 4.9 | 3-21 | Y225M-6 | 30 | ZQ750-Ⅱ-1F | 20000*3620*3570 | 38.1 |
| ZTφ2.4*14 | 63.3 | 3.85 | 3-22 | Y225M-6 | 30 | ZQ750-Ⅱ-2F/1F | 14000*3860*3760 | 39.9 |
| ZTφ2.4*24 | 109 | 6 | 3-23 | YCT315-4B | 45 | ZQ750-Ⅱ-25 | 24500*3000*3900 | 54.8 |
| ZTφ2.5*20 | 123 | 7.6 | 3-24 | YVP225M-4P | 45 | ZQ750-Ⅱ-20 | 23600*3000*4800 | 55.5 |
| ZTφ3.0*20 | 147 | 3.9 | 3-25 | Y315L-4 | 180 | YNS-995-V-40 | 25000*4900*5000 | 103.8 |
Related Products
| Rotary Kiln |  |

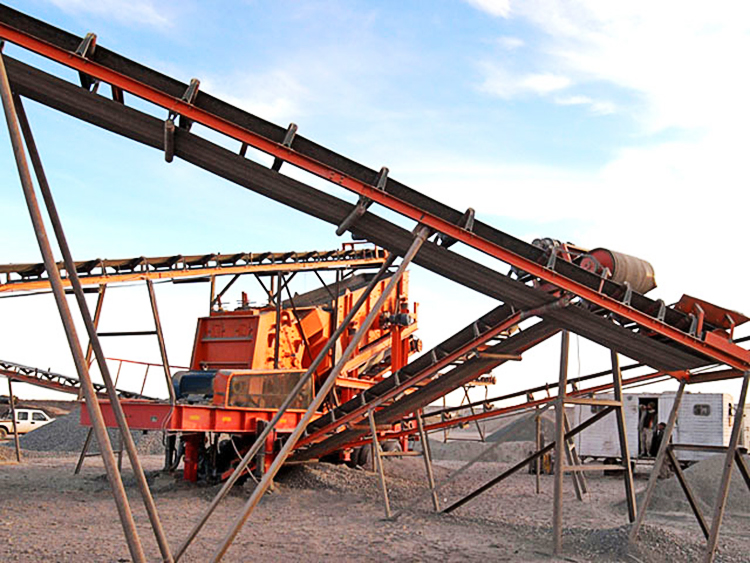

| Belt Conveyor |  |

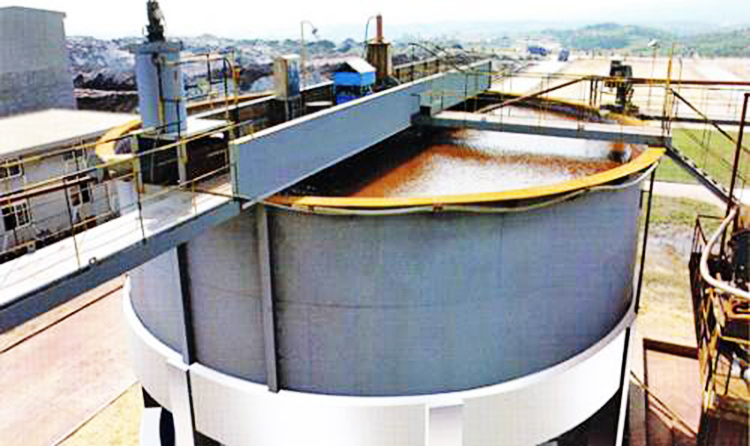

| Efficent Thickener |  |

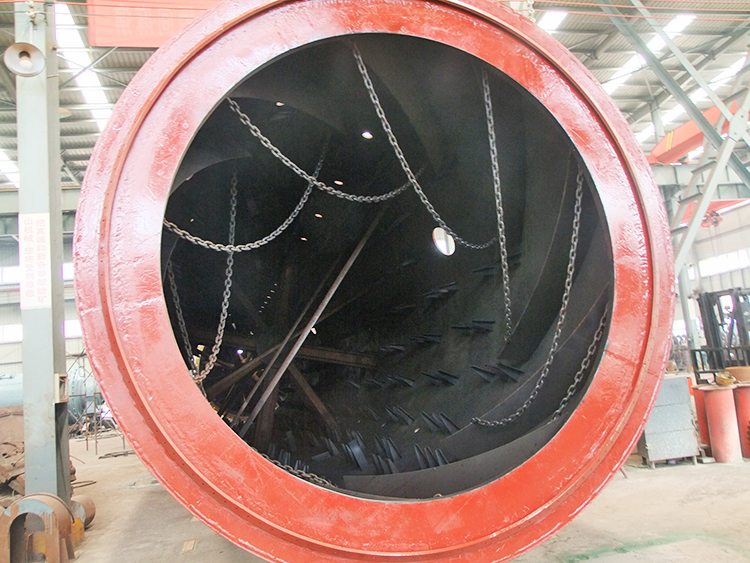

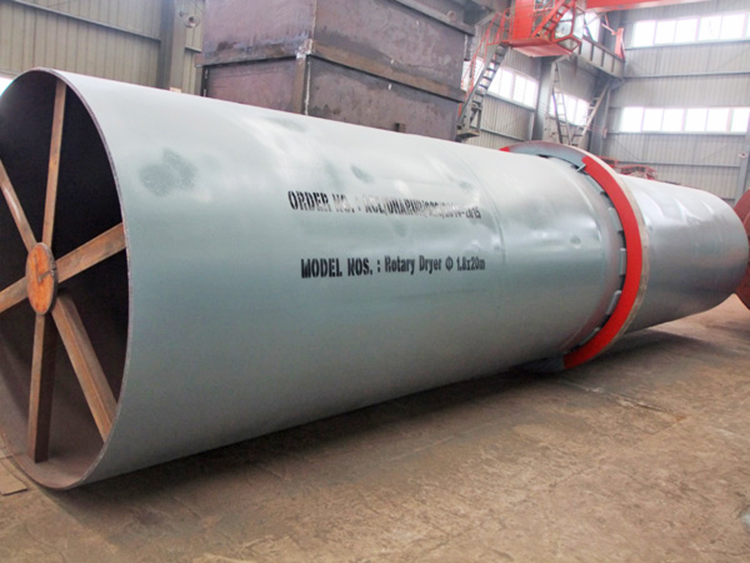

Rotary Dryer Details
Henan Xingkuang Machinery Co.,Ltd is professional manufacturer for jaw crusher and mineral processing equipment,which was established in 1956. Our products are widely used in mining, metallurgy, building materials, road construction, etc. The reason why you choose PE250x400 mini mobile limestone jaw stone crusher machine for sale.
Pre-service: Enthusiasm
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients’ special requirement;
3.Train technical personnel for clients.
Services during the sales: Servant
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans.
After-sale services: Faithfulness
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical exchanging.
7.Revisit regularly for establishing long-term and friendly relationship.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
2.Guaranteed:
Our products are distributed throughout the world, being involved in more than Asia, Africa and South America countries and regions. And our products win the good reputation of our foreign customers.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
