Mob lab hydrocyclone/small hydrocyclone/portable small hydrocyclone

cyclone is mainly used in mineral processing as a classifier, and has proved extremely efficient at fine separation sizes.

Technical Feature

  • New
  • Sprial Separator
  • 90%
  • Jiangxi, China (Mainland)
  • Oasis
  • LZFX
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~380

PRIMARY PARAMETERS

Condition
New
Type
Sprial Separator
Production Capacity
90%
Place of Origin
Jiangxi, China (Mainland)
Brand Name
Oasis
Model Number
LZFX
Voltage
220V/380V
Power(W)
Depend on demand
Dimension(L*W*H)
refer to specification
Weight
1-10kg
Certification
CE, SGS, TUV, ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Product Name
Oasis Mob Lab Hydro-cyclone
Keywords
gravity spiral separator
Quality
High Reputation
Application
mineral separator
Color
Customerized
Installation
Engineer Guide

DETAIL DESCRIPTION

Mob lab hydrocyclone/small hydrocyclone/portable small hydrocyclone

Product Desription

-Product Instruction

       Hydro-cyclone is mainly used in mineral processing as a classifier, and has proved extremely efficient at fine separation sizes. It is used increasingly in closed circuit operations but has found many other uses, such as desliming, deritting and thickening. It has also found wide acceptance recently for the washing of fine coal. Compare with mechanical classifier, it has the advantage of simple structure, a larger production capacity per unit volume, small occupation space, high efficient classification efficiency (up to 80% -90%), fine grading granularity, low cost, less material consumption and so on.

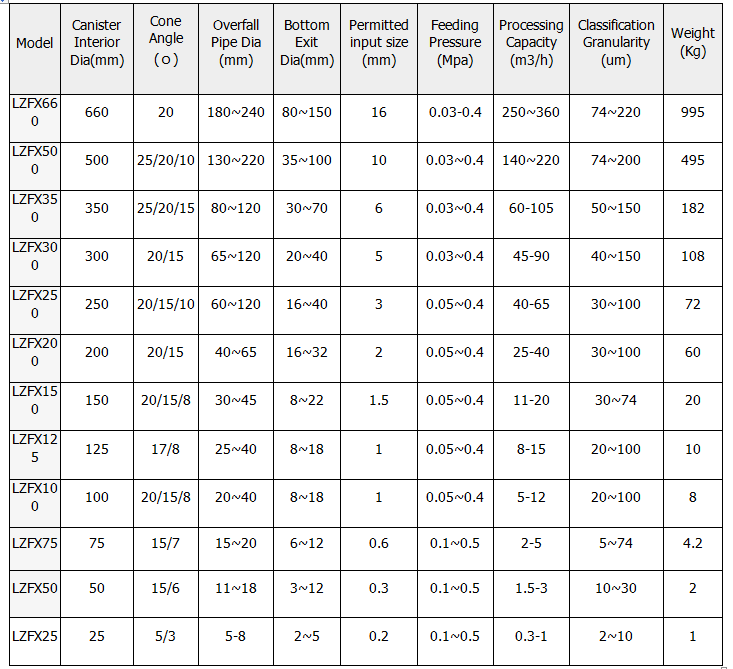

-Technical Specifications

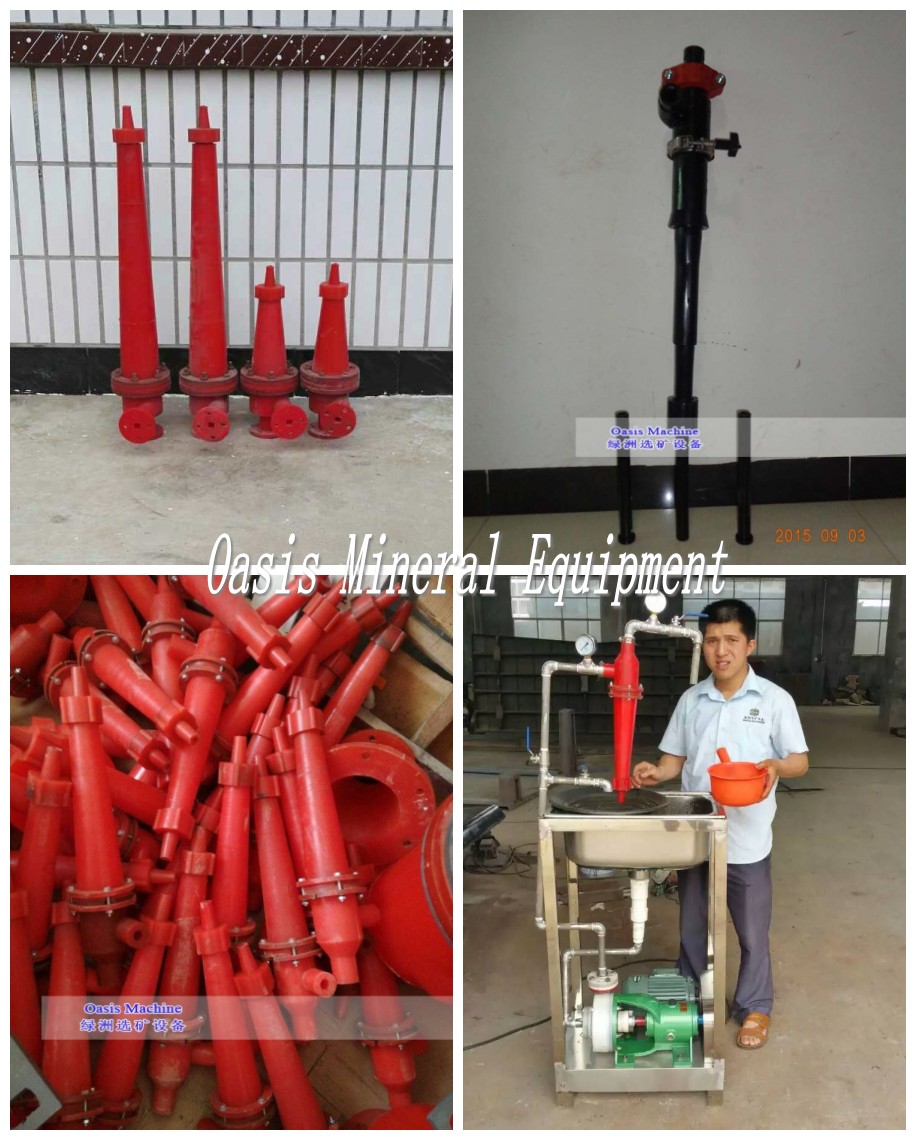

Product show







Customer Visiting Our Factory & Oasis in Exhibition

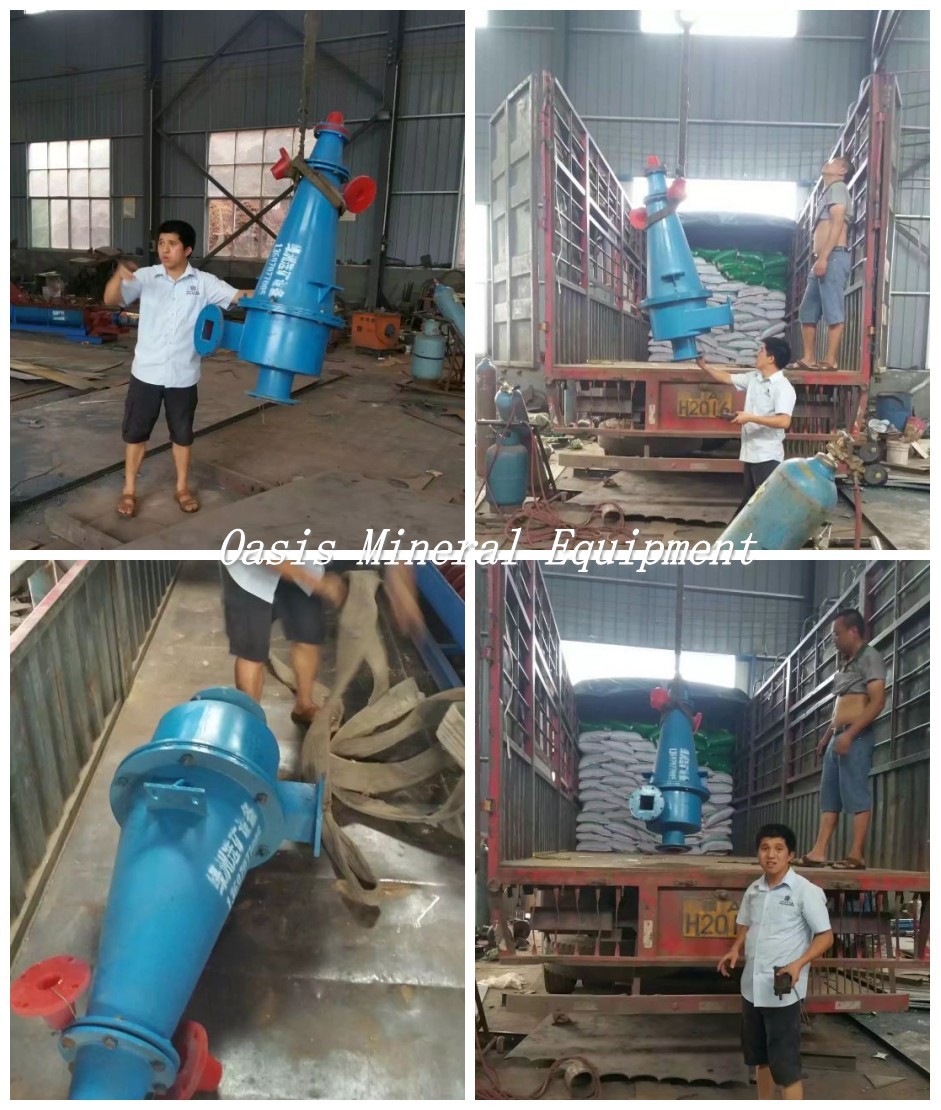

Packing & Delivery







Related Products

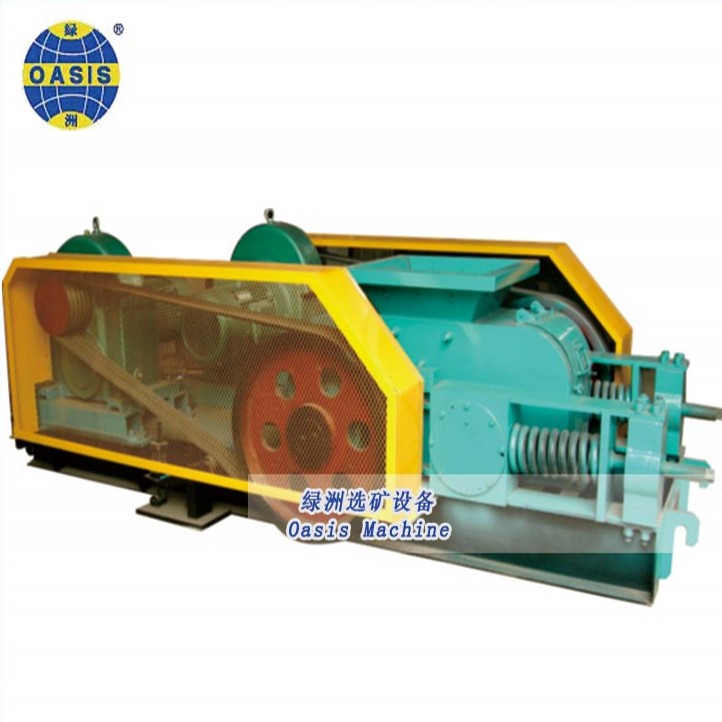

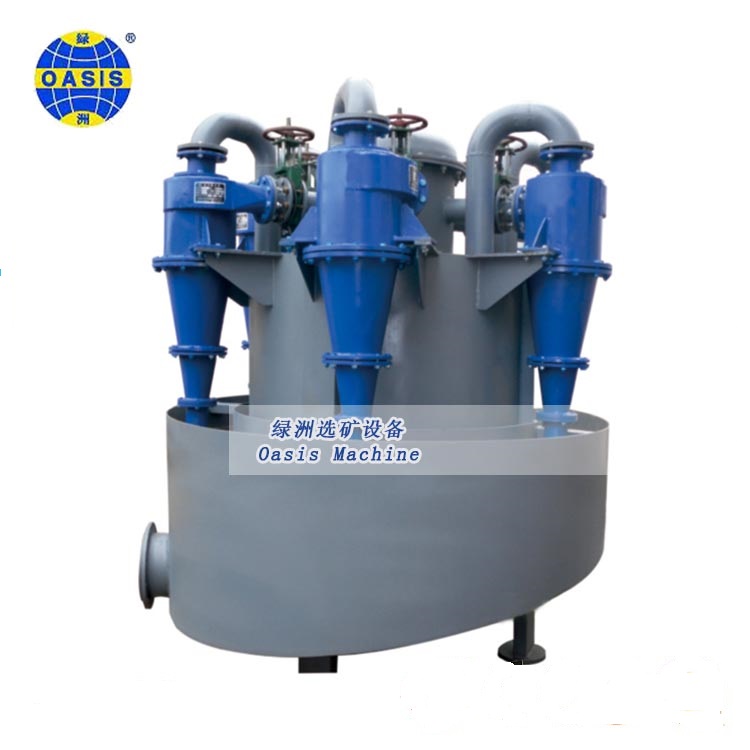

    -Hydrocyclone                 -Double Roller Crusher                               -Shaking Table

Our company

    Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart,zircon,barite, ect.



Our Service

1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

FAQ

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
 A:1. What type is the mining? Is it rock stone? or it is sand?
    2. If rock stone,What is the general particle size(mm) of the raw ore?
    3. What is the handling capacity(tons per hour) you plan to work with?
    4.What is the elements of the raw ore? How much percent % of each minerals?
Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of OASIS equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is OASIS able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

If you are interested in our products and want to know information from us please feel free to contact us.

You can send email or contact on trademanager, and I will reply asap.
