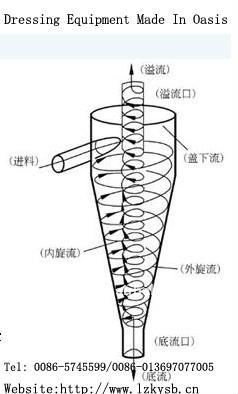

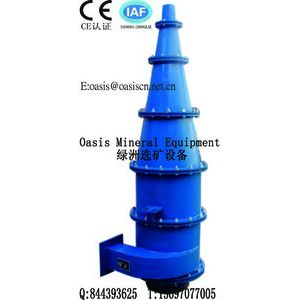

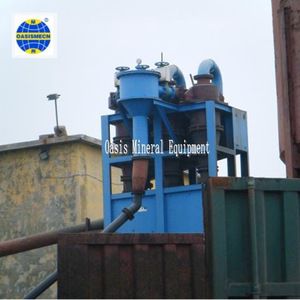

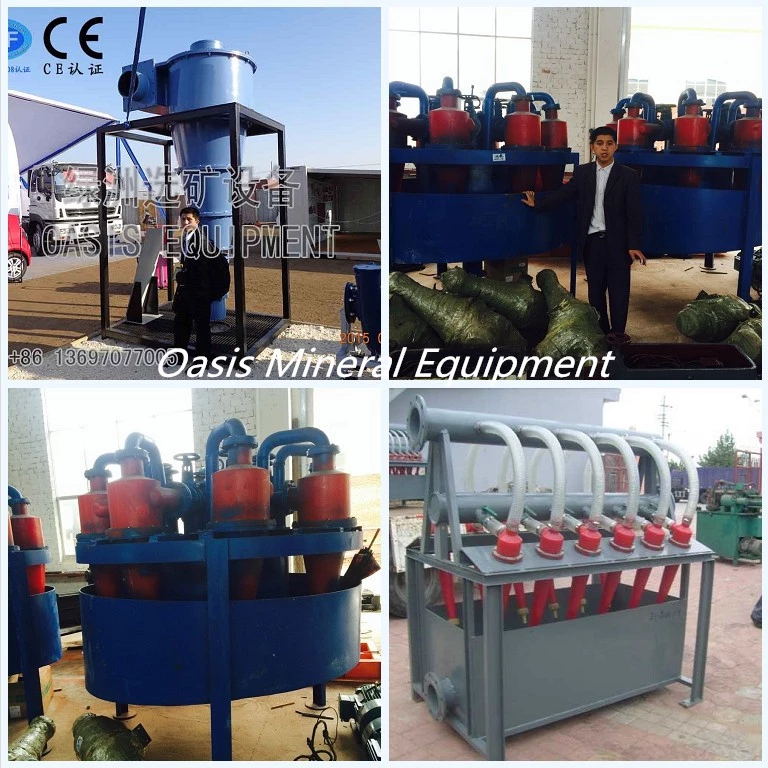

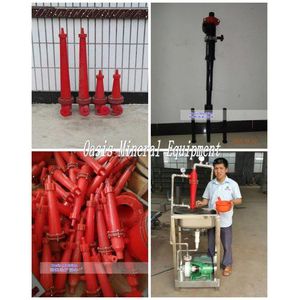

FX-type hydro cyclone is frequently used in the second paragraph of the metal concentrator mill or coarse ore in the grinding process and mechanical grading machine into a closed-circuit use, made to replace the machine seized grading machine, security and grain size grading operation. The device has a simple structure, long life, large capacity, small footprint, non-consumption of power and so on. Is a highly efficient micro-fine particles grading, de-mud equipment. The device works yes centrifugal sedimentation, when the two-phase mixture to be separated in order to put some pressure on it from the line to the mine mouth, entered after the cyclone, resulting in a strong three-dimensional elliptic rotation shear is strong swirling flow. As the coarse particles and fine particle size between the difference in the centrifugal force, centripetal force, buoyancy, fluid resistance, and so the majority of coarse particles under the action of screw trajectory by the Ministry under the spiral in the end, as the Spigot discharge, fine particles as the overflow from the overflow stream discharge tube.
The device is suitable for mineral coal preparation process of enrichment grading, off sand, mud removal, dehydration, separation, separation Festival, a highly efficient and could replace spiral classifier operating
Model | Unit | FX 125 | FX 150 | FX 250 | FX 300 | 350 | 500 |
Diameter | mm | 125 | 150 | 250 | 300 | 350 | 500 |
Feed pressure | MPA | 0.06-0.35 | 0.06-0.35 | 0.06-0.35 | 0.04-0.3 | 0.04-0.3 | 0.03-0.3 |
Cone angle | o | 20 | 20 | 20 | 20 | 20 | 20 |
Feed size | mm | 1 | 1.5 | 3 | 5 | 6 | 10 |
class size | um | 20-74 | 30-74 | 30-100 | 40-100 | 50-150 | 74-220 |
Overflow size | Mm | 26 | 36 | 55,74 | 64,75 | 80 | 120,130 |
Output size | Mm | 8,12,18 | 12,16,20 | 18,25,35 | 25,34,40 | 45,60,70 | 65,80,100 |
Capacity | m3/h | 8-15 | 11-20 | 40-60 | 45-85 | 60-100 | 140-220 |
Overall dimensions | mm | 210/185/620 | 280/295/690 | 540/480/1180 | 665/585/1310 | 775/605/1765 | 850/790/2050 |
Weight | kg | 10 | 20 | 72 | 108 | 182 | 495 |
