Long Using Life Low Maintenance Cost Mine Hydrocyclone,Thickening Cyclone
1. Hydro Cyclone Separator is a kind of equipment for classifying the ore pulp by using centrifugal force.
2. Hydro Cyclone Separator has no motion and dynamic parts, but requires matching with corresponding slurry pump.
3.Cyclone desander is based on fluid solid particles in the desander in screening principle when rotating in cycloneand filter made, as a whole, in the field of water treatment to achieve sand removal, and descending the turbid,solid-liquid separation effect is remarkable.
4.Suitable for dry fine powder classifying,powders of ball shape ,flake shape and needle shape,also powders with different densities.
5.Product size from classifier can vary from D97:2 micron to 150 micron.The product size is adjustable,which makes the change of product size easy and simple.
6.Classifying efficiency(extraction rate) can be between 60% and 90%.Material with good flow-ability would have high classifying efficiency,otherwise,the classifying efficiency would be low.
7.Vertical classifier wheel would have low ratation speed,low wear and low motor power.
1.save floor space;
2.low construction expense;
3.Large processing capacity;
4.Stable Performance;
5.Low maintenance charge;
6.easy to attach and detach;
7.The classification particle size can reach 10μm.

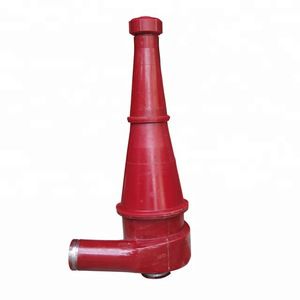

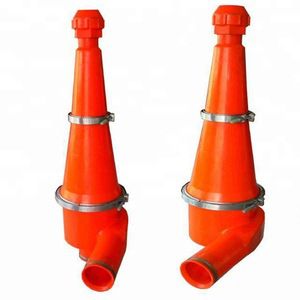

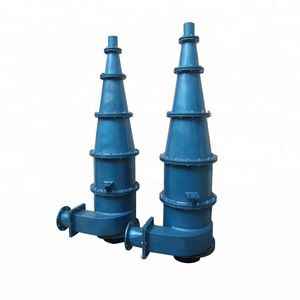

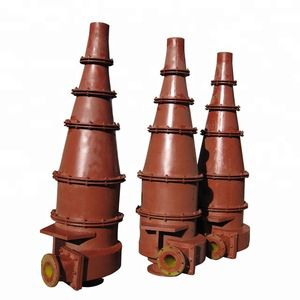

Construction and principle of the hydrocyclone:
Hydrocyclone include mine management, overflow pipe, overflow pipe and Spigot.
upper of the hydrocyclone is a hollow cylinder and the lower is a cylinder communicating back vertebrae.
By centrifugal force and gravity, throw out the thicker, heavier mineral particles.
Parameter-Hydrocyclone:
Specification | Processing capacity (m3/h) | Overflow particle size (µm) | Overflow opening Diameter (mm) | Sediment opening diameter | Weight (kg) |
FX-125 | 3.1-6.1 | 20-50 | 14,18,25,35 | 15,25 | 57 |
FX-150 | 7.5-15 | 35-75 | 20,40,32,25 | 16,24,32 | 128 |
FX-250 | 10-39 | 40-100 | 26,34,50,69 | 20,25,35 | 205 |
FX-300 | 37-43 | 45-105 | 65,75 | 35,40 | 287 |
FX-350 | 74-90 | 50-115 | 95,105,115 | 60,70,80 | 430 |
FX-500 | 170-220 | 60-120 | 140,160,180 | 70,90,110 | 718 |
FX-660 | 350-525 | 70-130 | 203,254,305 | 152 | 1130 |
Application:
1.Closed circuit grinding.
2.Mineral Classification.
3.Concentrate or Tailings Thickening,Dewatering.
4.Tailings damming and filling.
5.Without motion and power unit,it needs to match with relevant slurry pump.
6.Hydro Cyclone Separator is mainly used in ore dressing industry for classifying, sorting, thickening and desliming.
Packaging & Shipping:
About hydrocyclone package, Normally we pack one roll into the strong woven bag. and then put them into big carton.The complete package is like below image, it is very safe when ship by sea or by air.
Advantage of Dezhou Chaishang:
Dezhou Chaishang Shangmao Co.,Ltd have been specialized in polyester products more than 18 years, and we have our own research and development department, before packaging our worker would strictly inspect our products to insure the high quality.
Main products:
FAQ:
Q: Are the samples free of charge?
A: Yes, all samples are free of charge.But if you need the sample which is bigger than our prepared sample,a little of fee will be needed.And, the sample fee will be returned as soon as the order placed.
Q: How about the payment terms?
A: 50% in advance as deposit by TT,the balance payment before the shipment;
Q: What is the delivery time?
A: It is according to your quantity,normally 10 to 20 days;
Q: After sale service.
A: Every product will be inspected strictly before delivery. We'll in charge of all losses if there is any quality problem.
