Tensioned screen mesh are manufactured from a combination of special polymers with a high resilient wear resistant surface supported by a high strength structural polyurethane containing the load carrying reinforcement.
Extra fine slot openings are available from slot widths of 0.2mm (0.008") to slot widths of 2.5mm (0.100") with a variety of slot lengths for special conditions and applications.
Square openings are available from 2.75mm (0.108") to 125mm (5") in steps of 0.2mm (0.008"). All major square openings can be manufactured for heavy, normal or light duty.
Slotted openings are available from slot widths of 1.7mm (0.067") to slot widths of 32mm (1.1/4"). The length of slots can vary according to the conditions of application. the configuration of slots is either parallel or alternated in length for width rigidity and integrity.
Polyurethane modular screen panels offer the benefits of wear resistance and accurate screening in a light weight system which is designed to reduce maintenance and downtime.we design and deliver products for mechanical filtration, separation, dehydration, and classification processes in many branches of the industry. As a result of the philosophy of constant development and no compromises in the terms of quality, slotted, wedge wire screens and other solutions represent unprecedented durability, their lifespan is extremely long and they guarantee extreme efficiency, limiting at the same time the costs of maintenance. Our comprehensive programme, state-of-the-art and advanced machinery stock, as well as technical advisory, and services support guarantee providing only the best solutions regardless of their application or work parameters.
Polyurethane Modular Benefits
There are many benefits involved in using a polyurethane modular screening system which include the following:
- Easy changeover to maximise wear life and provide a more economical solution.
- High density precision injection moulded Polyurethane screening module.
- Modules available in: flat, inclined, with deflectors or weirs.
- Can be staggered on sub frame or supports for better screening.
- Support system used is firmly connected to screen frame.
- Specifically designed for all mining and quarry industries.
The using state of the shale shaker screen:
Purchase recommendation:
The number of the holes can not be equated to the high efficiency. Because the material maybe focus to the centre, then our rubber screen could be damaged or the holes could been blocked, so it can reduce the rubber screen working efficiency.So we suggest you to choose the wider plate.
Polyurethane screen with high efficiency, small amplitude, high frequency and other good quality. Is an effective device for fine grained material sieving classification, widely used in iron ore, tin, tungsten, tantalum and niobium ore concentrator screening or classification work.Polyurethane screen mesh offer the highest screening efficiency and are the modern cost effective of achieving improved productivity at reduced maintenance cost in aggregate separation under both wet and dry conditions.
It achieves excellent results with all separation sizes in many applications including: Sand and Gravel, Granite, Quartzite, Silica Sand, Limestone, Coal and Ironworks Materials.
The polyurethane screen are manufactured with integral reinforcement bars parallel to the panel width and selected for each individual application to accurately transmit the dynamic forces of the screening machine and support the bed of the material.
Polyurethane screens, similarly to rubber screens, are an alternative for metal screens. They are abrasion-resistant and lack of corrosion. Self-cleaning effect and cone-shaped mesh allows increased effectiveness and noise reduction make work more comfortable. They are specially recommended for “wet” work types.

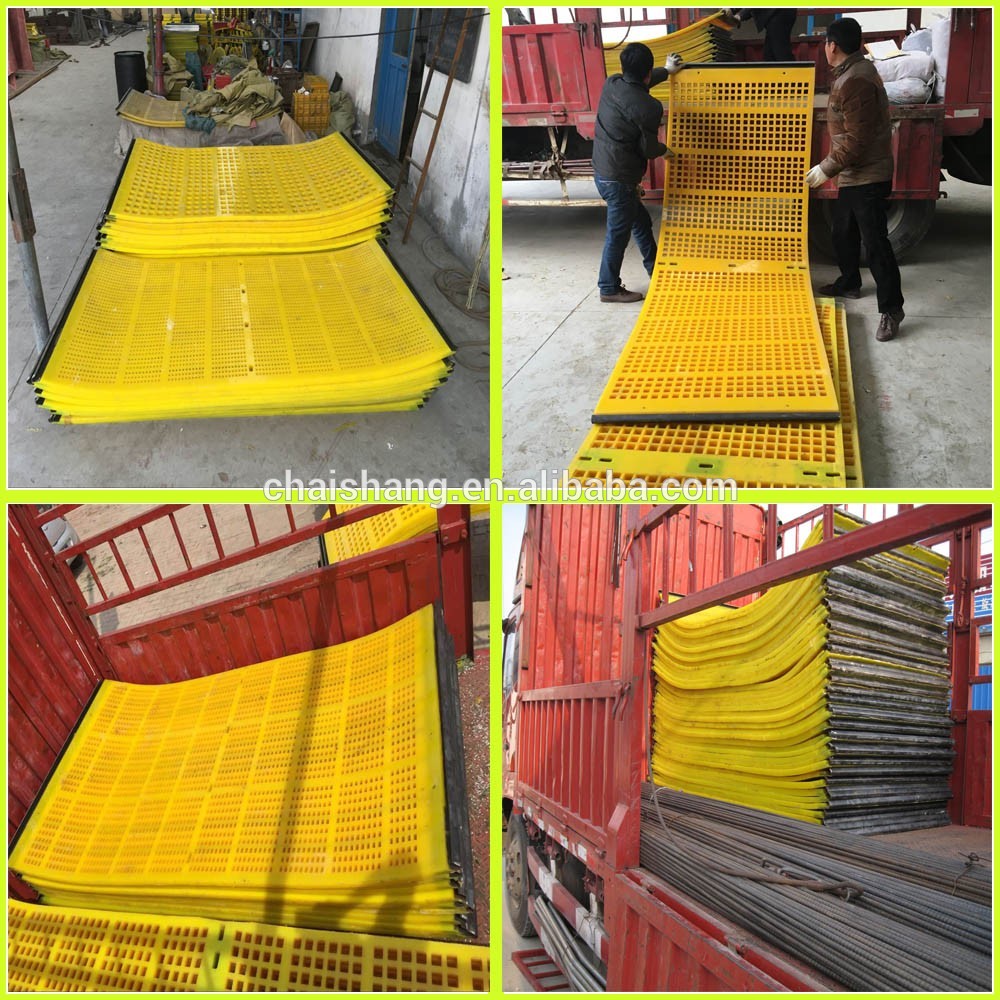

1.The goods are covered by special protective film to avoid the damage from friction during transportation.
2.Then loaded in strong wooden pallet and wooden case.
3.We can also do according to your requirement.
Dezhou Chaishang Shangmao Co.,Ltd is one of the best manufactures in China. We have been specialized in polyurethane products more than 18 years .
Polyurethane Modular Systems:
- injection and open cast moulded Poly panels
- l' x 1 " 2' x 1 ' or 300sq module
- Customised polyurethane recipe for individual applications including:
1. Standard, Medium and Soft - Customised aperture design to suit your raw material and site specifications
- Incorporated surface features, eg: rider bar, weirs
- Panels designed to retrofit to your current fixing system
We can be searched by mine screen, Christmas mine screen, ore mine screen.
Q:Are the samples free of charge?
A:Yes, all samples are free of charge. But if you need the sample which is
bigger than our prepared sample, a little of fee will be needed. And, the
sample fee will be returned as soon as the order placed.
Q:How about the payment terms?
A:50% in advance as deposit by TT,the balance payment before the shipment;
Q:What is the delivery time?
A:It is according to your quantity,normally 10 to 20 days;
Q:After sale service.
A:Every product will be inspected strictly before delivery. We'll in charge of all losses if there is any quality problem.
