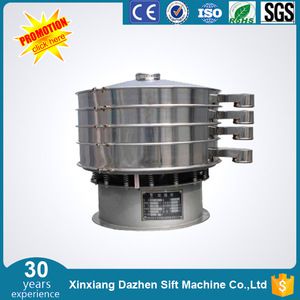

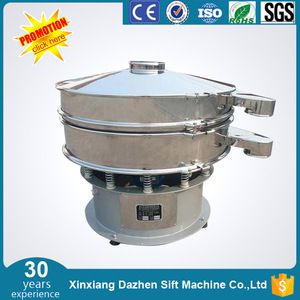

Cheaper industrial rotary starch flour powder sifter

fficiency ,need only 3-5 minutes to rapidly replace the sieve mesh ,all closed structure, suitable go sieve and filter particles ,powders and mucilage etc.

Technical Feature

  • New
  • Separating Plant
  • Paint
  • Henan, China (Mainland)
  • DAZHEN
  • DZ
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Product Description
Description

Cheaper industrial rotary starch flour powder sifter



Cheaper industrial rotary starch flour powder sifter is a kind of high precise fine powder sieving machine, low noise, high efficiency ,need only 3-5 minutes to rapidly replace the sieve mesh ,all closed structure, suitable go sieve and filter particles ,powders and mucilage etc.

Feature
a. Fully adjustable amplitudes of vibration.

b.25 µm to 25 mm aperture quick change mesh - frames.

c. Automatic ejection of oversize materials.

e.304 / 316 L stainless steel contact parts as standard.

f.Deep anti - splash top rims.

g.Quiet operation from polyurethane suspension spring mounts.

Specification
Specification

ModelDZ-
450
DZ-
600
Dz-
800
DZ-
1000
DZ-
1200
DZ-
1500
DZ-
1800
DZ-
2000
Diameter(mm)5006008009701170147017701970
Layer1-5
Mesh size(mm)0.025-20
Rated speed(rpm)1440
Power (kw)0.251.550.751.11.52.234

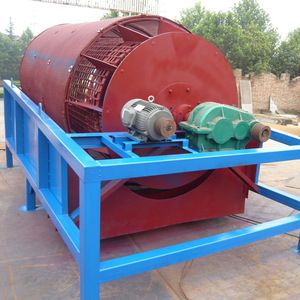

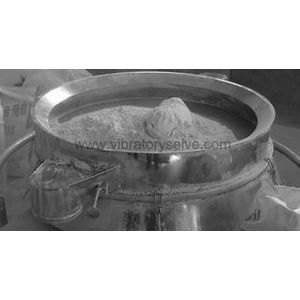

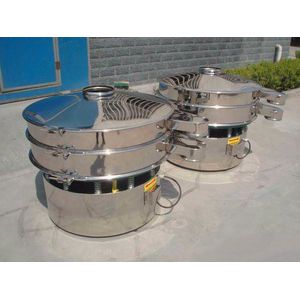

Product Photos
Product Photos

Packaging & Shipping
Packing & Shipping

Application
Application

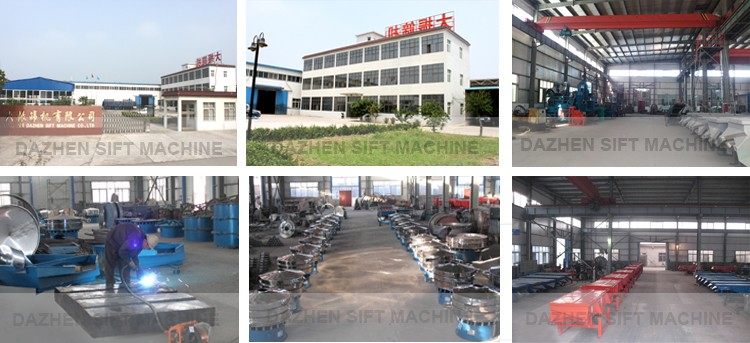

Company Information
Company Brief

 Xinxiang Dazhen Sift Machine is one of the earlist manufacturer engaged in the production of the vibrating screens in China. We are suppling kinds of quality vibrating screen and conveyor products to the customer all over the world.

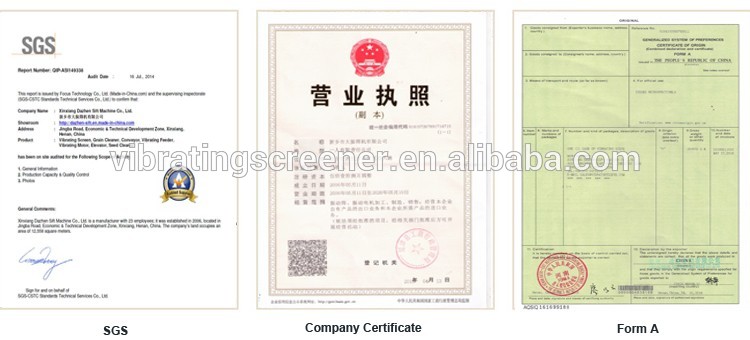

Certificates

Our Customers

Sales Networks

FAQ
FAQ
 1. What it does?

a:Separate solids from liquids or segregate dry materials into various sizes.
2. How it works?
Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. and The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern.
3. Any self-cleaning devices on the sieving machine?
Yeah, Bouncing ball or Ultrasonic system could be installed.
4. How many kinds of material are supported?
A. All stainless steel ( 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.
5. About the phase and the voltage?
0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw Three phase is just supported.
110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).
6. How long is the warranty?
The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.
7. OEM order and labeling services are supported?
Yeah, OEM order and labeling services are supported. And we seek global partners.
8. Whether the site visits is supported or not?
Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. half hour to both Xinzheng international Airport and Pudong Airport.

Q:What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.

Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer.Normally,we will provide telephone guidance.
Pls provide the following information for us.
1. material name, the density(kg/m3), water content(%).
2. the necessary capacity you required(per hour)
3. Machine material. Pls choose one:
a. All stainless steel 304
b. All carbon steel
c. The contacting part is stainless steel, the other parts is carbon steel.
4. the dimension of the machine can be designed for you.
5. Additional parts ,like the mobil wheel, removing-dust hole and noise-proof base,can be easily fixed and maintained.
6. How many layers you need??
7. Pls inform the voltage&frequency in your city.
