Corn Cassava Potato Starch Extraction Equipment Centrifuge Sieve

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Product Description

Corn Cassava Potato Starch Extraction Equipment Centrifuge Sieve

Corn Cassava Potato Starch Extraction Equipment Centrifuge Sieve is able to convert electric energy with 220V, 50Hz or 110V, 60Hz into high-frequency electric energy with 18 KHz and then puts it into ultrasonic energy exchanger to make it change into mechanical vibration with 18 KHz and attains the purpose of high-efficiency sieve and cleaning mesh, which makes it easy to sieve the superfine powder. This system uses low amplitude, high frequency ultrasonic vibrating wave (mechanical wave) on the sieve mesh by the traditional vibrating sieve to improve the sieving abilities of superfine powder. This product solved the material screening problem of strong absorbability, easy cohesion, and high static, high density, light proportion and is suitable for the users who demand the high additional value and fine powder.

Model	600	800	1000	1200	1500	1800	2000
Screen diameter (mm)	φ600	φ800	φ970	φ1170	φ1470	φ1770	φ1970
Effective sieving area	0.23	0.41	0.66	0.99	1.58	2.32	2.9
Screen	2——400 mesh
Layer	1-3	1-3	1-3	1-3	1-3	1-3	1-3
Power (KW)	Vibrating motor	0.55	0.75	1.1	1.5	2.2	3.0
	220V/380V/400V/415V/440V optional

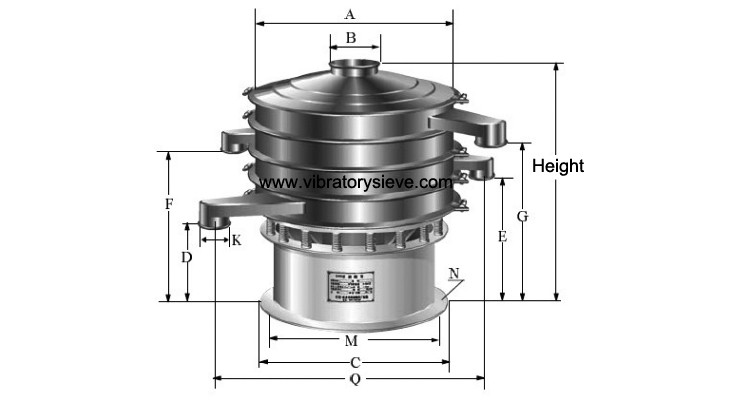

Model	A	B	C	D	E	F	G
DZ-450	Φ450	Φ100	Φ450	300	400	500	600
DZ-600	Φ600	Φ200	Φ540	430	560	690	820
DZ-800	Φ800	Φ200	Φ680	430	560	690	820
DZ-1000	Φ970	Φ200	Φ800	480	630	780	930
DZ-1200	Φ1170	Φ200	Φ955	480	630	780	930
DZ-1500	Φ1470	Φ250	Φ1190	570	740	910	1080
DZ-1800	Φ1770	Φ300	Φ1520	620	780	940	1100
DZ-2000	Φ1970	Φ350	Φ1640	620	780	940	1100

Model	K	M	N	Q	Height
Layer 1	Layer 2	Layer 3
DZ-450	Φ100	Φ446	4-Φ11	390	580	700	820
DZ-600	Φ100	Φ490	3-Φ18	800	820	950	1080
DZ-800	Φ125	Φ630	3-Φ18	1080	820	950	1080
DZ-1000	Φ150	Φ750	3-Φ18	1286	920	1070	1220
DZ-1200	Φ180	Φ905	3-Φ20	1500	920	1040	1220
DZ-1500	Φ200	Φ1120	4-Φ24	1860	1040	1210	1380
DZ-1800	Φ250	Φ1440	4-Φ24	2334	1050	1220	1390
DZ-2000	Φ300	Φ1560	4-Φ17	2516	1050	1220	1390

Applications:

This machine can deal with the materials screening of 400 meshes, 500 meshes and 600 meshes, such as Carborundum, Brown just jade, White just jade, Molybdenum powder, Tungsten powder, Tweezer, powder, Cobalt powder, Stainless steel powder, Alloy powder, Pigment powder, Quartz powder, Emery sand, Electricity powder, Laser powder, Aluminum powder. Electrolyse copper power, Rubbing powder, Fire-proof materials, luminous powder and Glass bead etc.

Detailed Images

Machine Parts

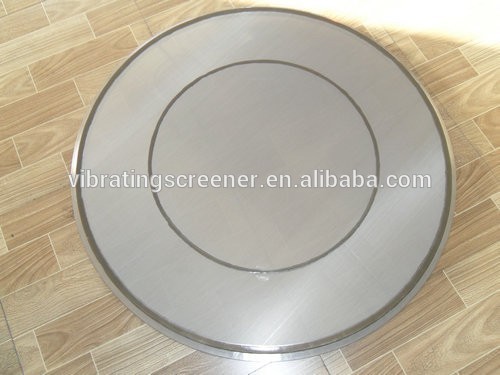

Name: Mesh screen

Brand: Dazhen

Original:China

Adopting SUS304/316 stainless steel mesh screen,much more durable,suitable for separation of food,chemical,medical etc.

Machine Part

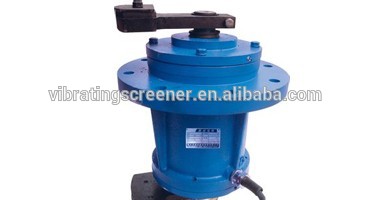

Name: Vibration motor
Brand: Dazhen
Original: China
Adopting quality copper wire coil, with long life.

Packing & Delivery

Packaging
Size	Reference machine dimensions
Weight	about 100~500kg
Packaging Details	Standard plywoodbox(Size: LWH). Don't need to be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
