Milk Cream Separator for Milk and Whey Skimming

The Centrifugal Milk separator is an important equipment for milk processing factories.

Technical Feature

  • New
  • Centrifuge
  • milk, starch
  • Shanghai, China (Mainland)
  • GY
  • GY230
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~30

PRIMARY PARAMETERS

Condition
New
Type
Centrifuge
Product Type
milk, starch
Place of Origin
Shanghai, China (Mainland)
Brand Name
GY
Model Number
GY230
Voltage
220V,380V
Power(W)
2.2KW
Weight
220KG
Dimension(L*W*H)
850X625X985mm
Certification
ISO9001
Warranty
1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas

DETAIL DESCRIPTION

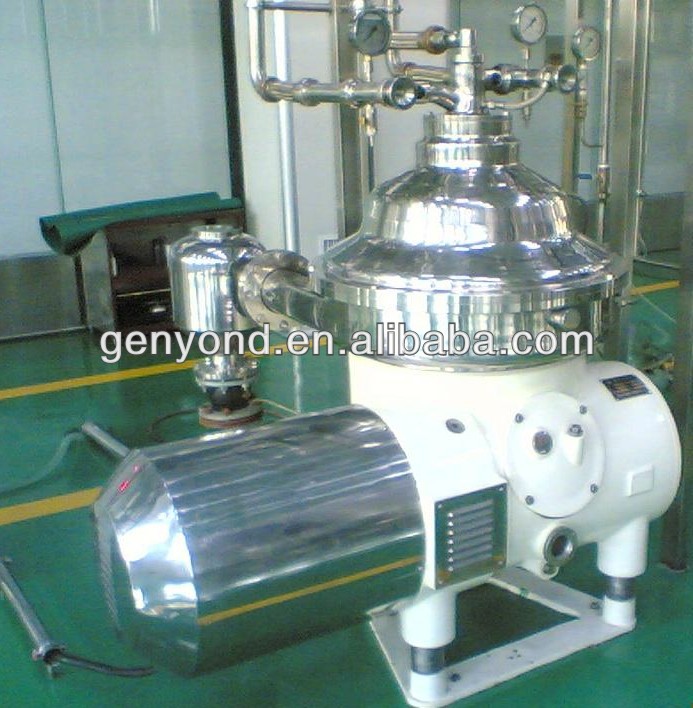

Brief Introduction of 1000L/h disc centrifuge milk separator:

 The Centrifugal Milk separator is an important equipment for milk processing factories. It's also widely used for liquid material separation and decontamination.

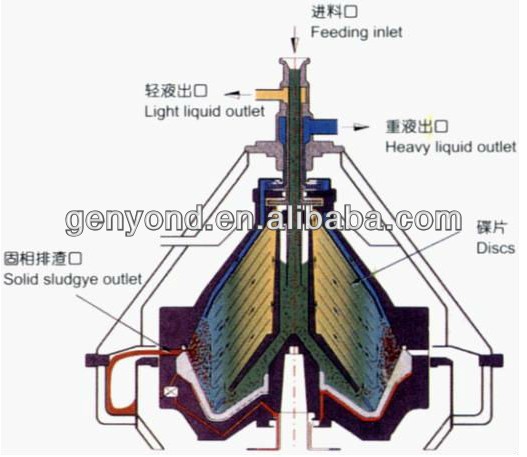

It can be manually open for check. It has an automatic driven disc. Its equipped with a complete sophisticated system that can separate the butter (cream) from the skim milk according to the proportion difference of the substances in the milk and the temperature.



Types we have:

We have many kinds of capacities and types, such as 50L/h, 100L/h, 200L/h, 500L/h, 1000L/h, 2000L/h, 3000L/h and 5000L/h. For all, we have both automatic and manual slag discharging types for you to choose. Also we have both separator scan separate whey from yougert and fat from milk.

So please tell me which machine do you need before I quote to you.





Our advantages:

 1) High efficient vibration filter

efficiente filtrate equipment.it can be widely used in the filting and screening work of pasty,powder.

The minimum size of the material to process can be 5 micron. And the maximum number of the mesh is 400.

Mainly aplicates the small process capacity industry ,like ceramic,painting,dope,printing ink,pharmacy,

food and etc. This type machine consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device.  The machine adope a new vibration structure which is more stable ,high efficient and easily handled. the machine has a good-look,reasonable structure ,stable performance and is easily griddle handled,cleaned and its griddle

is easily changed.eapecilly ,it can satisfy the need of changely location..



2) High efficient screen filter low noise,small  volume screen and filtration machine which can be displaced easily.

The process capacity of the spray painting material whose bulk density is 1.1t can reach 1200 KL/H,when the screen is of 325mesh.

the process capacity of the flour is 700 Kg/H, when the screen is of 30mesh..

To the indoor paint,the process capacity is 1.5 cubic meter per hour with a screen of 250mesh..



The machine was widely adopted in the food,ceramic,pharmarcy,chemical,painting,metallurgy and etc,

Also had the successful application in the brand name nosheries and their chain delivery center

to screen and filtrate the flour, bread floure,juice of vegetable and fruit and soybean milk.

No.

Model

Clarify capacity

(l/h)

Degrease capacity

(l/h)

Drum diameter(mm)

Drum speed

Motor Power

(KW)

Discharge way

Separator factor

Weight

(kg)

Size

(mm*mm*mm)

1

GY230

1200

600-800

230

6930

2.2

Manual

6170

255

850X625X985

2

GY 270

1800

800-1000

270

7200

4

Automatic

6950

550

865X645X1100

3

GY 315

3000

1500

315

6500

5.5

Automatic

7000

650

900X600X1150

4

GY 385

5000

2000

385

6500

7.5

Automatic

7500

750

1100X1050X1250

5

GY 430

6000

3000

430

6900

11

Automatic

10000

900

1200X950X1400

6

GY 470

10000

5000

470

6000

18.5

automatic

9500

1100

1250X1000X1550
