CONTRIFUGAL DISC SEPATATOR

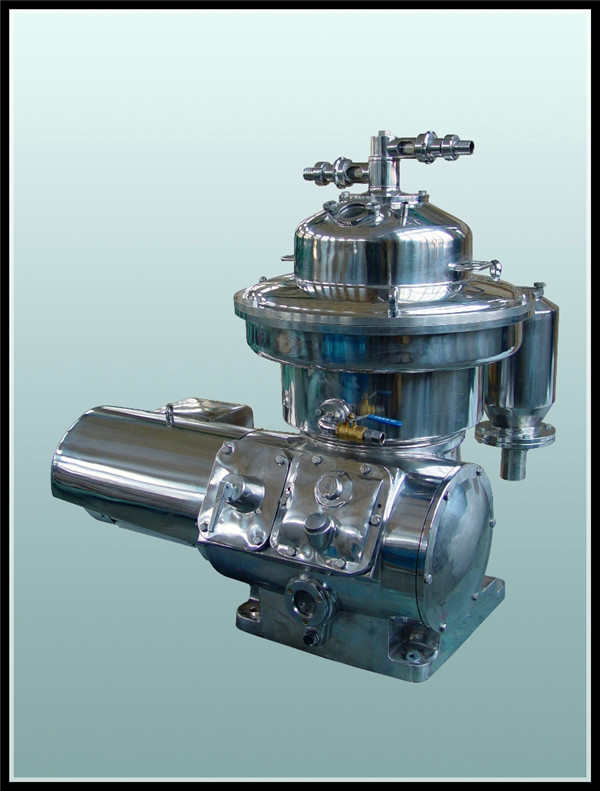

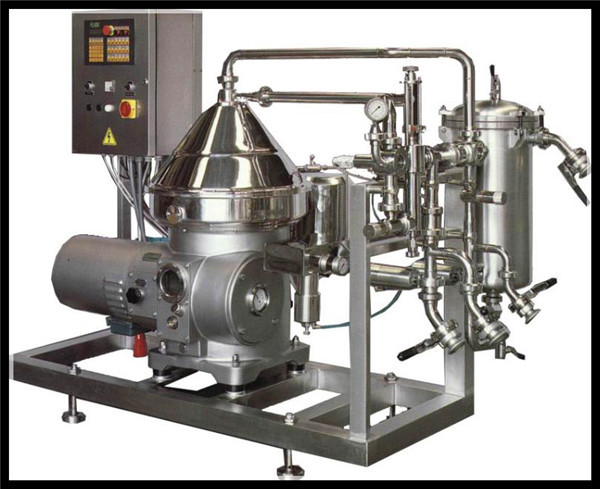

1.centrifugal separator milk
cream separator
dairy separator is the most important equipment in dairy industry. Mainly used in
the skim milk, butter, casein, cheese production, anhydrous butter production process,
such as degrease , concentrate fat, and removal of foreign impurities in the milk.
---Firstly,When working,the sealing water 7 is bumped into the sealing room 6,rising
the sliding piston and sediment ejection hole 3 is shutted down.
---Secondly,Milk to be processed are fed to the bowl from feeding pipe 1, Under the
effects of centrifugal force, the solids which has heavier density is collectedon the bowl wall
---Thirdly ,the opening water 7 is bumped into the opening room 5, falling the sliding piston,
open the sediment ejection hole 3, impurities are desluged from the bowl.
---Fourth,The lighter liquid (fat) flow along the inner side of the discs into the passage in the
upper distributor,the lighter product
---Fifth,The heavier liquid(skim milk) flow along another passage, discharged from the machine by the upper
centripetal pump2.
---Finally, the milk is separated well.
The separator adopts self deslugging and centripetal pump. Thus the machine can
work continuously for a long time
2.Technical Parameters
Model | MDS1000-DN | MDS3000-DN | MDS5000-DN | MDS10000-DN |
Capacity (L/h) | 1000 | 3000 | 5000 | 10000 |
Motor power (KW) | 4 | 7.5 | 15 | 18.5 |
Discharging type | Part discharging | Variable capacity discharge | Part discharging | Small valve discharging |
Output pressure of clear liquid (MPa) | ≤0.2 | ≤0.1 | ≤0.1 | ≤0.2 |
Net weigh (KG) | 450 | 614 | 1000 | 1250 |
Overall dimension L × W × H(mm) | 854× 885 × 1118 | 1120 × 850 × 1082 | 1270×1188×1560 | 1563x1382x1780 |

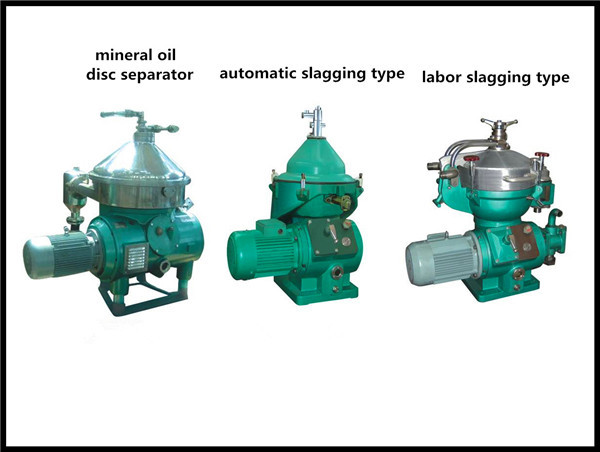

3. machines:
application:
milk and beverages
food oil and other oils
chemical liquids and other liquids
