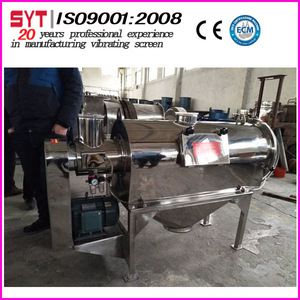

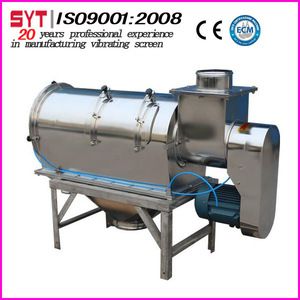

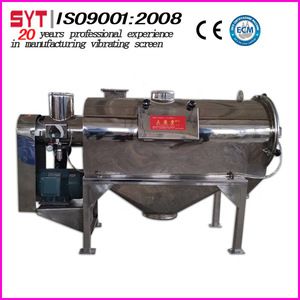

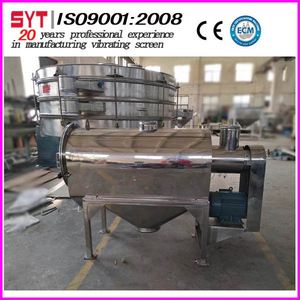

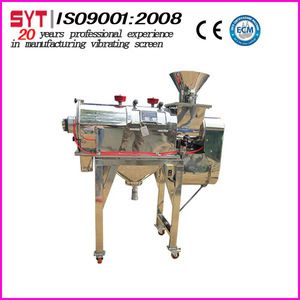

powder sieving machine for fine starch vibrating sifting separator
Airflow sieving machine,please click on https://youtu.be/l5ZMan8b1_I

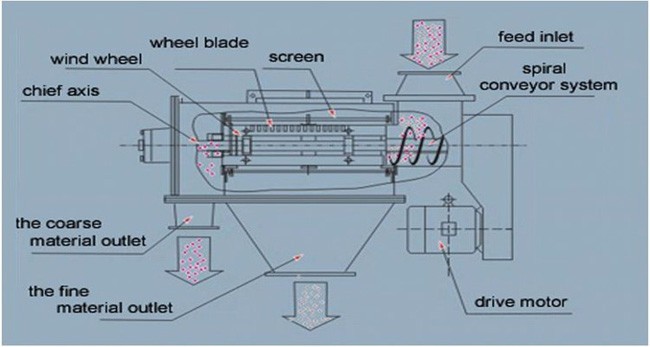

Working principle

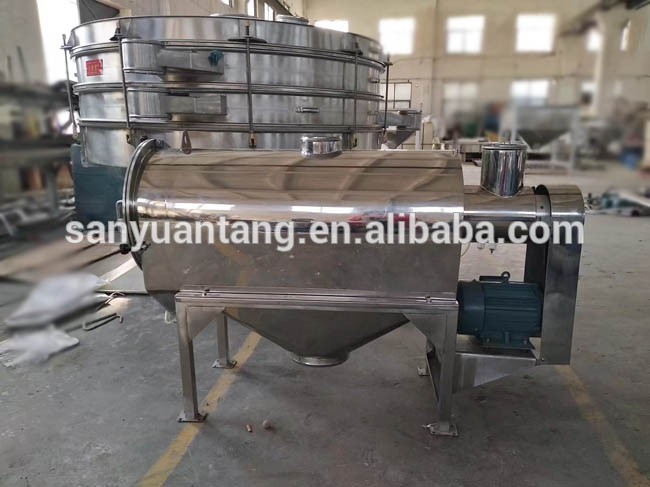

Horizontal airflow vibration screen,the shape of screen is a circular cylinder, it is arranged in the machine body, through the spiral conveying system materials can get into the mesh canister, mixed with air and atomizing. the materials can be sprayed over the net under centrifugal force and the cyclone propelling force through wind wheel blades of the mesh canister, fine material are discharged at the export.
Technical parameter
Model | Material | Screen cage size mm (diameter*length) | Screen material | Application |
SY 18-65 | Q235A Carbon steel | 180mm*650mm | Stainless steel or Nylon screen | 500mesh below |
SUS Stainless steel | 180mm*650mm | |||
SY 30-100 | Q235A Carbon steel | 300mm*1000mm | 500mesh below | |
SUS Stainless steel | 300mm*1000mm | |||
SY 50-130 | Q235A Carbon steel | 500mm*1300mm | 500mesh below |
Features
1 Single or multi machine formed a complete set can be used, for a long time continuous operation, safe and reliable;
2 New-style roller bearing, to extend service life;
3 the machine is smalland light,stable and vibration-free, noise-free, good sealing performance, dust-free, high-efficiency;
4 the caking materials can be further broken;
5 the screen can be washed by cyclone, automatic mesh cleaning;
6 the shell structure is novel, simple to install, easy to control;
7 the machine can be matched with the pneumatic conveying system, directly connecting ventilation flue, saving resources;

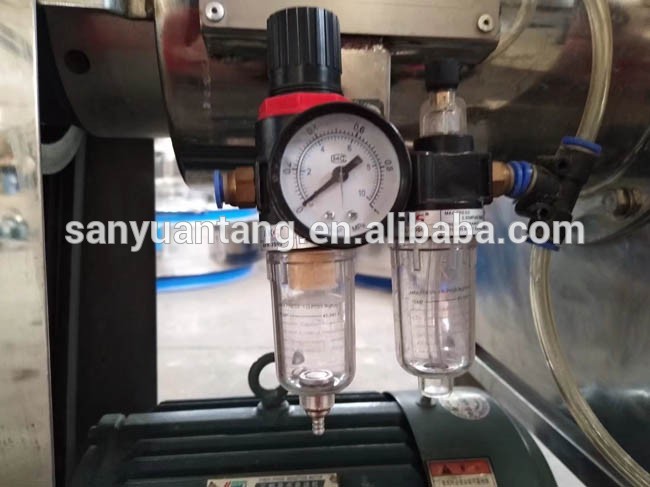

8 new design: gas protection system can purified air into both ends of the machine, it can effectively reduce the temperature during
the operation of the equipment ; forming the gas insulation layer on the bearing , so as to prevent dust entering,effectively extending bearing service life, to reduce the maintenance frequency,to improve work efficiency;
9, Specially designed for the client meet the special needs.
Application
Airflow vibration screen is used in metallurgy, mining, pharmaceutical, food, chemical industry, metal powder and nonmetal etc.
Airflow screen is widely used in all kinds of fine powder which difficult to screen,fine powder in the range of 50-500mesh can be very good screened. Such as light calcium powder, active calcium powder, active carbon powder, starch, medicine powder, fly ash, zinc powder, graphite powder, quartz sand powder, gold powder, pottery clay powder, hawthorn powder, fruit thinning powder, calcium hydroxide powder, pesticide powder, konjac powder, fluorescent powder, wood powder, flour, epoxy resin powder, manganese dioxide, sulfur powder, alumina powder, bakelite powder, magnesium oxide, perlite powder, iron powder, cotton linters, etc.

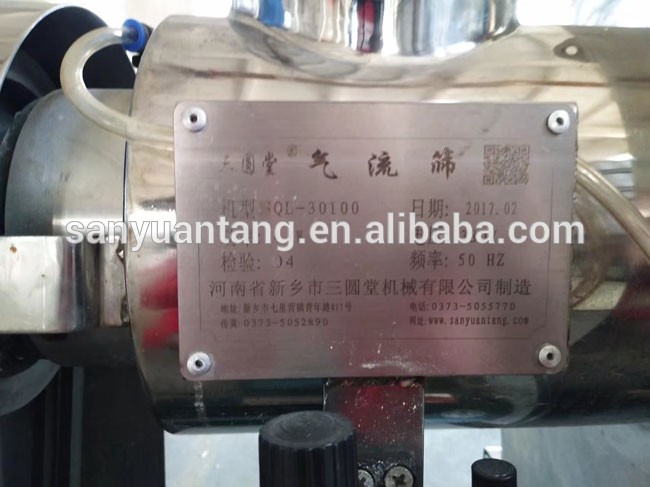

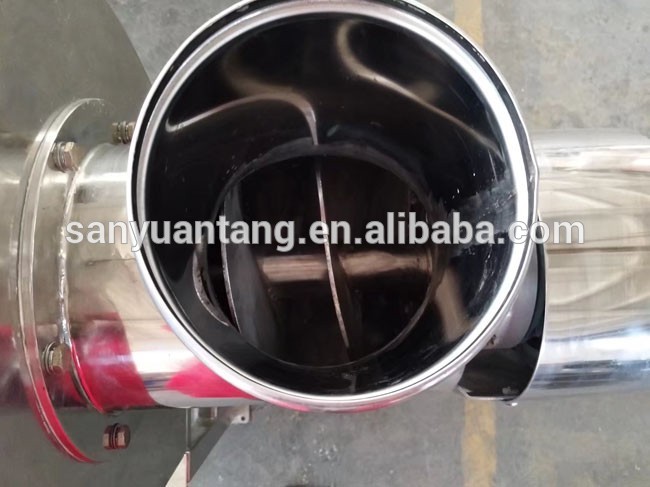

Pictures
1. First, the machine empty running 48 hours before packing;
2. Then to observe whether the motor heating, the machine whether there is noise and so on;
3. Finally, to pack and shipment when fully meet requirements.
Pictures will be taken before delivery.
Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.
At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator-filter, Ultrasonic vibrating screens, Sifting machines, Filtering machines, Linear vibrating screens, Testing screens, Vibrating conveyers, etc.
These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc.
Our products have seven national patents. The quality and technology of our products have reached the international advanced standard.
Why Choose Sanyuantang
1. International high quality certification product chain
2. Manufacturer, more reasonable price
3. Solid technical support and after-sales service
4. Uphold the principle of “Customer Supreme”
5. Exports to more than 20 countries and regions, good customers feedback
6. One-stop service, customized exclusive project feasibility report.
Frequently Asked Questions (FAQ):
Q: What are you mainly specilized in?
A: Our company is a professional manufacture of vibrating equipments(like rotary vibrating screen,linear vibrating screen,test sieve machine and so on);conveying equipment (like screw conveyor,vertical bucket condeyor and so on);honey processing equipment;grain sieving equipment.we have been in this field for 20 years.
Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.
Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
Ususlly 7-10 working days,if the order is large,the time should be longer.
Q: What’s the advantage compared to other suppliers?
A:We are a Industry and trade company,there isn't any link between customers,so we can offer competitive price for you.
