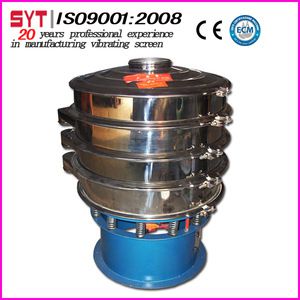

The product description
Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface

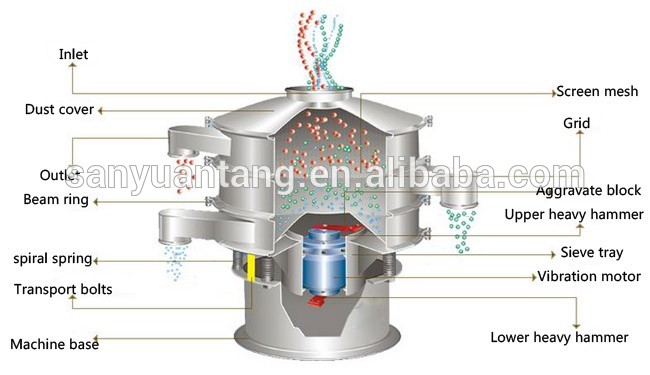

Work diagram
Technical parameters
Model | Diameter (mm) | Mesh area Per deck(m2) | Mesh size (mesh) | Layers | Vibration motor(kw) |
SYT-400 | Ø340 | 0.09 | 2-500 | 1-5 | 0.18 |
SYT-600 | Ø540 | 0.23 | 2-500 | 1-5 | 0.55 |
SYT-800 | Ø740 | 0.43 | 2-500 | 1-5 | 0.75 |
SYT-1000 | Ø900 | 0.66 | 2-500 | 1-5 | 1.1 |
SYT-1200 | Ø1100 | 1 | 2-500 | 1-5 | 1.5 |
SYT-1500 | Ø1400 | 1.58 | 2-500 | 1-5 | 1.5 |
SYT-1800 | Ø1700 | 2.32 | 2-500 | 1-5 | 2.2 |
SYT-2000 | Ø1920 | 2.8 | 2-500 | 1-5 | 2.2 |
Feauture
1 high efficiency, compact design and durability, any powder and mucus can be screening.
2 changer is easy, simple, easy to clean.
3 mesh is not blocked, the powder does not fly, can be screened to 600 mesh 0.018mm
4unique grid design, screen used for a long time for network speed, screen up to 7 layers.
5 impurities, coarse material discharged automatically, you can continuous work.
6 low energy consumption, maintenance is simple, without foundation installation.
Application field
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Ultrasonic Vibrating Screen
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

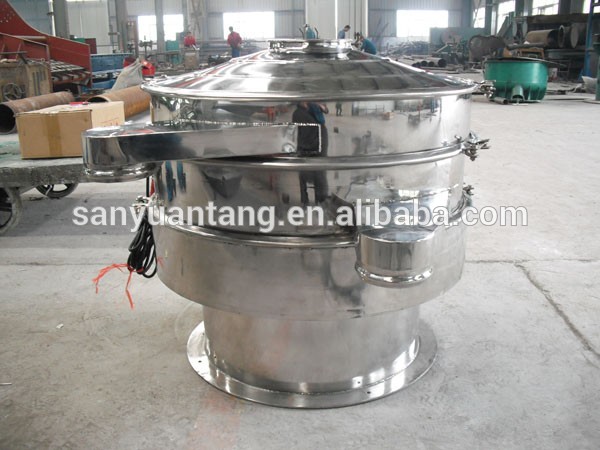

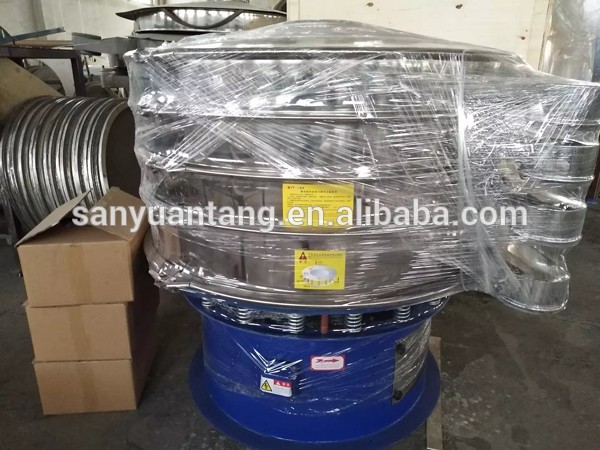

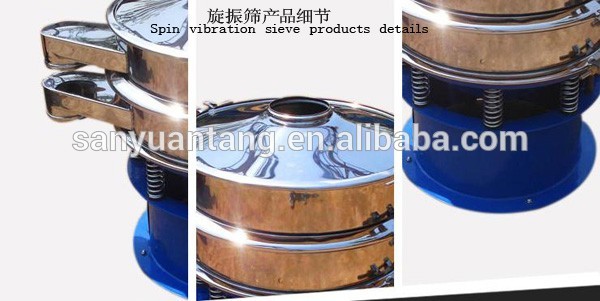

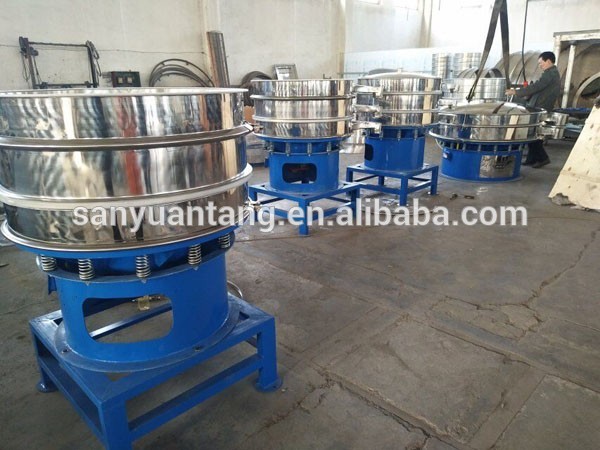

Device display
Our Services
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
Why Choose Sanyuantang
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of “Customer Supreme”
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report.

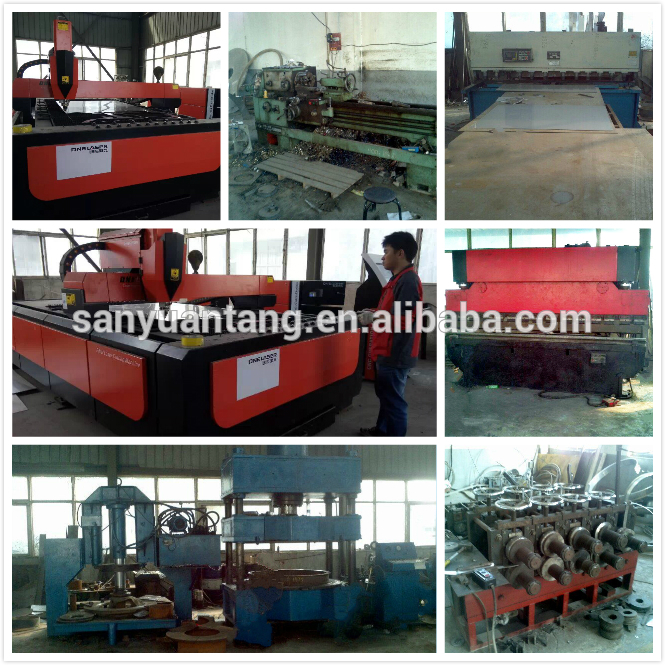

Factory equipment
