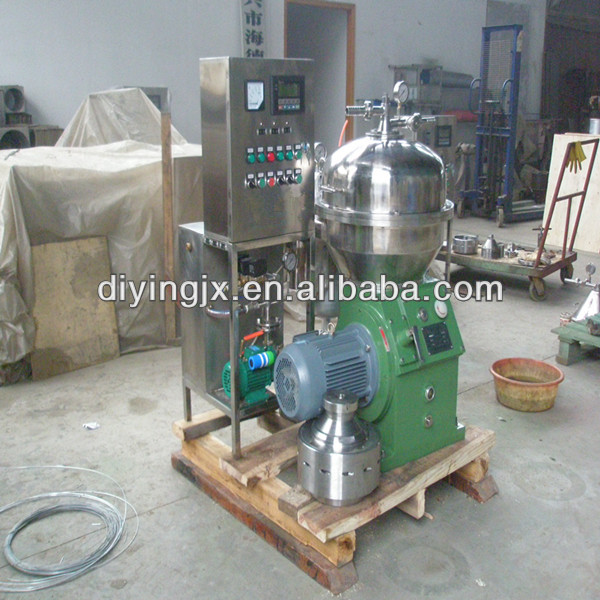

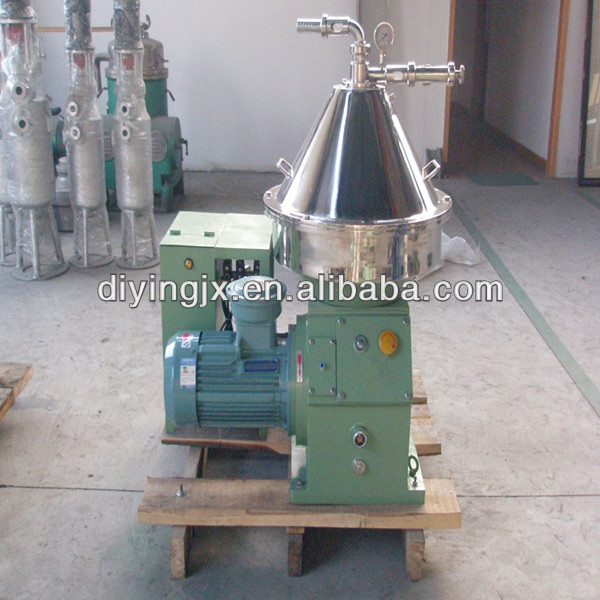

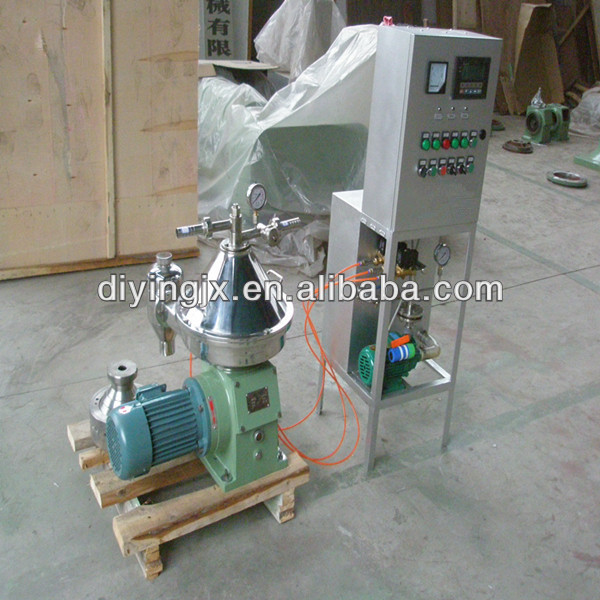

medicine industry centrifuge machine disc separator
Disc separator is to absorb Russia and Sweden disc separator technology and developed products.
Mainly used in biological medicine, Chinese medicine agent, antibiotic, protein, spices, vitamin, etc., can also be used for other similar material of liquid - solid separation in the clarification of light phase and solid phase concentration process. Separator design, manufacture and test for the GB10897 and GB10898 execution in strict accordance with national standards.
Compared with similar products, its features are:
l Bring the fuselage short, small volume, easy to workers operation, less space of workshop.
l Bring the motor power is small, low power consumption.
l Bring about centrifuges centripetal pump structure is adopted for export, discharge of liquid can be directly transported to the downstream equipment.
l Bring discharge way has two options, either with PLC automatic control, and can be manually controlled.
l Bring in the drum adopts special structure, large quantity, clarify the effect is good.
Technical parameter:
Type | PJLDH5 | PJLDH15 | PJLDH30 | PJLDH50 |
Capacity | 500-1000 L/h | 1500 L/h | 3000 L/h | 5000 L/h |
Drum diameter | 230 mm | 300 mm | 400 mm | 475 mm |
Drum speed | 7540 rpm | 7320 rpm | 6500 rpm | 6000 rpm |
Power | 1.5 kw | 4 kw | 5.5-7.5 kw | 11 kw |
Dishcarge way | Automatic PLC control | Automatic PLC control | Automatic PLC control | Automatic PLC control |
Pressure | 100-250 kpa | 100-300 kpa | 100-350 kpa | 100-350 kpa |
Working condition | Semi-closed | Semi-closed | Semi-closed | Semi-closed |
Weight | 120 kg | 450 kg | 650 kg | 1100 kg |
Size | 700*550*800 mm | 800*600*1250 mm | 1100*650*1550 mm | 1100*850*1600 mm |
