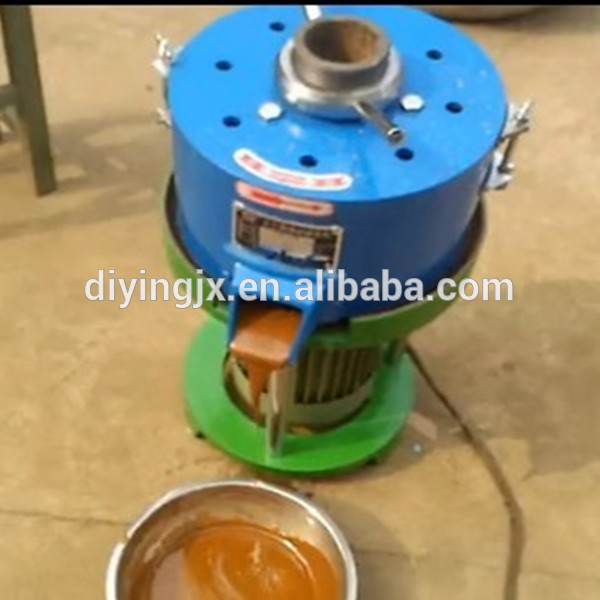

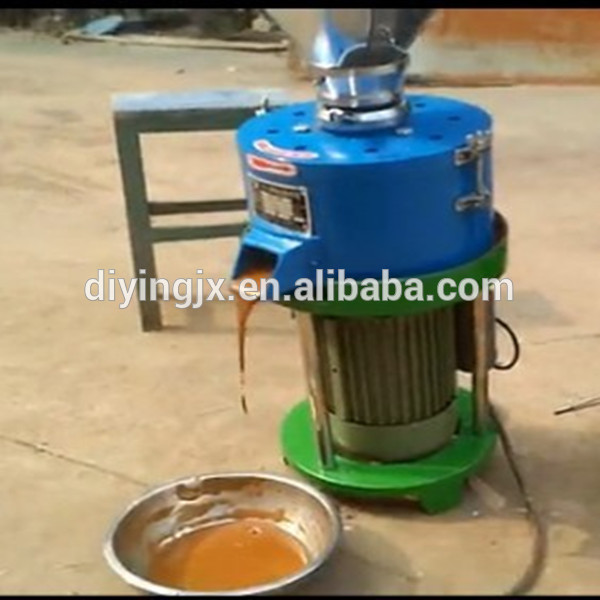

Low consumption industrial peanut butter machine
Technical parameter:

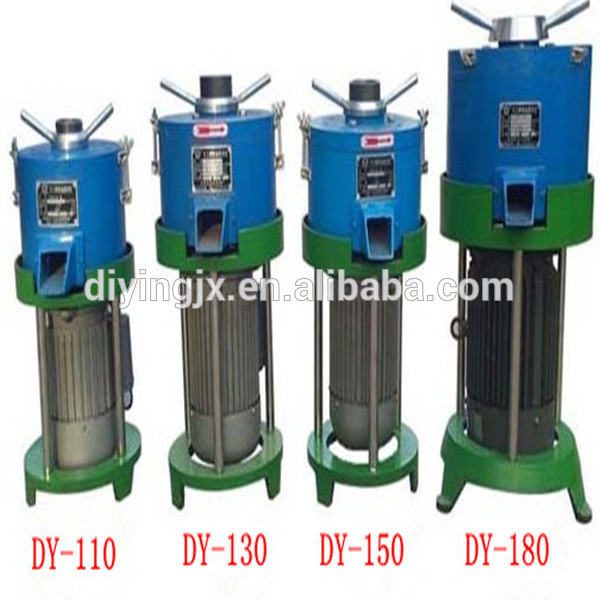

Type | DY-110 | DY-130 | DY-150 | DY-180 |
Power | 0.75 kw | 2.2 kw | 2.2 kw / 3 kw | 4 kw / 5.5 kw |
Size | 28*590 mm | 32*650 mm | 32*650 mm | 56*750 mm |
Capacity | 30-40 kg/h | 40-50 kg/h | 50-60 kg/h | 80-100 kg/h |
Grinding wheel diameter | 110 mm | 130 mm | 150 mm | 180 mm |
Suitable material: peanut, sesame, etc.
Sesame oil machine operation method (simple):
1, Check before starting the hopper, and parts, pull out all the unsafe factors.
2, Turn on the motor shell ground wire.
3, Try to connect power (PM) to observe grinding head rotation, positive turn in the direction shown by the arrow.
4, Boot after grinding head contact switch to shut off the power first, hear grinding wheel make cheep turn 6-7 turn, grinding head automatically stop, the sesame is most appropriate at this time.
5, Grinding sesame observe whether slurry is fever after 3-5 minutes, if there are any opening of flue gas from a pulp out, immediately dispatch wheel slowly loose, not fierce or more adjustable.
6, New machine before use, or replace a new grinding wheel, to add water to the grinding wheel up and down, see the grinding wheel circumference to shine, the contact surface to achieve full, otherwise the coarse pulp.
7, Fried sesame good out of the pot, quick in action, the heat and smoke release inside must have sesame, can be cold, pulping, not grinding heat sesame seeds.
