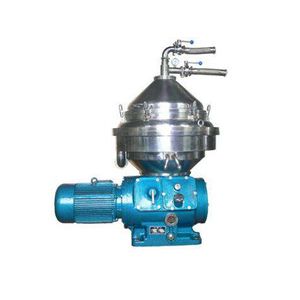

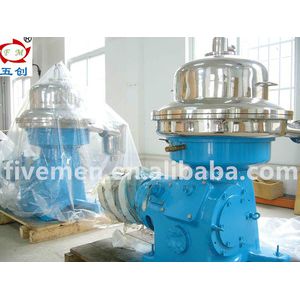

ZYDH Continuous Automatic Disc Stack Centrifuge separator

Reducing the harmful ingredients in vegetable oil, to meet national standards.

Technical Feature

  • New
  • oil separator
  • oil separator
  • Jiangsu, China (Mainland)
  • FIvemen
  • ZYDH series
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~15

PRIMARY PARAMETERS

Condition
New
Type
oil separator
Product Type
oil separator
Place of Origin
Jiangsu, China (Mainland)
Brand Name
FIvemen
Model Number
ZYDH series
Voltage
380V/220v
Power(W)
5.5kw
Weight
550kg
Dimension(L*W*H)
865*645*1100
Certification
ISO9000
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
name
ZYDH disc stack centrifuge separator
Keyword
disc stack centrifuge separator
Capacity
1000-2000L/H
Material
Stainless Steel 304/316L
Rotation speed
7200 r/min
discharge
automatically discharging disc centrifuge
Control box
PLC control box and Common control cabinet
Application
all kinds of plant oil
Function
liquid liquid solid separation
Separation factor
6950

DETAIL DESCRIPTION

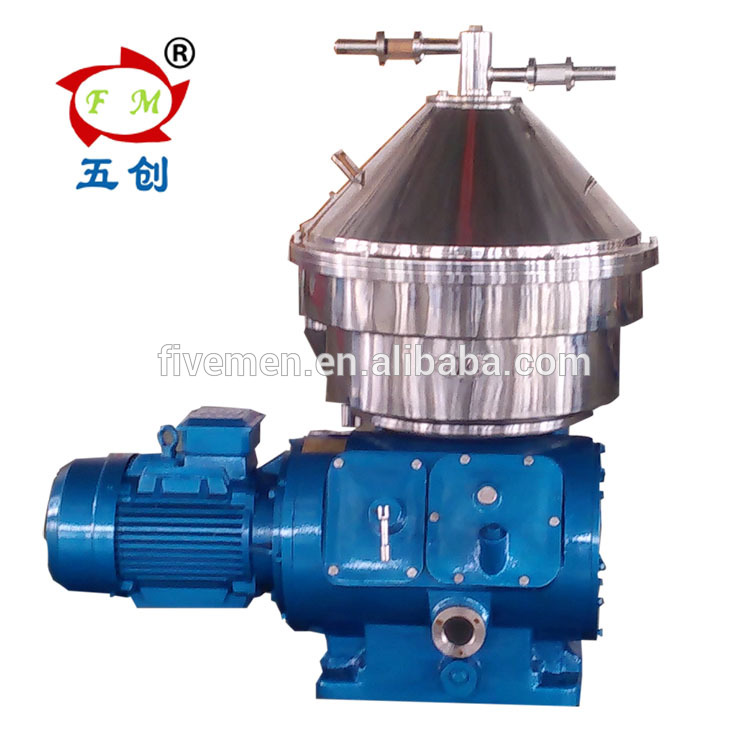

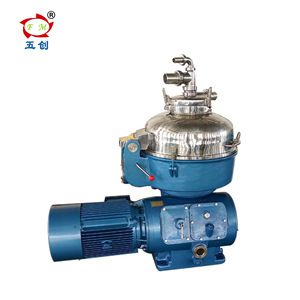

ZYDH Continuous Automatic Disc Stack Centrifuge separator



Product Description

Appication



Plant oil separator is the main equipment for a vegetable oil continuous refining system,



can be used for plant oil refining,continuous degreasing, dephosphorization, de-soap,



dehydration and other procedures.



Reducing the harmful ingredients in vegetable oil, to meet national standards.



For the coconut oil/ soybean oil / palm oil, we have exported to many countries.



and have the working video of the separation.





Features



1. High Speed and high separation factor(7200 r/min )



2.running balance



3.simple  operation



4.low oil consumption.



5. Automatically discharging



6. continuous operation.



7. All the key parts of the machine bearing all use imported bearing((brand SKF)



8.Drum adopts 0Cr13Ni4Mo material that is steel high purity, good performance.



 9. In order to meet different requirements of production scale, the machine adopt bottom washing. Facilitate liquid seal and exclusive soap, the heart pump discharge the material, reducing system

operating pressure. Regulate different specific gravity ring, can be suitable for all kinds of oil, so that

better separation.

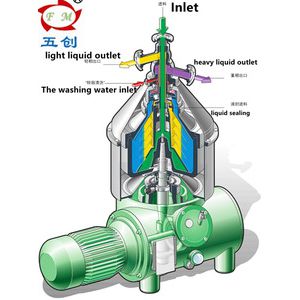

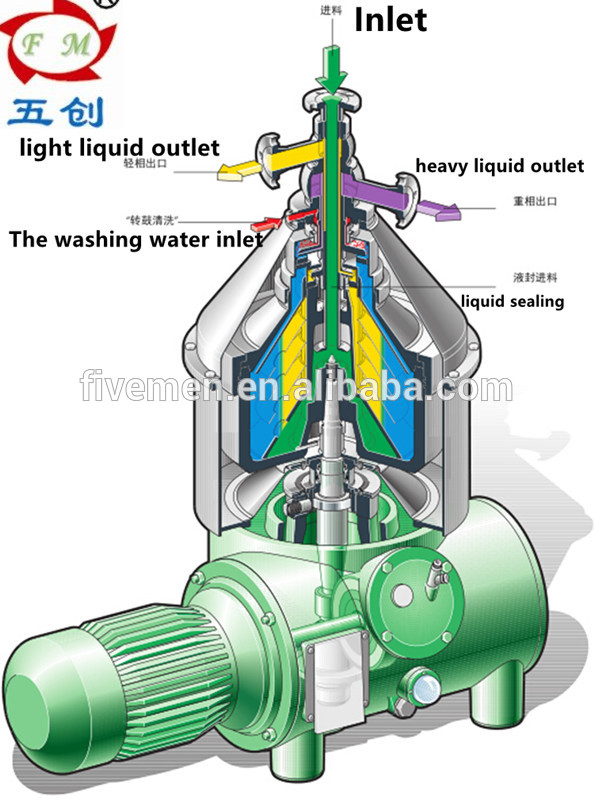

  Working Principle



Zydh can separate rapid succession of solid liquid and liquid liquid ,which is a kind of vertical centrifuge.

A rotary drum is install in the upper end of vertical shaft, the driving device driven by a motor to rotate

at high speed. Drum have a set of a butterfly shaped parts mutually overlapped together.



Have a very small space left between the disc and disc. Suspension pour intodrum by feeding tube

which is located center of the drum.When the slurry flows past the clearance between the disc, solid particles in centrifuge sinking to the sediment is formed on the disc. Sediment  falls of the disc along

the sliding surface of the disc and accumulate in the drum at the largest diameter.



The separation of the liquid exhaust drum from the liquid outlet .The function of the disc is to short

the distance between the settlement of solid particles or liquid droplets and to expand the area of settlement of the drum.Because the installation disc in the drum and greatly improves the separators’ production capacity.





Technical parameters



     Technical parameters



Model

Capacity

(L/h)

Basket Diameter (mm)

Rotation Rate of Drum (r/m)

Separation factor

Power (KW)

Slag discharge

way

Weight

(kg)

Dimension

(mm*mm*mm)

ZYDH270

2000

270

7200

6950

4

automatic

550

865*645*1100

ZYDH315

3000

315

6500

7000

5.5

automatic

650

900*600*1150

ZYDH385

4000

385

6500

7500

7.5

automatic

750

1100*1050*1250

ZYDH430

5000

430

6000

8050

11

automatic

900

1200*950*1400

ZYDH470

8000

470

5800

8500

18.5

automatic

1100

1250*1000*1550

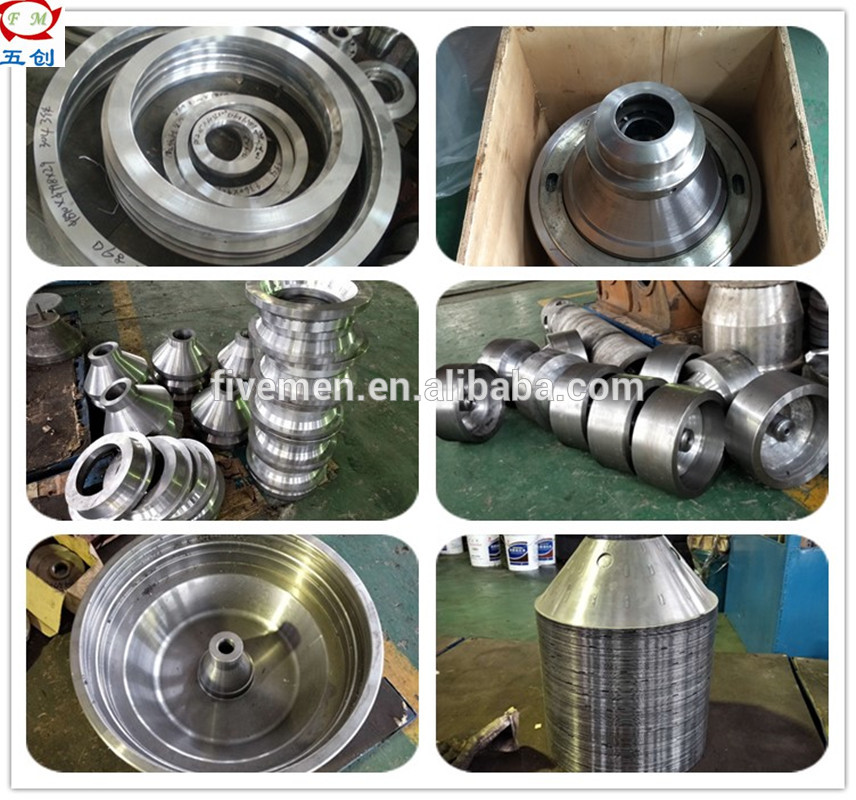

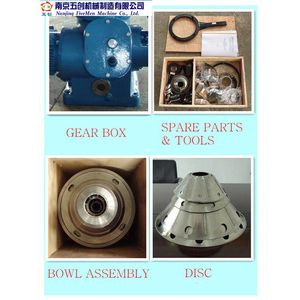

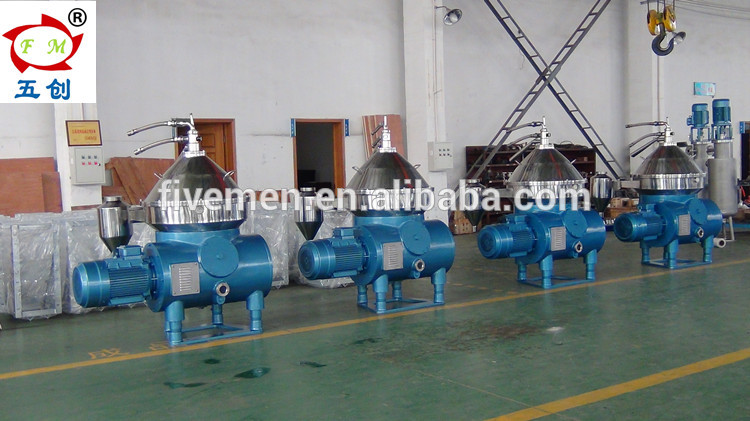

Main parts





   Main Parts

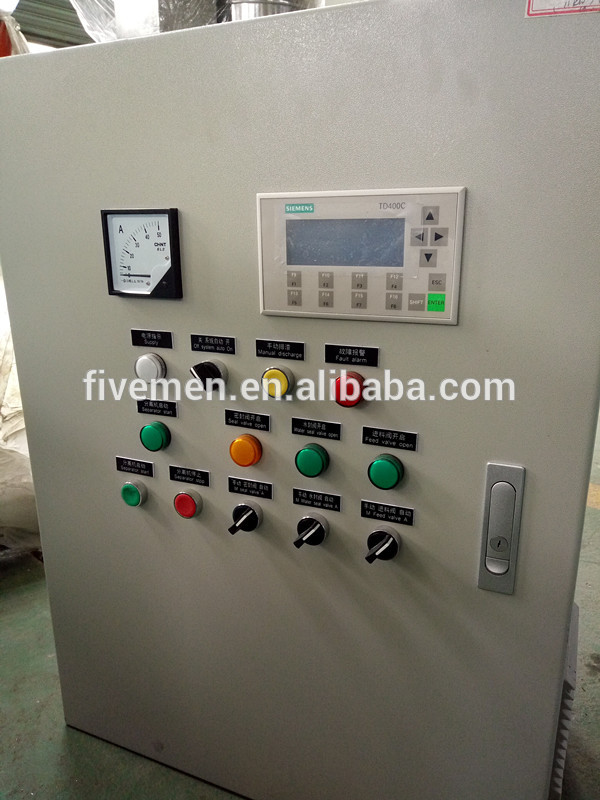

The control box need to customize, if you need the control box, pls inform us.

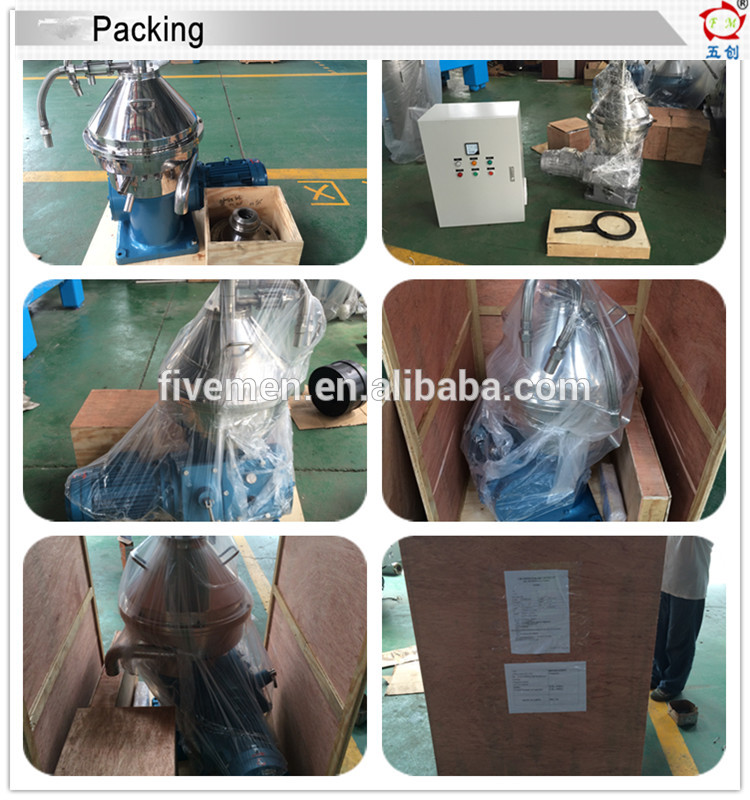

Packaging & Shipping







Our Services



  Services



1. 12 months guarantee period from machine arrive date.



2. Abundant spare parts in stock are available to provide.



3. Our technicians could be dispatched for overseas service.



4.7* 24 hours technical consultation.



5.Your workers could get trained both in our factory and yours.



6.Routine tracing till the machine work properly will be done timely.



7.We will remind you to do the normal maintenance.



8.Your suggestions or any comments & reflection would be treated in priority.



9.Marketing team will visit you during our visit to your country if your require.





PRODUCT CATEGORIES

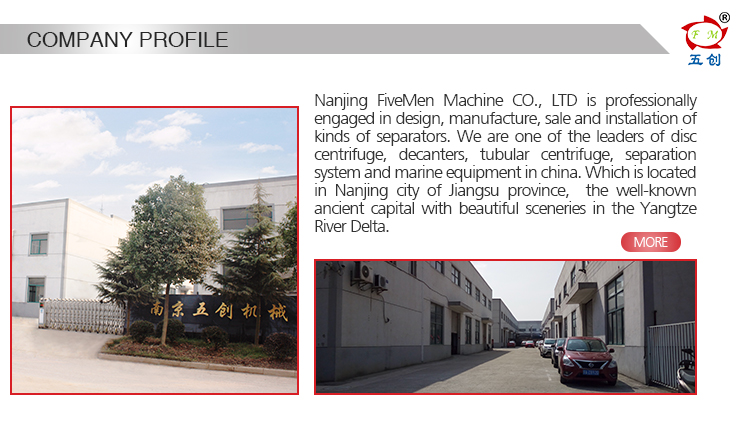

Company Information



Nanjing FiveMen Machine CO., LTD is professionally engaged in design, manufacture, sale and installation of kinds of separators. We are one of the leaders of disc centrifuge, decanters, tubular centrifuge, separation system and marine equipment in china. Which is located in Nanjing city of Jiangsu province,  the well-known ancient capital with beautiful sceneries in the Yangtze River Delta.

Over the years, our products have been successfully applied in liquid-solid or liquid-liquid-solid separation of biomedicine, traditional Chinese medicine, phytoextraction , health foods, beverages, dairy products, lanolin, animal and plant oil, mineral oil, petroleum, chemical industry, environmental protection and other industries. For some materials with small difference in specific gravity of liquid and solid phase ,small solid particle size and low content by use of centrifuge extraction, concentration and clarification , our company can provide you with ideal separation equipment.

We have passed ISO9000 quality system certification awarded by China Classification Society; our mineral oil separators used in inland rivers, offshore and ocean shipping have achieved CCS approval certificate, and the products used in fishing boats also passed the fishery inspection.

As an professional centrifugal manufacturer, Not only we provide high quality products and perfect after-sales service for our clients .But also, We own various kinds of inspection and testing facilities, So we have strict quality control and cost control in the production of centrifuges. even in the choice of raw materials and parts. Besides, we have strong professional engineering team. Our products are successfully exported to Japan, North Korea, South Korea, Taiwan, Thailand, Malaysia, Vietnam, Burma, India, U.S.A., Africa and some Latin American countries.enjoying high reputations in the fierce market competition.
