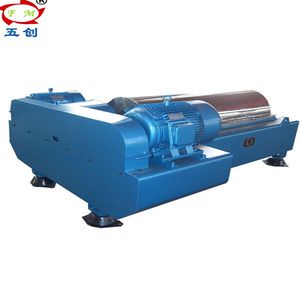

LWS horizontal three phase decanter oil centrifuge
Instruction
Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or
classify 1um-5um solid phased particles. It has two types, one is LW two phase centrifuge, which can
separate the solid from the liquid, another is LWS three phase cntrifuge, which can separate the water and solid from the oil.
Feature:
It is wide application range, work continuously, large processing capacity, low cost, convenient
maintenance and so on. It is the best equipment for separating solid-liquid.
Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard
GB10894-89 "separation machinery noise sound power level measurement engineering method"
Application:
It is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge),
another is three phase centrifuge (solid liquid liquid centrifuge.)
type | Appication |
LW two phase centrifuge | Liquid clarification: to remove the solid particles in suspension to get clarify liquid.
Solid phase dehydration: dealing with the solid particles to reach dehydration material.
Particle size classification: to remove solid particle of large size in material.
1. coking, industrial sludge concentration, sludge dewatering 2. Food and drink fruit juice slag, slag of animal oil, plant oil, Soy protein isolates of dehydration, concentration of fish protein, wheat starch B dehydration. 3.Chemical * barium dehydration, kaolin industry classification and grade of graphite and PPT, classification of drilling mud |
LWS three phase centrifuge | For three phase separation, to remove moisture and solid sludge from all kinds of oil. Such as all kinds of plant oil, all kinds of animal oil, Restaurant waste oil, petroleum, heavy engine oil ect. |
LW two phase
Type No. | Length to diameter ratio | Drum speed (r/min) | Motor power(KW) |
LW260 | 3.5-4 | 5000 | 7.5-11 |
LW355 | 4200 | 11-37 | |
LW420 | 2-4.5 | 3800 | 15-45 |
LW450 | 2-4.5 | 3300 | 18.5-45 |
LW480 | 2-4.5 | 3000 | 18.5-55 |
LW530 | 2-4 | 3450 | 22-75 |
LW650 | 2-4 | 2800 | 37-110 |
LW750 | 2-4 | 2500 | 55-132 |
Three phase:
Type No. | Length to diameter ratio | Drum speed (r/min) | Motor power(KW) |
LW355 | 2-4 | 4000 | 11-30 |
LW420 | 2-4 | 3600 | 15-37 |
LW530 | 2-4 | 3000 | 18.5-45 |
TWO Phase:
Three phase:
1. 12 months guarantee period from machine arrive date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4.7* 24 hours technical consultation.
5.Your workers could get trained both in our factory and yours.
6.Routine tracing till the machine work properly will be done timely.
7.We will remind you to do the normal maintenance.
8.Your suggestions or any comments & reflection would be treated in priority.
9.Marketing team will visit you during our visit to your country if your require.
Nanjing Fivemen machine CO., LTD is a professionally engaged in design, manufacturer, testing,and installation of centrifuges and separators.
Over the years, our products have beensuccessfully applied in the mineral oils, dairies, fruit and vegetable juices,pigments, animal and plant oils, starches, bio-pharmacy, fermentation broth,additives, foods, oil extraction, fish oil feeds, grading of non-metallicminerals, petroleum chemistry, sewage treatment and other industries. Ourcustomers spread through the whole nation except Tibet, and our products aresuccessfully exported to Japan, North Korea, South Korea, Taiwan, Thailand,Malaysia, Vietnam, Burma, India, U.S.A., Africa and some Latin Americancountries.
We have passed ISO9000 quality system certificationawarded by China Classification Society; our mineral oil separators used ininland rivers, offshore and ocean shipping have achieved CCS approvalcertificate, and the products used in fishing boats also passed the fisheryinspection. In the past years, we have been awarded a number of honors such as "High-qualityProducts in Jiangsu Province", "Grade AAA Demonstration Unitin Quality, Service and Credit of Jiangsu Province", "StarEnterprise in Jiangsu Province", "Grade AAA Brand Enterprisein Quality and Integrity of Jiangsu Province" and so on.
Our quality policies are: “ExcellentQuality, Leading Technology, Sincere Operation and Customer Satisfaction”.We shoulder the responsibility of providing highly reliable centrifuge productswith advanced structure, low vibration and low noise, strive to producehigh-quality centrifuge products, and achieve mutual development withcustomers.
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
