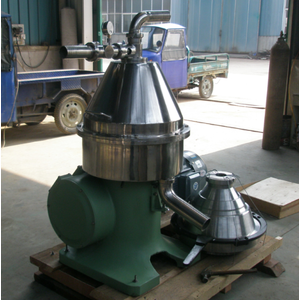

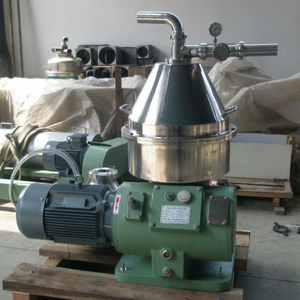

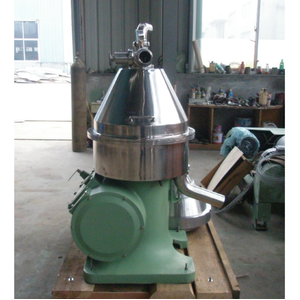

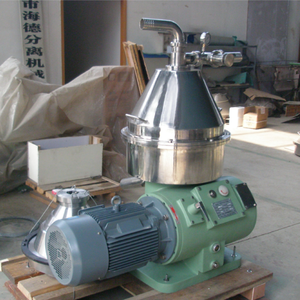

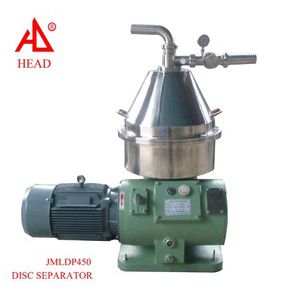

JMLDP450 barm separator is one of separators with nozzle around the bowl. It is Used in concentrating barm water with yeast content 10%-30%. It is widely used in concentrating in the industries as barm ,wine, brewage and pigment.
This product absorbs the advantage of the same kind foreign product in Germany All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock and the machine spare parts.
It is made up of feed and discharge device, bowl, hood, driving device vertical, driving device horizontal, frame and motor. Bowl has been precise dynamic balance test . Power drive adopts the triction clutch, Transfer power by the fluid, start reliably, prevent overland. The bearings used the machineare SKF grade in Sweden., guarantee working precision of the machine.

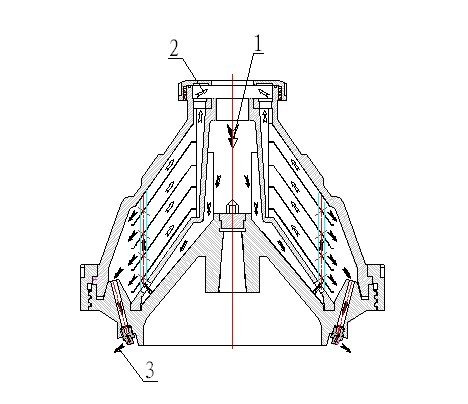

When working, The mixture fluid to be processed are fed to the bowl from feeding pipe 1, Under the effects of centrifugal force, the solids which has heavier density collects on the bowl wall, it include barms and yeasts, simultaneity. the separated solids are ejected from the nozzle 3 under the bowl . The lighter liquid flow along the inner side of the discs into the passage in the distributor,the lighter product is discharged from the machine by the centripetal pump 2. Thus the machine can work continuously for a long time, attain good separation effects in long run.
Mainly technology data
Bowl inner | mm | 450 |
Bowl speed | r/min | 6022 |
Separate factor |
| 8540 |
Light liquid output |
| centripetal pump |
Light liquid pressure | mPa | 0-0.35 |
Number ot nozzles | Pcs/set | 12 (all 3 sets) |
Diameter of nozzle | mm | φ1.1,φ1.2,φ1.3(adjustable) |
Impurity in clarified liquid | ≤4mg/kg, ≤2μmm | |
pruduct | L/h | ≤10000~15000 |
Power | kW | 15 |
Height | Kg | 1100 |
Overall dimension | L*W*H | 1240*840*1320 |
