Horizontal Sand Mill/Pin Mill/Bead Mill for hot sale
Application
Horizontal sand mill especially for for paint , printing Ink , pesticide SC, pigment
Ø Adopt the centrifugal screen device, easy to disassemble, greatly increased the area of separation, discharging more smoothly and large flow production, convenient maintenance
Ø The minimum diameter of grinding medium can choose 0.3 - 0.5mm
Ø Ultimate fineness of output material to reach nanometer level
Ø Optional to install round disc, abnormality disc or tooth disc as grinding mechanism according to different materials, linear speed up to 15m/s, with high grinding efficiency and material quality
Ø The double mechanical sealing and cooling unit, equipped with liquid level monitor
Ø The grinding chamber and dispersion disc could be silicon carbide, zirconia or polyurethane and other special materials according customer's requirements, realize zero metal-pollution
Technical specification
Model |
Volume (L) |
Power (kW) |
Dispersion Disk Speed(r/min) |
Dispersion Disk Number |
Dimension (L*W*H mm) |
Cooling Water(m3/h) |
Viscosity (Pa.S) |
Feed capacity (L/min) |
Weight (KG) |
SW15-1 | 15 | 15 | 1055 | 5 | 1530*880*1350 | 1.5 | 10 | 2-16 | 720 |
SW20-1 | 20 | 18.5 | 875 | 6 | 1690*1000*1550 | 1.5 | 10 | 2-16 | 800 |
SW30-1 | 30 | 22 | 860 | 7 | 1690*1000*1550 | 1.5 | 10 | 2-16 | 1000 |
SW45-1 | 45 | 30 | 740 | 7 | 2050*1000*1650 | 2 | 10 | 3-24 | 1200 |

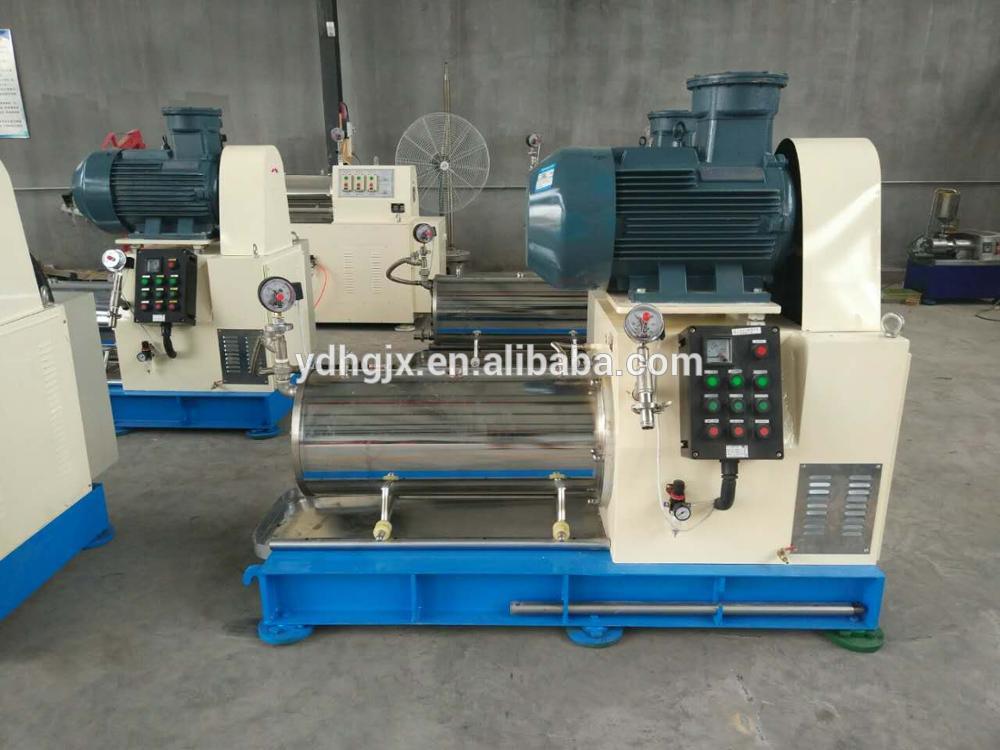

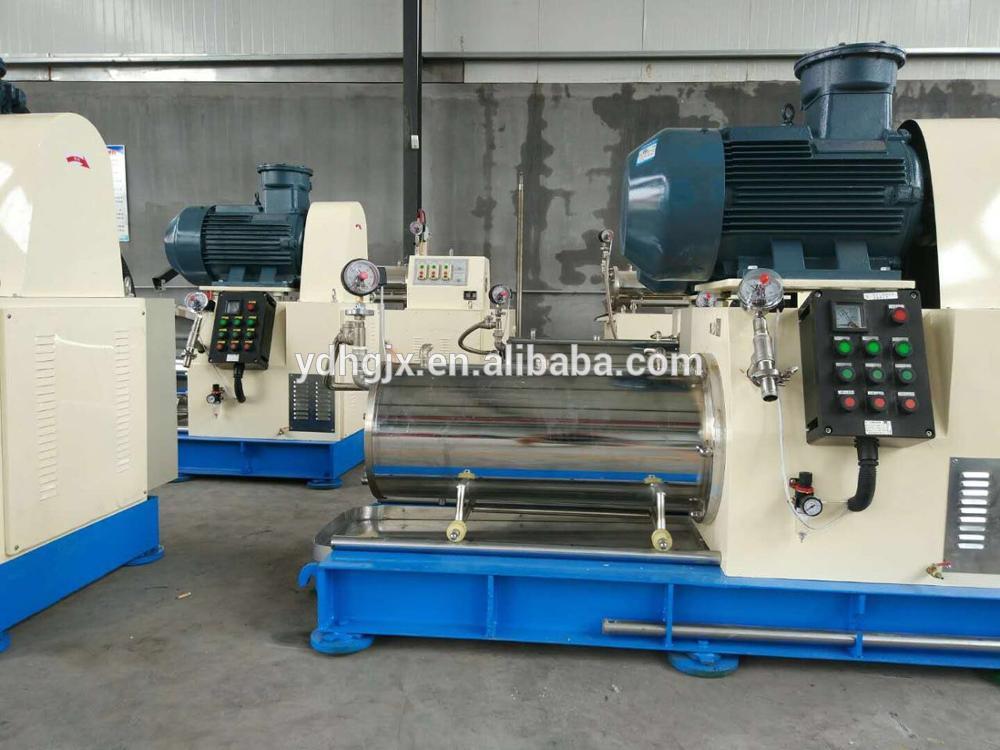

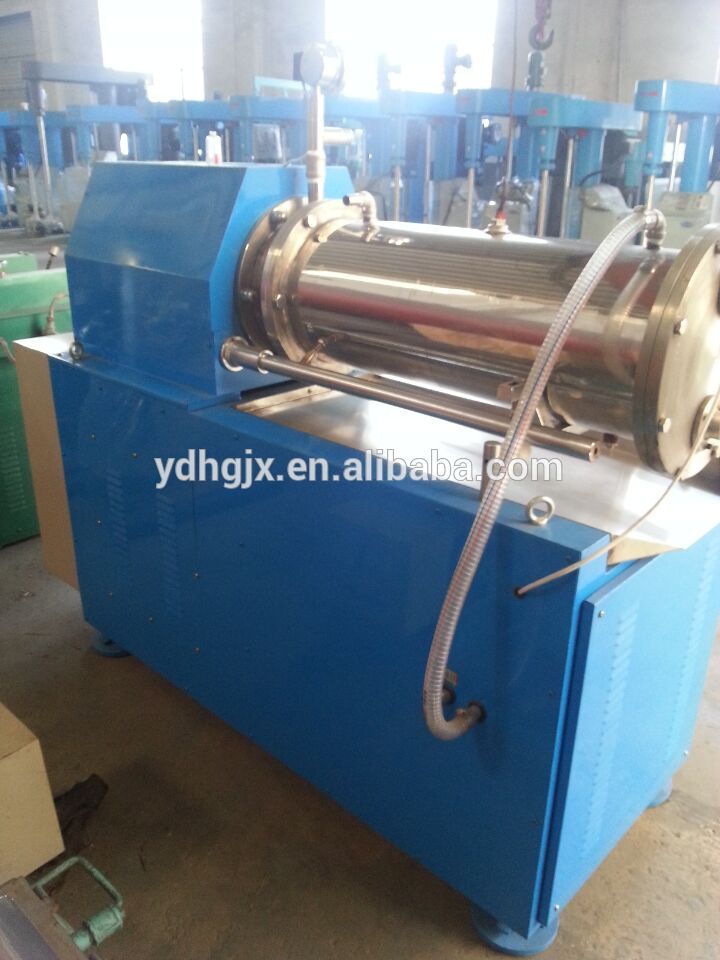

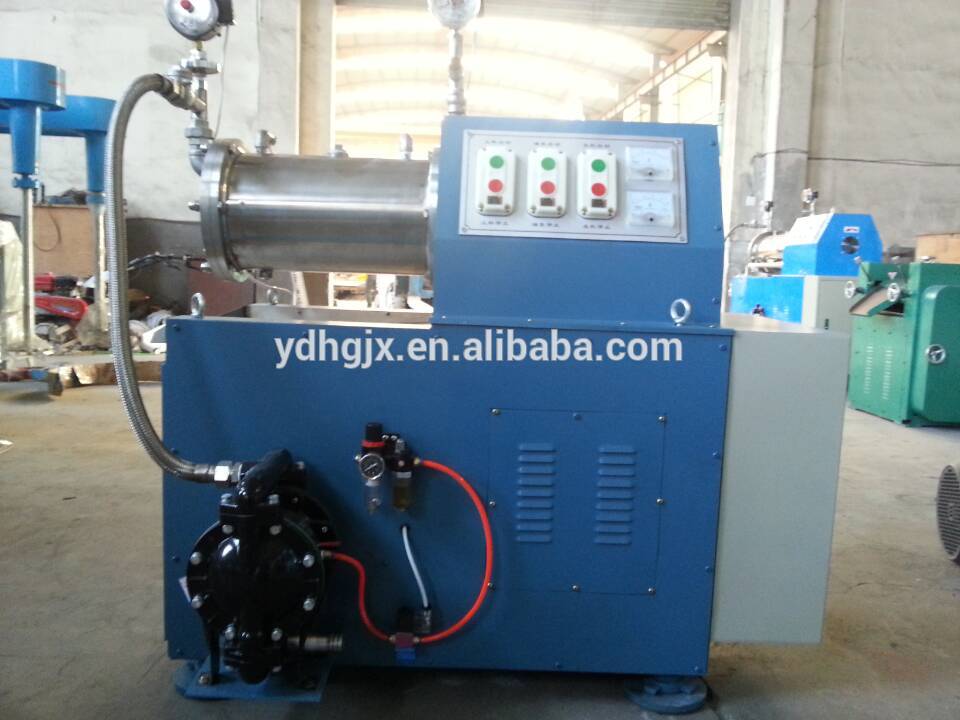

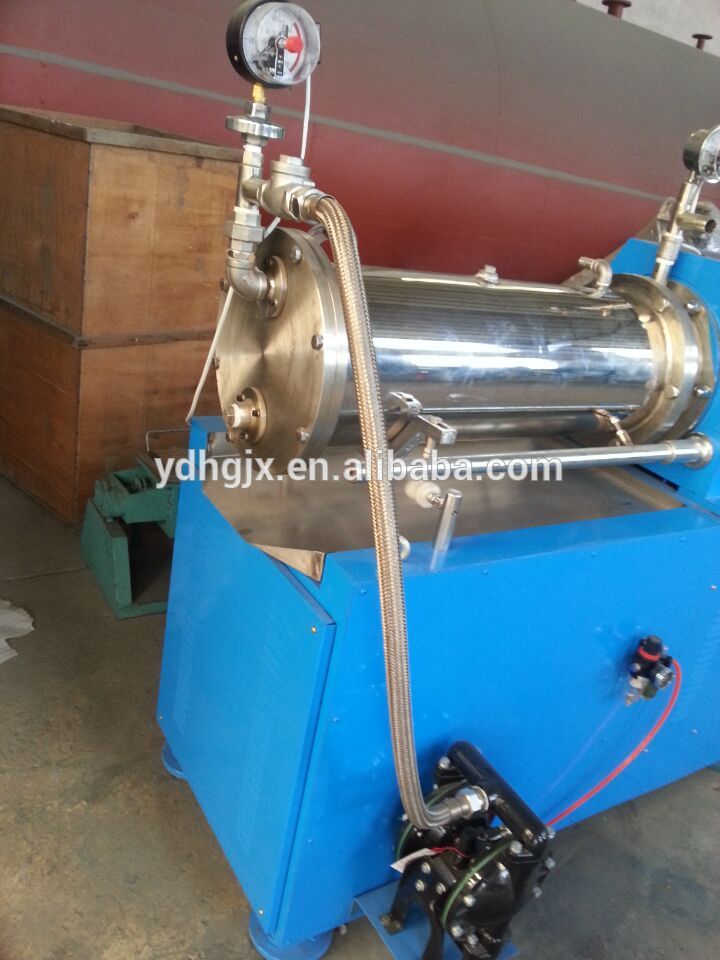

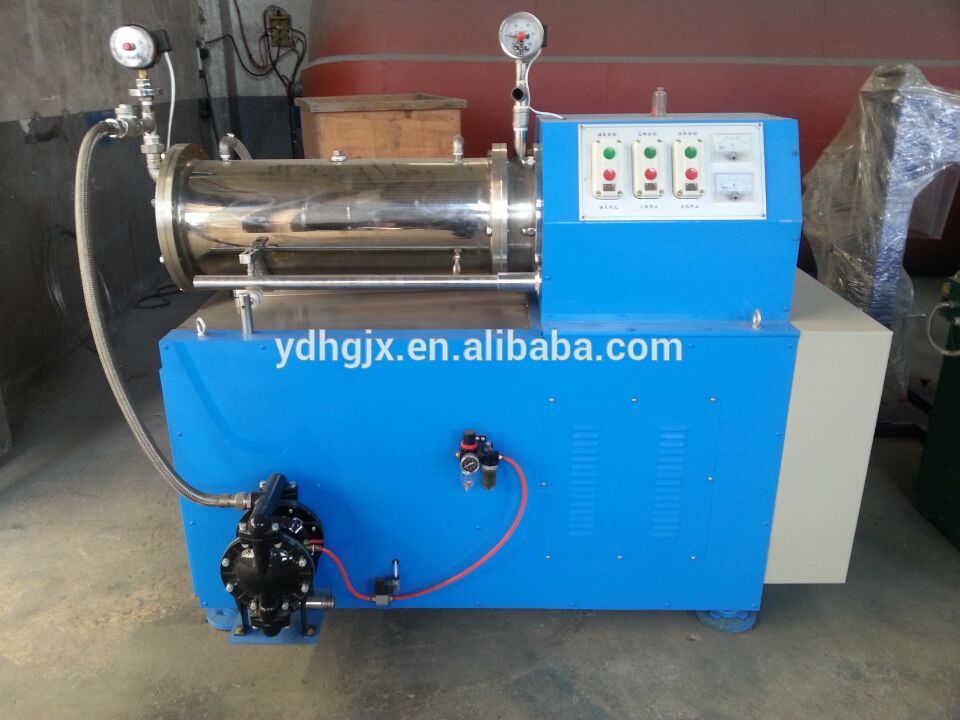

Pictures

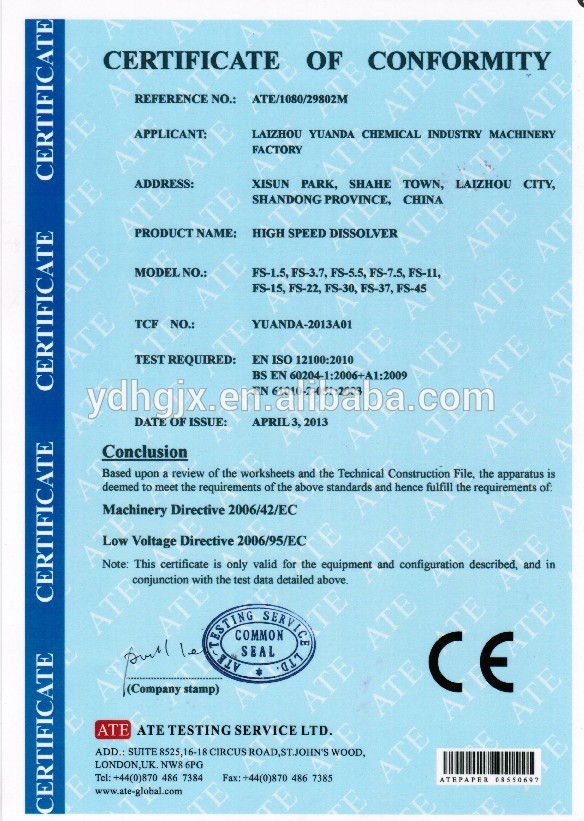

Certifications
