stainless steel continuous making kneading machine used for making BMC/rubber kneader
Introduction

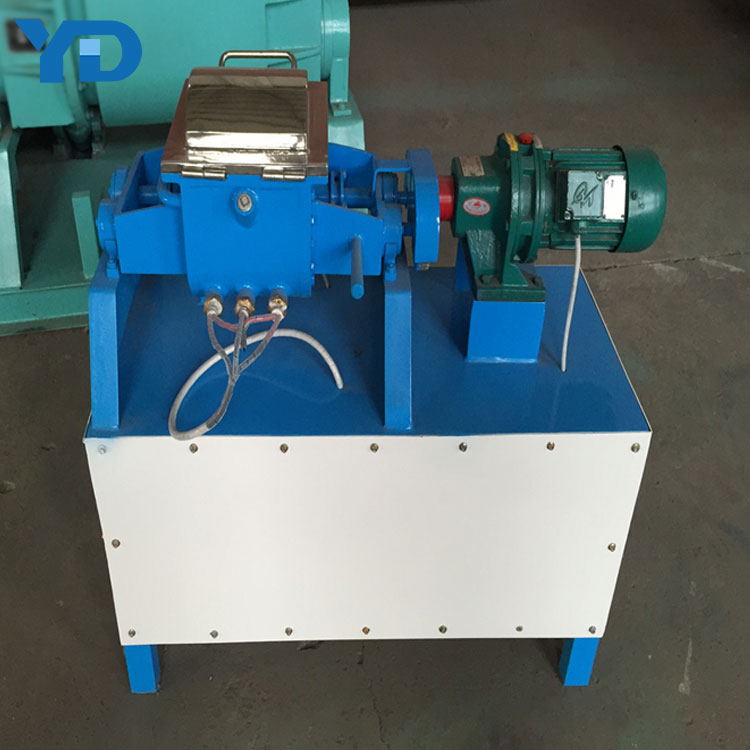

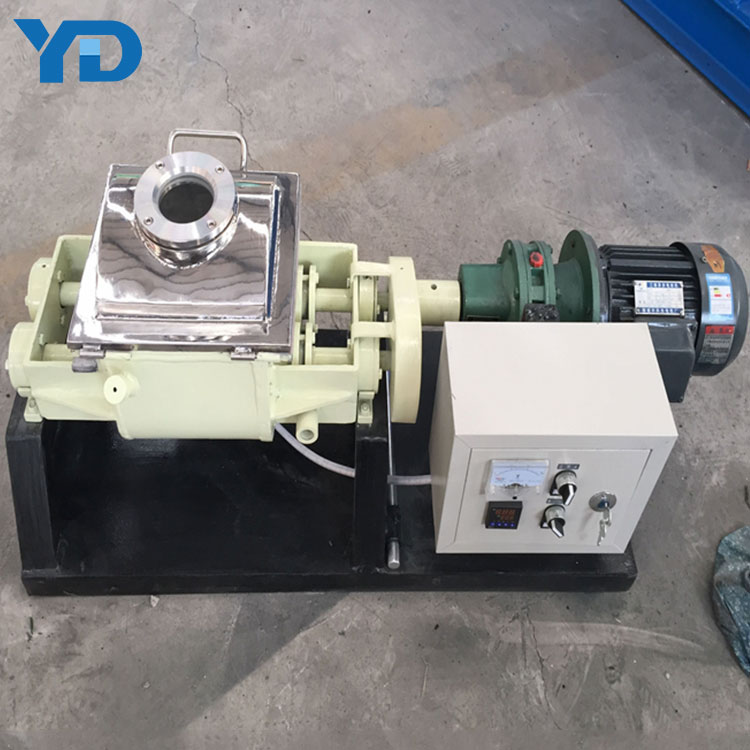

This machine is Mesa Structure,horizontal and double blades type,(Sigma “Z” blade),with jacket which can be added water for cooling.
All the Material which contact the product is SS304
The Kneading Pot through grinding and polishing near to the Mirror,Polish degree is 0.8
It is special equipment to mix,knead,crush,disperse,polyermerzing high viscosity material,with uniform mixing,without dead angle,high kneading efficiency feature.
1)It can be widely used in BMC/DMC,High viscosity Silicone Sealant, Silastic, GlassCement,Chewinggum,Cellulose,Battery,Printing-ink,Dye,Resin,Plastic,Cosmetic,Pigment,Medicine Industry etc.
2)Material is mainly Stainless Steel or Carbon Steel.
3)Heating way with Steam Heating,Oil heating Electric heating.Water cooling system.
4)Discharging way is mainly Hydraulic Dumping valve,Ball Valve Discharge,Screw Extruder Discharge.
5)Three Main Type:Ordinary,Pressure Type,Vacuum Type.
6) different capacity :from Laboratory Scale to Mass Production.(2L-8000L)
Model | NH-5 | NH-40 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 |
Volume(L) | 5 | 40 | 100 | 300 | 500 | 1000 | 1500 | 2000 |
PaddleAgitator(rpm) | 33,23 | 45,23 | 35,22 | 37,21 | 37,21 | 35,25 | 30,16 | 45,30 |
Major motor power(kw) | 0.75 | 2.2 | 4,5.5 | 7.5,11 | 15,18.5 | 22,30,37,45 | 22,30,37 | 45 |
Form of heating | Steam:Pressure(MPa) | 0.3 | ||||||
Electric heating:Power(kw) | 1 | 4 | 4 | 6 | 16.2 | 25 | 32.4 | 40 |
Degree of vacuum(MPa) | 0.094(vacuum kneader) | |||||||
Pressure(MPa) | 0.45(pressure kneader) | 0.35(pressure kneader) | ||||||
Weight(kg) | 300 | 560 | 1250 | 1600 | 3000 | 4500 | 5800 | 6500 |
(can click the picture)
we have do this machine produce more than 20 years,have rich experience and mature technical to design and produce this machine,any detail requirment we can as discuss to make.
export:we have export this machine to Columbia,Jordan, Zimbabwe ,Brazil,etc
service:we can send engineer to help instal complete production line and guide produce
Q: Can you send the formula for the products we want to make?
A: Our machines can be used for many kinds of product making, such as Resin, Paint, Adhesive, Cosmetic, Food, Chemicals. There are many kinds of these products, so it's impossible for us to know all the formulas and technologies. We can assist you to find the raw material list you need, and after you place order with us, we can help you to find formula and technology, there will be engineers to teach you how to make the product, and the cost will be on your account.
Q: Do you have machines in stock?
A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.
Q: Why does it take at least 20 days to finish the machine?
A: Once receipt the deposit from you, we will design the drawings and make out the list of the materials and accessories for the production. Once the drawings are finished, our workers will start the production, from welding, polishing, assembling, debugging, detection and so on. After finish, they need time to check the machines, if found any possible defect parts, they will return to the production until every part is 100% approved.
Q: Can you send the detailed drawings of the machine to us before we place order?
A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters fo you and send you the detailed drawings. Once you confirm without questions, we will put it into production.
Q: Can we pay the balance after we receive the machines and test without problems?
A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
