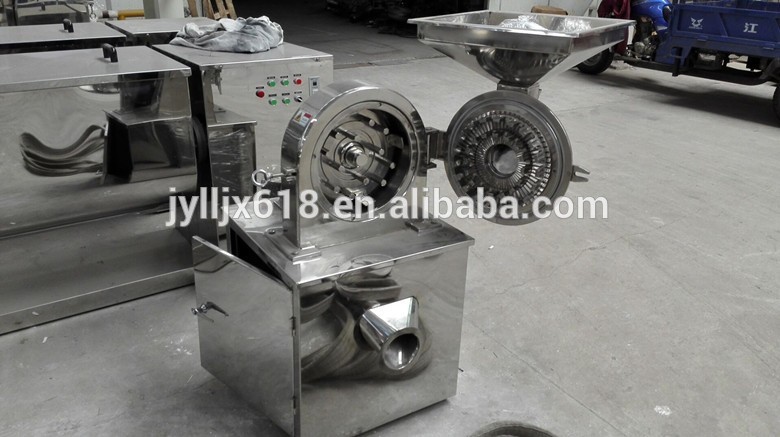

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact,grind and crush the target materials,The size of granules can be achieved by changing of the screen.The machine has the features of easy structure,solid,stable running and good efficiency.The crushed material is discharged directly from the grinding chamber of the main frame.In additional,the whole machine is made of stainless steel,with smooth inside walls to avoid power accumulation on the inside walls.Those harmaceutical,chemical and food stuff products from the machine are in accordance with national requirement,achieving”GMP” standard..
Technical data:
Model | WF-20 | WF-30 | WF-40 | WF-50 | WF-60 | WF-80 |
Capacity(kg) | 20-150 | 30-300 | 40-400 | 50-500 | 100~700 | 120~1000KG |
Spindle speed(r/min) | 4500 | 3800 | 3400 | 3200 | 2400 | 2200 |
Size of input(mm) | <10 | <10 | <12 | <15 | <15 | <15 |
Fineness of products(mm) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
Motor power(kw) | 4 | 5.5 | 7.5 | 15 | 22 | 37 |
Weight(kg) | 260 | 320 | 450 | 600 | 950 | 1260 |
The above is our technical data. We can also design and manufacture different varieties upon customer’s request.
