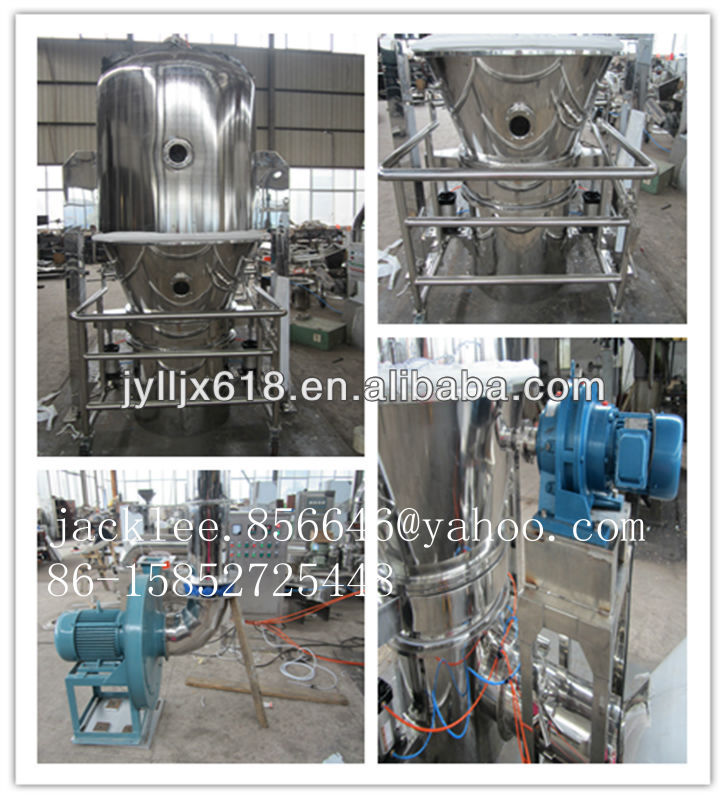

High Efficient Boiling Dryer

Main Application GFG Type High Efficient Fluidized Drier is the granule high-efficient drying equipment which is matched with YK Type Swing Granulator or GHL Type High-speed Mixing Granulator. It has more fluidized range than traditional horizontal XF fluidized drier and can be easily cleaned. When fluidized, the material is stirred slowly avoiding the block. So it has special advantages for the high wet and sticky material. It's widely used in: a. the granule for troche, capsule and instant medicine; b. big granule and micro-powder in foodstuff, chemical industry, etc; c. wet and sticky granule or powder with different sizes.

Working Principle Put the material (granule or powder) into the charging hopper. Meanwhile filter the dust in the air by the filter and heat the material to the demanded temperature by the heater. When the air gets through the Dutch sieve, the material is fluidized and dried. The steam is drawn by the fan through the dedust bags. The superfine powder will be collected by the filter bags and can be shaken back to the container after fluidizing by the upper shaking cylinder.

Characteristics

(1) The charging hopper is cylindraceous with no dead angle, even drying and easy cleaning.

 (2) The filter pocket, adopting the antistatic fiber, has well ventilation and excellent dedust effect. So it is safe and reliable.

 (3) It is equipped with stirring set in the bed avoiding the block of the material. It features the great fluidized range and quick drying speed.

Technical Parameters
