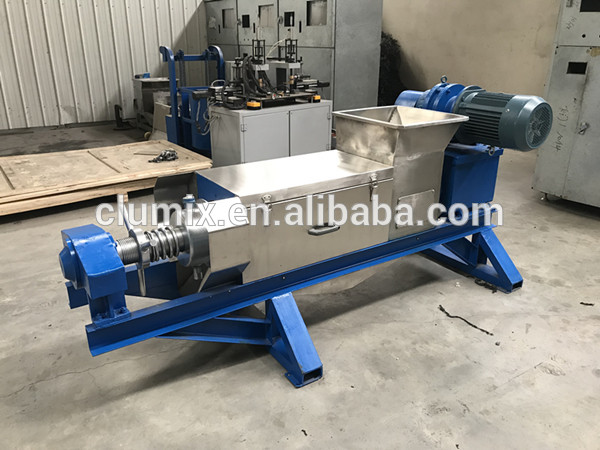

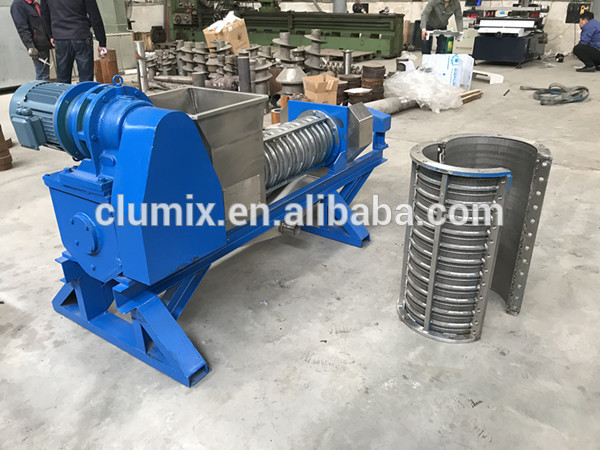

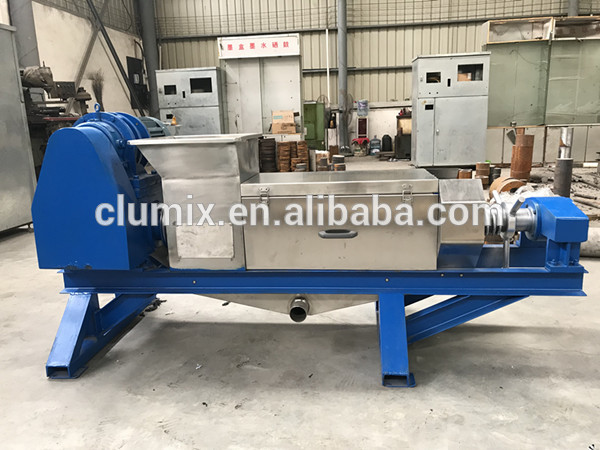

Bio-waste vegetable dewatering screw press
Application of vegetable dewatering screw press:
(1) Suitable for extracting juice from grape, tomato, fruits and vegetables. separating residues and juice.Also suit for cassava residue( Vietnam cassava residue), coffee extraction residue, wheat bran, soybean residue, corncob residue, corn residue, vegetable market food waste,kitchen waste,beer residue ,wheat grass,ect
(2) Its range of extracting ratio is very wide. The space between screw stem and cylinder can be adjusted according to different material extracted
Application:
Technical parameter of vegetable dewatering screw press:
Model | KY-180 | KY-260 | KY-350 | KY-420 | KY-500 | KY-600 |
Capacity(T/H) | 0.2-T0.5T | 1T-1.5T | 1.5T-3T | 3T-5T | 6T-10T | 10t-15t |
Power | 3kw | 5.5kw | 7.5kw | 11kw | 18.5KW | 22KW |
Diameter of screw | 180mm | 260mm | 350mm | 420mm | 500mm | 600mm |
Speed | 12r/min | 12r/min | 12r/min | 12r/min | 12r/min | 12r/min |
Adjustment method | Spring adjustment | Spring adjustment | Spring adjustment | Hydraulic adjustment | Hydraulic adjustment | Hydraulic adjustment |
Mesh size (mm) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) |
Material | 304 stainless steel for the suspension contacts part, add fee can customized to be whole stainless steel | |||||
Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
Weight | 550kg | 900kg | 1300kg | 26000kg | 3050kg | 4300kg |
Dimension(cm) | 170*50*80 | 220*60*90 | 350*70*100 | 358*100*147 | 374*120*165 | 450*130*165 |

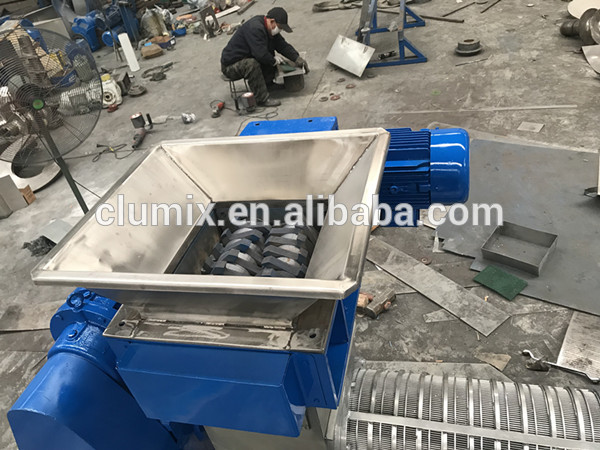

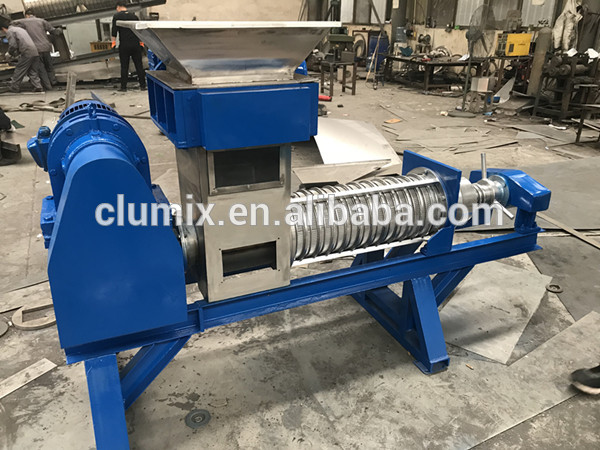

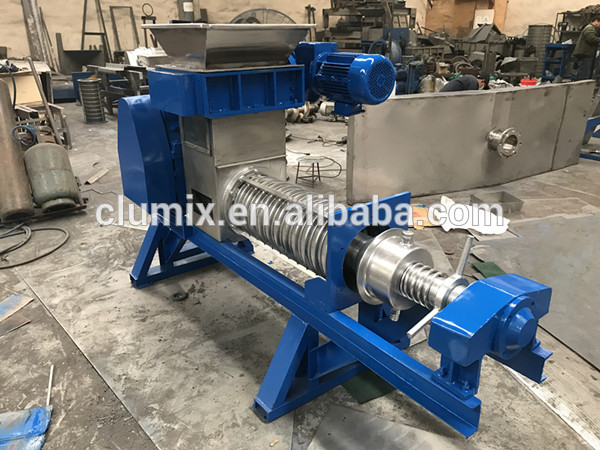

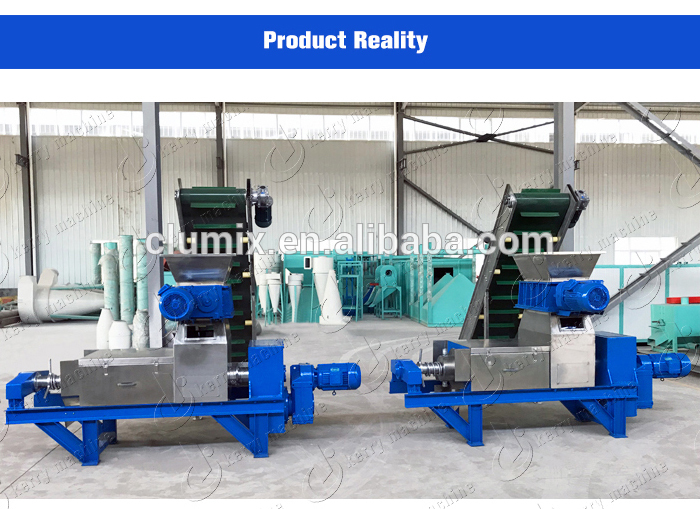

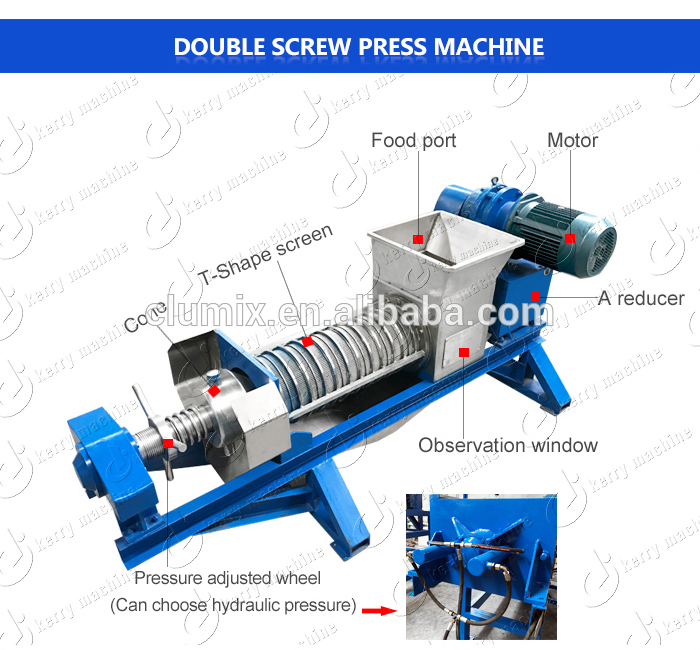

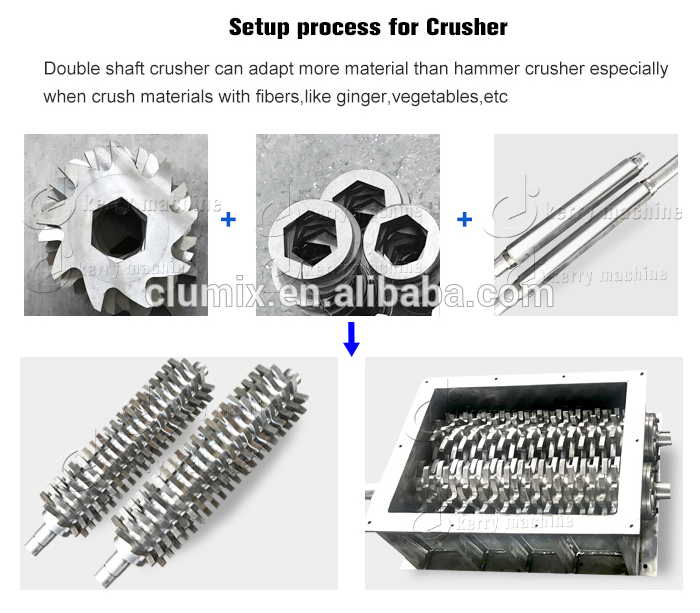

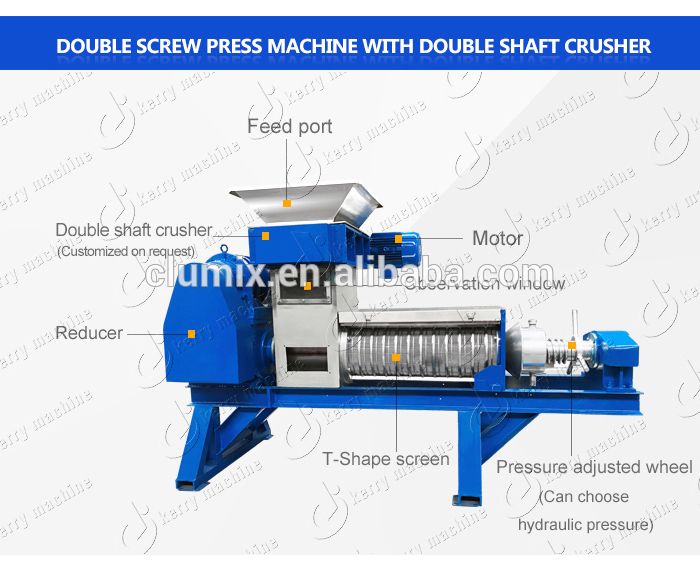

Picture for double screw with crusher:
