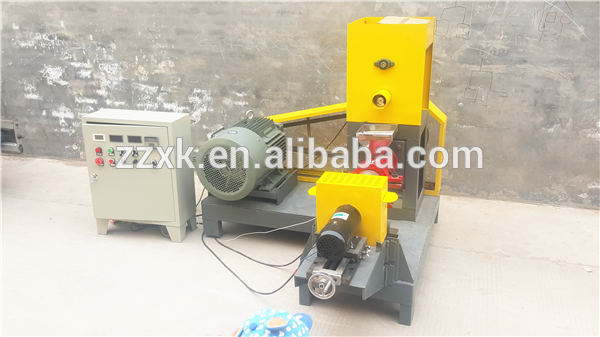

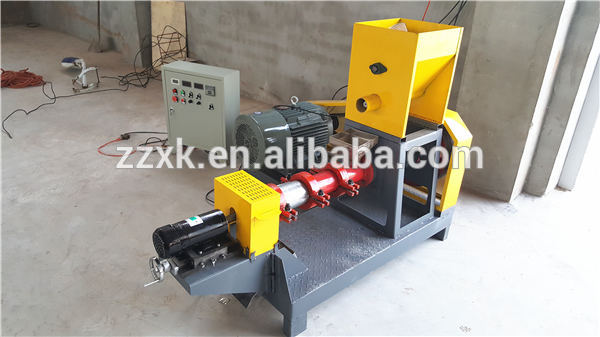

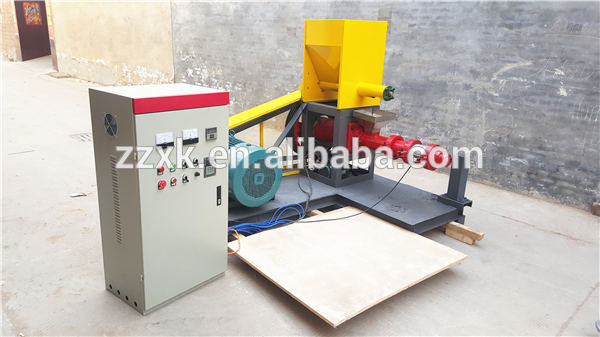

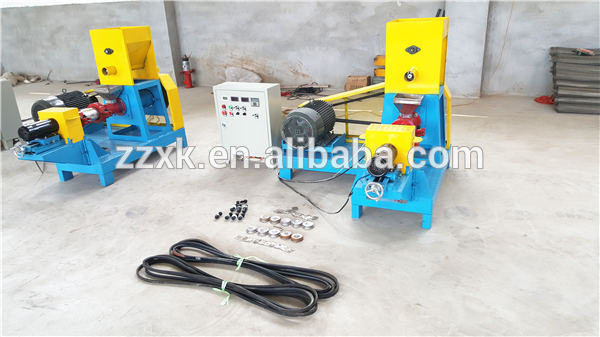

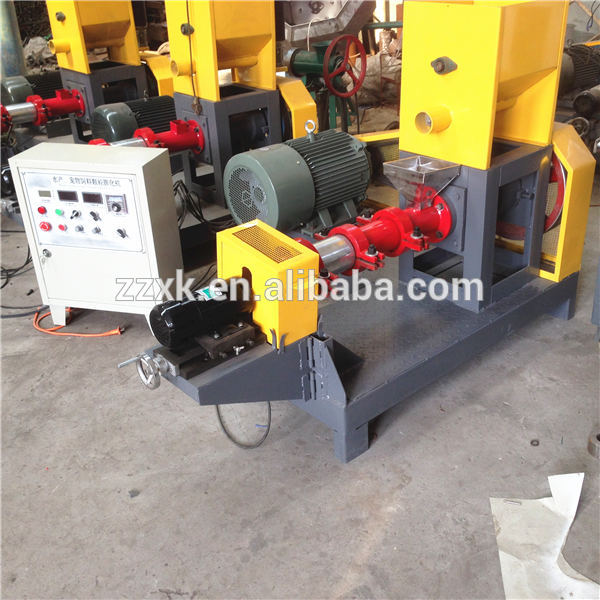

High capacity floating fish feed pellet extruder machine
High capacity floating fish feed pellet extruder machine
1.The machine can make feed for fish, shrimps, crab,eel, catfish, cat,dog, and other animals.
2.Raw material is grain flour,wheat feed flour,farina,fish meal,bran powder,bone meal,maize powder etc.
3.Raw material moisture requirement is 20%-25%.
4.This machine can produce different shape.or mold can be customized according to your requirement.

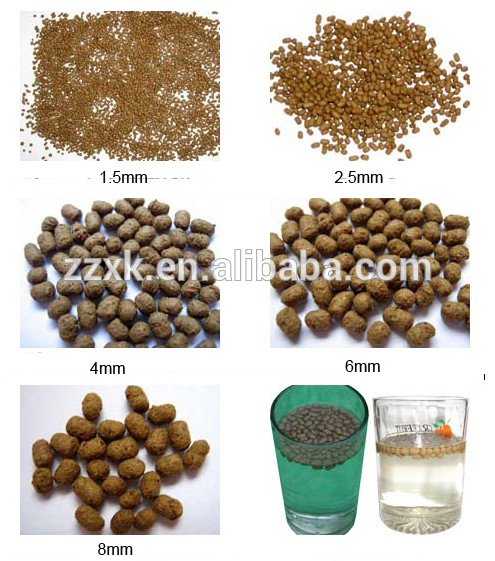

5.The machine can make pellet from diameter 1mm-12mm just by changing the mold.
6.The final product can used to ornamental fish, aquaculture,pet, poultry,livestock
7.The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours without pollution to water
Advantages of floating fish feed pellet extruder machine
1.The latest design, simple structure, easy to operate for workers.
2.The finished feed the are tidy and smooth,It can keep floating for over 12 hours without pollution.
3.The raw material had been effectively killed harmful bacteria by high temperature and high pressure, to ensure the feed hygiene.
4.We also produce other related products.sunch as grinding machine,drying machine,Flavoring machine,etc.
if you need more detail ,please contact me.Whatsapp:+8615538314381
Technical parameters of floating fish feed pellet extruder machine
Model | Capacity(kg/h) | Power(kw) | Screw diameter(mm) | Cutting power(kw) |
KY-G40-C Single phase | 30-40 | 3*2 | 40 | 0.4 |
KY-G40-C 3phase | 30-40 | 5.5 | 40 | 0.4 |
KYG60-C | 120-150 | 15 | φ60 | 0.4 |
KYG70-B | 180-200 | 18.5 | φ70 | 0.4 |
KYG80-B | 200-250 | 22 | φ80 | 0.6 |
KYG90-B | 300-350 | 37 | φ90 | 0.8 |
KYG120-B | 500-600 | 55 | φ120 | 2.2 |
KYG135-B | 700-800 | 75 | φ133 | 2.2 |
KYG160-B | 1000-1200 | 90 | φ155 | 3.0 |
KYG200-B | 1800-2000 | 132 | φ195 | 3.0-4.0 |
| Model | capacity(kg/h) | Power(kw) | Feed power(kw) | Screw dia.(mm) | Cutting(kw) | Condition(kw) |
| KYSP60-B | 180-200 | 15 | 0.4 | φ60 | 0.4 | 0.75 |
| KYSP70-B | 250-300 | 18.5 | 0.6 | φ70 | 0.6 | 0.75 |
| KYSP80-B | 350-400 | 22 | 1.1 | φ80 | 0.8 | 1.1-1.5 |
| KYSP90-B | 500-600 | 37 | 1.1 | φ90 | 1.1 | 2.2 |
| KYSP120-B | 700-800 | 55 | 1.1 | φ120 | 1.5 | 2.2-3.0 |
| KYSP135-B | 1000-2000 | 75 | 1.5 | φ135 | 2.2 | 3.0-4.0 |
| KYSP160-B | 1800-2000 | 90 | 2.2 | φ155 | 2.2-3.0 | 4.0-5.5 |
| KYSP200-B | 3000-4000 | 132 | 2.2 | φ195 | 3.0-4.0 | 5.5 |
Delivery ways & payment
1) Packed in plywooden case and shipped by sea (FOB or CIF PRICE)
2) Payment methods:We accept Security Payment,LC, TT, West Union ,or MoneyGram.
Welcome to contact us more detail of floating fish feed pellet extruder machine
