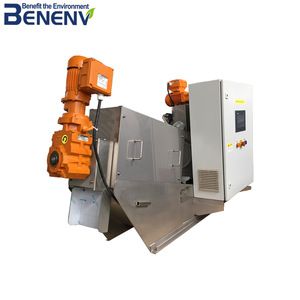

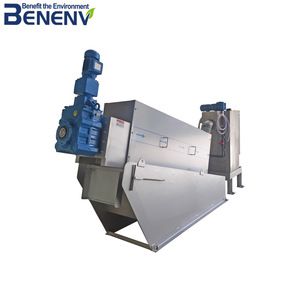

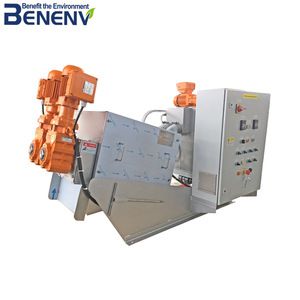

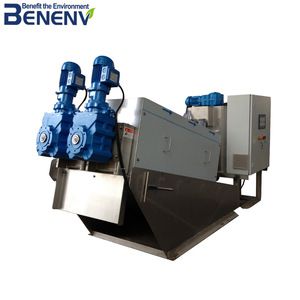

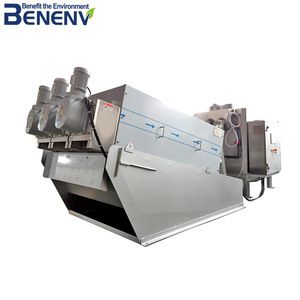

Stainless Steel Sludge Dewatering Screw Press For Beverage Plant Wastewater
MDS is a new generation of sludge dewatering machine -BENENV® multi-disk screw press, a screw type sludge dewatering press offering larger appliaction than belt press, centrifuge, plate-and-frame filter press, etc. It features clog-free, wide range of applications, low energy consumption, simple operation & maintenance. MDS can be widely used in Municipal water and wastewater treatment plants, Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants, Food/beverage production plants, Dairy farming/Meat processing plants, Chemicals manufacturing plants, Machinery manufacturing/Metal processing plants, Paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.

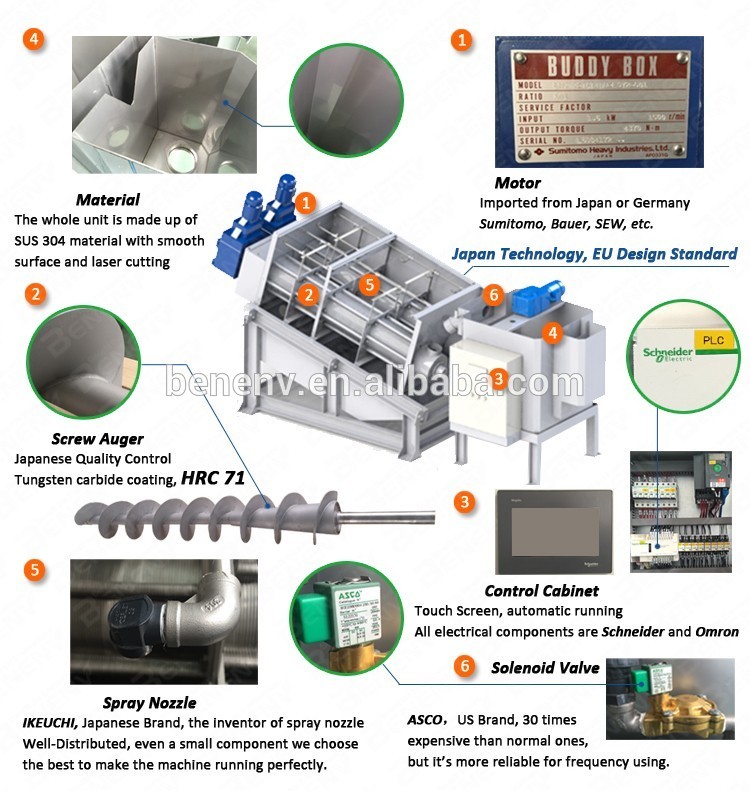

| Specification of MDS dewatering screw press | |||
| Capacity | DS-kg/hr | 1-600 DS-kg/hr | |
| Size | mm | L4564*W2100*H2156 | |
| Power | kW | 6.0 | |
| Motor | Gearbox | Brand | SUMITOMO, NISSEI SEW, BAUER, |
| Protection | Certificates & IP | UL,CE, Water proof(IP65) CCC | |
| Screw Shaft | Treatment | SUS316L, Tungsten carbide coating | |
| Control Cabinet | Electrical Components | Brand | Schneider, Omron, Siemens |
| Solenoid Valve | Brand | US, ASCO | |
| Spray System | Brand | Japan Origin, H.IKEUCHI |
Main Features
1) Japan original technology, Japan quality control.
2) Direct dewatering thin sludge from Oxidation Ditch.
3) Wide variety of sizes, widely applications.
4) Low running cost, 24-hour automated operation.
5) Easy operation & maintenance, long service life (≥15 years).
6) Clog-free design, suitable for oily sludge.
7) Small footprint, smart design.
Model Selection
Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you.
| Model | WAS Sludge& Chemical Precipitated Sludge(Thin Sludge) | Dissolved Air Flotation Sludge | Mixed Raw Sludge Aerobic Digested Sludge & Sewage Sludge | ||
| Sludge Concentration (TS) | 0.2% | 1% | 2% | 5% | 3% |
| MDS 051 | ~0.4 kg-DS/hr (0.2 m³/hr) | ~0.6 kg-DS/hr (0.06 m³/hr) | ~2 kg-DS/hr (0.1 m³/hr) | ~4 kg-DS/hr (0.08 m³/hr) | ~5 kg-DS/hr (0.16 m³/hr) |
| MDS101 | ~2 kg-DS/hr (1.0 m³/hr) | ~3 kg-DS/hr (0.3 m³/hr) | ~5 kg-DS/hr (0.25 m³/hr) | ~10 kg-DS/hr (0.2 m³/hr) | ~13 kg-DS/hr (0.43 m³/hr) |
| MDS 131 | ~4 kg-DS/hr (2.0 m³/hr) | ~6 kg-DS/hr (0.6 m³/hr) | ~10 kg-DS/hr (0.5 m³/hr) | ~20 kg-DS/hr (0.4 m³/hr) | ~26 kg-DS/hr (0.87 m³/hr) |
| MDS 132 | ~8 kg-DS/hr (4.0 m³/hr) | ~12 kg-DS/hr (1.2 m³/hr) | ~20 kg-DS/hr (1.0 m³/hr) | ~40 kg-DS/hr (0.8 m³/hr) | ~52 kg-DS/hr (1.73 m³/hr) |
| MDS 202 | ~16 kg-DS/hr (8.0 m³/hr) | ~24 kg-DS/hr (2.4 m³/hr) | ~40 kg-DS/hr (2.0 m³/hr) | ~80 kg-DS/hr (1.6 m³/hr) | ~104 kg-DS/hr (3.47 m³/hr) |
| MDS 311 | ~20 kg-DS/hr (10 m³/hr) | ~30 kg-DS/hr (3.0 m³/hr) | ~50 kg-DS/hr (2.5 m³/hr) | ~100 kg-DS/hr (2.0 m³/hr) | ~130 kg-DS/hr (4.33 m³/hr) |
| MDS 312 | ~40 kg-DS/hr (20 m³/hr) | ~60 kg-DS/hr (6.0 m³/hr) | ~100 kg-DS/hr (5.0 m³/hr) | ~200 kg-DS/hr (4.0 m³/hr) | ~260 kg-DS/hr (8.67 m³/hr) |
| MDS 313 | ~60 kg-DS/hr (30 m³/hr) | ~90 kg-DS/hr (9.0 m³/hr) | ~150 kg-DS/hr (7.5 m³/hr) | ~300 kg-DS/hr (6.0 m³/hr) | ~390 kg-DS/hr (13 m³/hr) |
| MDS 412 | ~80 kg-DS/hr (40 m³/hr) | ~120 kg-DS/hr (12 m³/hr) | ~200 kg-DS/hr (10 m³/hr) | ~400 kg-DS/hr (8.0 m³/hr) | ~520 kg-DS/hr (17.3 m³/hr) |
| MDS 413 | ~120 kg-DS/hr (60 m³/hr) | ~180 kg-DS/hr (18 m³/hr) | ~300 kg-DS/hr (15 m³/hr) | ~600 kg-DS/hr (12 m³/hr) | ~780 kg-DS/hr (26 m³/hr) |
| MDS414 | ~160 kg-DS/hr (80 m³/hr) | ~240 kg-DS/hr (24 m³/hr) | ~400 kg-DS/hr (20 m³/hr) | ~800 kg-DS/hr (16 m³/hr) | ~1040 kg-DS/hr (35 m³/hr) |
| MDS453 | ~200 kg-DS/hr (100 m³/hr) | ~300 kg-DS/hr (30 m³/hr) | ~510 kg-DS/hr (25.5 m³/hr) | ~1020 kg-DS/hr (20.4 m³/hr) | ~1326 kg-DS/hr (44.2 m³/hr) |

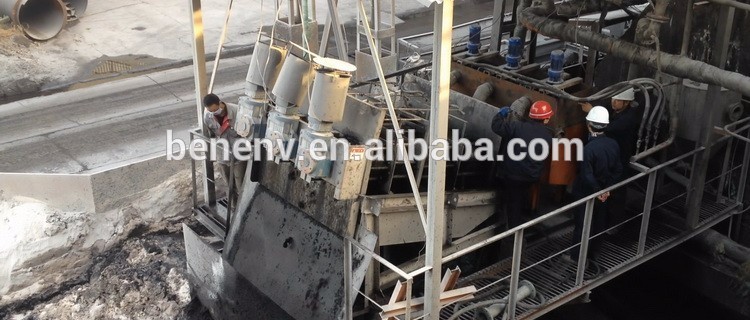

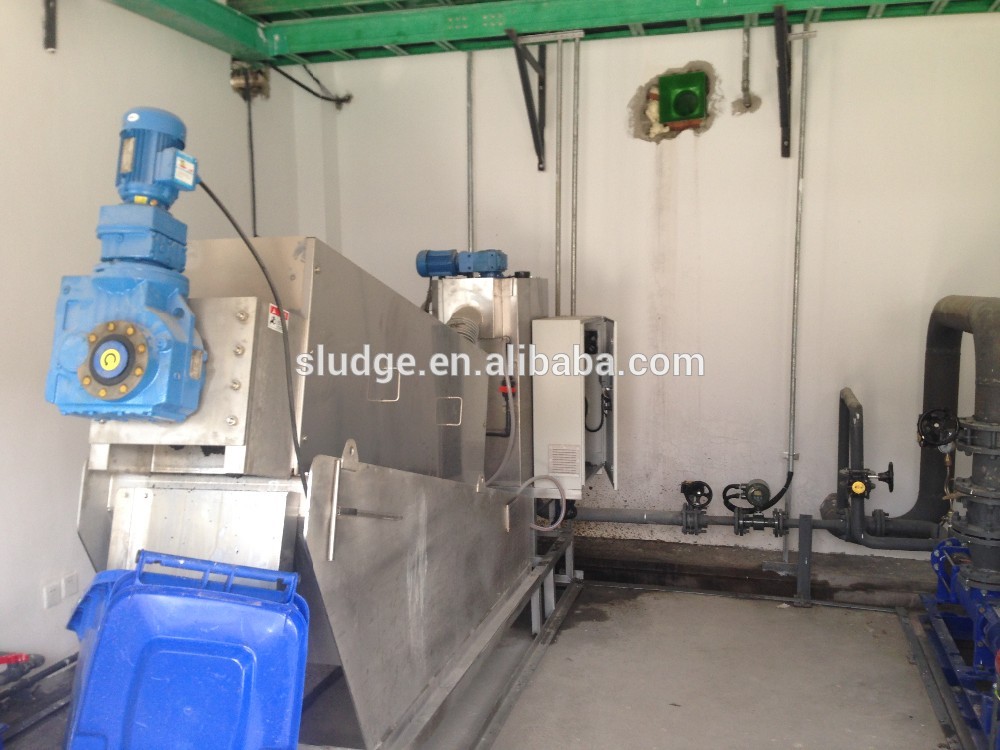

Sludge Screw Press In Sewage Treatment Plant

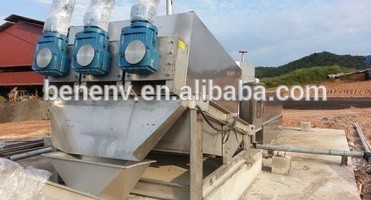

Sludge Screw Press In Slaughter House
Model: MDS-131

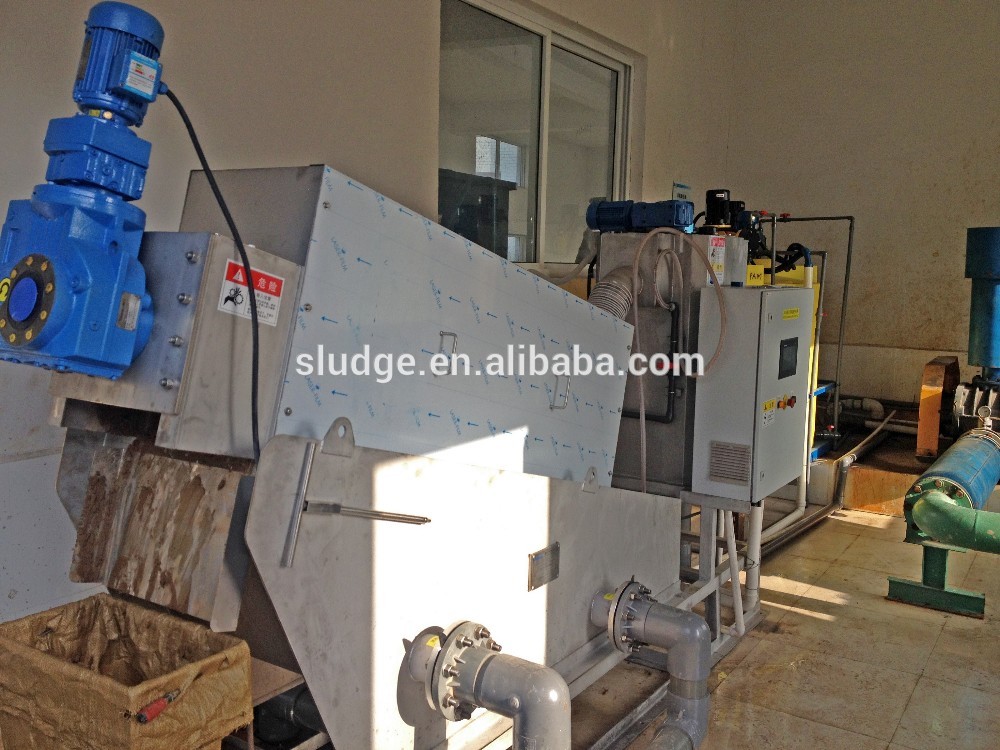

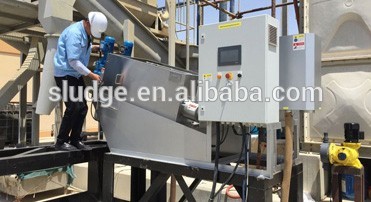

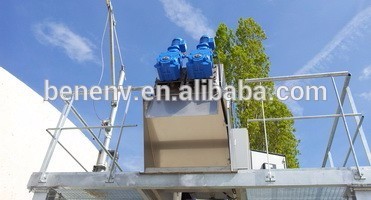

Sludge Screw Press In Municipal WWTP
Industrial Type: Municipal WWTP
Sewage Influent: 8,000 m³/day
Sludge Type: Digested Sludge
Sludge Concentration: 3.5 %
Sludge Flow Rate: 4.21 m³/h
DS Throughput: 140 kg-DS/h
Cake Solids content: 21.2 %
Capture Rate: 95.0 %
Polymer Adding Rate (Against DS): 1.10 %

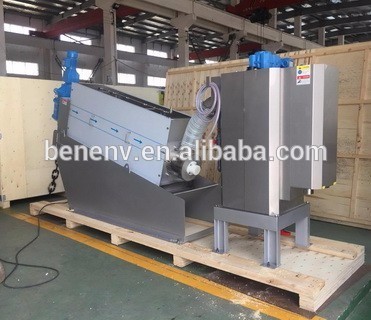

| Packaging | |
| Size | 4780 (L) * 2200 (W) * 2250 (H) |
| Weight | 3.6 T |
| Packaging Details | The normal package is wooden box (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |

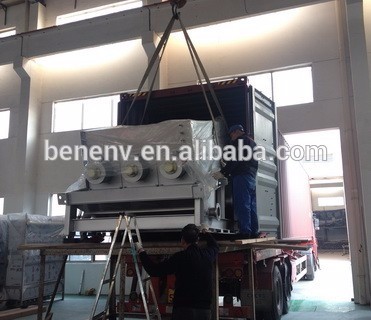

| Packaging | |
| Size | 4564 (L) * 2100 (W) * 2156 (H) |
| Weight | 3.3 T |
| Packaging Details | We also support 20‘,40’ container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Q: What’s MDS dewatering screw press?
A: MDS Sludge separation machine has been used in Japan market for over 30 years, is a mature technology. It was developed in our Japanese research center (Japan Benenv Co., Ltd.). We have Japanese engineers for technical support and quality control, other Chinese manufacturers they are just copy-cats from this Japanese technology, they are not original and lack of experience on this technology.
Q: What type of sludge is MDS dewatering screw press applicable to?
A: It is applicable to various kinds of sludge such as waste activated sludge, dissolved-air floatation sludge and so forth. The thickening mechanism of this equipment enables dewater not only highly-concentrated sludge but also low-concentrated sludge with ease.
Q: What’s the material of MDS dewatering screw press?
A: It is Stainless Steel, we choose SUS304H, SUS316L, etc, some key parts we import from Japan, we also have our own workshop in Japan for production.
Q: What’s the equipment used together with MDS dewatering screw press?
A: Sludge pump, polymer dosing pump, washing pump, air compressor.
Q: Why aren’t your rings carbonized like other companies’?
A: Carbonization is to harden and strengthen the metal surface. Our rings material is called 304 hardened steel (SUS304H), which is directly treated by our steel supplier, this hardened stainless steel can make the hardness of carbonized steel up to HV380-420 in China. Most of other manufacturers can reach to only HV250. This hardened steel SUS304H is 3 times expensive than normal SUS304, so other manufacturers they prefer to choose the normal material and need to increase the thickness of rings in order to increase the hardness, actually, increase the thickness of rings will affect the dewatering effects.
