EU Standard thickener screw press for oil slurry sludge

MDS is a new generation of sludge dewatering machine -BENENV® multi-disk screw press, a screw type sludge dewatering press offering larger appliaction than belt press, centrifuge, plate-and-frame filter press, etc.

Technical Feature

  • Jiangsu, China (Mainland)
  • BENENV
  • MDS101
  • Japan
  • SS304
  • 2 Years
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~90

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
BENENV
Model Number
MDS101
Brand origin
Japan
Raw material
SS304
Warranty
2 Years
Service life
>15 years
Electrical components
Schneider, Omron
Motor
Sumitomo, Nissei
Application
Activated Sludge Dewatering, especially for oily sludge
Certificate
ISO 9000, CE Certificate
Operation
Automatic
Size
Compact

DETAIL DESCRIPTION

Product Description

EU Standard thickener screw press for oil slurry sludge

MDS is a new generation of sludge dewatering machine -BENENV® multi-disk screw press, a screw type sludge dewatering press offering larger appliaction than belt press, centrifuge, plate-and-frame filter press, etc. It features clog-free, wide range of applications, low energy consumption, simple operation & maintenance. MDS can be widely used in Municipal water and wastewater treatment plants, Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants, Food/beverage production plants, Dairy farming/Meat processing plants, Chemicals manufacturing plants, Machinery manufacturing/Metal processing plants, Paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc.

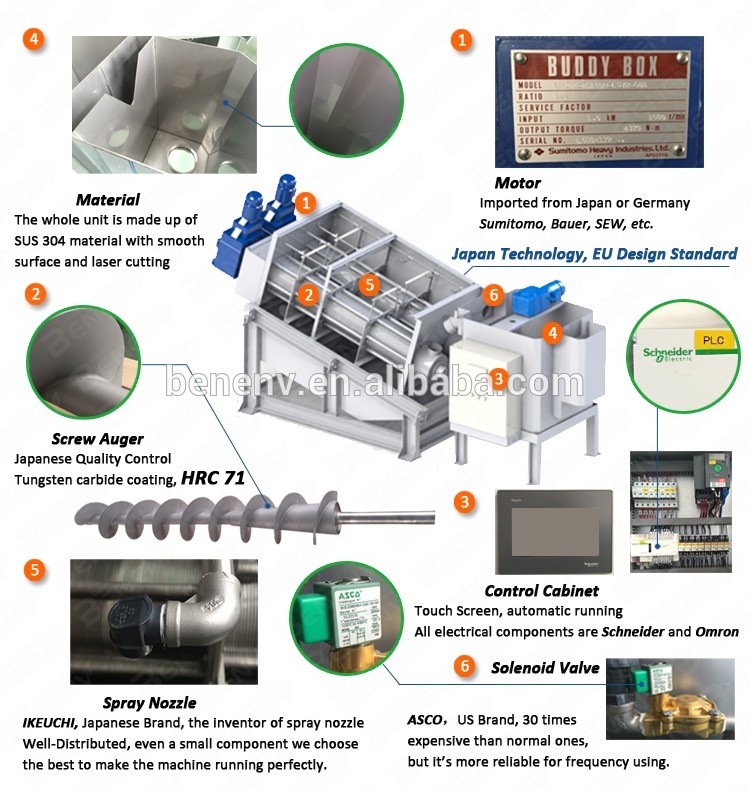

Specifications of MDS thickener screw press
Main Parameters
Capacity
DS-kg/hr
1-600 DS-kg/hr
Size
mm
L4564*W2100*H2156
Power
kW
6.0
Motor
Gearbox
Brand
SEW, BAUER,
SUMITOMO, NISSEI
Protection
Certificates & IP
UL,CE, Water
proof(IP65) CCC
Screw Shaft
Treatment
SUS316L, Tungsten
carbide coating
Control Cabinet
Electrical Components
Brand
Schneider, Omron,
Siemens
Solenoid Valve
Brand
US,ASCO
Spray System
Brand
Japan Origin, H.IKEUCHI

Main Features

1) Japan original technology, Japan quality control.
2) Direct dewatering thin sludge from Oxidation Ditch.
3) Wide variety of sizes, widely applications.
4) Low running cost, 24-hour automated operation.
5) Easy operation & maintenance, long service life (≥15 years).
6) Clog-free design, suitable for oily sludge.
7) Small footprint, smart design.

Model Selection


Model
WAS Sludge
& Chemical Precipitated Sludge
(Thin Sludge)

Dissolved Air Flotation Sludge
Mixed Raw Sludge
Aerobic Digested Sludge
& Sewage Sludge
Sludge Concentration (TS)

0.2%

1%

2%

5%

3%
MDS 051
~0.4 kg-DS/hr
(0.2 m³/hr)
~0.6 kg-DS/hr
(0.06 m³/hr)
~2 kg-DS/hr
(0.1 m³/hr)
~4 kg-DS/hr
(0.08 m³/hr)
~5 kg-DS/hr
(0.16 m³/hr)
MDS 101
~2 kg-DS/hr
(1.0 m³/hr)
~3 kg-DS/hr
(0.3 m³/hr)
~5 kg-DS/hr
(0.25 m³/hr)
~10 kg-DS/hr
(0.2 m³/hr)
~13 kg-DS/hr
(0.43 m³/hr)
MDS 131
~4 kg-DS/hr
(2.0 m³/hr)
~6 kg-DS/hr
(0.6 m³/hr)
~10 kg-DS/hr
(0.5 m³/hr)
~20 kg-DS/hr
(0.4 m³/hr)
~26 kg-DS/hr
(0.87 m³/hr)
MDS 132
~8 kg-DS/hr
(4.0 m³/hr)
~12 kg-DS/hr
(1.2 m³/hr)
~20 kg-DS/hr
(1.0 m³/hr)
~40 kg-DS/hr
(0.8 m³/hr)
~52 kg-DS/hr
(1.73 m³/hr)
MDS 202
~16 kg-DS/hr
(8.0 m³/hr)
~24 kg-DS/hr
(2.4 m³/hr)
~40 kg-DS/hr
(2.0 m³/hr)
~80 kg-DS/hr
(1.6 m³/hr)
~104 kg-DS/hr
(3.47 m³/hr)
MDS 311
~20 kg-DS/hr
(10 m³/hr)
~30 kg-DS/hr
(3.0 m³/hr)
~50 kg-DS/hr
(2.5 m³/hr)
~100 kg-DS/hr
(2.0 m³/hr)
~130 kg-DS/hr
(4.33 m³/hr)
MDS 312
~40 kg-DS/hr
(20 m³/hr)
~60 kg-DS/hr
(6.0 m³/hr)
~100 kg-DS/hr
(5.0 m³/hr)
~200 kg-DS/hr
(4.0 m³/hr)
~260 kg-DS/hr
(8.67 m³/hr)
MDS 313
~60 kg-DS/hr
(30 m³/hr)
~90 kg-DS/hr
(9.0 m³/hr)
~150 kg-DS/hr
(7.5 m³/hr)
~300 kg-DS/hr
(6.0 m³/hr)
~390 kg-DS/hr
(13 m³/hr)
MDS 412
~80 kg-DS/hr
(40 m³/hr)
~120 kg-DS/hr
(12 m³/hr)
~200 kg-DS/hr
(10 m³/hr)
~400 kg-DS/hr
(8.0 m³/hr)
~520 kg-DS/hr
(17.3 m³/hr)
MDS 413
~120 kg-DS/hr
(60 m³/hr)
~180 kg-DS/hr
(18 m³/hr)
~300 kg-DS/hr
(15 m³/hr)
~600 kg-DS/hr
(12 m³/hr)
~780 kg-DS/hr
(26 m³/hr)
Product Details
Certifications

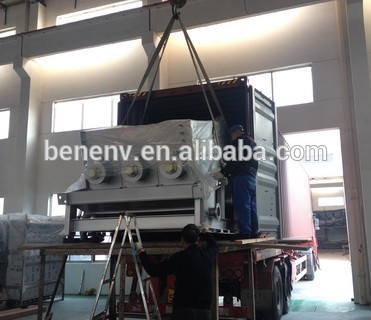

Packing & Delivery
Packaging
Size
4780 (L) * 2200 (W) * 2250 (H)
Weight
3.6 T


Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
4564 (L) * 2100 (W) * 2156 (H)
Weight
3.3 T


Packaging Details
We also support 20‘,40’ container delivery, use soft packaging to protect machine well. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sludge sample testing support.
* Japanese experts support
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the MDS thickener screw press.
* Engineers available to service machinery overseas.
* Worldwide local agent service

FAQ

Q: What’s MDS thickener screw press?

A: MDS Sludge Dewatering machine has been used in Japan market for over 30 years, is a mature technology. It was developed in our Japanese research center (Japan Benenv Co., Ltd.). We have Japanese engineers for technical support and quality control, other Chinese manufacturers they are just copy-cats from this Japanese technology, they are not original and lack of experience on this technology.

Q: What type of sludge is MDS thickener screw press applicable to?

A: It is applicable to various kinds of sludge such as waste activated sludge, dissolved-air floatation sludge and so forth. The thickening mechanism of this equipment enables dewater not only highly-concentrated sludge but also low-concentrated sludge with ease.

Q: What’s the application scope of MDS thickener screw press?

A: It is widely applied in Municipal water and wastewater treatment plants, Agricultural/fishery community wastewater treatment plants, Industrial waste treatment plants, Food/beverage production plants, Dairy farming/Meat processing plants, Chemicals manufacturing plants, Machinery manufacturing/Metal processing plants, Paper manufacturing, building material manufacturing, oilfield associated water accompanied with crude oil mining, etc..

Q: What’s the material of MDS thickener screw press?

A: It is Stainless Steel, we choose SUS304H, SUS316L, etc, some key parts we import from Japan, we also have our own workshop in Japan for production.

Q: What’s the equipment used together with MDS thickener screw press?

A: Sludge pump, polymer dosing pump, washing pump, air compressor.

Q: Why aren’t your rings carbonized like other companies’?

A: Carbonization is to harden and strengthen the metal surface. Our rings material is called 304 hardened steel (SUS304H), which is directly treated by our steel supplier, this hardened stainless steel can make the hardness of carbonized steel up to HV380-420 in China. Most of other manufacturers can reach to only HV250. This hardened steel SUS304H is 3 times expensive than normal SUS304, so other manufacturers they prefer to choose the normal material and need to increase the thickness of rings in order to increase the hardness, actually, increase the thickness of rings will affect the dewatering effects.

Q: How to choose the right model?

A: Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
