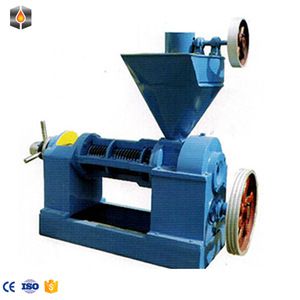

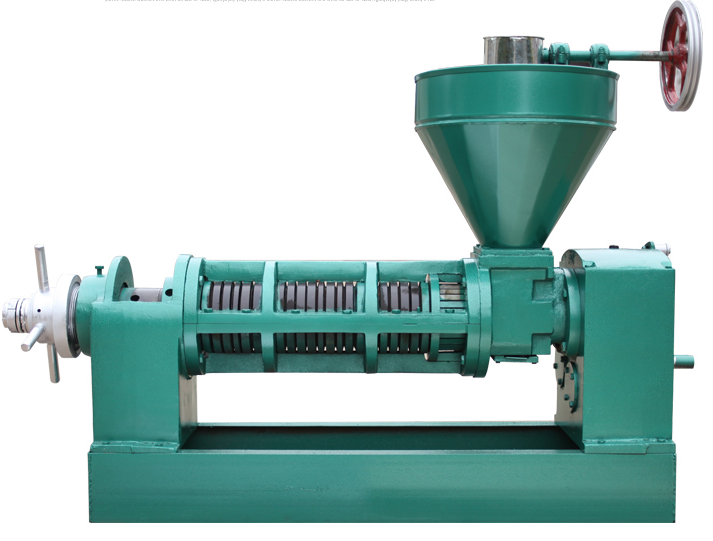

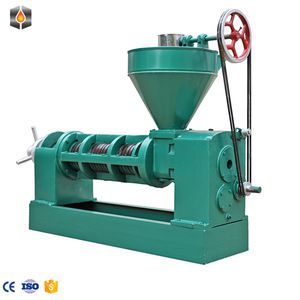

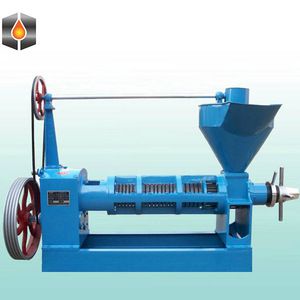

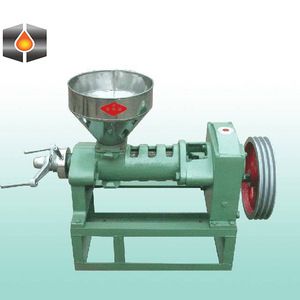

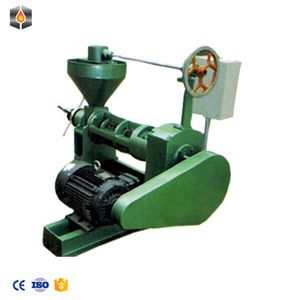

Product Application of screw oil press machine
The screw oil press machine could used for pressing soybean,peanut,sesame,sunflower seed,rapeseed,cottonseed,copra,castor bean,hemp,flaxseed,almond,nuts,palm kernel and so on
Main advantage of screw oil press machine:
1. High oil yield, small space occupied and low expense on equipment and electriciy.
2. Multi-functional used for pressing various of oil crops.
3. Simple operation and stable production performance.
4. Various machine models for options according to the capacity.
5. Widely used by small workshop and factories and hot selling at home and abroad.
Main parts of oil press machine
Name: Gear box
Brand: HDC
Original: China, Henan

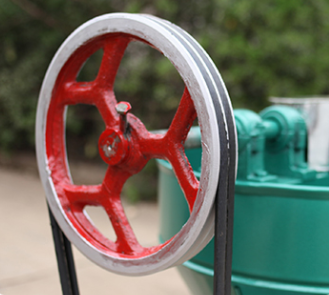

It is composed of gear box, cover, cyclinder gear, driving axis, rolling bearing and triangle belt wheel, etc. Oil can be added when the oil adding screw on top of the gear box is discharged. Likewise, oil can be released when the oil release screw on the bottom removed.
Machine parts

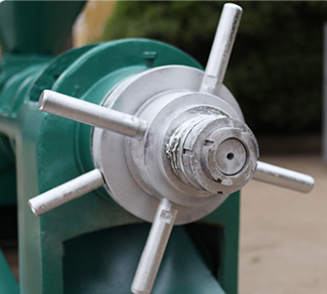

Name: oil cake discharge structure.
Brand: HDC
Original: China, Henan
The discharge structure of oil cake, which is hard and corrosion resistance.
Machine Parts
Name: Screw axis
Brand: HDC
Original: China
It is composed of screw axis, pressing screw, cake guide ring, press nut, adjusting bolt and planar bearing, etc.

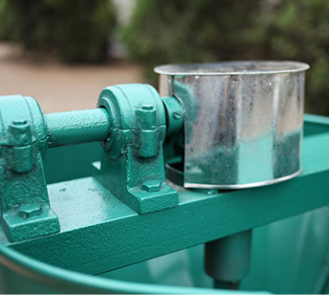

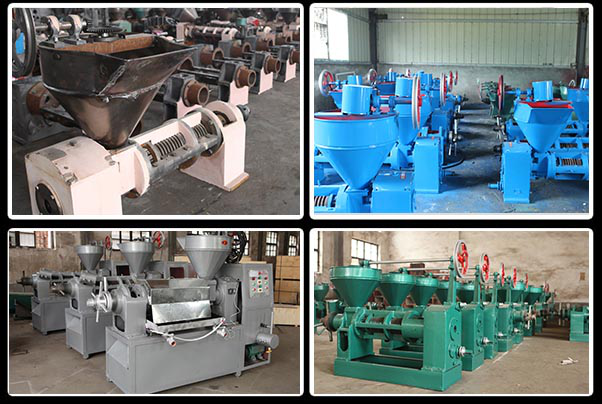

Other details display
Product Parameters
| Model | Capacity | Power（W） | Voltage | Packing size | Gross weight and net weight (KG) |
| 6YL-68 | 40-50Kg/h | 5.5KW | 380V/50HZ/Triple phase | 880*440*770 | 160/140 |
| 6YL-80 | 80-150Kg/h | 5.5KW | 380V/50HZ/Triple phase | 1510*440*700 | 350/330 |
| 6YL-95/100 | 150-200Kg/h | 7.5KW | 380V/50HZ/Triple phase | 1910*550*765 | 450/420 |
| 6YL-120 | 200-300Kg/h | 11KW | 380V/50HZ/Triple phase | 2100*630*770 | 530/500 |
| 6YL-130 | 300-400Kg/h | 15KW | 380V/50HZ/Triple phase | 2280*700*780 | 780/750 |
| 6YL-160 | 400-600Kg/h | 18.5KW | 380V/50HZ/Triple phase | 2050*600*850 | 950/900 |
| 6YL-68A | 40-50Kg/h | 5.5KW | 380V/50HZ/Triple phase | 1720*900*1300 | 500/460 |
| 6YL-80A | 80-150Kg/h | 5.5KW | 380V/50HZ/Triple phase | 2100*750*1500 | 600/550 |
| 6YL-95/100A | 150-200Kg/h | 7.5KW | 380V/50HZ/Triple phase | 2100*900*1800 | 750/700 |
| 6YL-120A | 200-300Kg/h | 11KW | 380V/50HZ/Triple phase | 2150*770*1800 | 950/900 |
| 6YL-130A | 300-400Kg/h | 15KW | 380V/50HZ/Triple phase | 2300*900*1900 | 1000/920 |
| 6YL-160A | 400-600Kg/h | 18.5KW | 380V/50HZ/Triple phase | 2450*900*1950 | 1100/1050 |
| Packing | |
| Size | To be determined |
| Weight | Depend on different capacity equipment |
| Packaging Details | The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request. |
| Delivery | |
| Tool | Ship, express or Air |
| Packing | In containers |
| Shipping Details | The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need. You can contact your own shipping agent or ask us to arrange shipping for you. |
Wuhan HDC is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.

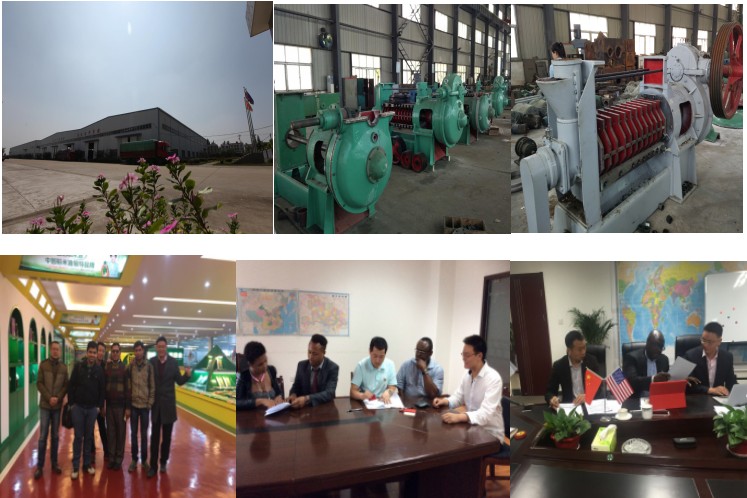

The following pictures show our factory and customers in our workshop.

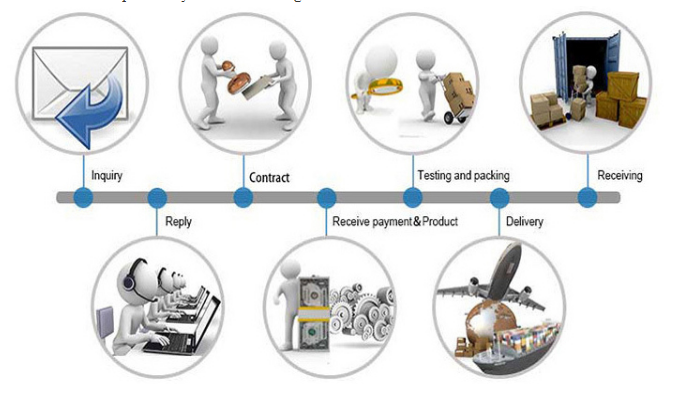

Our service
FAQ
Q1: What is the Warranty for the machines?
A1: 12 months free guanantee and life long standard paid service.
Q2: What is the Material?
A2: Carbon steel suitable for pressing.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately give you a little discount.
Q5: How long will it take to receive my products?
A5: Generally, it will take about 5 days to make the machinery, 3-7 days to deliver it to
shipping port, and 10-45 days on sea transporting.
Q6: Is the machine suitable for different raw material ?
A6: Yes, but we recommend no more than 3 different types.
Q7: Where is your factory located?
A7: Zhengzhou, Henan Province.
Q8: How to ask quotation?
A8: Please note us what tpye of raw seeds , and your capacity per day, then send your inquiry below, click “send” now.
