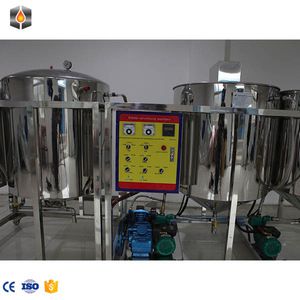

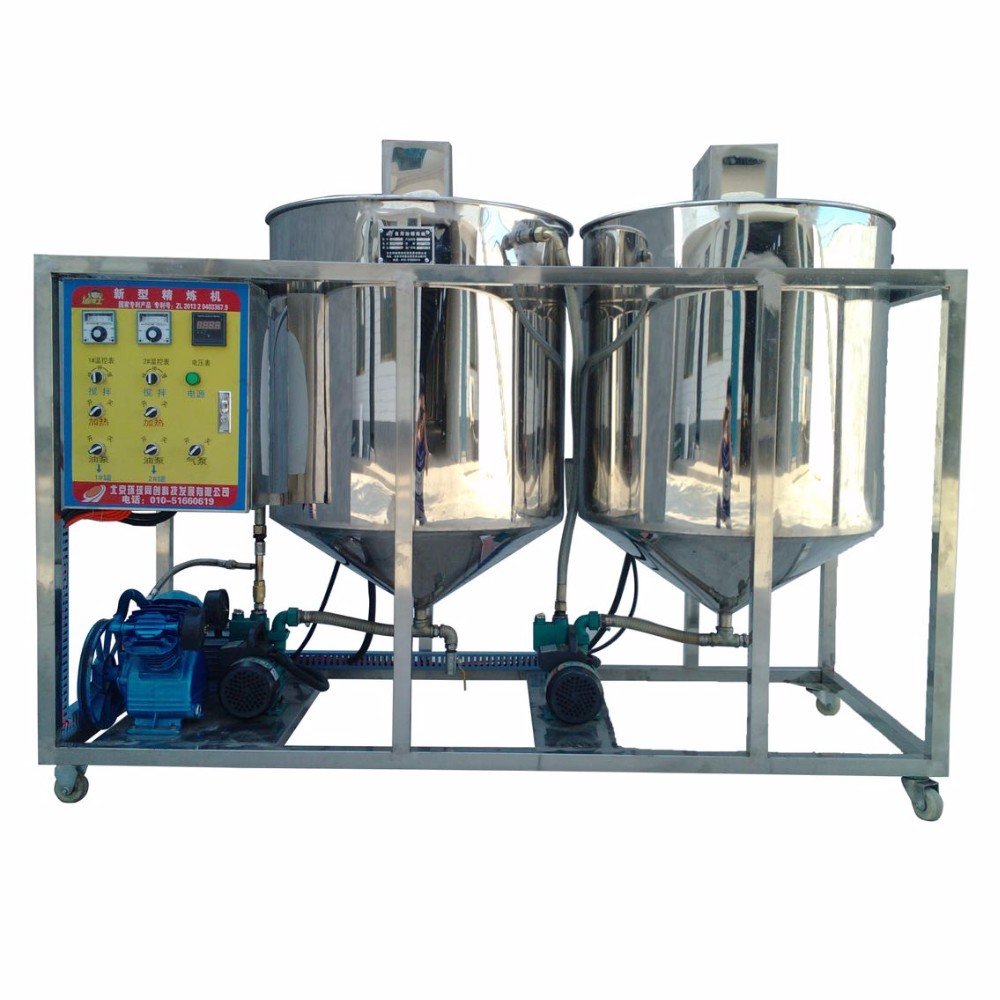

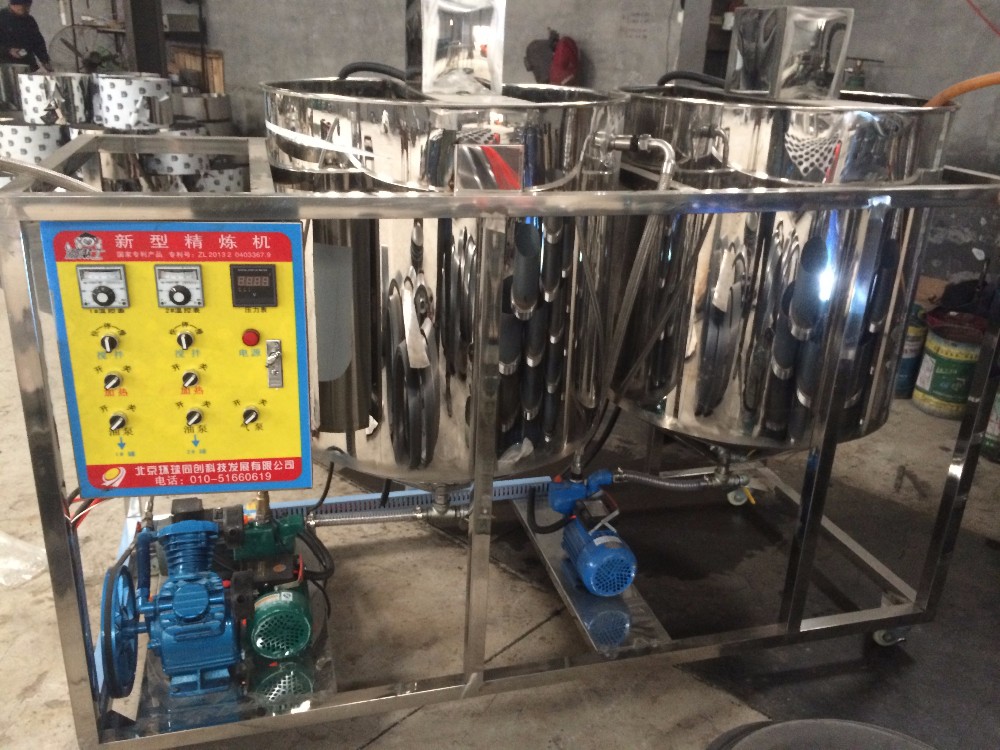

This set of crude oil refinery plant is used for cleaning crude oil, when you produce the oil by the oil press, the oil can not eating directly, you must cleaning the oil, include degumming and deacidification, decolor, deodorization three sections, oil after refined can be selled or ate directly.
Main Advantage of oil refining machine :
1) Simple structure in linear type, and easy in installation and maintenance.
2) Adopting advanced China famous brand components in electric parts and operation parts.
3) Full automatic and continuous working
4) Running in a high automation and intelligentization with no pollution.
5) Environmental friendly, low noise and power consumption
Product Application of oil refining machine
It is suitable for refining various crude oil, vegetable oil, such as sunflower seed oil, tea seed oil, peanut oil, soybean oil, corn oil, groundnut oil and so on.

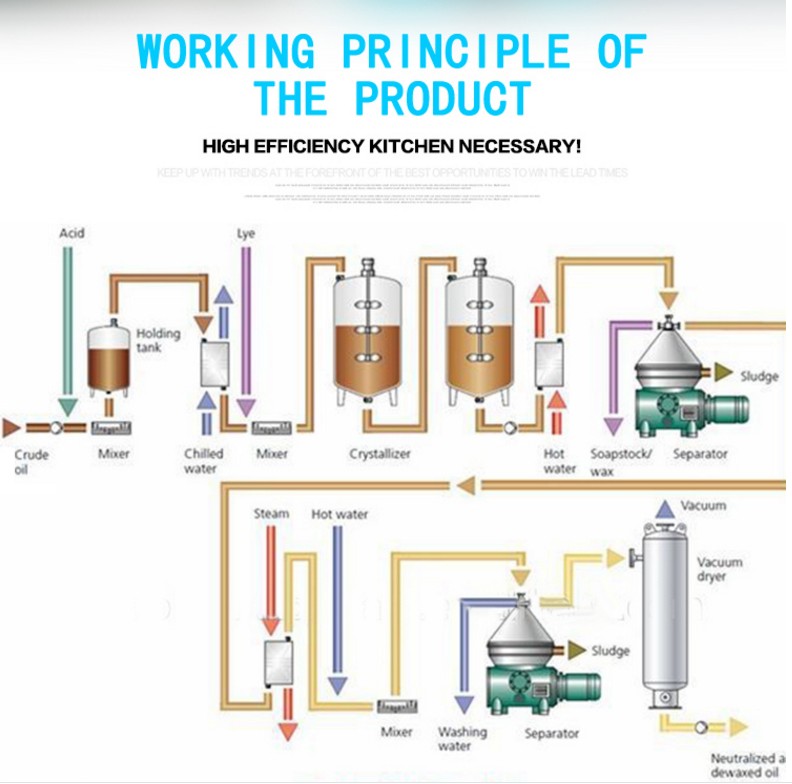

The whole refining process is divided into three sections,include degumming and deacidification, decolor, deodorization three sections.

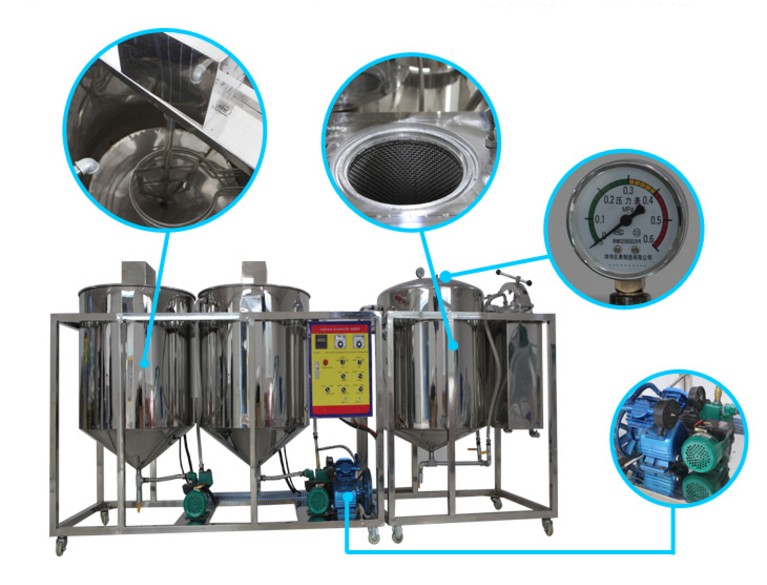

1.Name: Operation Panel
Function: Operation Panel is with the markings in English, the main botton are for switch , temperature control, stirring speed control, oil pump control and heat control.
2.Name: Motors
Function: The small oil refinery machine are with at least three motors working together to support the whole system. We adopt the domestic famous brand motors.
3.Name: Stirring tank
Function:The oil refinery tank is with automatic stirring design to realize the heating and stirring at the same time. All inside and outside parts of the tanks are full stainless steel material.

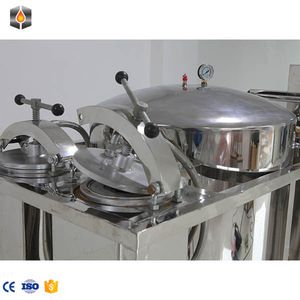

4.Name: Bleaching earth pot
Function: This pot is essential for bleaching function, we filled the pot with bleaching earth with filter bag before start operation.
oil refining machine features:
1.This unit is a full set of equipment,has the advantage of self-provided heat,electric control,light weight,low energy consumption and so on.
2.Adopting various heat exchangers, the energy consumption is greatly saved.
oil refining machine features:
1. Simple design, small volume and light weight, easy to handle and move.
2. Easy for operating, low labor intensity and high economical profit.
oil refining machine features:

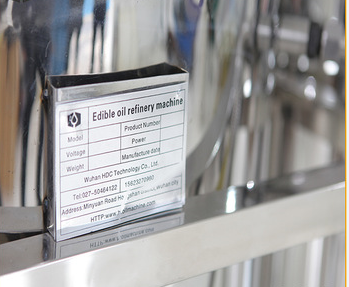

Name: oil refining machine
Brand: HDC
Original: China
Power:380V/50HZ

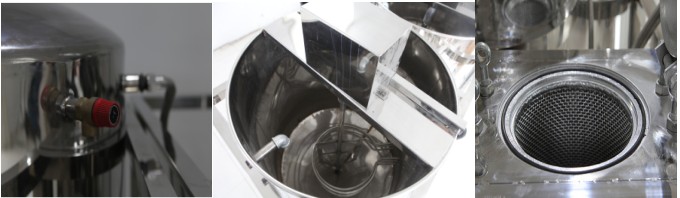

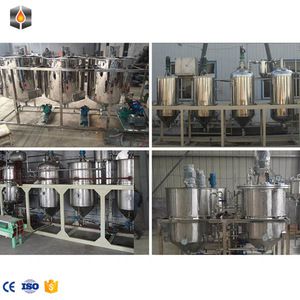

Other details display
Product Parameters
| Model | Capacity | Power(KW) | Electric machinery | Packing size | Size(mm) | Gross weight and net weight(KG) |
| JLJ-50D | 500Kg/day | 5KW | 380V/50HZ/Triple phase | 2.2CBM | 1500*680*1400mm | 160/140 |
| JLJ-75D | 2000Kg/day | 15KW | 380V/50HZ/Triple phase | 5.1CBM | 3000*830*1700mm | 310/280 |
| JLJ-75C | 2500Kg/day | 20KW | 380V/50HZ/Triple phase | 7.3CBM | 3900*830*1700mm | 380/350 |

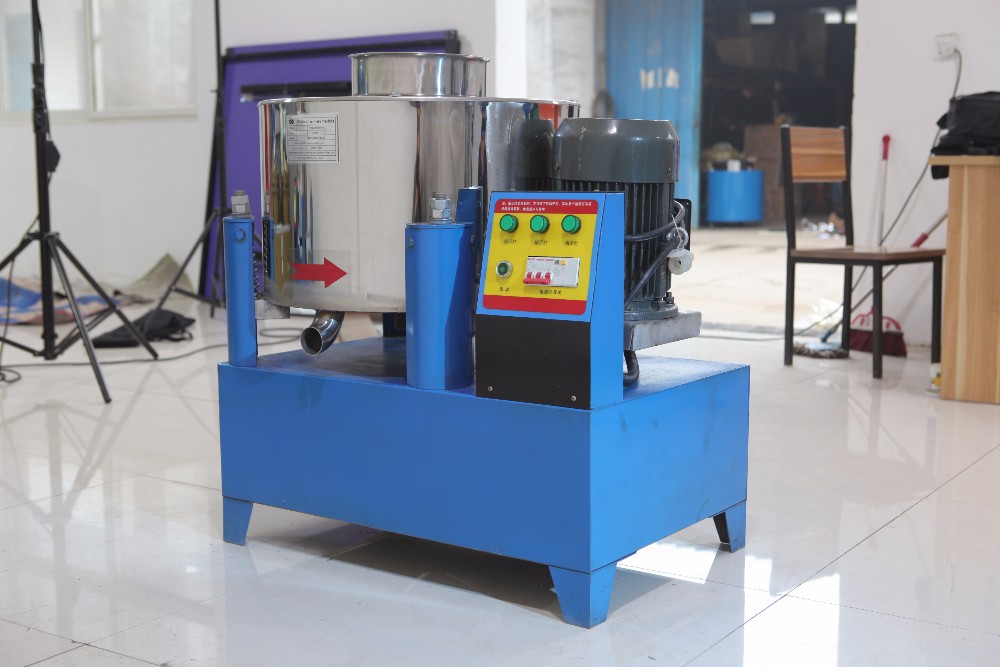

centrifugal oil filter

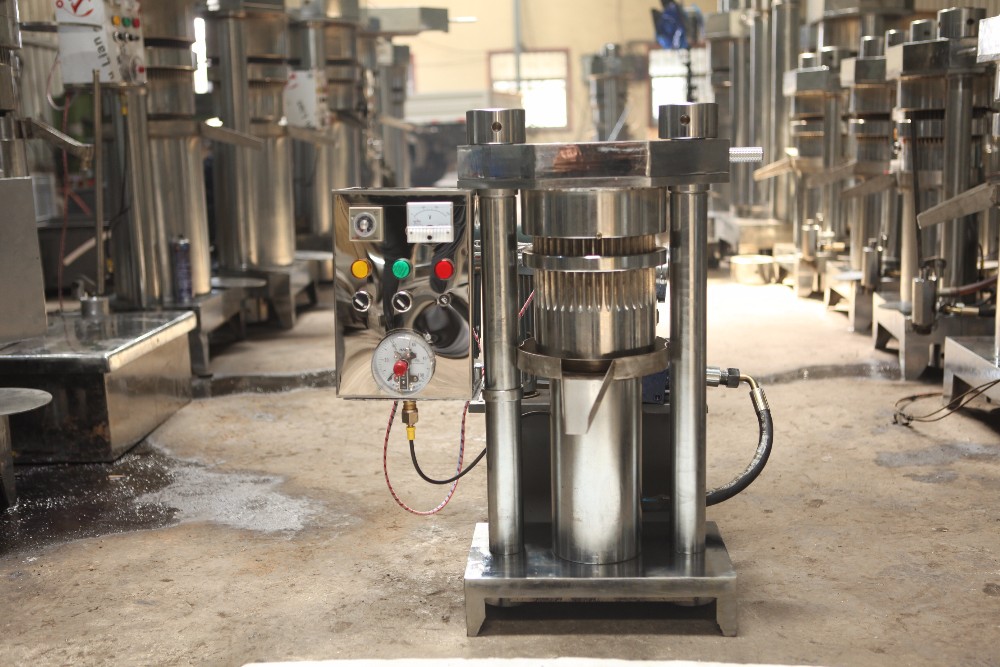

hydraulic oil press machine

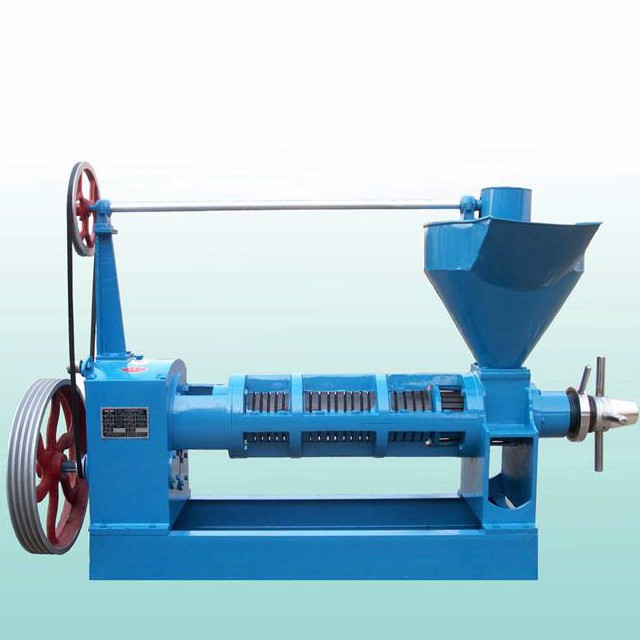

screw oil machine
| Packing | |
| Size | To be determined |
| Weight | Depend on different capacity equipment |
| Packaging Details | The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request. |
| Delivery | |
| Tool | Ship, express or Air |
| Packing | In containers |
| Shipping Details | The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need. You can contact your own shipping agent or ask us to arrange shipping for you. |
Wuhan HDC is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our factory and customers in our workshop.
Our service
FAQ
1.When will you ship the machine?
normally 3-5 working days for small distiller .The time of big production line will depends on detail situation
2.How can I buy this machine?
first talk all details of machines with our sales person, then talked about the price, and choose most economic transportation way. then you can choose the payment terms Trade assurance/T T/Escrow/Western Union etc.after we getting the deposit, we start to produce the machine.
last, packing and shipping the machine for you.
3.What's the heat resource?
electricity/gas/diesel/wood/coal,etc.
you can tell me the power supply available to your country .we can formulate a right heating way.
4.How do you guarantee that we can receive the goods ordered?
we are a legal company supervised by the government and also the Alibaba company as well as the third parties, what is more important,honesty and trustworthiness are our basic principle. Please trust us that we will offer the best to our client you.
5.What is your after-sale service?
Usually, for the simple machines, we supply the online instruction service, if it is during the warranty period(one year), we supply the replaceable parts for free charge, if it is our of the date, we will charge for cost price. for complicated machines, we would send our engineers to repair the machine, and fees should be undertook by the buyer.
