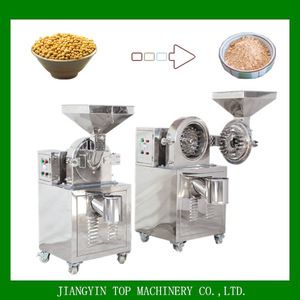

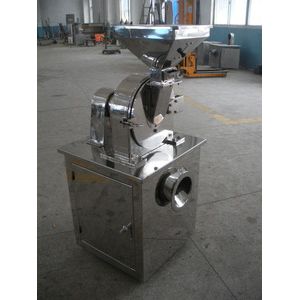

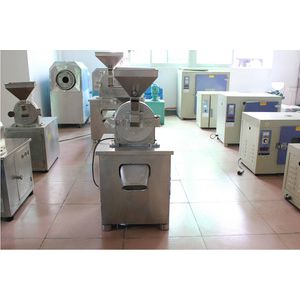

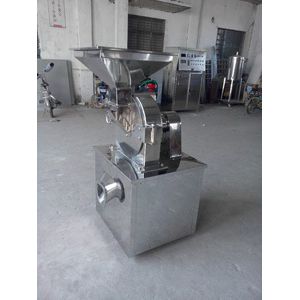

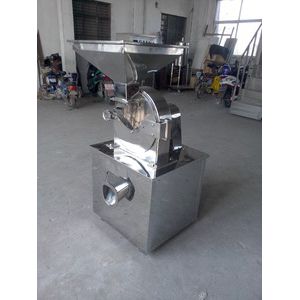

sale corn grinding mill machine /roller corn flour mill /rice and corn milling machines

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.

Technical Feature

  • New
  • Jiangsu, China (Mainland)
  • TOP
  • TP-20B
  • 72-85%
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$4~7

PRIMARY PARAMETERS

Condition
New
Place of Origin
Jiangsu, China (Mainland)
Brand Name
TOP
Model Number
TP-20B
Production Capacity
72-85%
Voltage
380V
Power(W)
4kw
Weight
250kg
Dimension(L*W*H)
550*600*1250(mm)
Certification
ISO CE
Warranty
3 Years
After-sales Service Provided
Engineers available to service machinery overseas
name
corn mill machine
model
TP-20B
speed of main shaft
4500r/min
capacity
60-150kg/h
feeding granule size
6 mm
mesh
60-150 mesh
grinding motor
4 kw
fan power
1.5 kw
weight
250kg
whole set size
1100*600*1650 mm

DETAIL DESCRIPTION

Product Description

1.The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials.

2. The size of granules can be achieved by changing of the screen.

3. The machine has the features of easy structure, solid, stable running and good efficiency.

4. The crushed material is discharged directly from the grinding chamber of the main frame.

5.  the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. it is achied GMP standard.

Technical Paramaters



Model

Output

Rotate speed

Dimensions

(mm)

Mesh Size

Motor

Weight (kg)

TP-20B

60-150kg/h

4500r/min

550×600×1250

60-150

4kw

250kg

TP-30B

100-300kg/h

3800r/min

600×700×1450

60-120

5.5kw

320kg

TP-40B

160-800kg/h

3400r/min

800×900×1550

60-120

11kw

550kg

TP-60B

500-1500kg/h

2800r/min

1000×900×1680

60-120

15kw

680kg

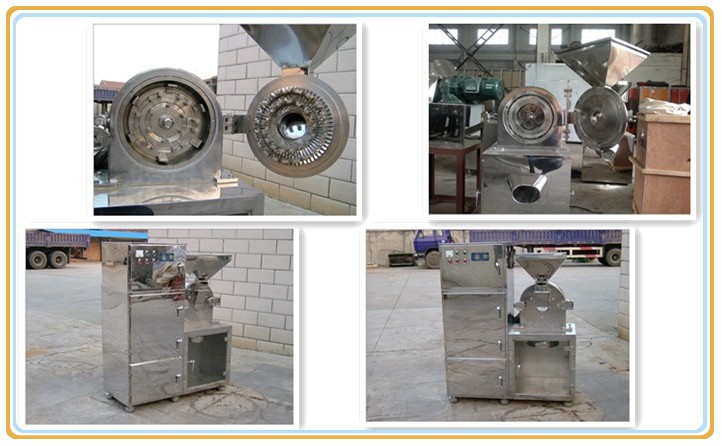

Detailed Images





Packaging & Shipping





Certifications



Our customers



FAQ



Q1: Can wheat, corn and rice produced on the same production line?

A:  Wheat, corn and rice normally can  not producing on the same production line. Because the wheat grain and corn grain has different physical property and some parts need different equipments. Even the same equipments, the model is different.

Q2: What factors need to be considered to design and install a whole set of flour milling equipments?

A:  Flour milling design need to consider the wheat/corn you are using, local geographical conditions, climate, power type, customer's request etc. So flour milling machine is different for customer from different country.

Q3: What payment terms do you accept?

A:  T/T, 30% deposit, 70% balance before shipment or L/C at sight.
