high technology low temperature spray drying equipment for sale

in the liquid technology shaping and in the drying industry.

Technical Feature

  • New
  • Spray Drying Equipment
  • Jiangsu, China (Mainland)
  • Top
  • TP-5
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$8~80

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Top
Model Number
TP-5
Voltage
380V
Power(W)
18kw
Dimension(L*W*H)
1200*2000*2300mm
Weight
2000KG
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Material
SS304
Inlet temperature
140-350u2103
Technical service
Provide
Atomizer speed
25000
Water evaporation
5 kg/h
Height
2.3m
Dry recovery
u2265 95
Outlet temperature
80-90u2103
Application
Liquid
Atomizing disc diameter(rpm
60

DETAIL DESCRIPTION

Product Description

high techonology low temperature spray drying equipment for sale

The spray drying is the technology widest used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing the powder or particle solid products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states. For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.



Principle

Chemicals spray dryer with best quality from China

After the filtering and heating, the air enters into the air distributor on the top of the drier. The hot air enters into the drying room in the spiral form and uniformly. By passing through the high-speed centrifugal spray on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclone separator. The waste gas will be discharged from blower.

Technical Paramaters



Model

TP-5

TP-10TP-25TP-50TP-100TP-150TP-200TP-500TP-800TP-1000
Inlet temperature (  )140-350
Outlet temperature (  )
80-90
Spray formHigh-speed centrifugal atomizer
Water evaporation(kg/h)51025501001502005008001000
Atomizer speed25000220002200021500180001600012000-13000
Atomizing disc diameter(rpm)6080120150180-210
Electric heating(Kw)182831.51208199
Dry recovery(%) 98
Covering length(m)1.22.544.55.277.512.513.514.5
Covering width(m)2.01.62.72.83.55.5681214
Tower height(m)2.32.84.55.56.77.28101115

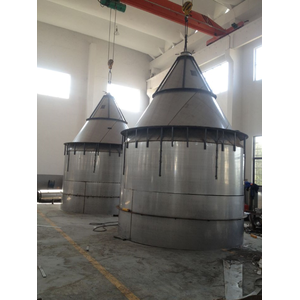

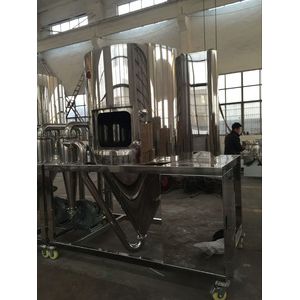

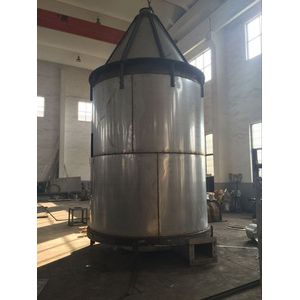

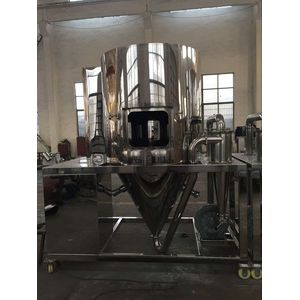

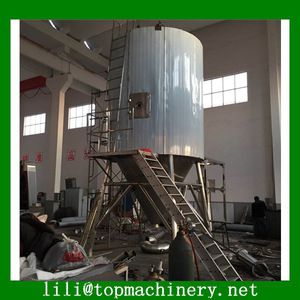

Product Details

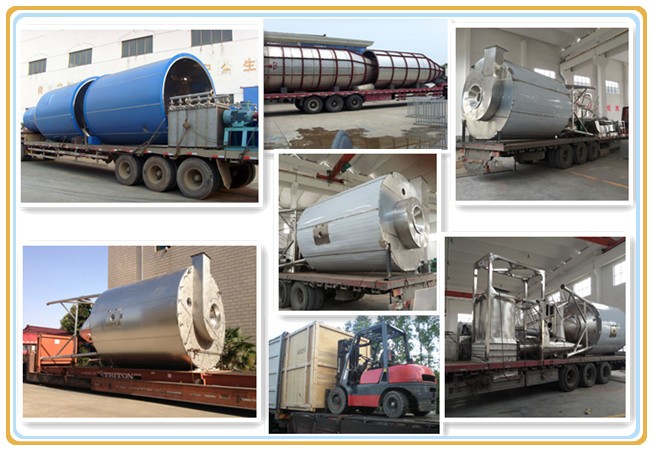

Packaging & Shipping



Application

Chemical Industry

Sodium fluoride (potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

Plastics and resin

AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chloroprene and etc.
Food Industry
Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white (yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
Ceramic aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on.



Certificaties





Our customers





Our Services

Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
3. Ensure product with high quality and pre-commissioning before delivery;
4. Delivery on time;
5.Provide full set of documents as customer’s requirements.
6.Assist clients to prepare for the first construction scheme;
7.Install and debug the equipment;
8.Train the first-line operators;
9. Examine the equipment;
10.Take initiative to eliminate the troubles rapidly;
11.Provide technical support;
12.Establish long-term and friendly relationship.
13. Provide clients one-year warranty to make sure the machine work well;
14.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
15.Send every client a preferential quotation.



FAQ

 Frequently Asked Questions

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.

Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.

Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.

Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
