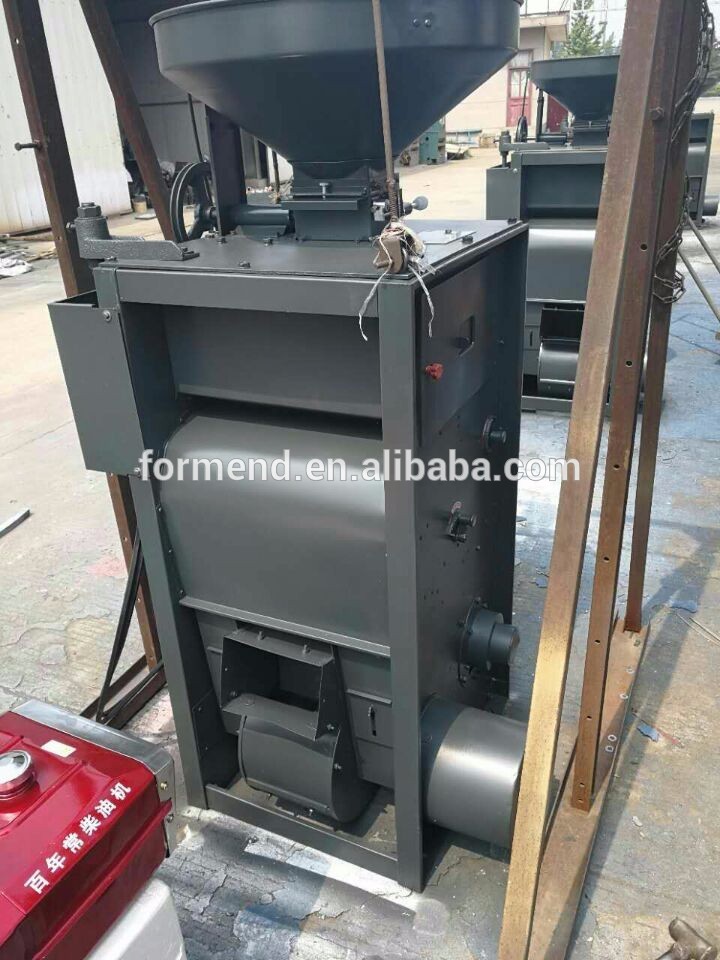

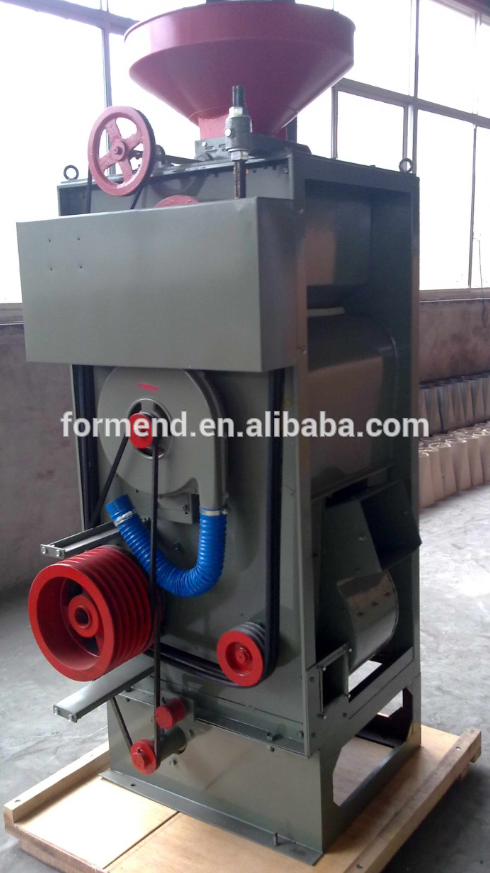

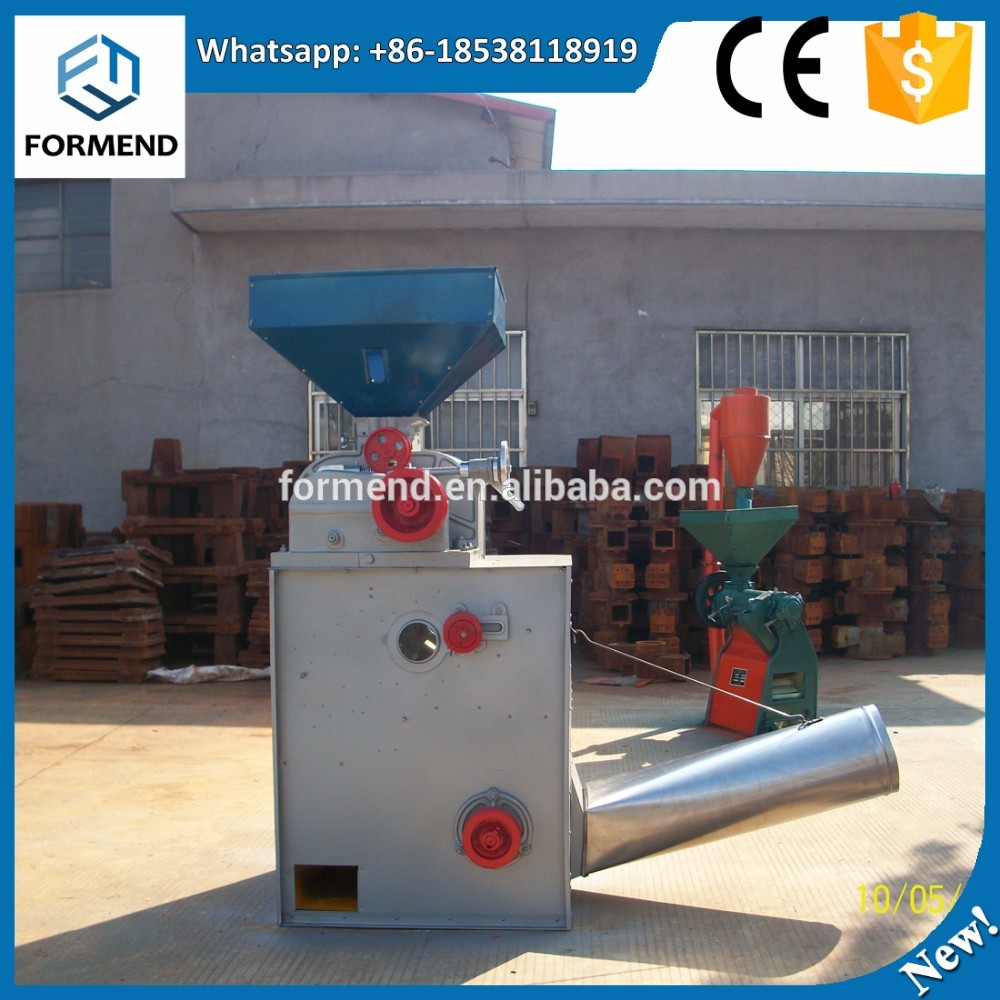

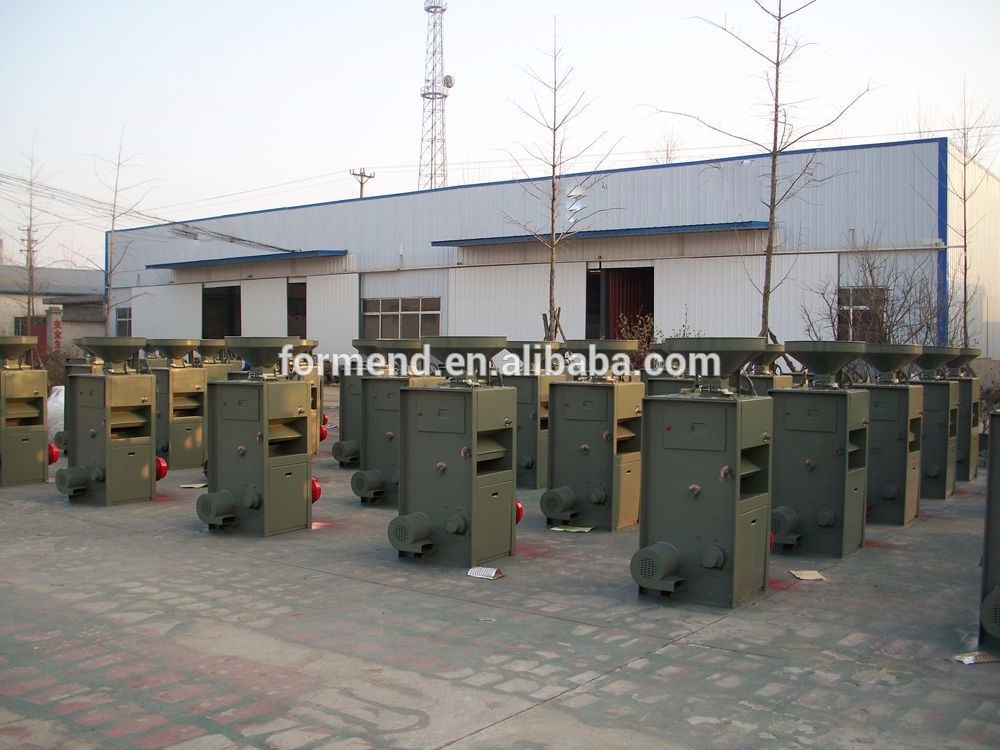

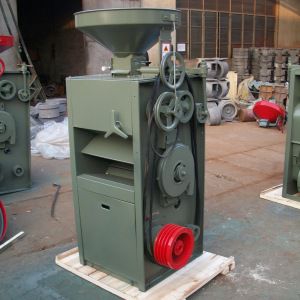

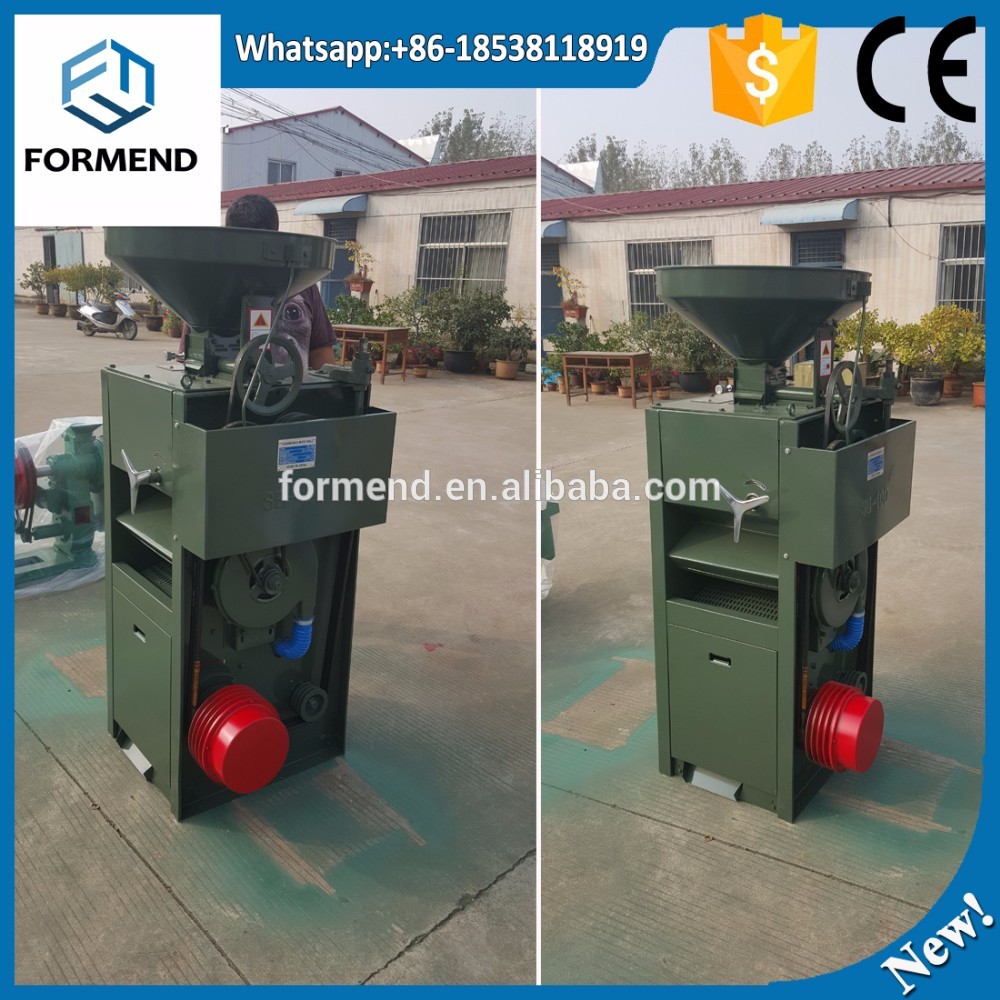

Multi-function small model paddy rice mill
Product Application of rice mill
The rice mill is comprehensive equipment for paddy rice processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber roller for hulling, winnowing and air blowing to husk.
The rice mill may complete all the processing works from cleaning grains, hulling to rice husking in succession. As to husk, chaff, blighted grain as well as polished rice, they are all pushed out of varied kinds of rice processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally.
Pre-processed paddy rice
Being processed white rice

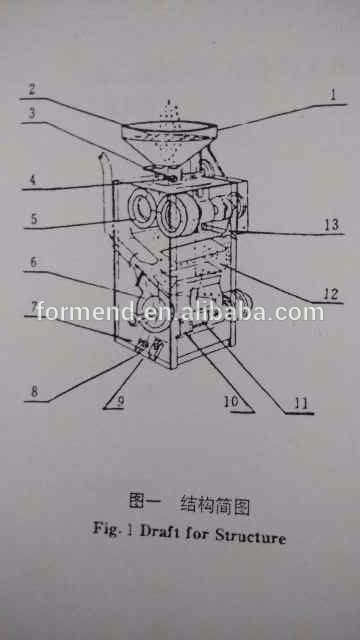

Working principle of rice mill:
Paddy firstly enters into the rice mill through vibrating sieve and magnet device, then passes rubber-roller for hulling. After air blowing and air jetting to the milling room, the paddy finishes the process of husking and milling in succession. Then husk, unripe paddy, and white rice are expelled out of the machine respectively. The dust collector collects the fine rice husk
Technical parameters of rice mill
| Model | SB-5 | SB-10D | SB-30 | SB-50 |
| Capacity (kg/h) | 400-600 | 600-900 | 1000-1500 | 1800-2300 |
| Rubber roller | 180x120mm | 233x152mm | 283x180mm | 254x254mm |
| Motor power (kw) | 5.5 | 7.5-11 | 15 | 22 |
| Dimension (mm) | 690x670x1400 | 780x760x1700 | 1070x760x1760 | 1050x960x2150 |
| Weight (kg) | 130 | 195 | 320 | 630 |
Main features of rice mill:
1. The rice mill can remove paddy husk , whitening rice, crush rice husk at one time
2. The rice mill structure is compact and well organized.
3. It is of less noise and can be easily operated and reliably regulated.
4. Rice after processed consist of less chaff and few of then are damaged (broken).
5. The neatness of such rice may be up to above standard 1.
6. It consumes less power and is efficient in work.
7. It is easy to operate with less power consumption and high productivity.
8. With Iron roller that the rice has low breakage

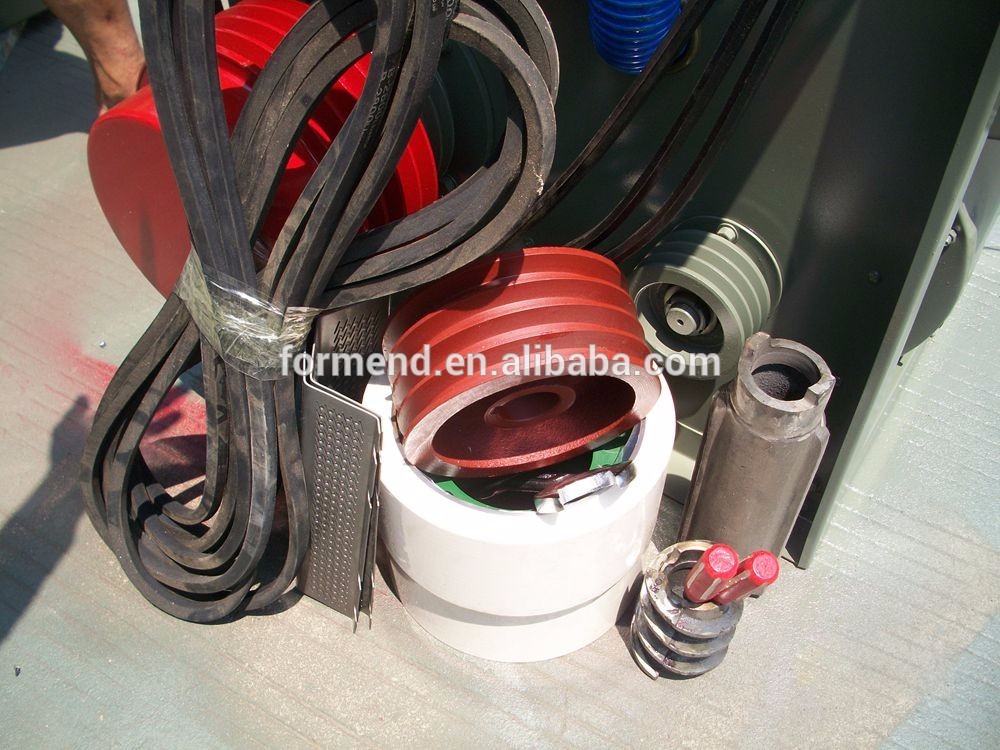

Machine Spare Parts

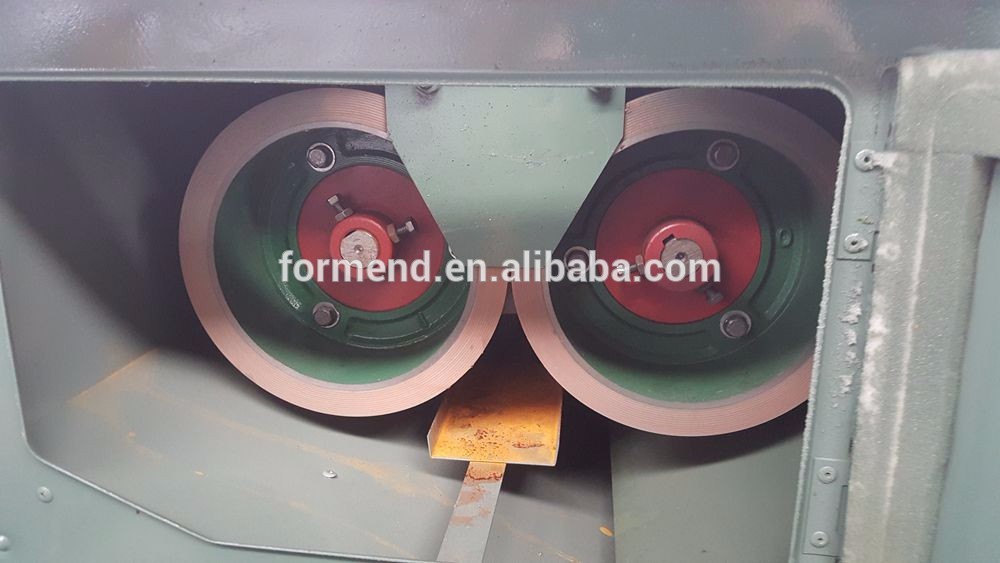

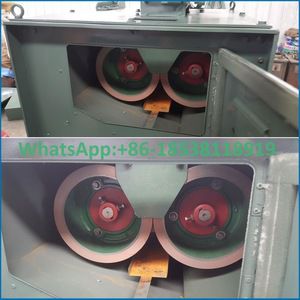

Name: Rubber roller
Brand: FORMEND
Original: China, Henan
One of key spare parts in this rice mill, one machine have 2 pcs rubber roller working together.
Main Spare Parts

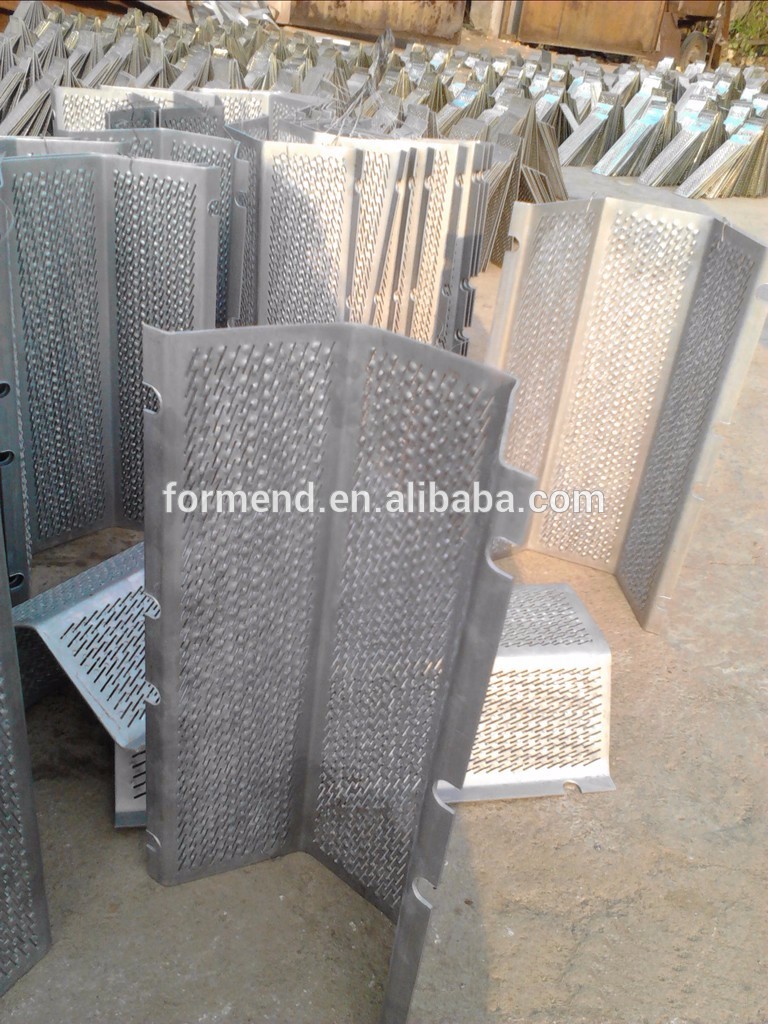

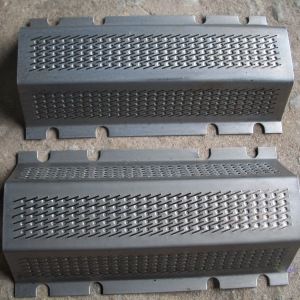

Name: Screen sieve
Brand: FORMEND
Original: China, Henan
The key spare parts in rice mill machine, which can sift good rice and bad rice. One machine have two pieces screen sieve.
Name: thruster
Brand: FORMEND
Original: China, Henan
The key spare parts in rice mill machine.
Main Features
Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

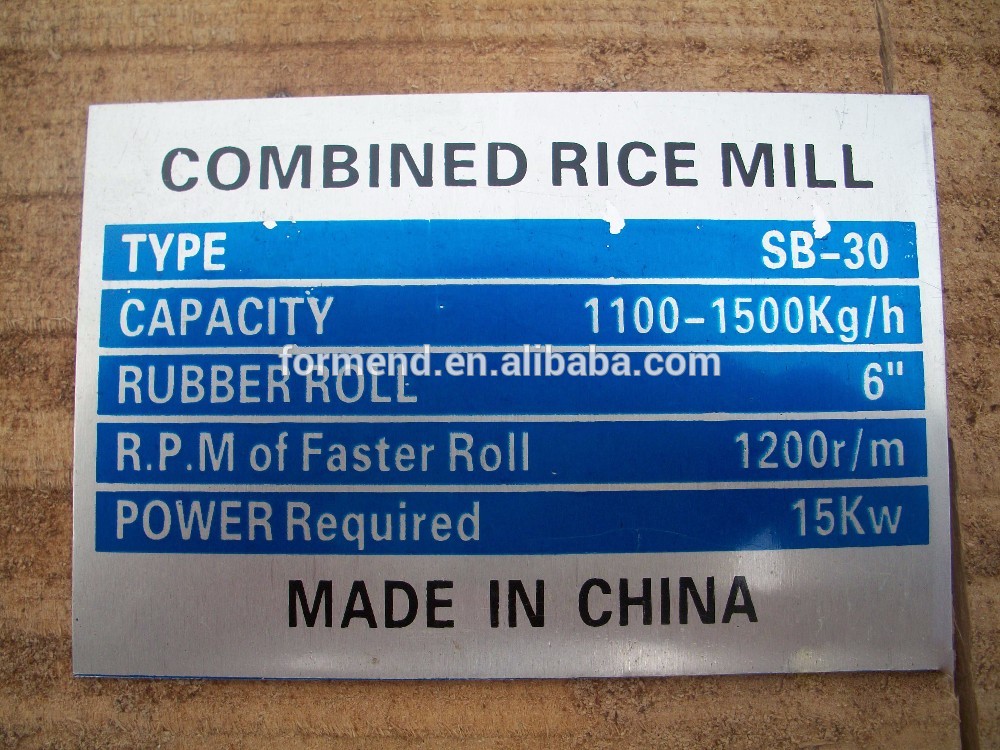

Name plate of rice mill
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

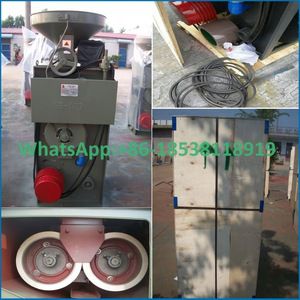

| Packaging | |
| Size | 1070x760x1760mm |
| Weight | 320kg |

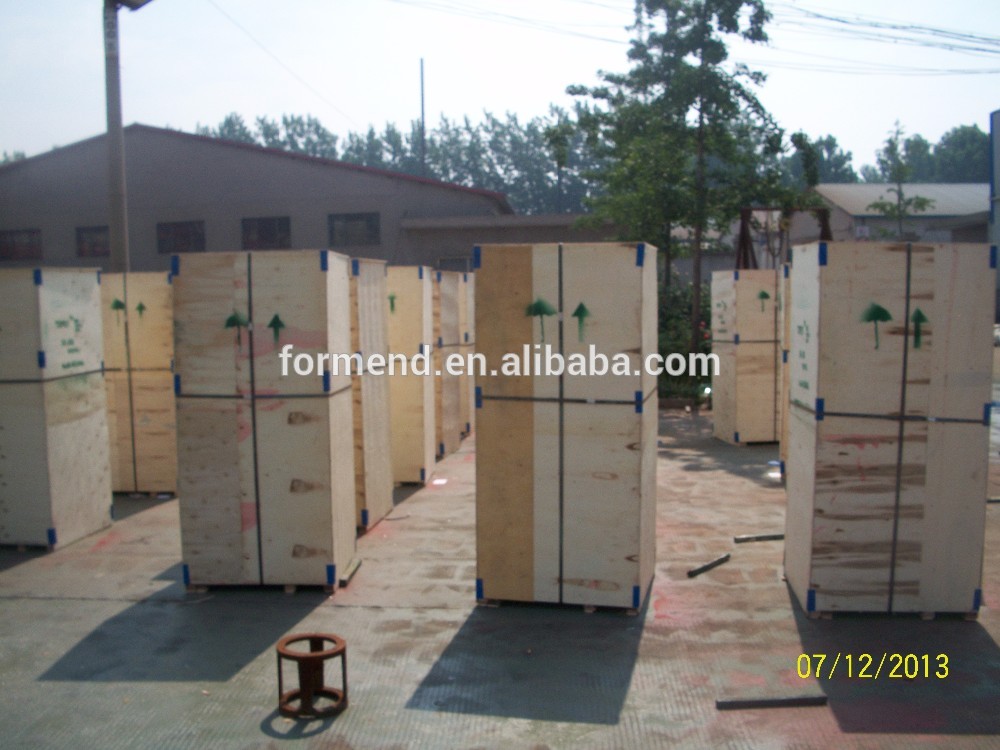

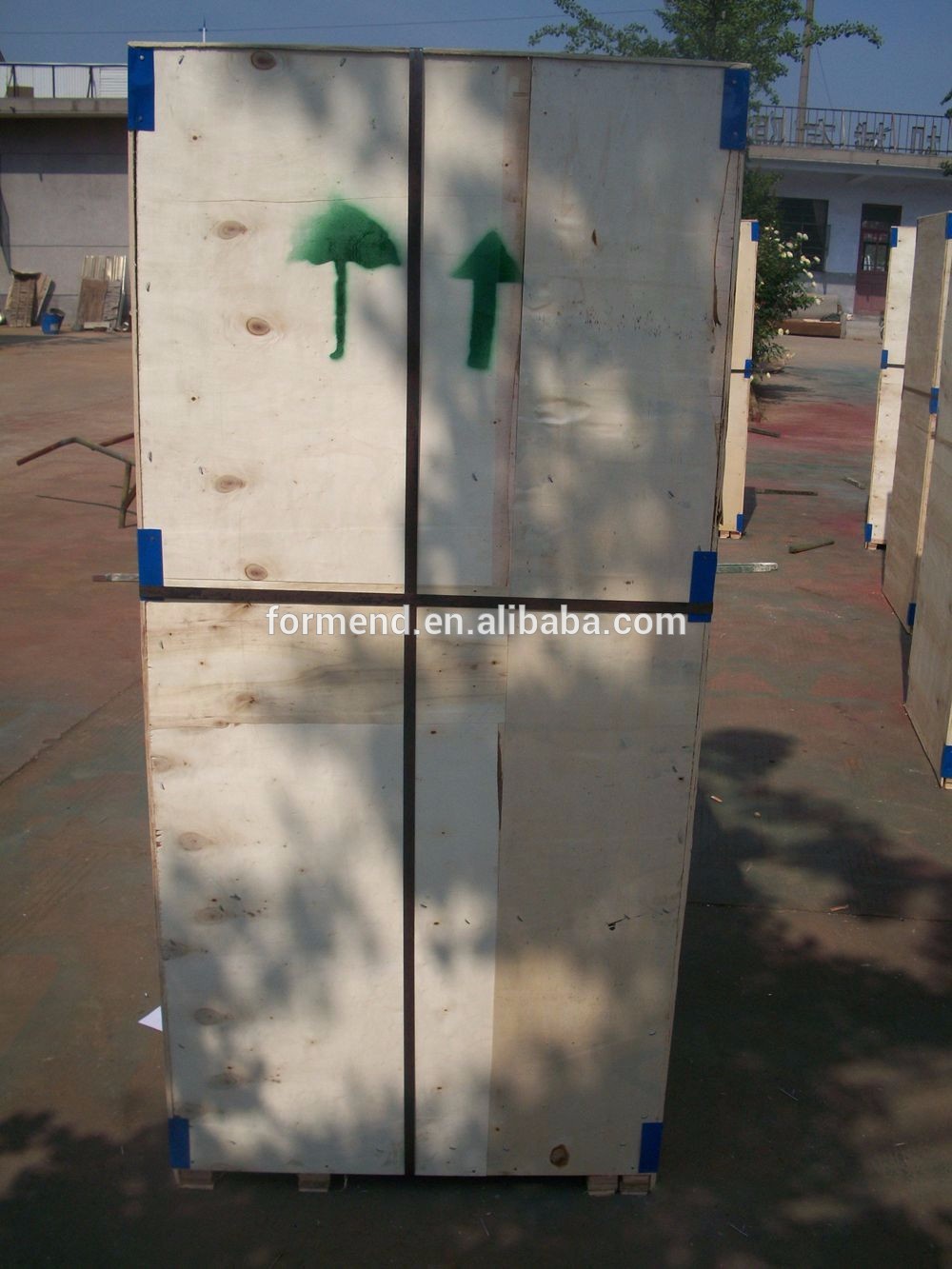

| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use PE film for packing or pack it according to customers special request. |
Henan Formend Imp.&Exp. Co., Ltd, with the rapid development of international trade, established foreign trade department in May, 2010. Therefore, the Henan Formend Imp. & Exp. Co., Ltd is not just trading company, but a company of integration of industry and trade. We have the abundant technical skills and test methods, all process strictly according to ISO 9001:2008 international quality control system and all goods passed the China Compulsory Certificate and CE certificate.
The company have grown up step by step through the 7 years development: bettering products, attending trade shows, building platforms, forming foreign trade teams, etc. Nowadays, our business scope expand gradually, and our products not only welcomed in Chinese market, also exported to more than 50 countries and areas.
Run by the concept of innovation and development, expanding the investment of science and technology, we do our best to provide you with novel-designed, competitive price and best quality products.

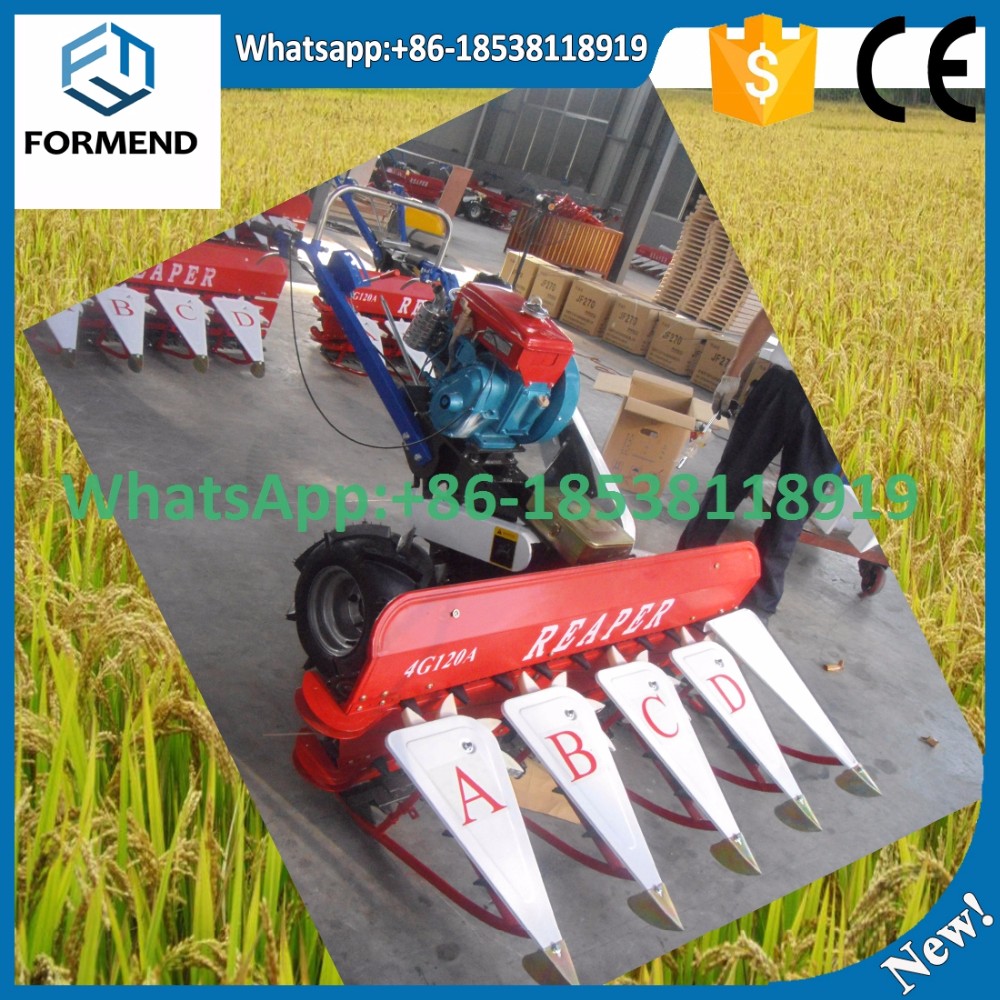

Rice reaper machine
