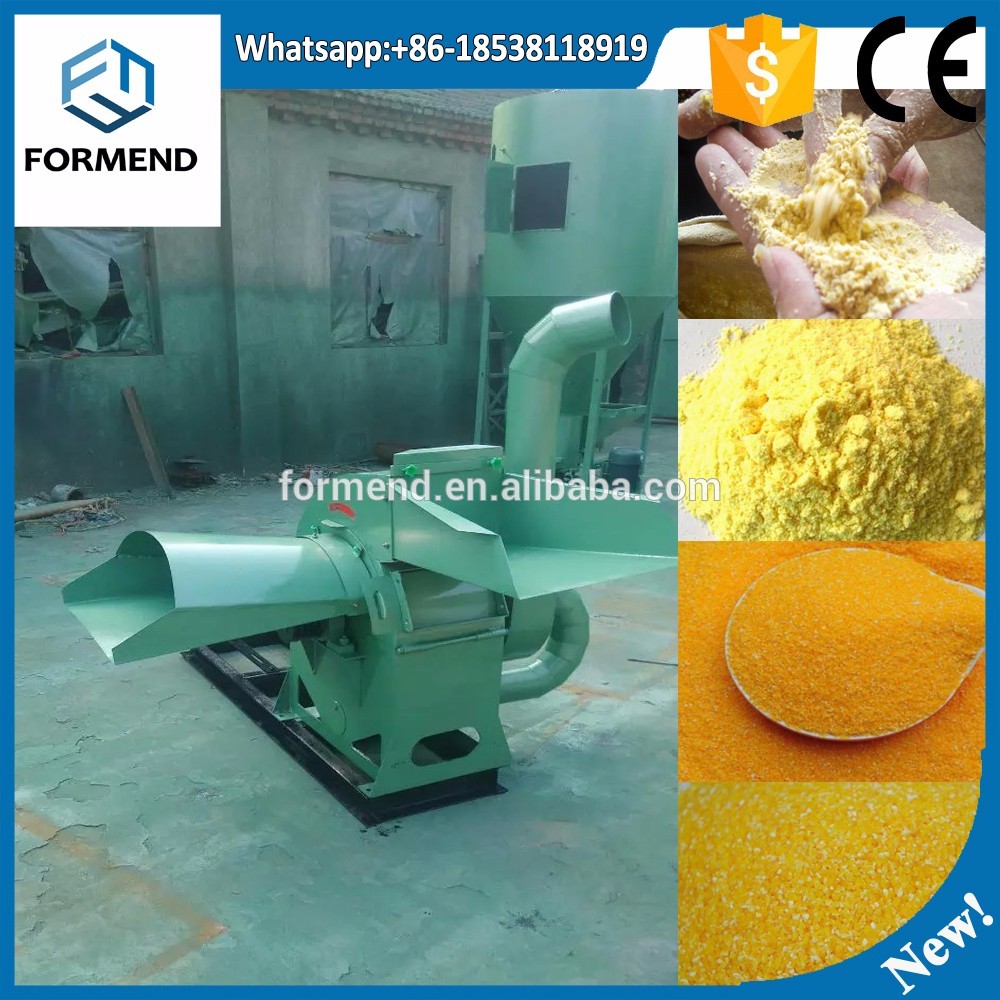

Dry-method processing corn flour milling plant, corn flour mill, electric corn mill price
Product Application of electric corn mill
1. This electric corn mill can be used to process corn/maize, wheat, rice, sorghum etc. Such as Corn peeling and milling, wheat peeling and milling; rice milling;sorghum peeling and milling , etc;
2. This electric corn mill can be used in small grain processing factory to process corn, wheat, rice and sorghum, also very popular on home workshop.
Raw materials can be:
Final processed effect
Small corn grits

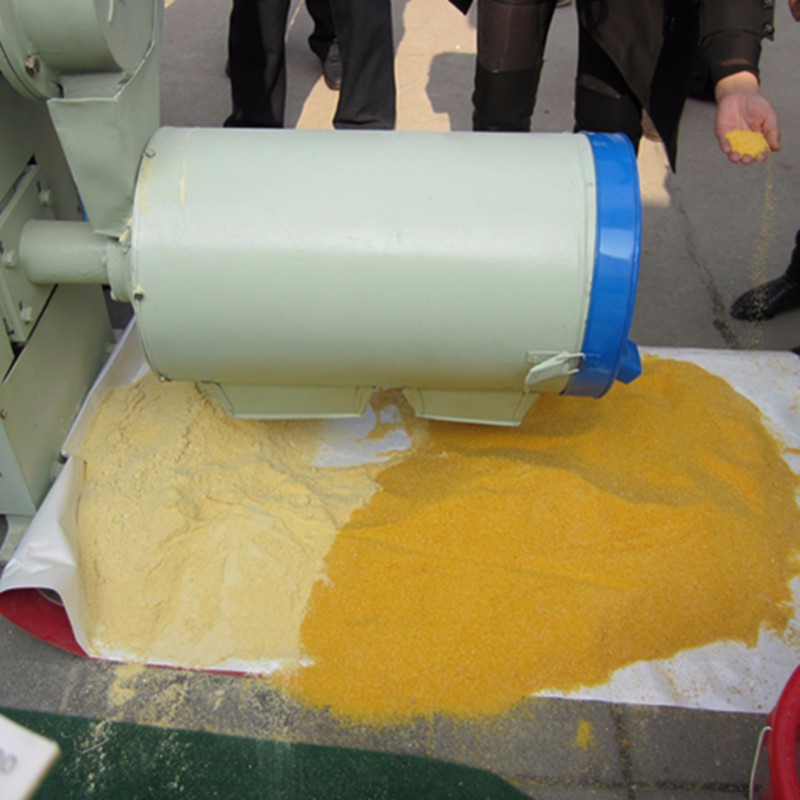

corn flour and grits
corn bran, flour, kernel, small and big grit
Technical parameters of electric corn mill:
Model: DNM-30B
Capacity: 300-500kg/h
Motor power: 7.5kw
Diesel engine power: 12HP
Main shaft speed: 860rpm
Weight: 330kg
Dimension: 2200x500x1200mm

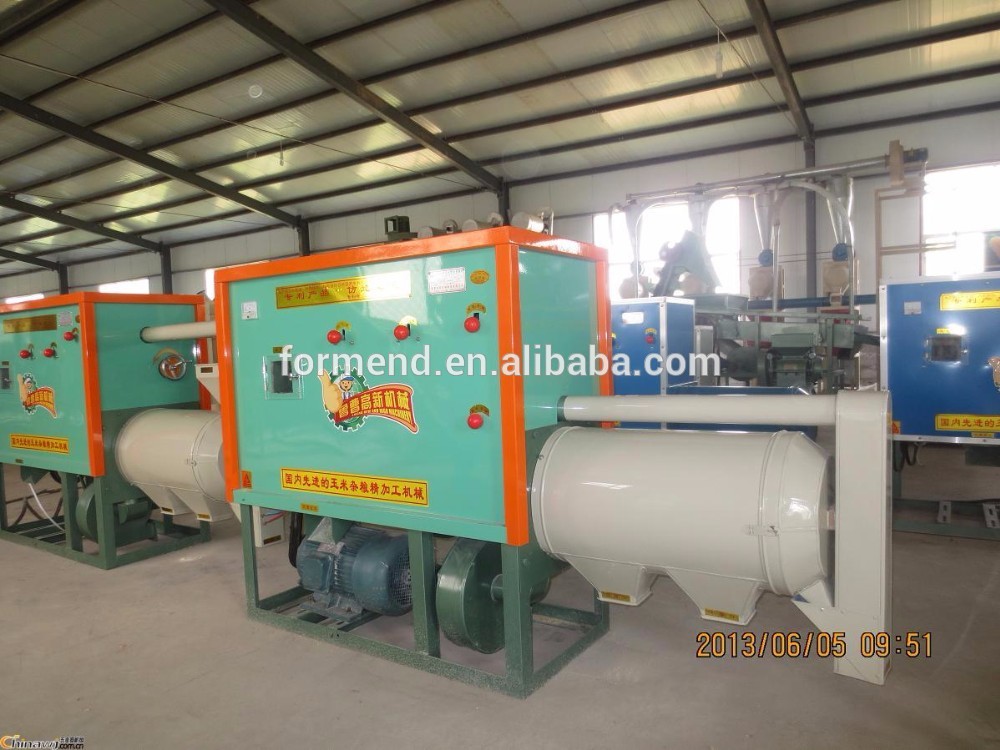

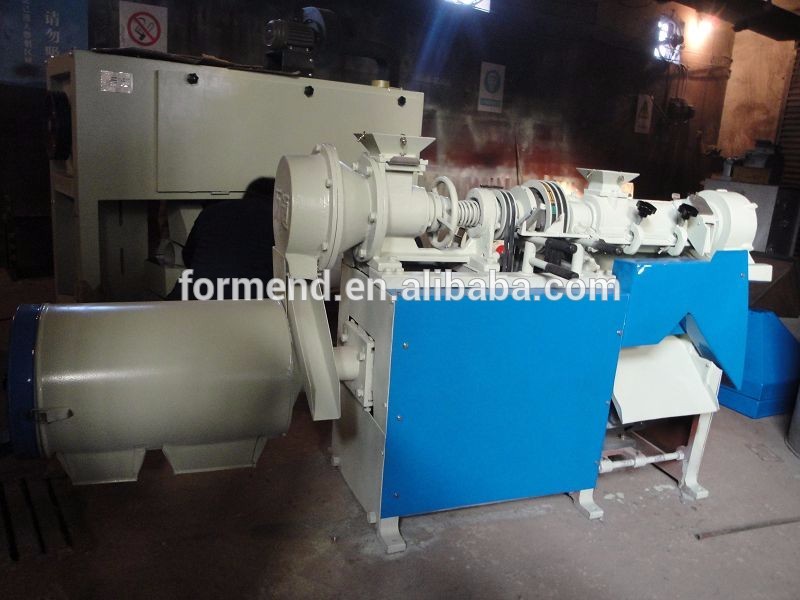

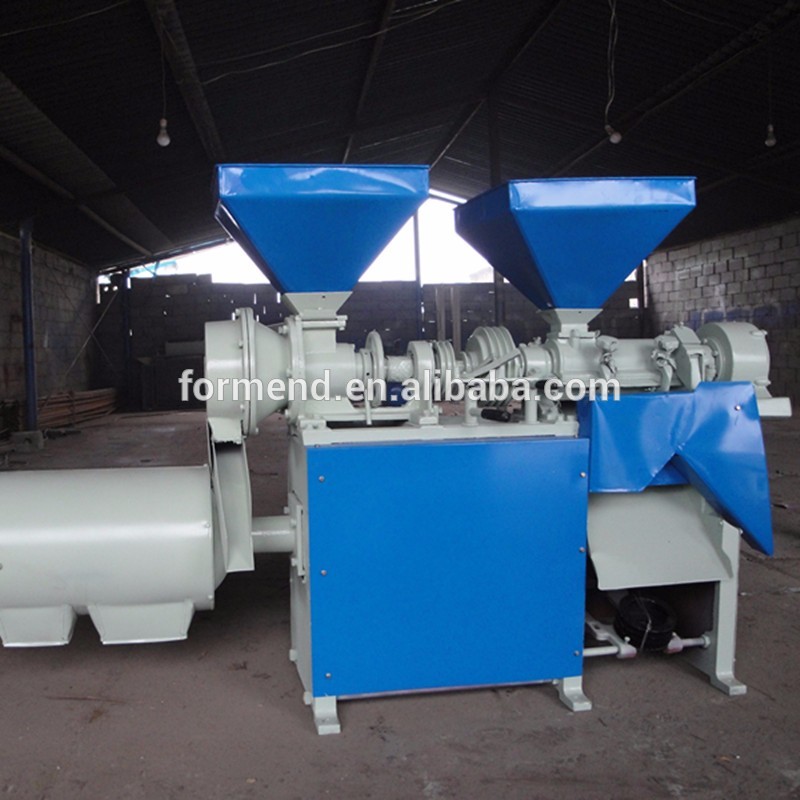

Working principles and features of electric corn mill
The DNM-3B model electric corn mill is installed with a 7.5KW electric motor or 12HP diesel engine with processing capacity of 300-500kg per hour for corn, wheat, and rice, etc.

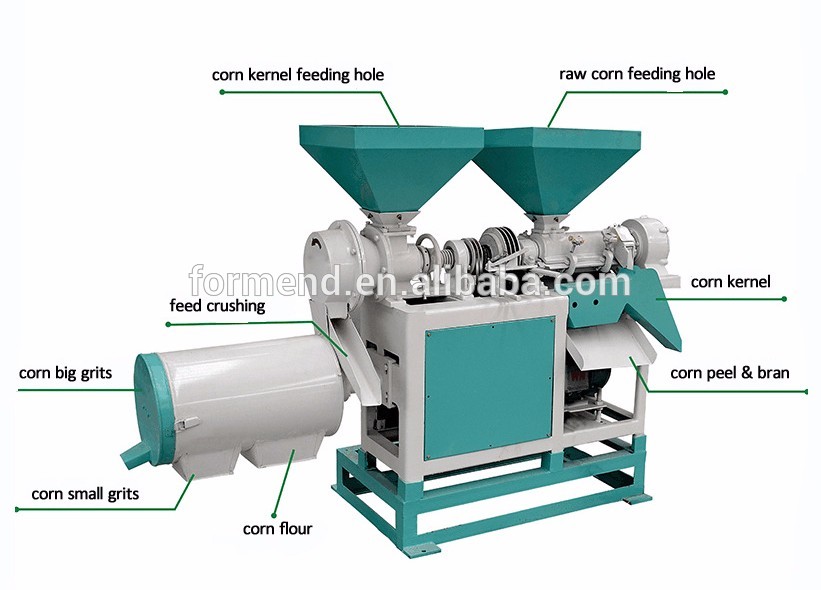

This electric corn mill is a small assembled unit combination peeling, polishing, milling, sifting and winnowing. Clean raw materials are charged in the inlet for peeling, degermination and impurities removing. Then the corn kernels are ground and get three finished products: big and small grits, flour. The machine is installed with an air suction chamber to collect husks from the peeling process.
Advantages of electric corn mill:
1). Adjustable granularity:
It can adjust size of the particles by adjusting hand wheel and distance between tooth plates;
2). Internal installation of efficient winnowing and dedusting blower:
It collects micro husks and impurities through air tunnel of the blower;
3). High output, good effect:
It controls time of corn and wheat staying in the hulling chamber by adjusting pressure valve, guarantee efficient friction of alloy roll so as to get good milling effect;
4). Low power consumption and wide application:
Integrated with the function of peeling and milling with a 7.5KW motor, reducting investment cost. The machine is applied in corn, wheat and sorghum peeling and milling.
Machine Parts

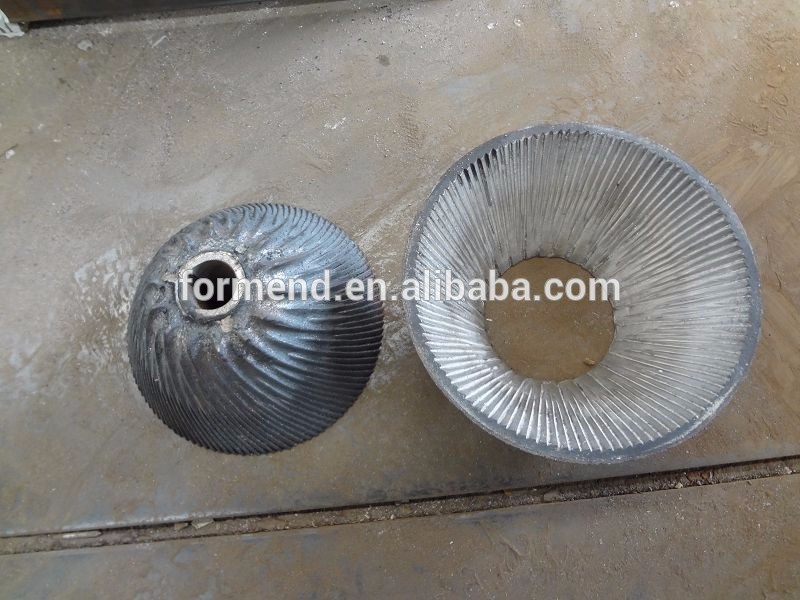

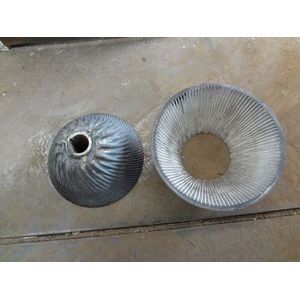

Name: Bowl
Brand: FORMEND
Original: China, Henan
Cast iron made spare parts bowl.
Main Parts
Name: Nylon mesh
Brand: FORMEND
Original: China, Henan
Nylon made mesh for sieve corn flour and grits.
Machine Parts

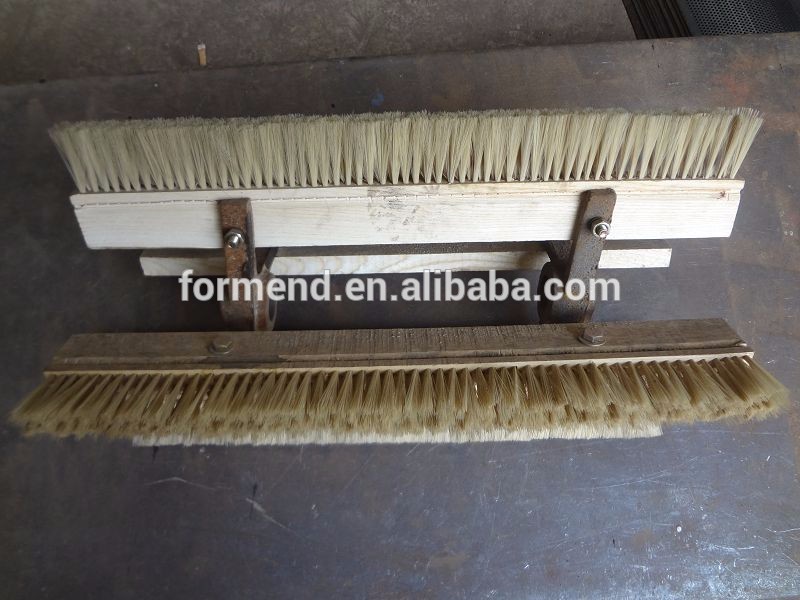

Name: Brush
Brand: FORMEND
Original: China, Henan
Spare parts for brush.
Main Parts

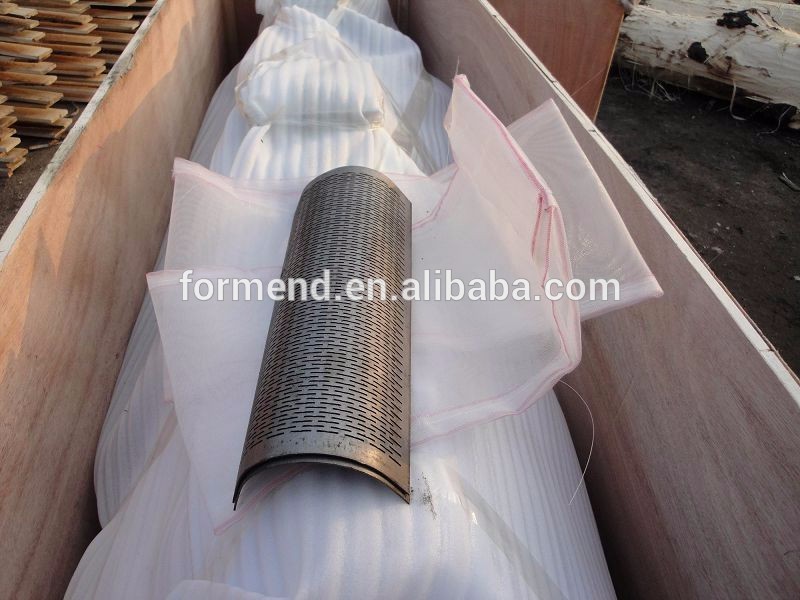

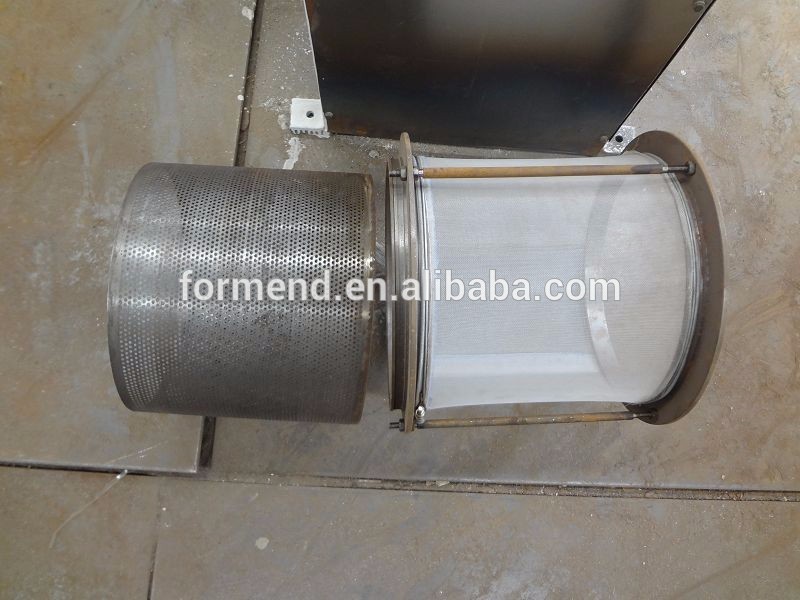

Name: Screen
Brand: FORMEND
Original: China, Henan
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

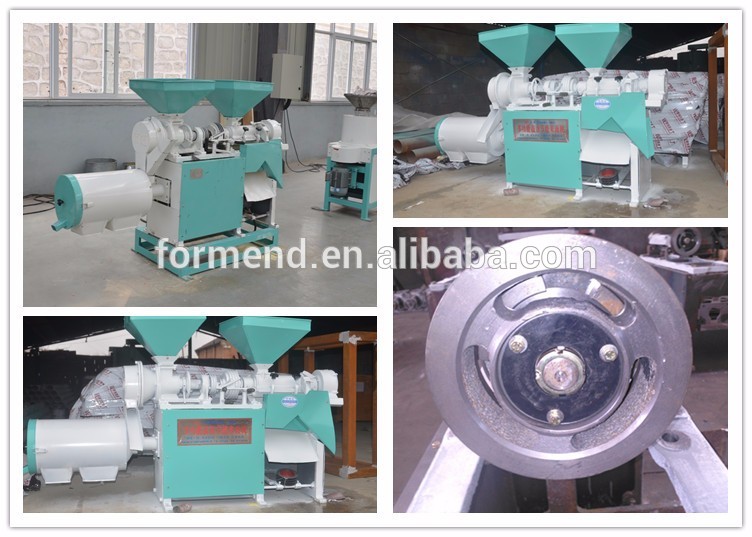

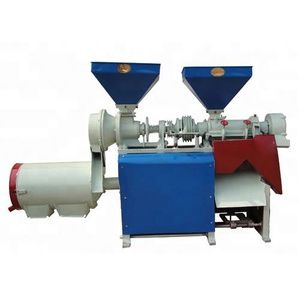

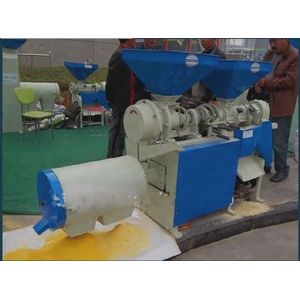

Other model corn/maize mill machine
6FW-C2 model: Output: 250-400kg/h; milling rate: 98%; Motor power: 7.5kw

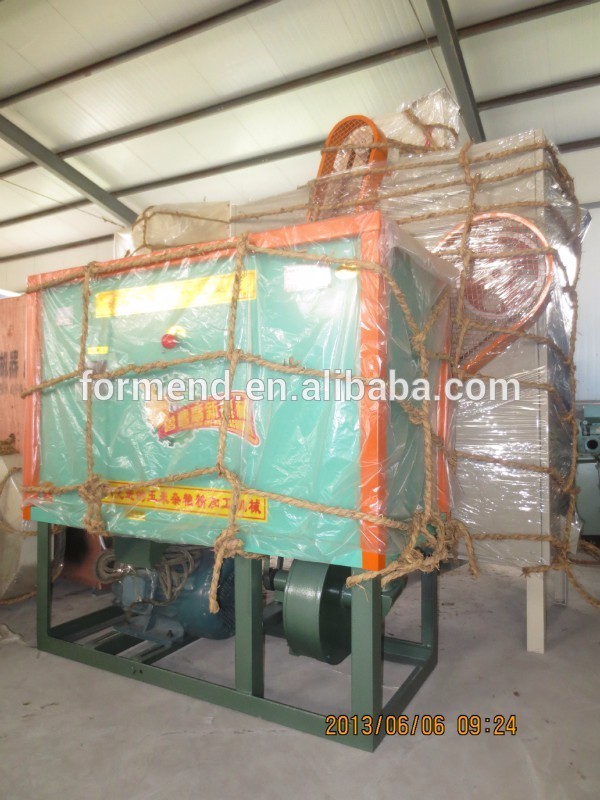

| Packaging | |
| Size | 2800 (L) * 960(W) * 1700 (D) |
| Weight | 580kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use PE film for packing or pack it according to customers special request. |
Pre-Sales Services
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Services
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Henan Formend Imp.&Exp. Co., Ltd, with the rapid development of international trade, established foreign trade department in May, 2010. Therefore, the Henan Formend Imp. & Exp. Co., Ltd is not just trading company, but a company of integration of industry and trade. We have the abundant technical skills and test methods, all process strictly according to ISO 9001:2008 international quality control system and all goods passed the China Compulsory Certificate and CE certificate.
The company have grown up step by step through the 7 years development: bettering products, attending trade shows, building platforms, forming foreign trade teams, etc. Nowadays, our business scope expand gradually, and our products not only welcomed in Chinese market, also exported to more than 50 countries and areas.
Run by the concept of innovation and development, expanding the investment of science and technology, we do our best to provide you with novel-designed, competitive price and best quality products.

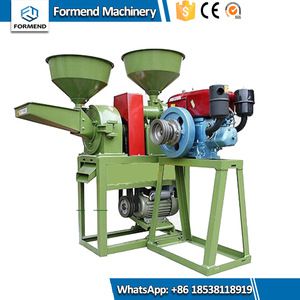

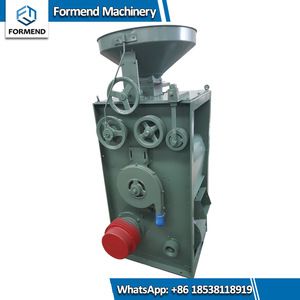

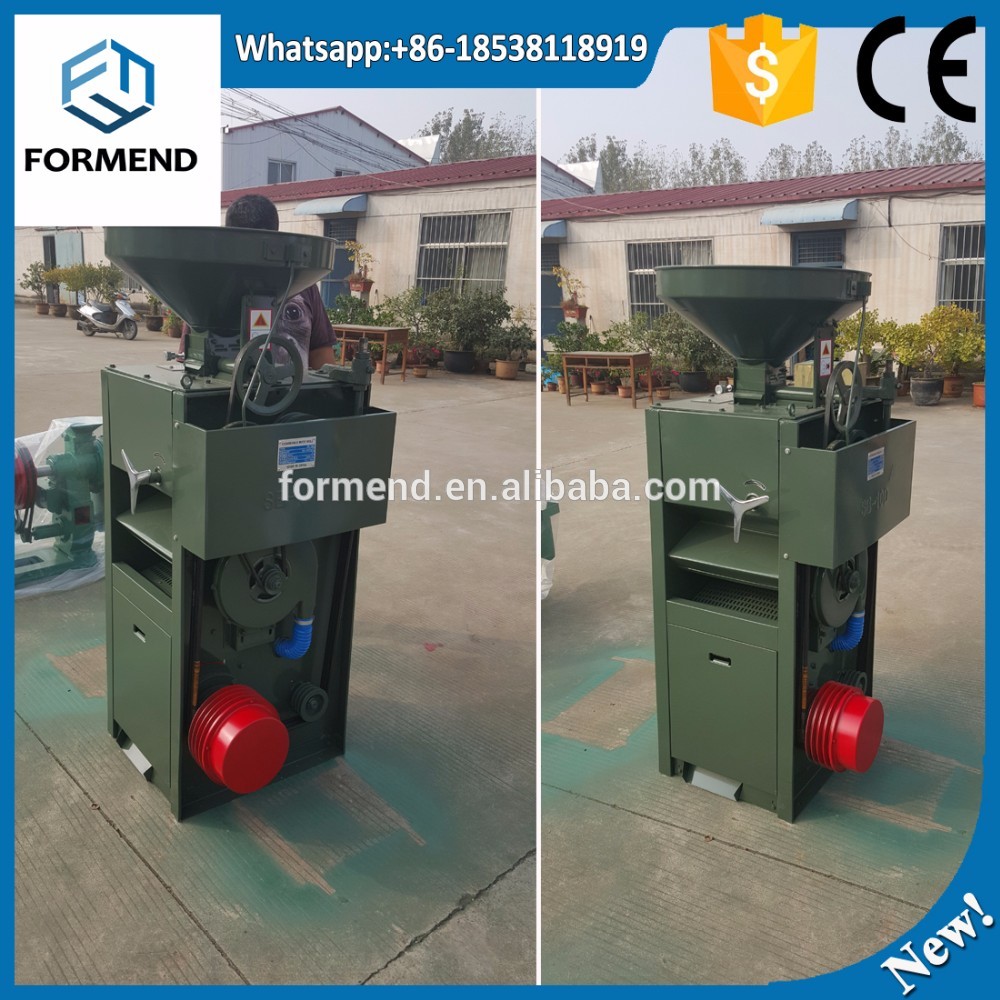

Rice mill machine
99.5% Response Rate
Animal feed grinder
99.5% Response Rate

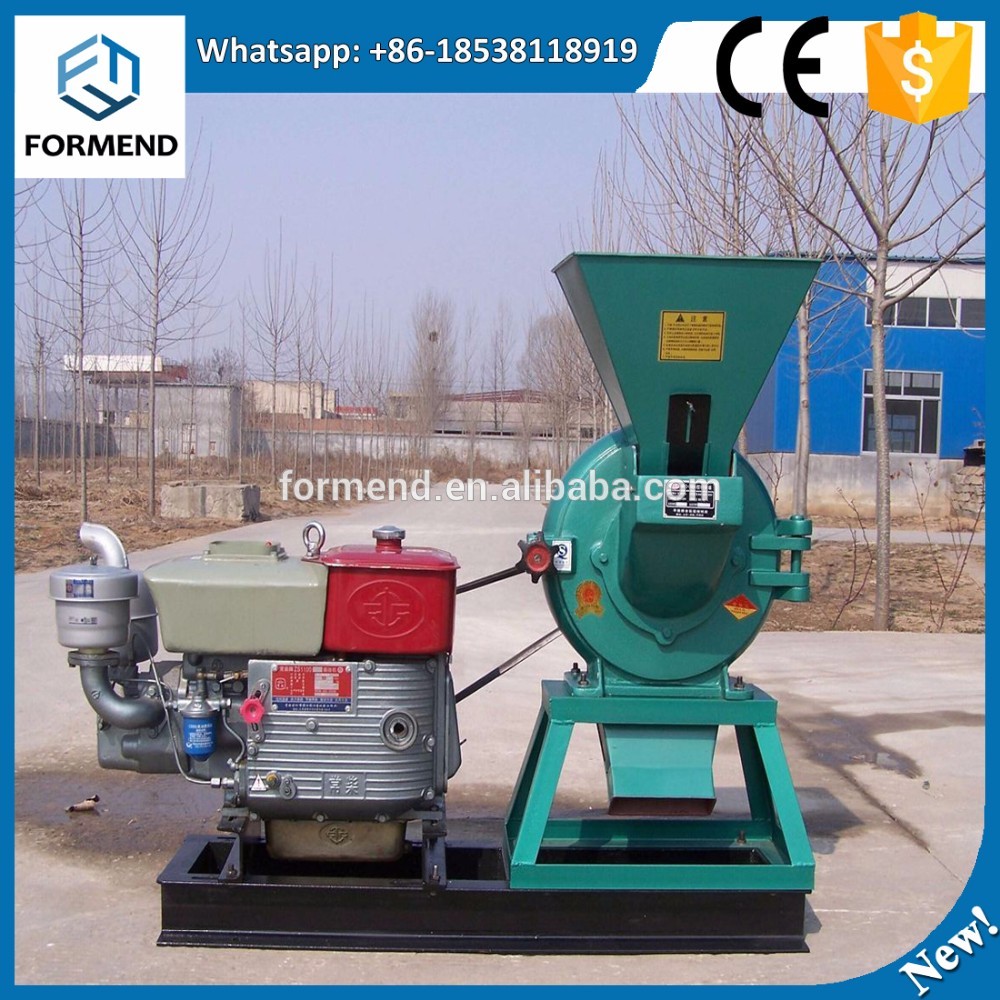

FFC Disk mill
