wheat starch extraction machine
Brief Introduction of the wheat starch extraction machine
This wheat starch extraction machine is the latest energy-saving equipment, is a professional gluten washing machine.New washing gluten machine high efficacy, wash clean, efficient, integrating and facial cleanser, greatly reduce the artificial heavy manual labor, gluten is more suitable for business use.
Instruction of the wheat starch extraction machine
1.First,put the water into the hopper,then put the suitable flour into the hopper ,mix them together.The water and flour ratio is 0.6-0.7/1,it means ,if you want to put 25 kg flour,you need put 15kg water.
2,The first mixing time is total 12 mintues,,must be clockwise rotation about 5-6 minutes, then reverse about 5minutes, then stop to make the dough keeping a moment with a wet cloth or plastic wrap if you have
3.The dough will keep a moment,generally for not less than 12 minutes.
4,After 12 minutes, put 15 kg water into the hopper again,then open the machine to work about 3 minutes,then stop,let the flour batter flow through the hole of machine.
5,The machine moved to points,connect the filter on the hopper when let the flour batter flow .
6,second washing time will be not more than 5 minutes.As per the 4 and 5,can repeat about two or three times ,then can get the gluten finally.Please clean the hopper after get the gluten out from the hopper.
Technical data of the wheat starch extraction machine
| Model | voltage | power | Dimension | Capacity |
| MS-G30 | 220V | 2.2KW | 800*500*700mm | 20kg/h |
| MS-G50 | 220V | 2.2KW | 1100*600*1200mm | 25kg/h |
| MS-G100 | 380V | 3.0KW | 980*1050*580mm | 50kg/h |
| MS-G120 | 380V | 4.0KW | 1080*1050*600mm | 75kg/h |
| MS-G150 | 380V | 4.0KW | 1180*1050*680mm | 100kg/h |

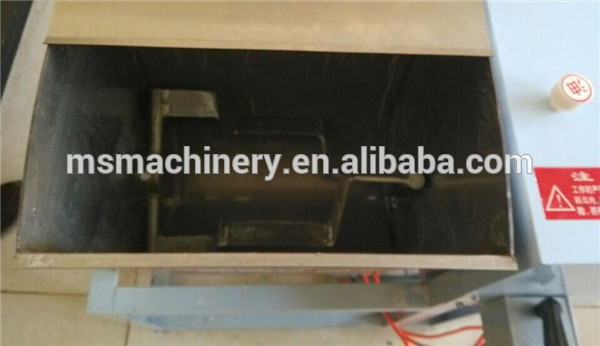

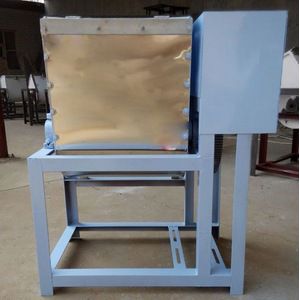

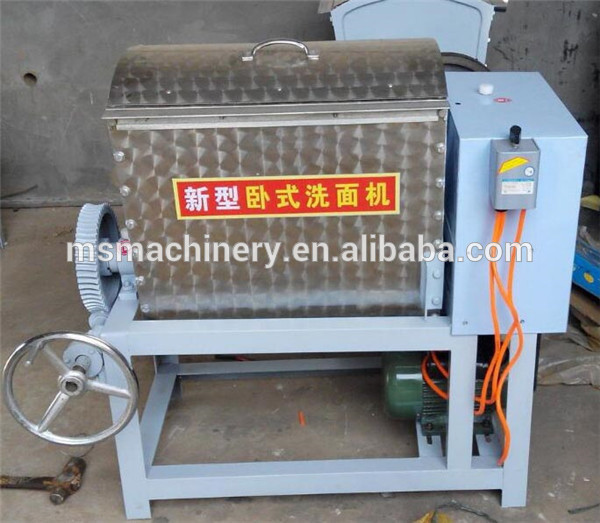

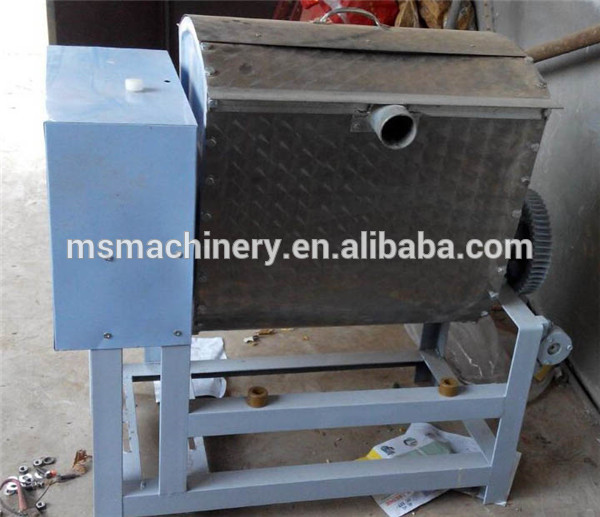

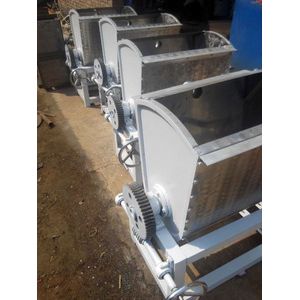

Photo shows of the wheat starch extraction machine
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases Or depend on your demands.
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity.
