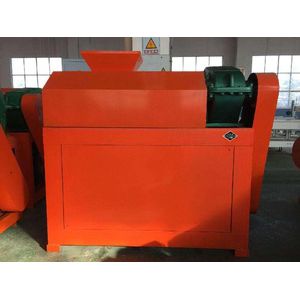

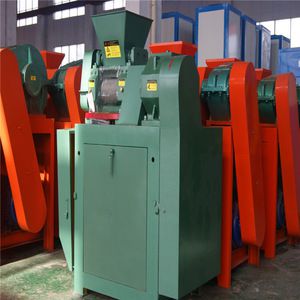

Portable double roller granulator machine for sale

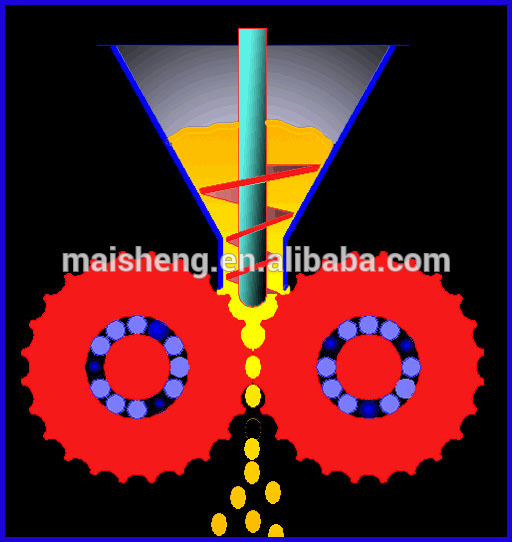

♦ Description of double roller granulator machine
Double Roller Fertilizer Granulator Machine is new generation of granulation equipment which developed by our company.It adopt no drying/normal temperature technology to granulating,once forming,with small investment,quick profit, good economic returns, etc.
♦ Application of double roller granulator machine
double roller granulator machine is widely used for granulation of various materials,such as compound fertilizer material, medicine, chemical industry, fodder etc.Can produce a variety of concentrations, various types compound fertilizer(including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer etc).Especially for rare earths,potash, ammonium bicarbonate series compound fertilizer.Also the promotion program of environmental projects.
♦ Fearure of double roller granulator machine
A. small investment,quick profit,good economic returns
B. saving energy,reducing consumption,no "three wastes" discharge
C. stable operation,reliable operation,easy maintenance,wide raw material adaptability

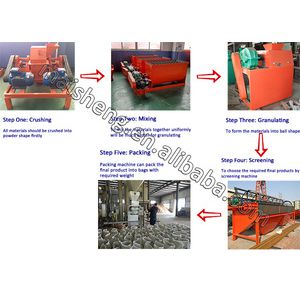

D. granulating,molding,screening into one machine,make finished product with good appearance,easy to operate

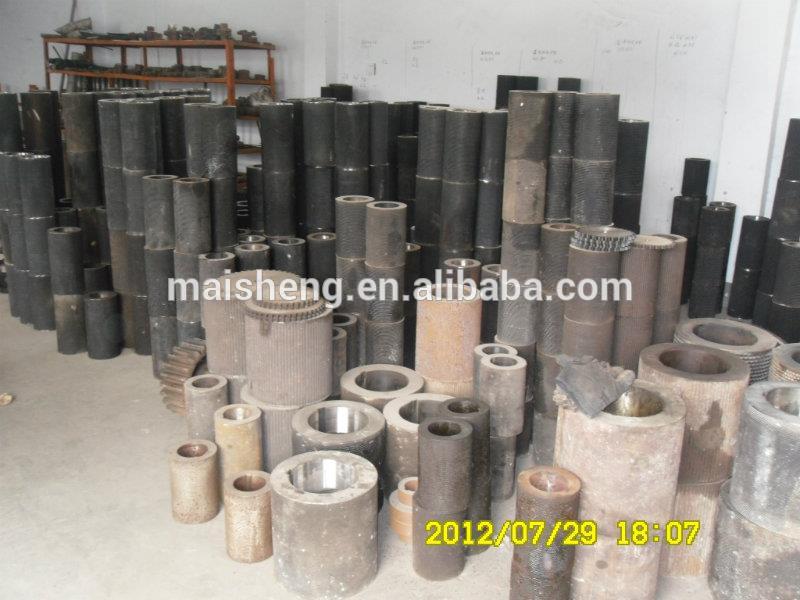

E. main components such as roller body adopts new type metal to refine with anticorrosive, abrasion resistance, shock resistance characteristics
F. bearing bracket select excellent anticorrosion casting parts for whole body, greatly improve service life of rolling bearing and main shaft

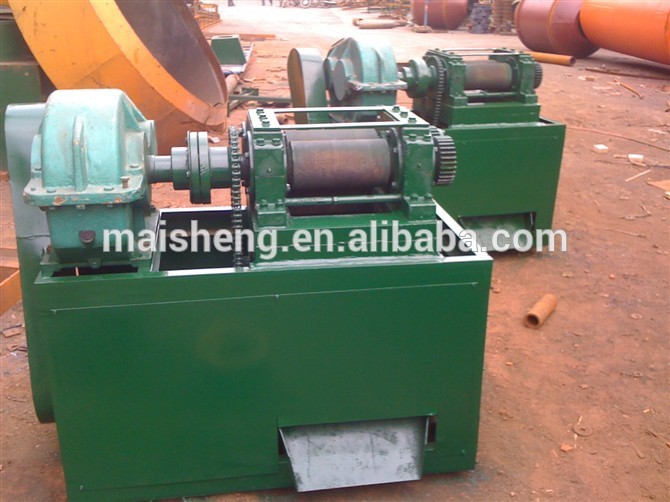

G. transmission part adopts twoinput transfer mode, not only improve input power ratio, but also ensure the lubrication and sealing performance of transmission gear
H. compact structure, good stability, good sealing, low noise, easy operation and maintenance
♦ Technical Parameters of double roller granulator machine
Model | MSJI 1.0 | MSJI 2.0 | MSJI 3.0 | MSJI 4.0 | MSJII 1.0 | MSJII 2.0 |
Production(t/h) | 1~1.5 | 1.5~2.5 | 2.5~3.5 | 3.5~4.5 | 1~2 | 1.5~2.5 |
Power | 15KW | 18.5KW | 30KW | 45KW | 15KW | 18.5KW |
Pressure roller spec | Φ150×220 | Φ150×300 | Φ186×300 | Φ300×300 | Φ150×220 | Φ150×300 |
Feed size | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |

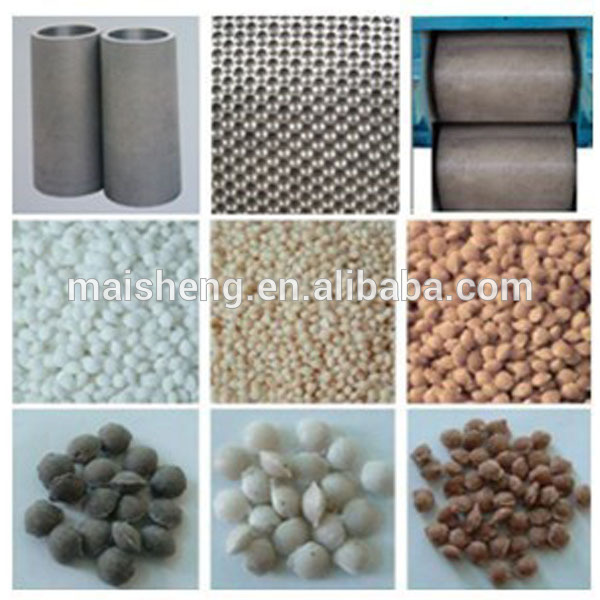

Finished product spec | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ30 | Φ2.5~Φ10 | Φ2.5~Φ20 |
Speed reducer model | ZQH350 | ZQH400 | ZQH400 | ZQH500 |
|
|
Material moisture content | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% |
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity.
Our warm service
1.)Providing technical support at any time.
2.)Dispatching engineers to help installation and train worker.
3.)Freely help testing the raw ore if you need.

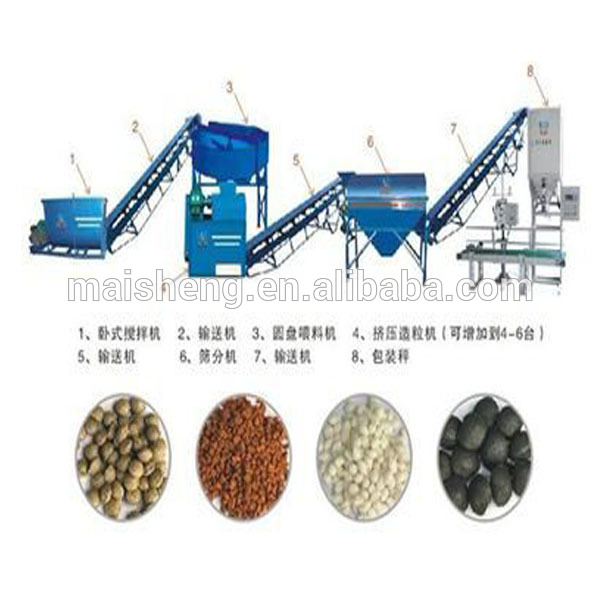

4.)Customized Flowchart design is available for your processing line.
5.)Warmly arrange everything if you visit our factory.
6.)Your concerns will receive prompt reply and careful attention.
7.)You will get more discount if you give us any suggestion regarding our product.
1. Those data help us choose the most suitable machine for you.
1). How about the capacity? Such as 1.5t/h,1t/h,0.5t/h etc.
2). What’s the max size of materials? Such as 2mm, 0.5mm, 0.037 mm, 0.074mm etc.
3). What’s material? Such as gold, powder, grain etc..
2. Can we send the mineral samples to run the ore experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will give you the reasonable flowchart, suitable solution and equipments selection. etc. based on the results.
3. Can we vist your company?
HNmaisheng warmly welcome and arrange hotel, traffic, translator in order to let you stay comfortable for you are You can check our factory and machinery and discuss your project in order to build a flawless project in the future.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of HNmaisheng HNmaisheng equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.
5. Is our company able to help us design complete mineral processing line?
Yes, can help you design a complete mineral processing line and related professional advices. we had already build many mining projects in China & Overseas.
