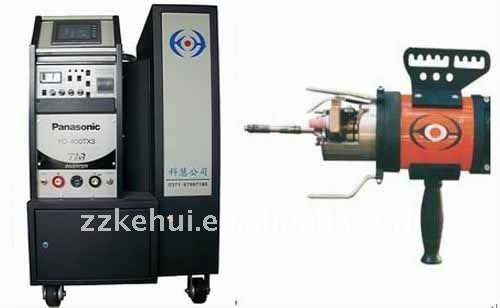

KHB12-80 tube to tube sheet automatic pulse argon arc welding machine equipment
Applicable
- Boiler, pressure vessel, heat exchanger, Petrochemical,shipbuilding, atomic energy, aerospace, refrigeration, pharmaceutical, food machinery, etc
- Pipe diameter 12mm - 80mm carbon steel, alloy steel, stainless steel, aluminum, aluminum alloy, copper and copper alloy, titanium alloy, etc
Product Function

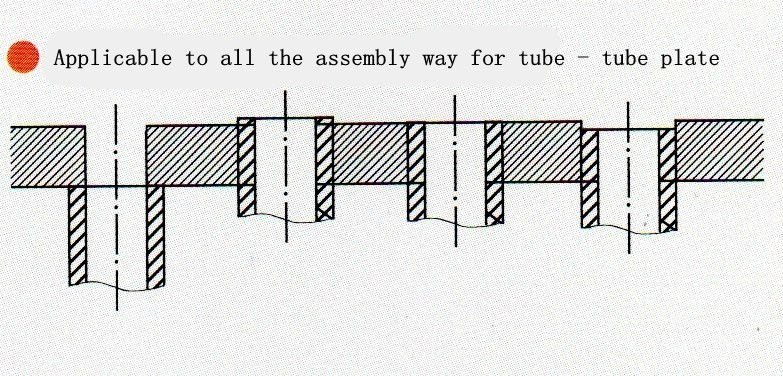

1.Suitable for various kinds of tube-tube plate assembly method
2.Welding head compact structure, small volume. Using elastic and positioning mandrel, three supporting frame, make the circumferential, axial and radial adjusting, quick accurate! Imported motor and transmission institutions make head movements more reliable!
3.Program-controlled system humanist,operation is simple, friendly man-machine interface, can be stored up to 99 welding standard.
4.Panasonic IGBT power inverter control dc pulsed current and welding arc strong stability of high efficiency,weld bead molding beauty!
5.Compulsive water-cooling control system, cooling fully,convenient.
6.load-car integrated design, mobile free, easy to use

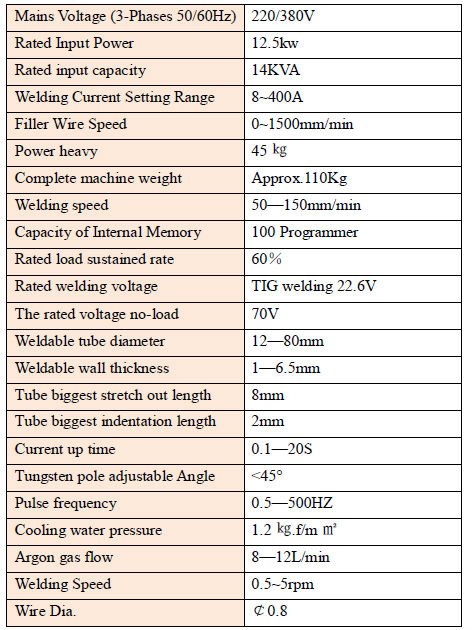

Technical parameters

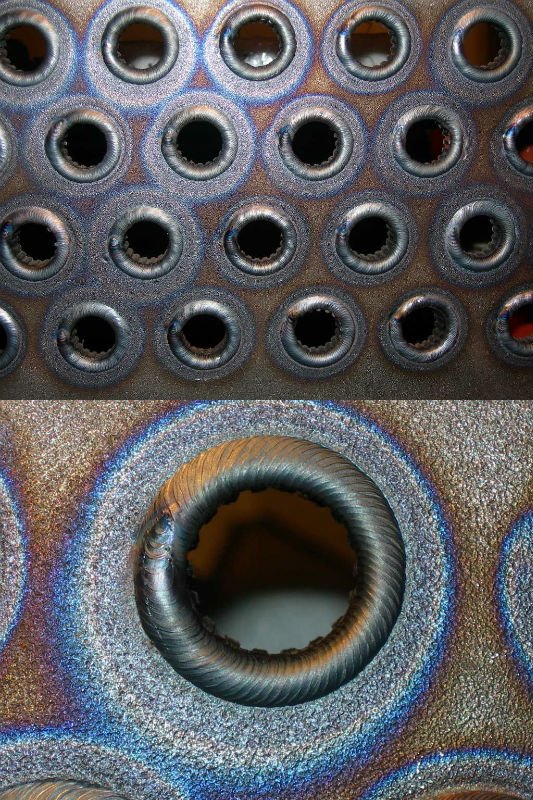

welding effect
Quality certificate
Let our welding equipment to ensure your excellent welding quality
