Automatic tube to tubesheet of Pressure Vessel & Boilers ARC welding machine

Product application

Applicable industries

Petrochemical, boiler, shipbuilding, atomic energy, aerospace, refrigeration, pharmaceutical, food machinery, etc

Applicable products

Boiler, pressure vessel, heat exchanger, etc

Applicable scope

Pipe diameter 12mm-89mm carbon steel, alloy steel, stainless steel, aluminum, aluminum alloy, copper and copper alloy, titanium alloy, etc

Product function

1  Suitable for various kinds of tube-tube plate assembly method.

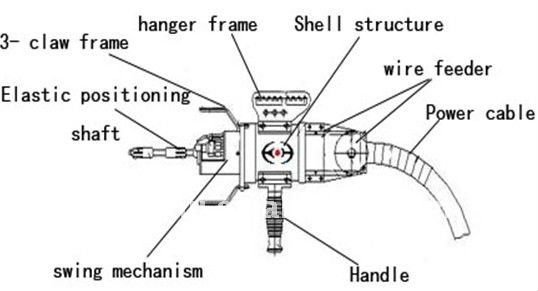

2  Weld head compact structure, small volume. Using elastic and positioning mandrel, three supporting frame, can make the circumferential, axial and radial adjusting, quick and accurate! Imported motor and transmission institutions make welding head movements more reliable!

3  Easy to operate and input, without special professional knowledge. Machine can be stored 100-group welding standards, each group welding standard can be divided into 1 ~ 16 section.

4  Adopt IGBT (Insulated Gate Bipolar Transistor) power inverter control DC pulse current, high welding efficiency, strong arc stability, weld bead molding beauty!

5  Forced water cooling system, free from on-site water pressure and other conditions restrictions, full cooling, reliable and convenient!

6  Design in cart, easy to move and operate

Main Technical Specifications

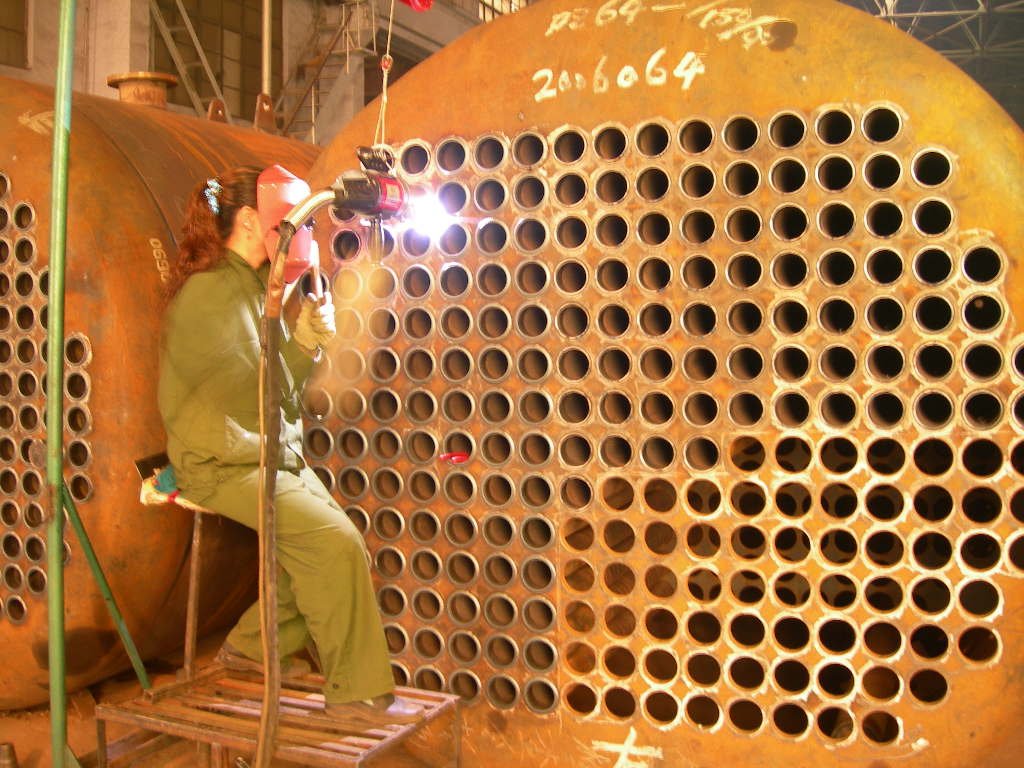

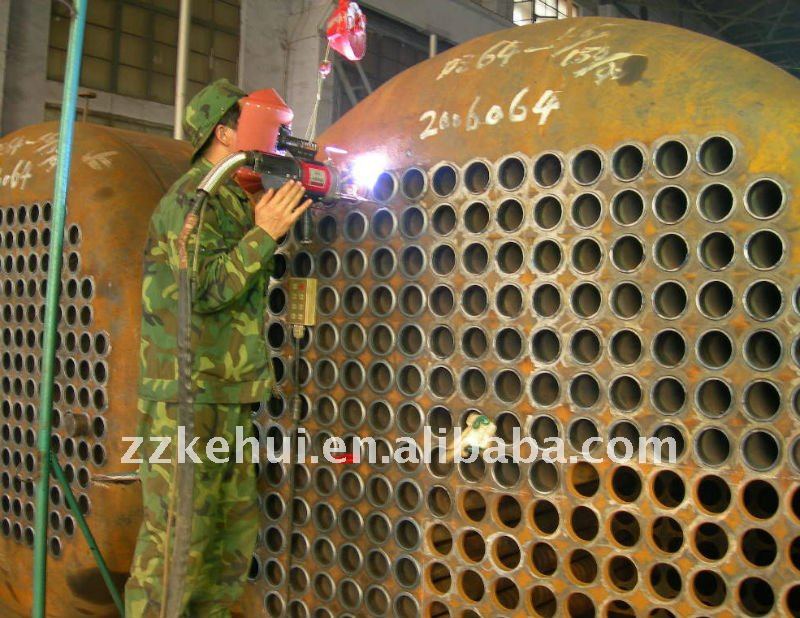

Welding processing

Patents & Software copyrights

Main Market: North America,South America,Southeast Asia,Africa,Oceania,Mid,East,Eastern Asia,Central

Shipment time:15 working days  shipment

Service life:At  Least 13 years

Contact us will more information to you
