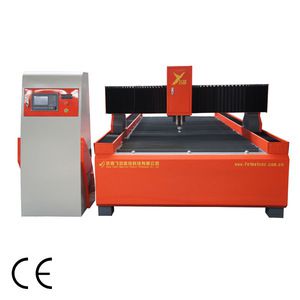

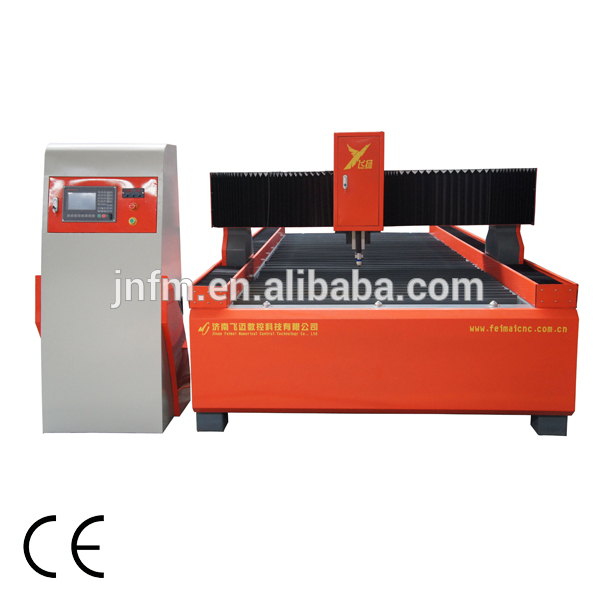

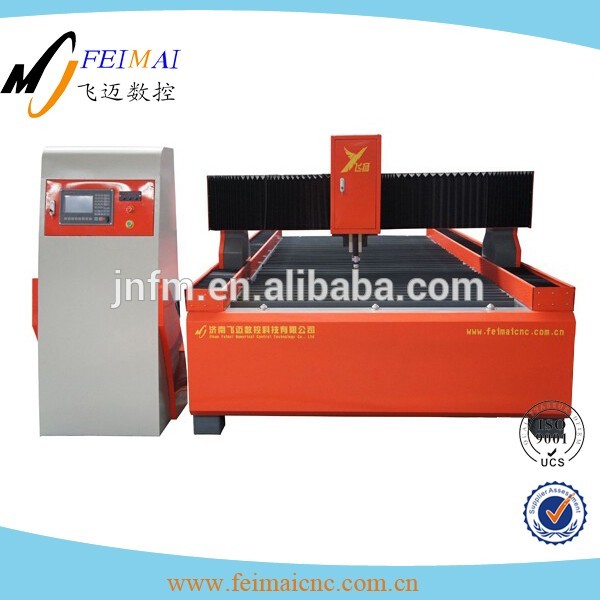

cnc plasma cutting controller/led screen cutting machine
Product feature
1. Beams adopt welding structure with high precision and small inertia. The machine body
is with high precision processing to prevent deformation. The support for workpiece is
cutting by laser machine.
2. Transmission structure is high precision rack and special reducer, and adopt Taiwan
linear rail to ensure high precision and high speed.
3. The drive system adopts USA chip control and high precision motor, providing AC power
with big torque to ensure running smoothly under the high speed.
4. The control system is 7 "screen, with English and Chinese language. The machine adopt

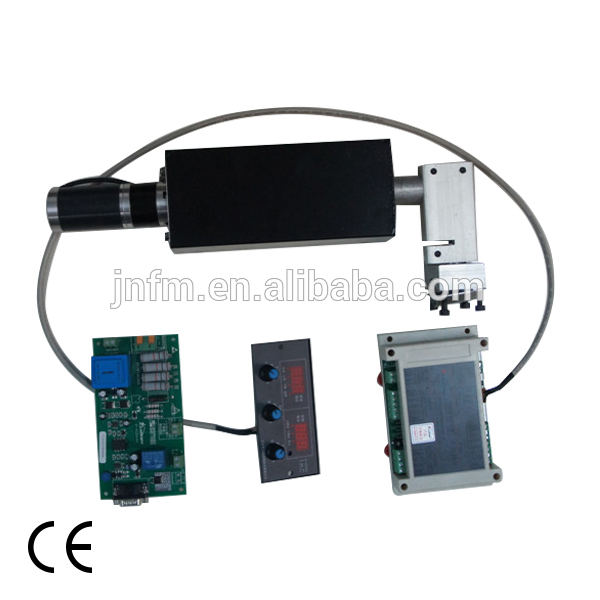

high precision arc pressure automatic THC.
5. Optional function: Plasma/ Plasma and flame
6. Optional configuration: Stepper motor, servo motor, linear rail, SBR round rail
7. Machine size: 1300*2500mm, 1500*3000mm, 1500*4000mm
Product parameter
Model | FY-TS1530AFHD | |
Cutting method | Plasma | Flame(optional) |
Cutting size | 1500*3000mm | |
Machine size | 2100*4100*1650mm | |
Linear rail | SBR Linear rail | |
Lifting travel | ≤100mm | |
Max travel speed and cutting speed | 18000mm/min/0-15000mm/min | |
Running accuracy | Plasma≤0.005mm | Flame≤0.1mm |

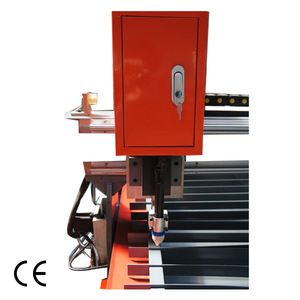

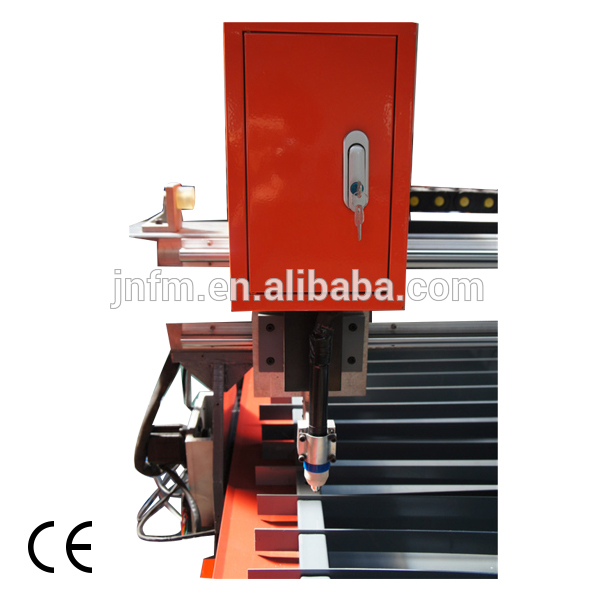

Height control | Arc pressure automatic THC | Lifting body |
Cutting thickness | Less than 20mm is best | Flame less than 30mm is best |
Cutting gas | air | Oxygen + ethyne(Propane) |
Gas pressure | 0.4-0.5Mpa for normal plasma power | |

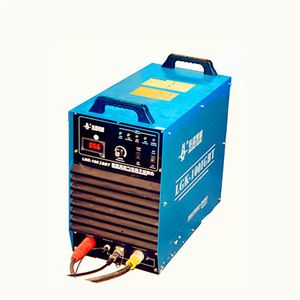

Power | 220V/380V 50HZ(we suggest 63A,120A,160A) | |

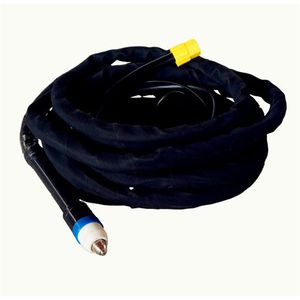

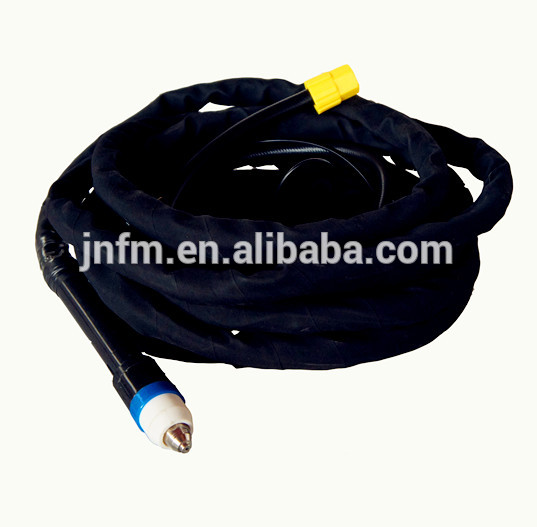

Number of cutting torch/nozzle | One set of plasma cutting torch / flame cutting torch, 10pcs nozzle | |
Nesting software | Starcam (Optional: Fastcam) |

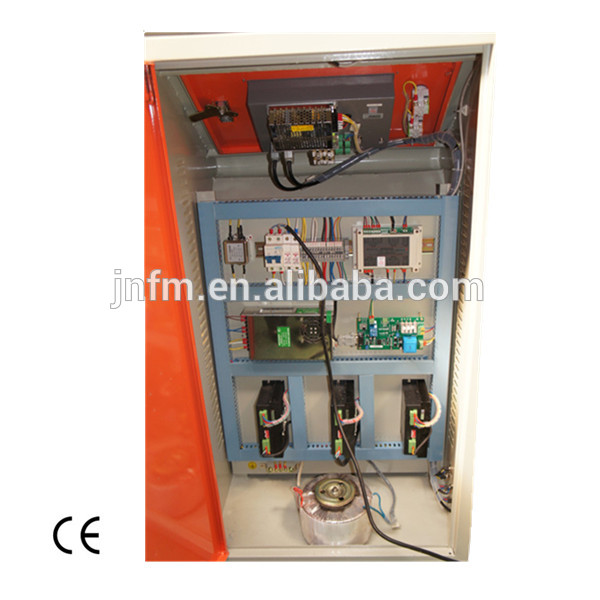

Details

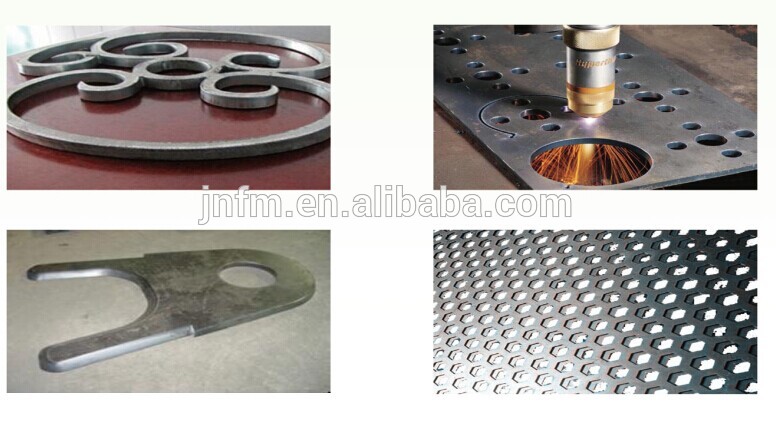

Cutting Effective
Exhibition
CE Cretification:
