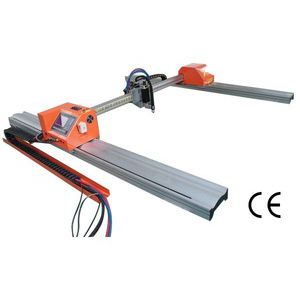

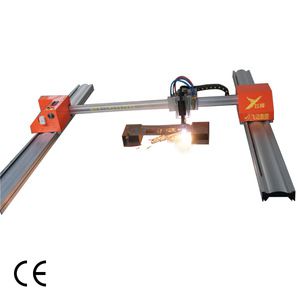

Safe aluminum gantry CNC flame cutter/
Easy operation 7" screen portable cnc plasma cutting machine
Product feature
1. Adopt newest aviation aluminum meticulously, full of The Times flavor, beauty and durable use. Newest
ransmission structure with precision rack and special reducer to ensure the accuracy of the transmission,
Y axis adopts double driver to ensure provide large torque for machine. The control cable is made by
importer retardant wear-resisting material.
2. The drive system adopts USA chip control and high precision motor, providing AC power with big
torque to ensure running smoothly under the high speed.
3. Control system is 7 "screen, with English and Chinese language. The machine adopt high precision arc
pressure automatic THC.
4. Optional function: Plasma/Plasma and flame
5. Optional configuration: Stepper motor/servo motor; linear rail/SBR round rail
6. Machine size: A,2230: 2200*3000 B,2240: 2200*4000mm; C,2260: 2200*6000mm;
D,22120: 2200*12000mm
Product parameter
Model | FX-LML2230HD | |
Cutting method | Plasma | Flame |
Cutting size | 2200*3000mm | |
Machine size | 3300*3500 | |
Lifting travel | ≤100mm | |
Max travel speed and cutting speed | 18000mm/min 0-15000 mm/min | |
Running accuracy | ≤0.005mm | ≤0.1mm |
Height control | Are pressure THC | Lifting body |
Cutting thickness | According to the power supply, less than 20mm is the best |
6-200mm |
Cutting gas | Air | Oxygen + ethyne(Propane) |
Gas pressure | 0.4-0.8Mpa for normal plasma power | |
Power | 220V/380V 50HZ(we suggest 63A,120A,160A,200A, etc) | |
No. of cutting torch/nozzle | One set of plasma and flame cutting torch, 10pcs nozzles | |
Software | FASTCAM |
Details

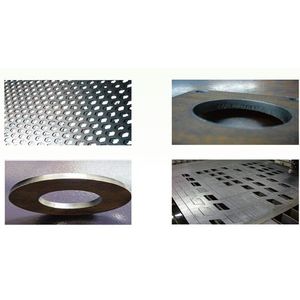

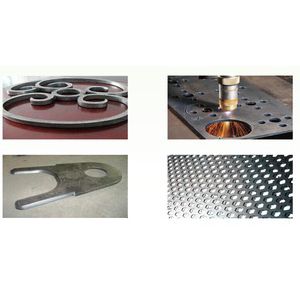

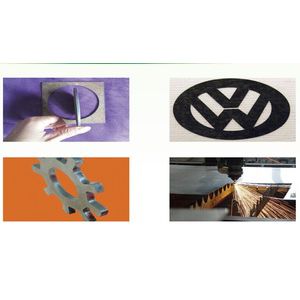

Cutting Effective
Exhibition
CE Cretification:
