Solid-liquid separation vacuum ceramic disc rotary drum Filter

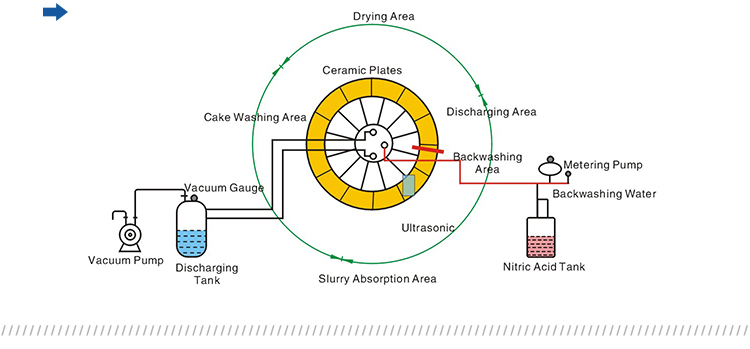

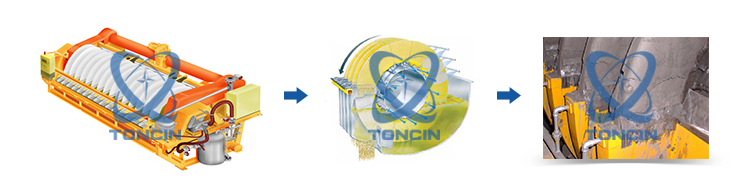

- Slime absorbing zone: Filter plate immersed in the slime while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate.
- Leaching zone:Filter cake coming out from slime hopper receives spray washing.
- Drying zone:Continuous dehydration for filter cake is conducted with the action of high vacuum force.
- Discharging Zone: Scraper will automaticly discharge materials once entering the vacuum-free condition.

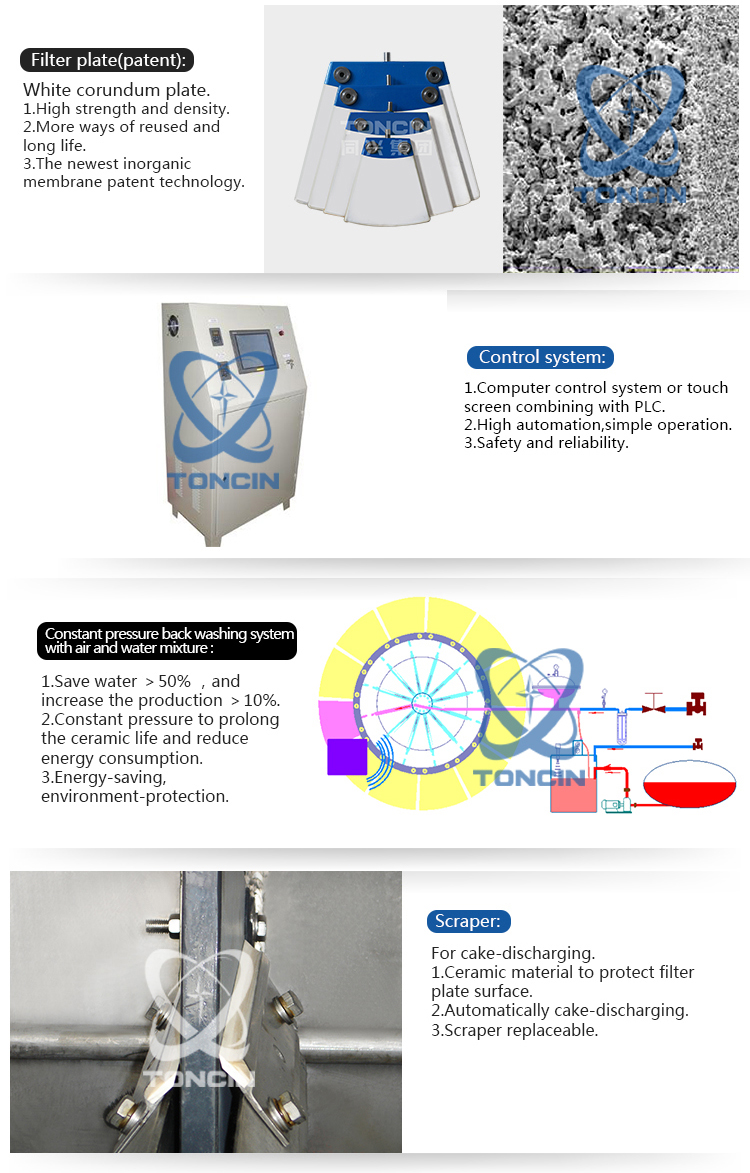

- Back flushing:Service water or filtrate enters the ceramic plate through distributing valve and cleaning the blocked minihole entoectad. Cleaning with ultrasonic and low density acid after ceramic plate is used for one period to maintain the efficient service life of ceramic plate.

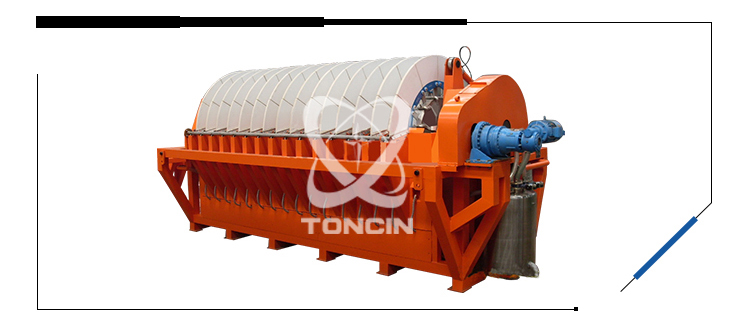

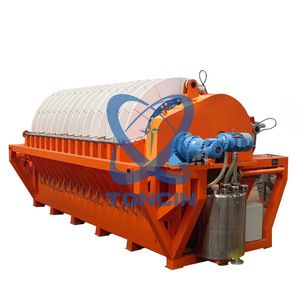

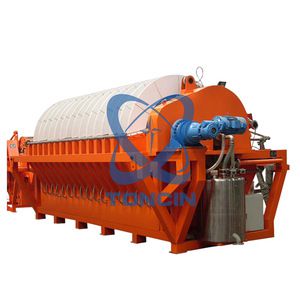

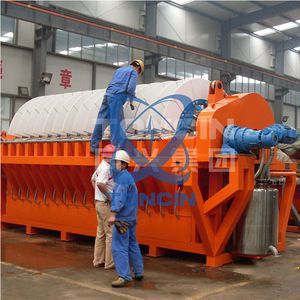

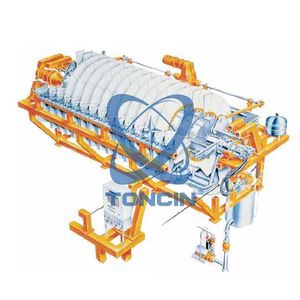

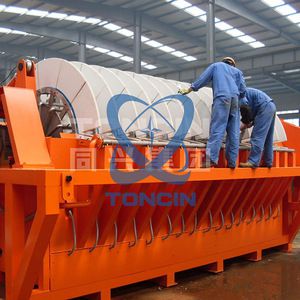

TC series ceramic vacuum filter is a new type high-effect, energy saving filtration equipment, using vacuum and ceramic plate with micro-holes for solid-liquid separation. The plate material is corundum, resisting to almost all temperatures, and has a long operation life. The micro-holes in plates only allows liquid to flow through but not air and solid. Filtrate is drawn through the ceramic plates as they are immersed into the slurry cabin, and cakes forms on the surface of the Plates.

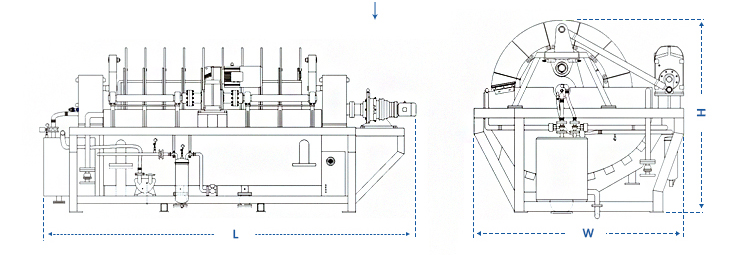

Model area(m2) | Filter disc(circle) | Filter plate(pc) | Tank volume(m³) | Installed power(kw) | Operate power(kw) | Main engine(L*W*H)(M) |
TC-1 | 1 | 12 | 0.21 | 4.5 | 4.3 | 1.2*1.5*1.4 |
TC-4 | 2 | 24 | 1 | 6 | 5.8 | 1.6*1.9*2.1 |
TC-6 | 2 | 36 | 1.2 | 8 | 7.5 | 3.0*2.2*2.1 |
TC-9 | 3 | 36 | 1.7 | 9 | 8.5 | 3.0*2.8*2.6 |
TC-12 | 4 | 48 | 2.2 | 13 | 12.5 | 3.6*2.8*2.6 |
TC-15 | 5 | 60 | 3.7 | 13 | 12.5 | 3.8*2.8*2.6 |
TC-18 | 6 | 72 | 3.7 | 15 | 14.5 | 4.1*2.9*2.6 |
TC-21 | 7 | 84 | 4.8 | 17 | 16.5 | 4.6*2.9*2.6 |
TC-24 | 8 | 96 | 5.5 | 17.5 | 16.5 | 4.6*2.9*2.6 |
TC-27 | 9 | 108 | 6 | 17.5 | 16.5 | 5.2*2.9*2.6 |
TC-30 | 10 | 120 | 6.7 | 21 | 20.5 | 5.5*2.9*2.6 |
TC-36 | 12 | 144 | 8 | 33 | 32 | 6.0*2.9*2.6 |
TC-45 | 15 | 180 | 10 | 33 | 32 | 6.6*2.9*2.6 |
TC-60 | 15 | 180 | 12.5 | 47 | 46.5 | 6.7*3.3*3.0 |
TC-80 | 20 | 240 | 16.4 | 53 | 52.5 | 8.2*3.3*3.0 |
TC-102 | 17 | 204 | 18.5 | 71 | 70.5 | 7.9*3.6*3.3 |
TC-120 | 20 | 240 | 20 | 80 | 78.5 | 8.7*3.6*3.3 |
TC-150 | 25 | 360 | 24 | 92 | 91 | 9.2*3.6*3.3 |
(1) Filter cake has low water content because of the high vacuum degree (0.090.098MPa).
(2) The solid content of filtrate is below 50ppm. This means filtrate can be recycled.
(3) It can save 90% energy or even higher on the contrary of traditional filter.
(4) Filter cake cleaning process is added to clean some specific materials.
(5) It is highly automatic and the labor input is low.
(6) Compact structure covers less floor area, and is easy to install and maintenance.
(7) Advanced drainage system fits for different working conditions.
(1) Microvac (vacuum degree-0.09~-0.098MPa),low moisture of cake.
(2) Solid content of filtrate<50ppm,which can be recycle use in the system.
(3) Energy saving can reach 90%,low energy consume,low operation cost.
(4) Filter cake cleaning system is added,which is fit for the material needs to be washed.
(5) PLC and computer integrate with automatic valve control,high degree of automation reduces labor intensity.
(6) Compact structure requires a smaller floor space and offers convenient maintenance.
(7) Advanced drainage system ensures application in any operating conditions.

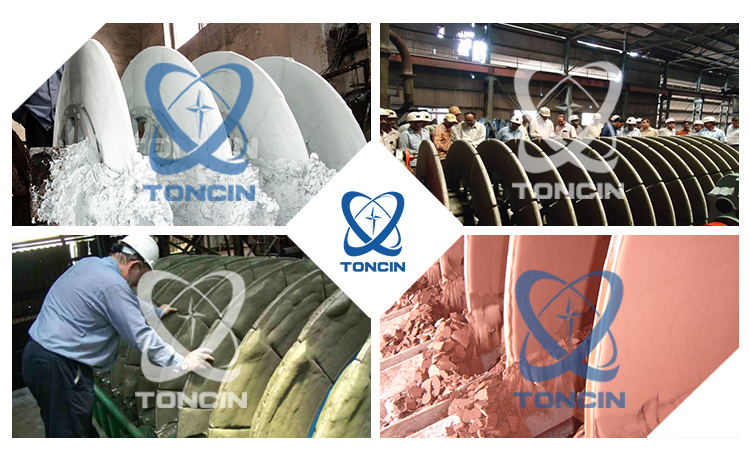

Our product have found their wide application in the separation of selected mine and tails mine of nonferrous metal,ferrous metal,less-common metal and oxide of electrolyze residue,slag in chemical,environment protection and so on. The material fineness from -200 to -450 meshes and various superfine materials.
Package:We use standard export package or as you required.
Shipping:We will send our products within 2 months.
Transport Way:By sea or by air.
