Fish farm rotary vacuum drum filter for koi pond / tilapia fish farming

stainless steel mesh to remove & separate suspended solids.

Technical Feature

  • Guangdong, China (Mainland)
  • Globalozone
  • GO-DF-60
  • 60T/hr
  • high quality plastic material
  • Drum filter for aquaculture
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~8

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
Globalozone
Model Number
GO-DF-60
Water flow rate
60T/hr
Housing material
high quality plastic material
Product name
Drum filter for aquaculture
Feature
Can be used for salt water or fresh water
Usage
For RAS system
Power
1.12kw
Voltage
380v
MOQ
1 set
Warranty
1 Year
Business type
Manufacturer

DETAIL DESCRIPTION

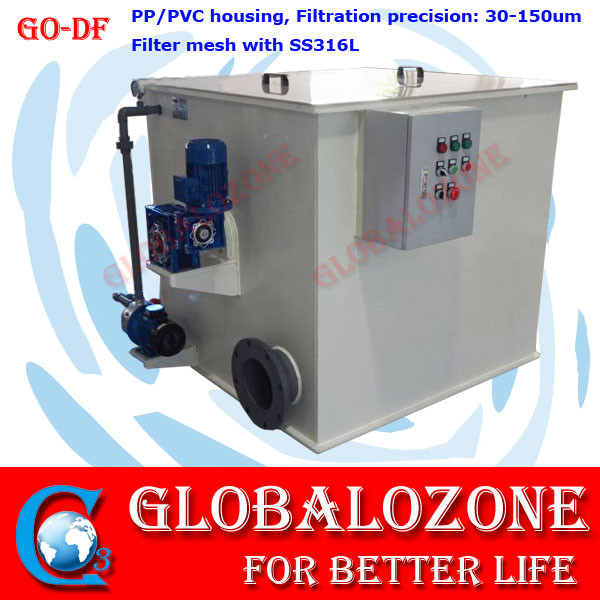

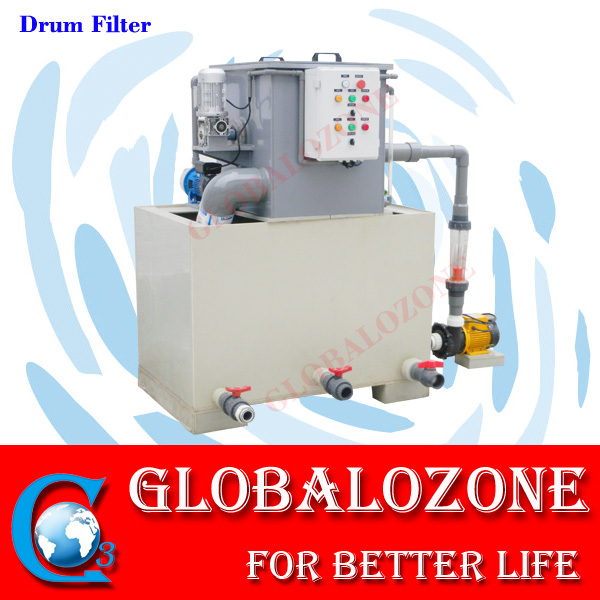

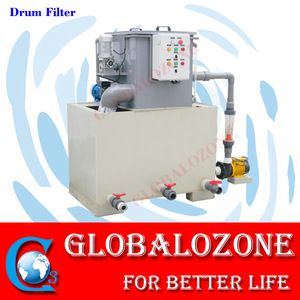

Fish farm rotary vacuum drum filter for koi pond / tilapia fish farming



Description

composed by four parts: house, roller, back washing system and electric control

system. Capacity: 20~200M3/H (or higher), use non-toxic seawater corrosion

resistant high quality engineering plastic materials, and use 200 mesh (80 microns)

stainless steel mesh to remove & separate suspended solids.



Product Details





Specification

Model

Water flow (T/Hr)

Power

Voltage

Water Inlet/Outlet

Size

80μm

Kw

HP

V

mm

mm

GO-DF-20

20

0.73

0.97

380/3Ph

Φ110/4’’

920×1050×800

GO-DF-40

40

0.92

1.23

Φ140/5’’

1160×1070×800

GO-DF-60

60

1.12

1.50

Φ160/6’’

1400×1090×800

GO-DF-80

80

1.30

1.74

Φ160/6’’

1300×1530×1250

GO-DF-100

100

1.65

2.21

Φ200/8’’

1520×1550×1250

GO-DF-150

150

1.85

2.48

Φ200/8’

2000×1570×1250

GO-DF-200

200

1.85

2.48

Φ250/10’’

2250×1850×1550

Remarks: It can be special made according to customer requirements.

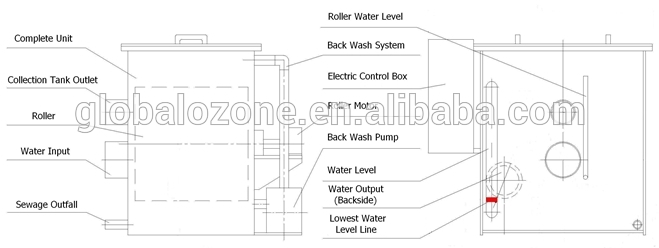

Structure of GO-DF drum filter



Features



1). Use with high quality plastic material and SS316L mesh, corrosion resistance and durable.

2). Use SS316L mesh with small size aperture, low resistance and high discharge capacity.

3). With auto back washing function to ensure system is working properly.

4). Low power consumption, high efficiency, easy operation and maintenance.



Product appliance

1) Suitable used for pre-solid-liquid separation processing of aquaculture raw water treatment.

2) Suitable used for pre-solid-liquid separation processing of aquaculture industrial water treatment.

3) Widely used in various lines which required pre-solid-liquid separation. Such as urban sewage water, paper, textile, printing and dyeing, chemical and sewage etc.

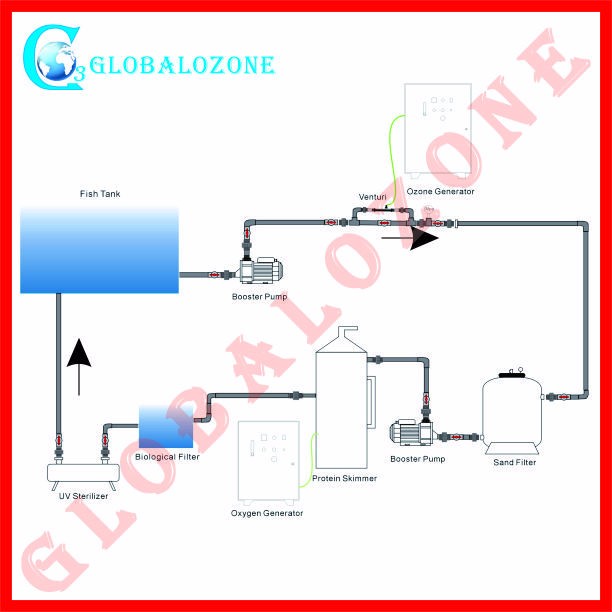

Installation for RAS system





Other fish farm water treatment equipment

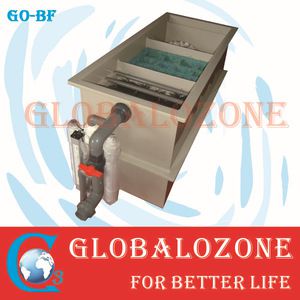

Biological filter

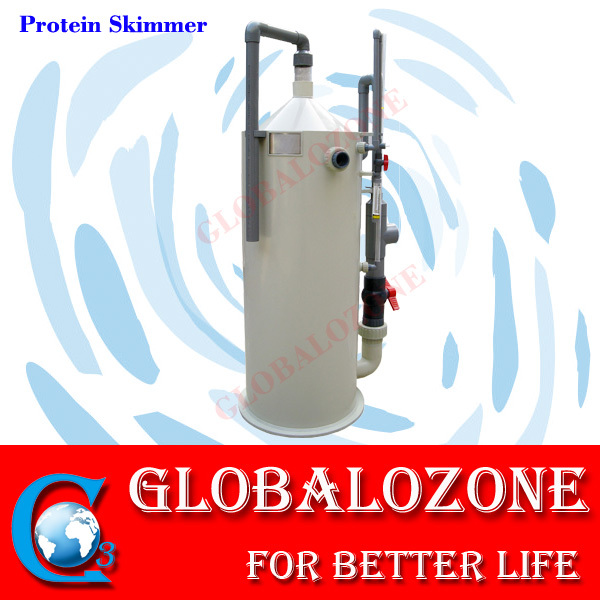

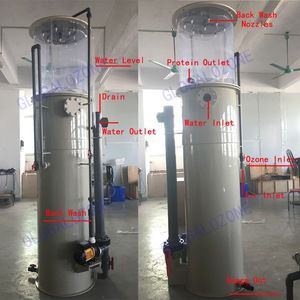

Protein skimmer

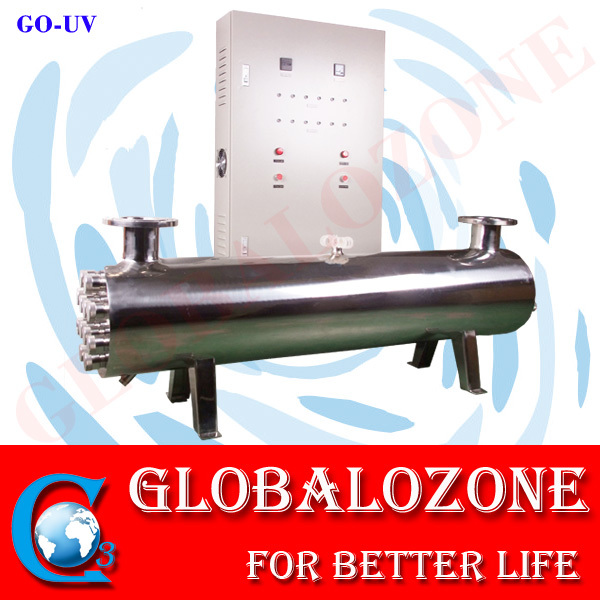

UV sterilizer

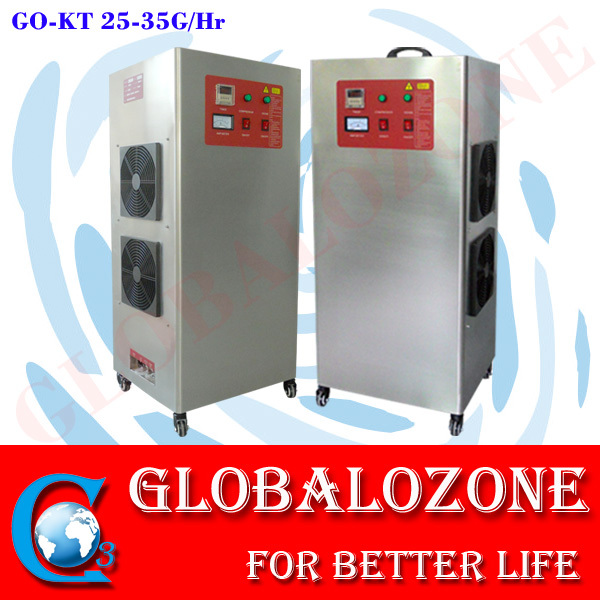

Ozone generator for water disinfection



Oxygen generator for increase oxygen content in water

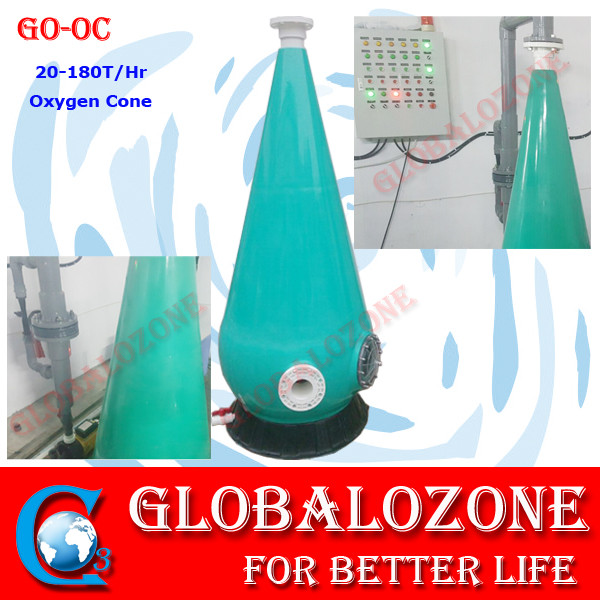

Oxygen cone for mixing oxygen into water

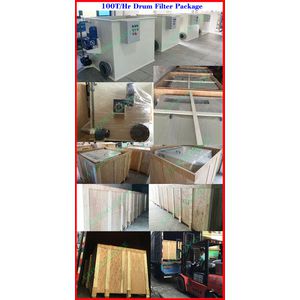

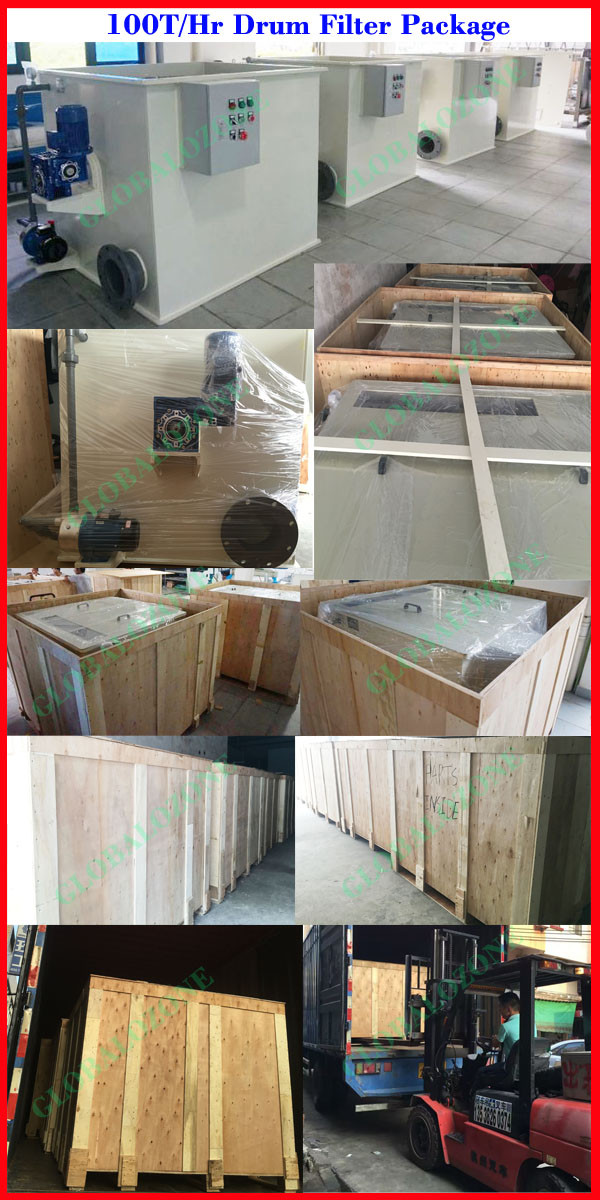

Packaging

A) Inner layer: plastic bag

B) Middle layer: EPE(Expand aple poly ephylene)

C) Outer Layer: carton/composite wooden cases



Prompt delivery

1. 3-7 days for portable ozone generator order;

2. 10-30 days for industrial/middle size ozone generator order;

3. Shipping could be courier, airline or sea.



Payment terms
