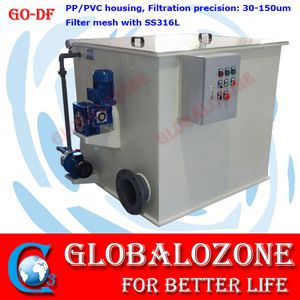

Koi pond drum filter for recirculating aquaculture system
Description
composed by four parts: house, roller, back washing system and electric control
system. Capacity: 20~200M3/H (or higher), use non-toxic seawater corrosion
resistant high quality engineering plastic materials, and use 200 mesh (80 microns)
stainless steel mesh to remove & separate suspended solids.
Product Details
Specification
Model | Water flow (T/Hr) | Power | Voltage | Water Inlet/Outlet | Size | |
80μm | Kw | HP | V | mm | mm | |
GO-DF-20 | 20 | 0.73 | 0.97 | 380/3Ph | Φ110/4’’ | 920×1050×800 |
GO-DF-40 | 40 | 0.92 | 1.23 | Φ140/5’’ | 1160×1070×800 | |
GO-DF-60 | 60 | 1.12 | 1.50 | Φ160/6’’ | 1400×1090×800 | |
GO-DF-80 | 80 | 1.30 | 1.74 | Φ160/6’’ | 1300×1530×1250 | |
GO-DF-100 | 100 | 1.65 | 2.21 | Φ200/8’’ | 1520×1550×1250 | |
GO-DF-150 | 150 | 1.85 | 2.48 | Φ200/8’ | 2000×1570×1250 | |
GO-DF-200 | 200 | 1.85 | 2.48 | Φ250/10’’ | 2250×1850×1550 |
Remarks: It can be special made according to customer requirements.
Structure of GO-DF drum filter
Features
1). Use with high quality plastic material and SS316L mesh, corrosion resistance and durable.
2). Use SS316L mesh with small size aperture, low resistance and high discharge capacity.
3). With auto back washing function to ensure system is working properly.
4). Low power consumption, high efficiency, easy operation and maintenance.
Product appliance
1) Suitable used for pre-solid-liquid separation processing of aquaculture raw water treatment.
2) Suitable used for pre-solid-liquid separation processing of aquaculture industrial water treatment.
3) Widely used in various lines which required pre-solid-liquid separation. Such as urban sewage water, paper, textile, printing and dyeing, chemical and sewage etc.
Installation for RAS system
Other fish farm water treatment equipment

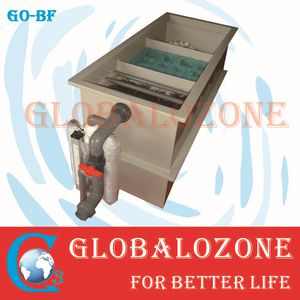

Biological filter

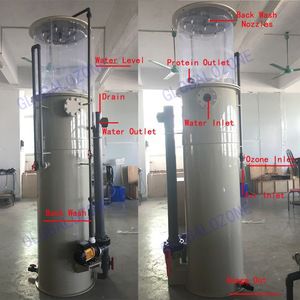

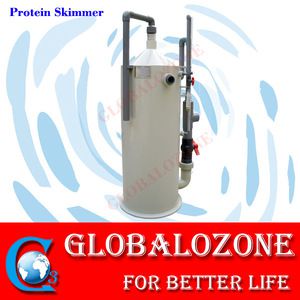

Protein skimmer
UV sterilizer
Ozone generator for water disinfection
Oxygen generator for increase oxygen content in water
Oxygen cone for mixing oxygen into water

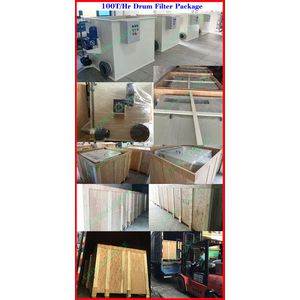

Packaging
A) Inner layer: plastic bag
B) Middle layer: EPE(Expand aple poly ephylene)
C) Outer Layer: carton/composite wooden cases
Prompt delivery
1. 3-7 days for portable ozone generator order;
2. 10-30 days for industrial/middle size ozone generator order;
3. Shipping could be courier, airline or sea.
Payment terms
Certificate of our factory
About US
WHAT WE DO?
We Provide high-quality ozone generator for:
1. Ozone generator wholesalers
2. Retailers and oneline shops (Ebay, Amazon...)
3. OEM-The custom-made ozone generator are available. Upon customer's idea, drawings, photos etc.
4. ODM-The modification of the ozone generator after customer's selection is
accepted.
Excellent after-sales service:
* 1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
* 2M silicone tube and 2PCS air stone gift for any ozone machine order.
* Report on the making process.
* Marketing feedbacks tracing.
All of our products are favored and trusted by customers with contemporary design (simplicity, innovation, practicability, multifunction and fashion), convenient operate, durable and its competitive price.
Tips:
We can provide ozone generator, oxygen generator, protein skimmer, drum filter, bio filter, UV sterilizer, mixing pump, oxygen cone, venturi, etc. for aquaculture water treatment system. Pls kindly note us what equipment you want for your fish farm. Thanks a lot for your assistant.
