GSD SERIES drum filter

The sludge dewatering of the various industrial waste watertreatment plants.

Technical Feature

  • Taiwan
  • GSD
  • GD1GD2GANGDRGAGBGEGAHGBHGB3GE3
  • water treatment
  • Single/Double-belt type
  • Rotary drum thickening double-belt type
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$18~25

PRIMARY PARAMETERS

DETAIL DESCRIPTION

Application:



1. The sludge dewatering of the various industrial waste watertreatment plants.
2. The sludge dewatering of the butchery, livestock, etc.
3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.
4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.



Features:



High-efficiency of products dehydration, a large quantity of sludge treatment, automatic operation, low power consumption, low
noise, simple structure, semi-enclosed structure, easy maintenance; this machine is simple, easy to understand, easy to learn, the common operators could run the whole process after a short period of time trainning.

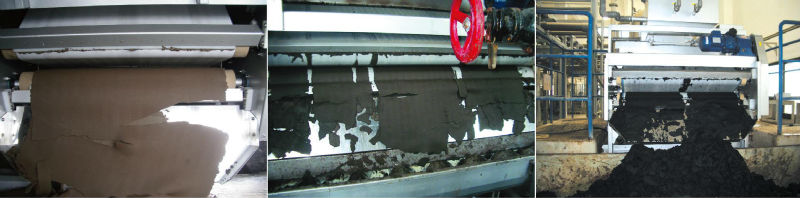

Treating beneficial sketch:

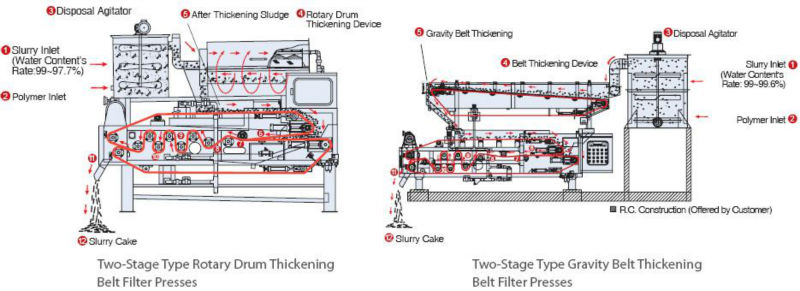

Treatment flowchart:

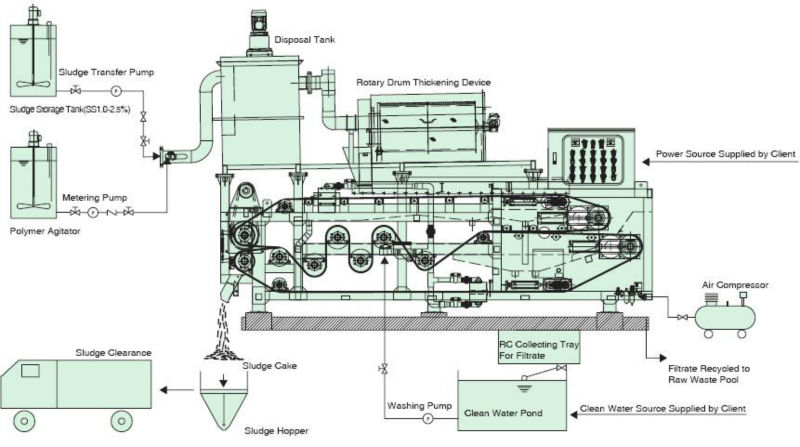

Allocation schema for peripheral equipment:









The reference data sheet of major waste slurry treatment:

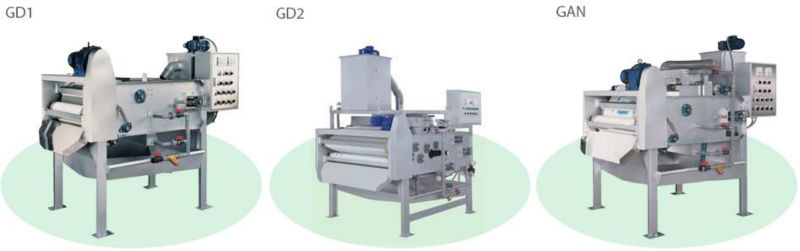

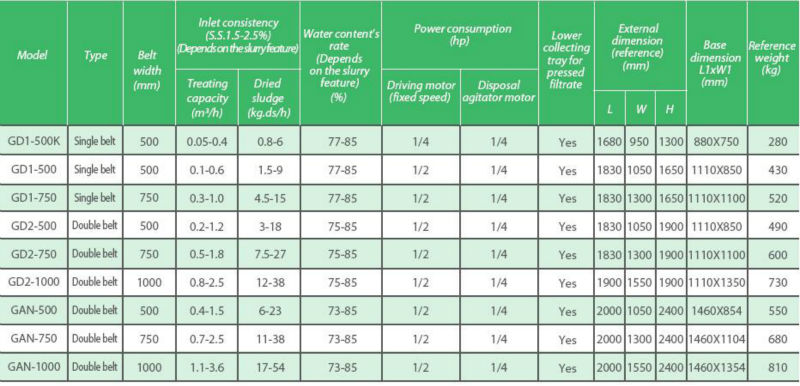

Single/double-belt type GD1/GD2/GAN series (Suitable for high consistency)

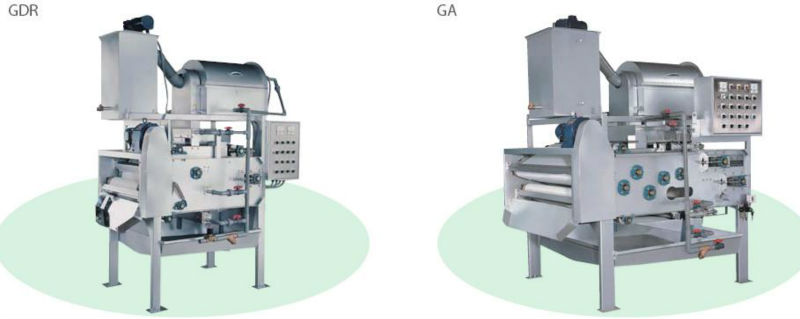

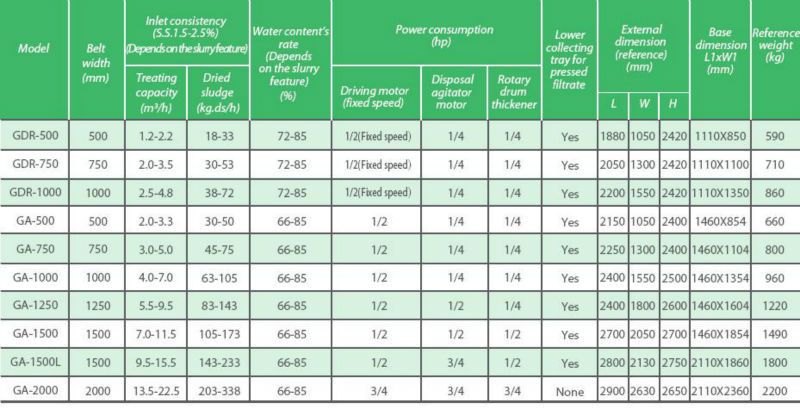

Rotary drum thickening+double-belt type GDR/GA series
(Suitable for high consistency)

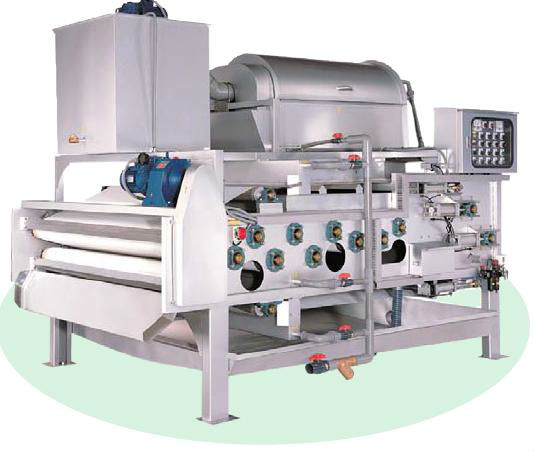

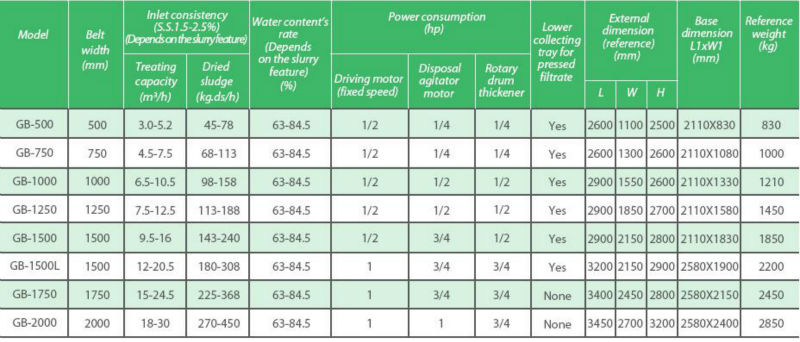

Rotary drum thickening+double-belt type GB series
(Suitable for high consistency)

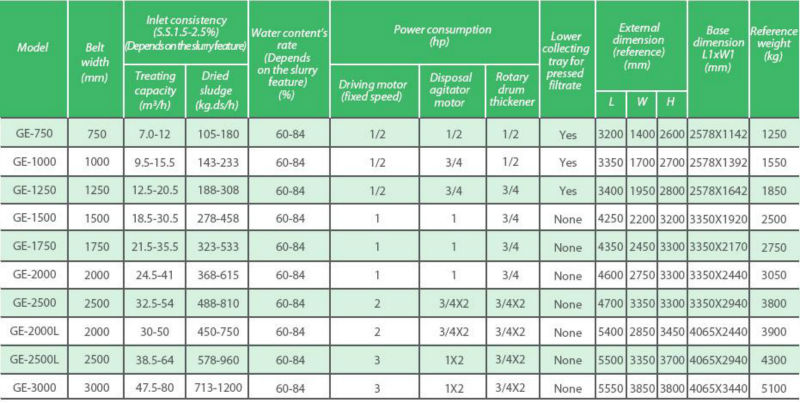

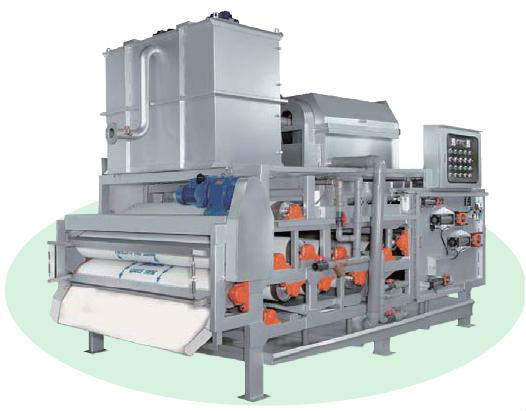

Rotary drum thickening +double-belt type GE series
(Suitable for high consistency)

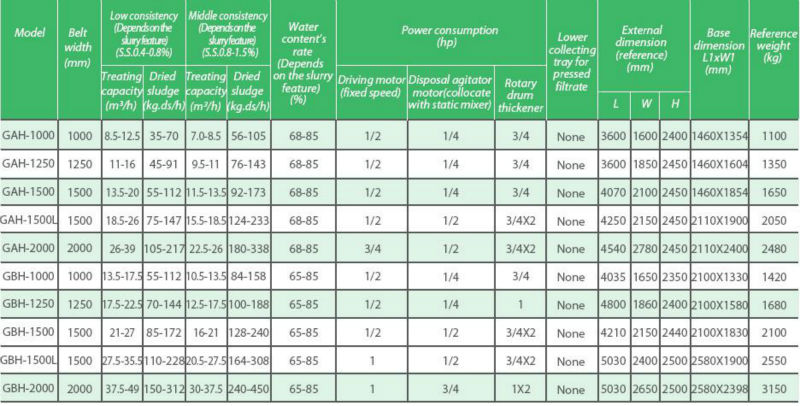

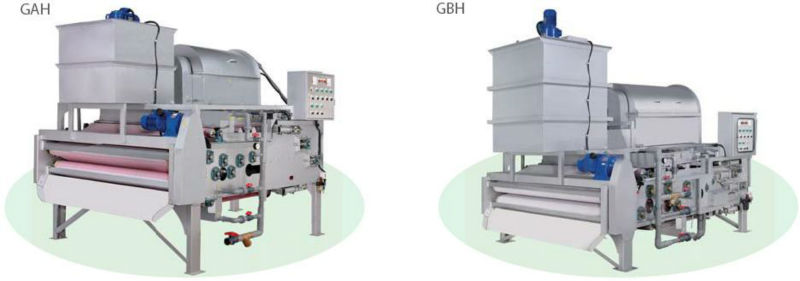

Rotary drum thickening+double-belt type GAH/GBH series
(Suitable for low/middle consistency)















Main projects:
