Application:

The purpose of mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment: active sludge tank, bioreactor tank, mixing tank, equalizing reservoir, sewage tank and ect.; The maintenance equipment for the landscape water environment, improving the quality of the water body; Creating water flow, effectively preventing the sedimentation of the suspended substances.

Features:

1. The two rows of independent mechanical sealing ensure the long-term and reliable operation of the submersible motor.

2. The international well-know high-quality bearings have longer service life, which is maintain free.

3. The unique sealing design for the cables removes the hidden danger of water leakage of the cables.

4. The shaft of the motor employs the stainless steel, and the rotors are inspected with the use of dynamic balancing, leading to

    smooth rotation.

5. The in-built leakage sensor and the device for the over temperature protection for the windings of the stator(No leakage sensor

    for MA0.37/6 or MA0.55/4).

6. The mixer agitators have the stainless steel pressing impeller, which are of the sweptback shape through the optimized design,

    resulted in high efficiency and self-cleaning function.

7. The vanes of the low-speed flow propeller are made of FRP, which are sweptback shape, have the self-cleaning function, the

    smooth and streamlined propeller surface distribut6es the propelling power equally.

Construction:

Related products (you may be interested in):

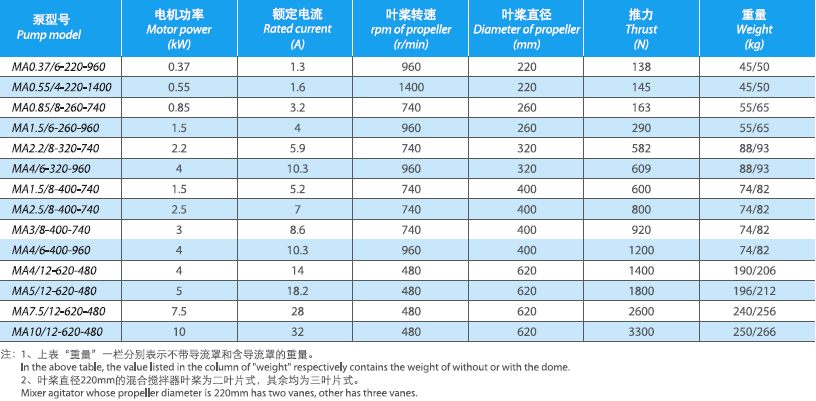

Performance parameters:

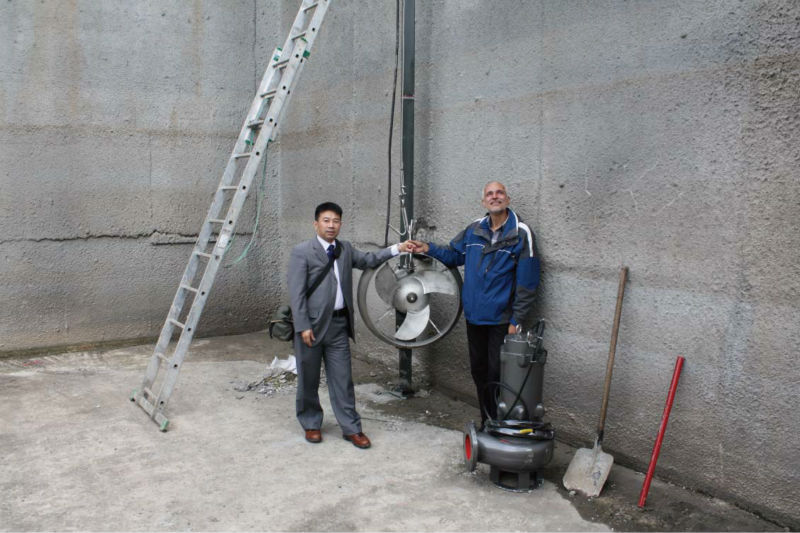

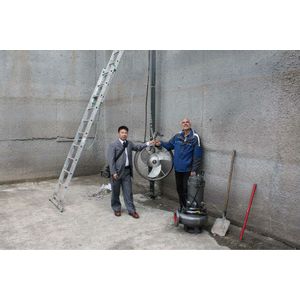

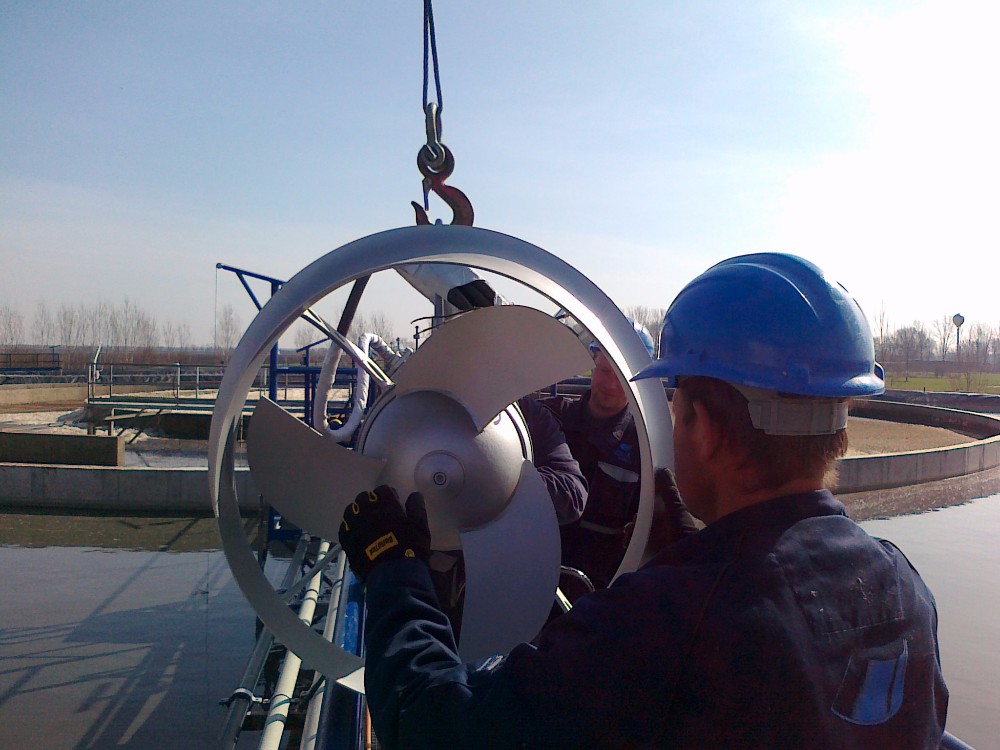

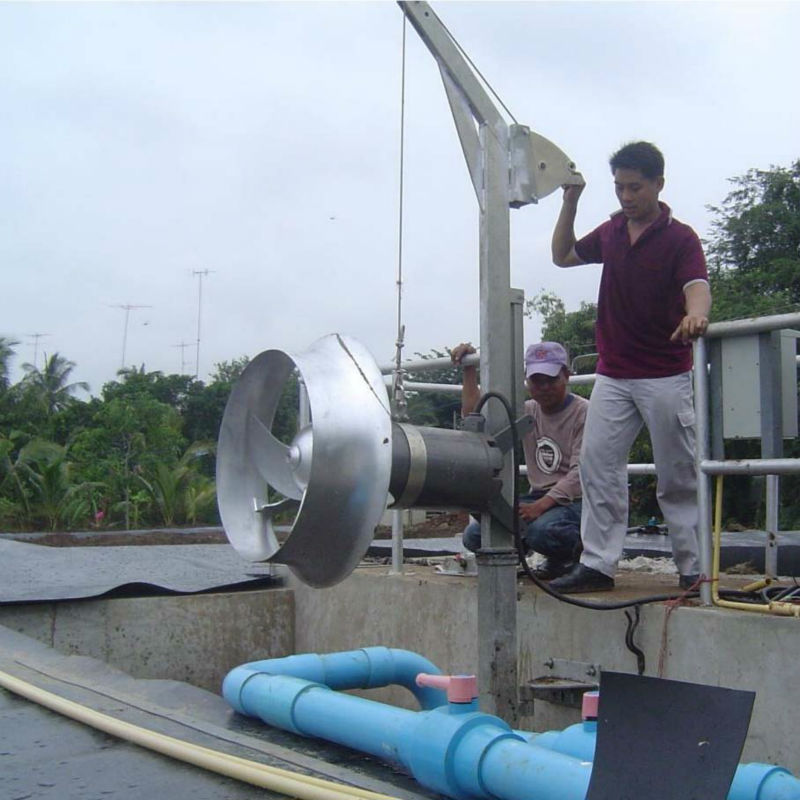

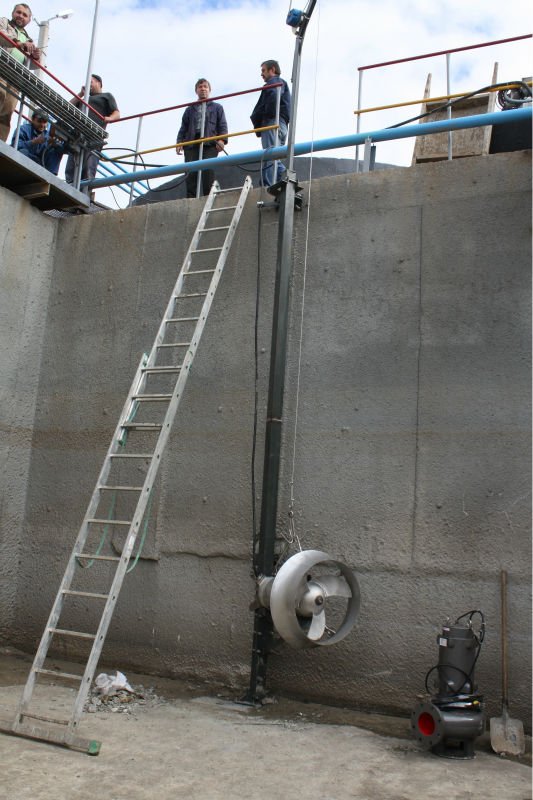

Project reference:

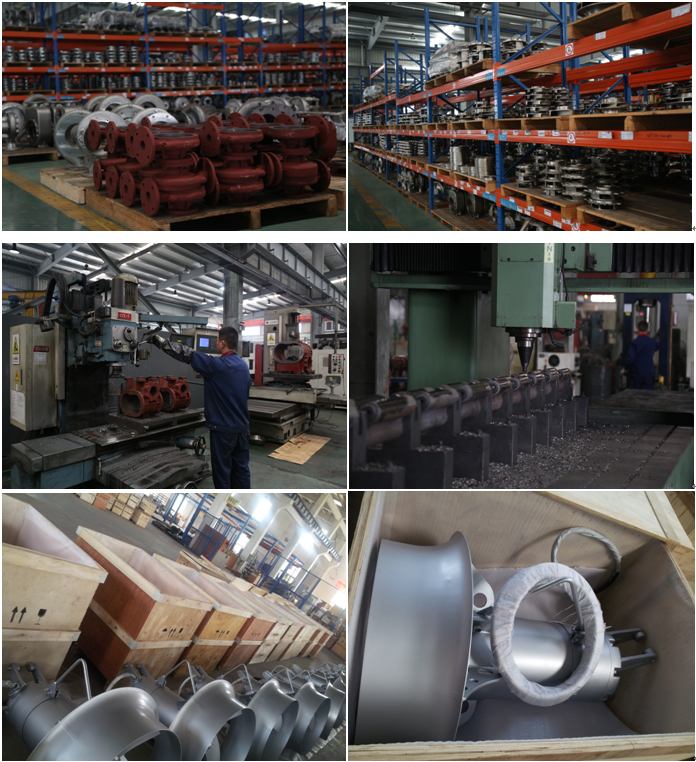

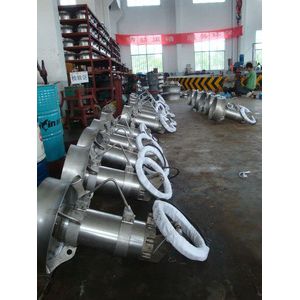

Work shop:

 Certifications:
