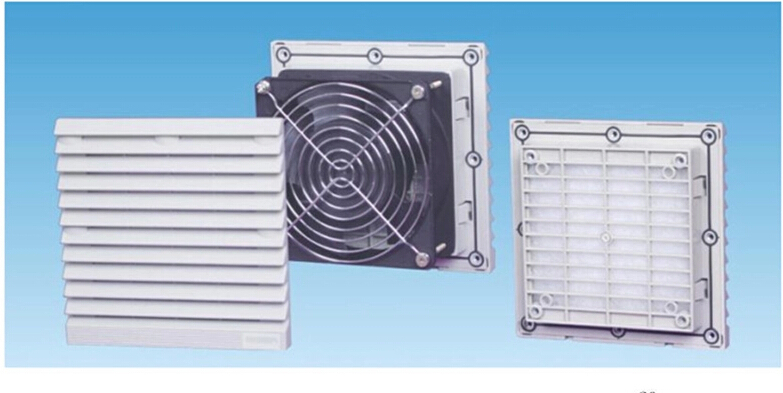

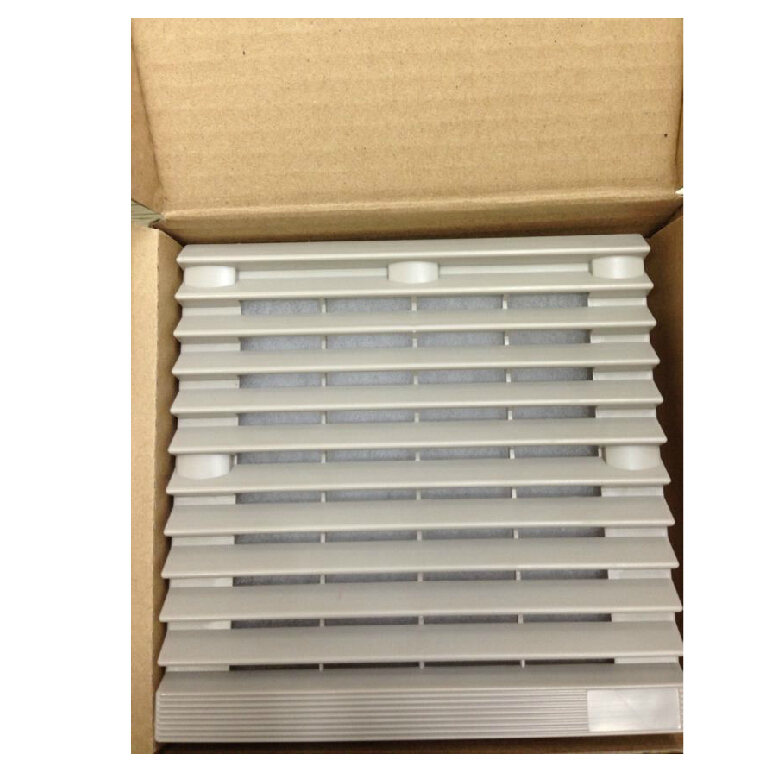

Electrical cabinet exhaust fan waterproof fan filter
Product introduction
Frame material is made from heat resistance and anti-flame ABS plastic .Its fire-resistance ability
Non-woven fibre filter pad is used to prevent dust and granule which is bigger than 10 micron.

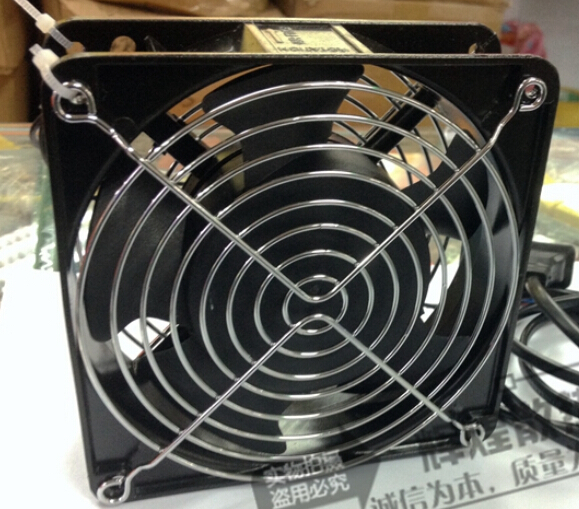

Big power axial fan can make sure filtration air with best flow speed.
The fan which air filter matched is with F insulation class has good capability of temperature raise.
Fan motor has excellent impedance protection and temperature protection (TOP).

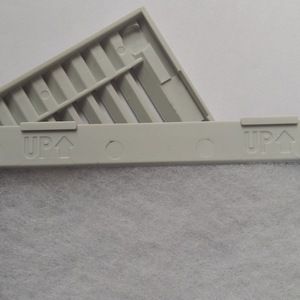

Its easy to change the filter pad by using the groove handle on shutter.
Air filter has IP55 class protection due to set of seal loop.
Ventilation shutters rain-proof capability can not only prevent mechanical damage, and also can resist the moist coming.
Project part of exceed shutter is only 4-6mm , which increase its beauty greatly.

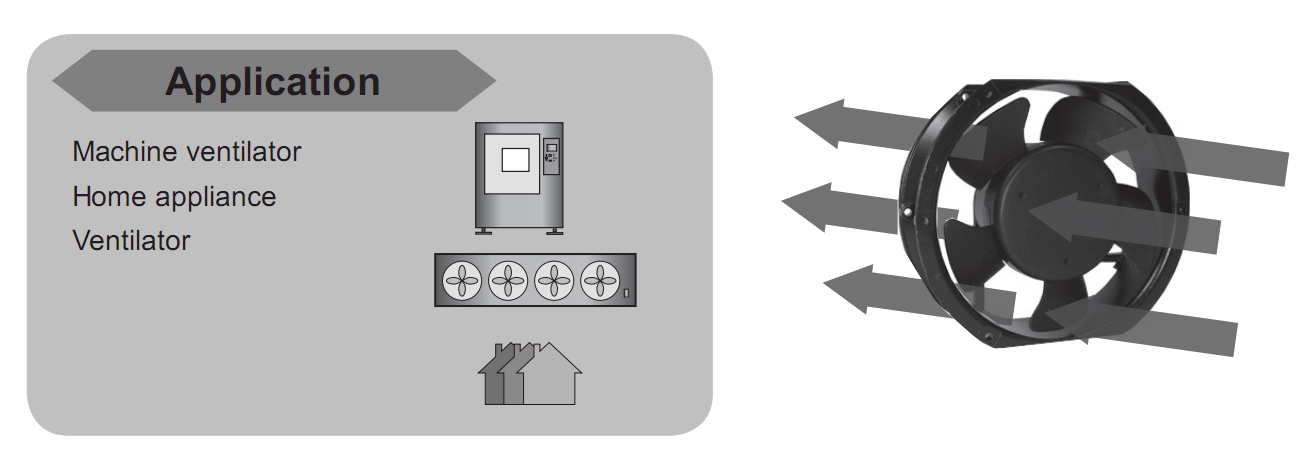

Clients can choose blow or suck air direction through reversing the fans installation simply.

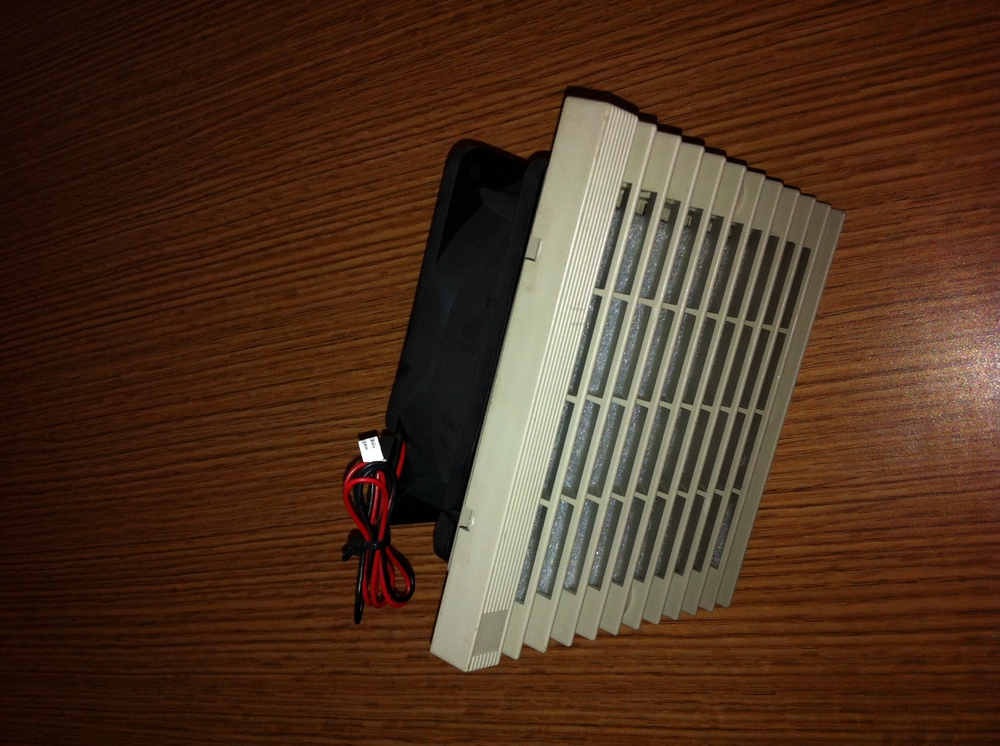

Installation of air filter fan is easy and quick.. You need only open a square hole on it or fix it by screw further more.
| Item No. | Installation hole (mm) | Distance between hole (mm) | Outline size (mm) | Available for fan (mm) |
| ZL800 | 60 x 60 | 67.5 x 67.5 | 80 x 80 | 60mm |
| ZL801 | 81 x 81 | 91.5 x 91.5 | 106 x 106 | 80mm |
| ZL802 | 91 x 91 | 101.5 x 101.5 | 116 x 116 | 92mm |
| ZL803 | 122 x 122 | 131 x 131 | 148.5 x 148.5 | 110/120mm |
| ZL804 | 175 x 175 | 184 x 184 | 204 x 204 | 120/150/172mm |
| ZL805 | 223 x 223 | 233 x 233 | 255 x 255 | 172/180/200/220mm |
| ZL806 | 283 x 283 | 300 x 300 | 320 x 320 | 172/180/200/206/254/220mm |
| ZL807 | 137 x 137 | 151.5 x 151.5 | 170 x 170 | 135mm |
| ZL808 | 327.5 x 88.5 | 329 x 98 | 360.8 x 120 | Not for fan |
Advantages cooling fan:
1.Reliable quality as well as Competitive price
2.Large volume flow and long life expectancy
3.High speed and large air flow
4.Low noise and high efficiency
5.Ball or sleeve bearing for options
6.Sample lead time:3-5 days
7.Delivery lead time:2 weeks
8. Professional service

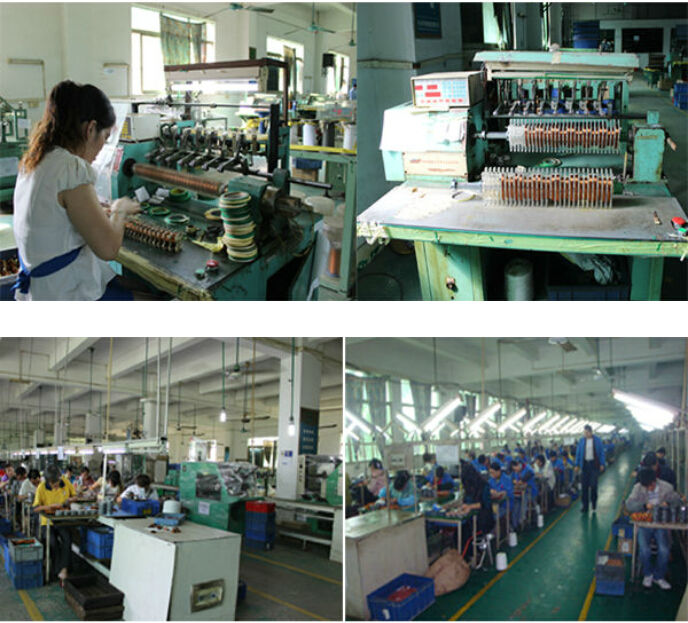

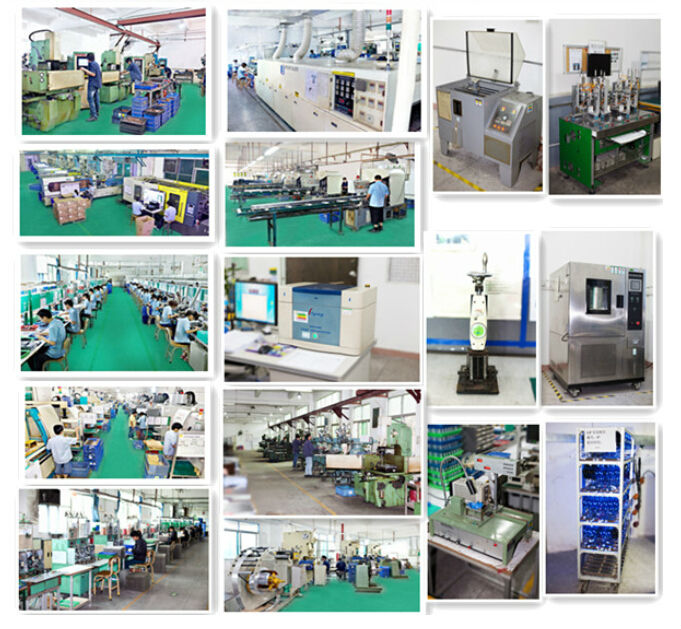

Welcome to visit our factory:JEEK Technology Co.,Ltd
Why did our Customers choose us?
1. Reply < 10 hours
2. Delivery time > 99%
3.Quality Control > 100%
4.After-sales Service > 100%
Who we are?
As a integrative professional cooling fan supplier, we specialize in designing, developing, manufacturing, and marketing of all kinds of axial fans, blower fan and centrifugal fan.
What can we do for you?
1. Good quality axial fans or other cooling fans with competitive price.
2. Satisfying services.
3. OEM&ODM
Our Service
As for the products. we have passe CE. FCC cetificates.
As for factory firm alibilty ,we have passd SEDEX. BV. TUV.
our sincerity business commercial ethic is :''the business principle of best
quality,customer always the first".
sincerely welcome to contact us to made a good cooperation with us.
