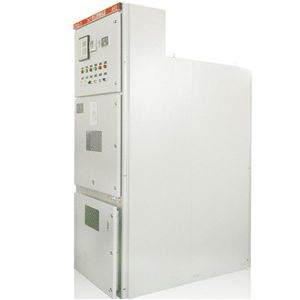

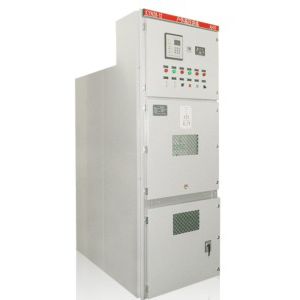

KYN61-40.5(Z) type alternating-current metal-clad and metal-enclosed withdrawable switchgear (hereinafter referred to as switchgear) is a indoor complete set of power distribution unit of three-phase AC50Hz and rated voltage of 40.5kV . Used for receiving and distributing the electric energy in power plants, transformer substations, mining and industrial enterprises, etc., it controls, protects and detects the circuits, also is applicable to frequent operation locations. This switchgear complies with GB/T11022-1999, GB3906-1991, DL404-1997, etc.
1. Ambient temperature: -10℃ ~+40℃ , mean value measured within 24h should not exceed 35 ℃ .
2. Altitude: not exceed 1000m;
3. Relative humidity: daily mean not over 95%, monthly mean not over 90%;
4. Seismic intensity: not beyond Ms8;
5. Vapor pressure: daily mean not over 2.2kPa, monthly mean not over 1.8kPa.
6. Ambient environment: the installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.
Q: What certifications do you get?
A: We have ISO9001/14001/18001 ,CCC, etc.
Q: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
Q: When to get the price?
A: We usually quote within 24 hours after getting your inquiry. If that is the tender project, our engineer will issue optimized design as per tender specification and all the documents will be submitted as per the time schedule regulated in the tender.
Q: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
Q. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
(30% deposit before producing, 70% balance before loading by T/T. L/C should be at sight which issued by world first class Bank)
Q. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
Q. What about the Package?
A: Standard export package and we can make special designed for you if need.
